Carry on more weight for same air pressure or same wieght with less air pressure.

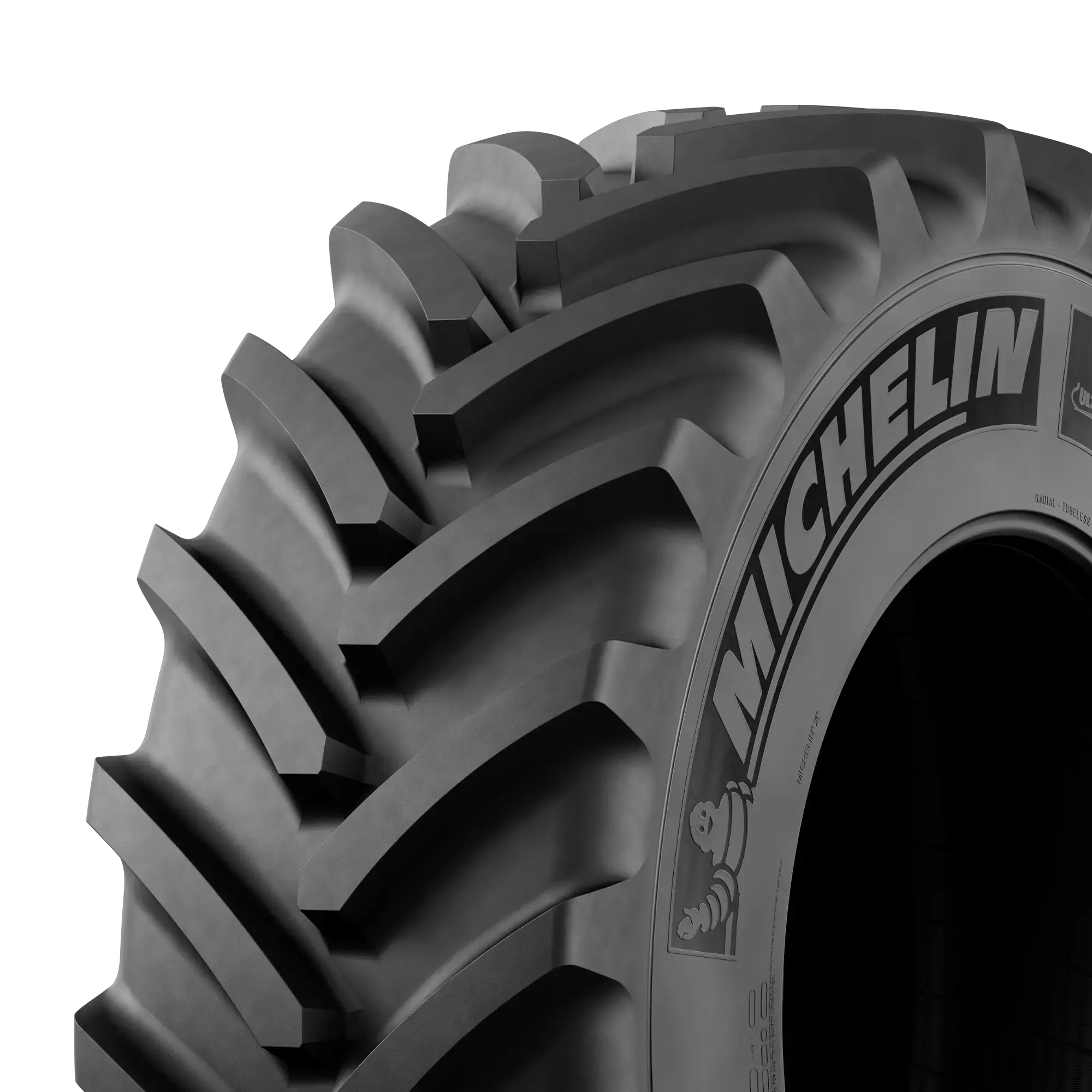

MICHELIN AXIOBIB

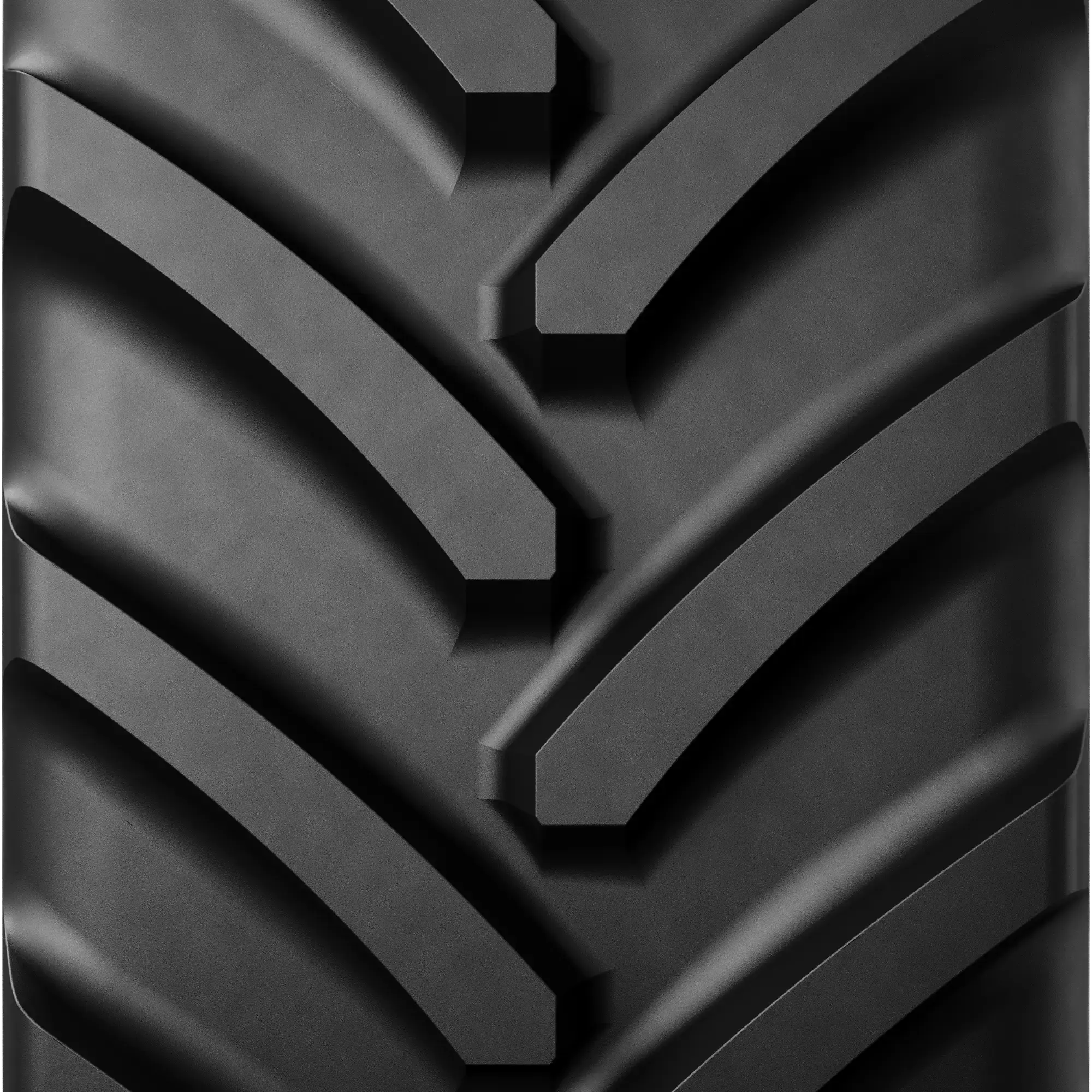

Optimized tread pattern for traction in the field.
Vehicle Type
Tractor
Tractor
Usage of Application
Agricultural Transport, Soil Preparation
Agricultural Transport
Soil Preparation
CTIS (Central Tire Inflation System) is a convenient inflation system allowing the driver to adjust your vehicle's tire pressure from the cab - without leaving your seat. Discover the benefits and how CTIS works.
Why choose the MICHELIN AXIOBIB tire?
Excellent traction and soil protection.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Total Cost of Ownership
Return on investment
Improved yields of +4%/Year.¹
Long tire life.
Comfort
Outstanding sidewall flexibility enhances operator comfort
Traction
Excellent traction
+11% traction with AXIOBIB IF 710/70R42 vs standard 710/70R42.
Soil preservation
Low pressure up to 20% less vs standard radials.
Tractor in a field
Spring into Planting
Save up to $400 on new Michelin Agricultural tires now through May 1, 2026
MICHELIN AXIOBIB Technology
MICHELIN AXIOBIB Tire Reviews
Tire Technical Specifications
Technical Specifications
| Product | MICHELIN AXIOBIB - 650/75R30 |
|---|---|
| Overall Diameter | 1721 mm / 68 inch |
| Recommended Wheels | DW23B(A)x30 |
| Approved Wheels | MW23B(A)x30 |
| Minimum dual spacing | 838 mm / 32.99 inch |
| Tread depth | 57 mm / 70/32 nds |
| Loaded radius | 745 mm |
| CAI | 828322 |
| MSPN | 96826 |
| Load Index | 166 |
| Speed Index | D |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
0.4 6 |
0.6 9 |
0.8 12 |
1 15 |
1.2 17 |
1.4 20 |
1.6 23 |
|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||
|
10 km/h 6 mph |
3965 8741 |
4497.5 9915 |
5030 11089 |
5562.5 12263 |
6095 13437 |
||
|
30 km/h 19 mph |
3590 7915 |
4070 8973 |
4550 10031 |
5030 11089 |
5510 12147 |
||
|
65 km/h 40 mph |
3450 7606 |
3912.5 8626 |
4375 9645 |
4837.5 10665 |
5300 11684 |
||
|
65 km/h Dual 40 mph Dual |
2140 4718 |
2590 5710 |
3040 6702 |
3445 7595 |
3850 8488 |
4255 9381 |
4660 10274 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.
Technical data is subject to change without prior notice.
Technical Specifications
Technical Specifications
| Product | MICHELIN AXIOBIB - 650/75R30 |
|---|---|
| Overall Diameter | 1721 mm / 68 inch |
| Recommended Wheels | DW23B(A)x30 |
| Approved Wheels | MW23B(A)x30 |
| Minimum dual spacing | 838 mm / 32.99 inch |
| Tread depth | 57 mm / 70/32 nds |
| Loaded radius | 745 mm |
| CAI | 828322 |
| MSPN | 96826 |
| Load Index | 166 |
| Speed Index | D |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
0.4 6 |
0.6 9 |
0.8 12 |
1 15 |
1.2 17 |
1.4 20 |
1.6 23 |
|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||
|
10 km/h 6 mph |
3965 8741 |
4497.5 9915 |
5030 11089 |
5562.5 12263 |
6095 13437 |
||
|
30 km/h 19 mph |
3590 7915 |
4070 8973 |
4550 10031 |
5030 11089 |
5510 12147 |
||
|
65 km/h 40 mph |
3450 7606 |
3912.5 8626 |
4375 9645 |
4837.5 10665 |
5300 11684 |
||
|
65 km/h Dual 40 mph Dual |
2140 4718 |
2590 5710 |
3040 6702 |
3445 7595 |
3850 8488 |
4255 9381 |
4660 10274 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) Harper Adams University 2014/2016
