MICHELIN BIBLOAD^® HARD SURFACE

Backhoe Loaders
Compact Wheel Loaders
Telehandlers

Compact Line 90 Day Satisfaction Guarantee

Loading… tires for this product

Technical Specifications

MICHELIN BIBLOAD^® HARD SURFACE

Backhoe Loaders
Compact Wheel Loaders
Telehandlers

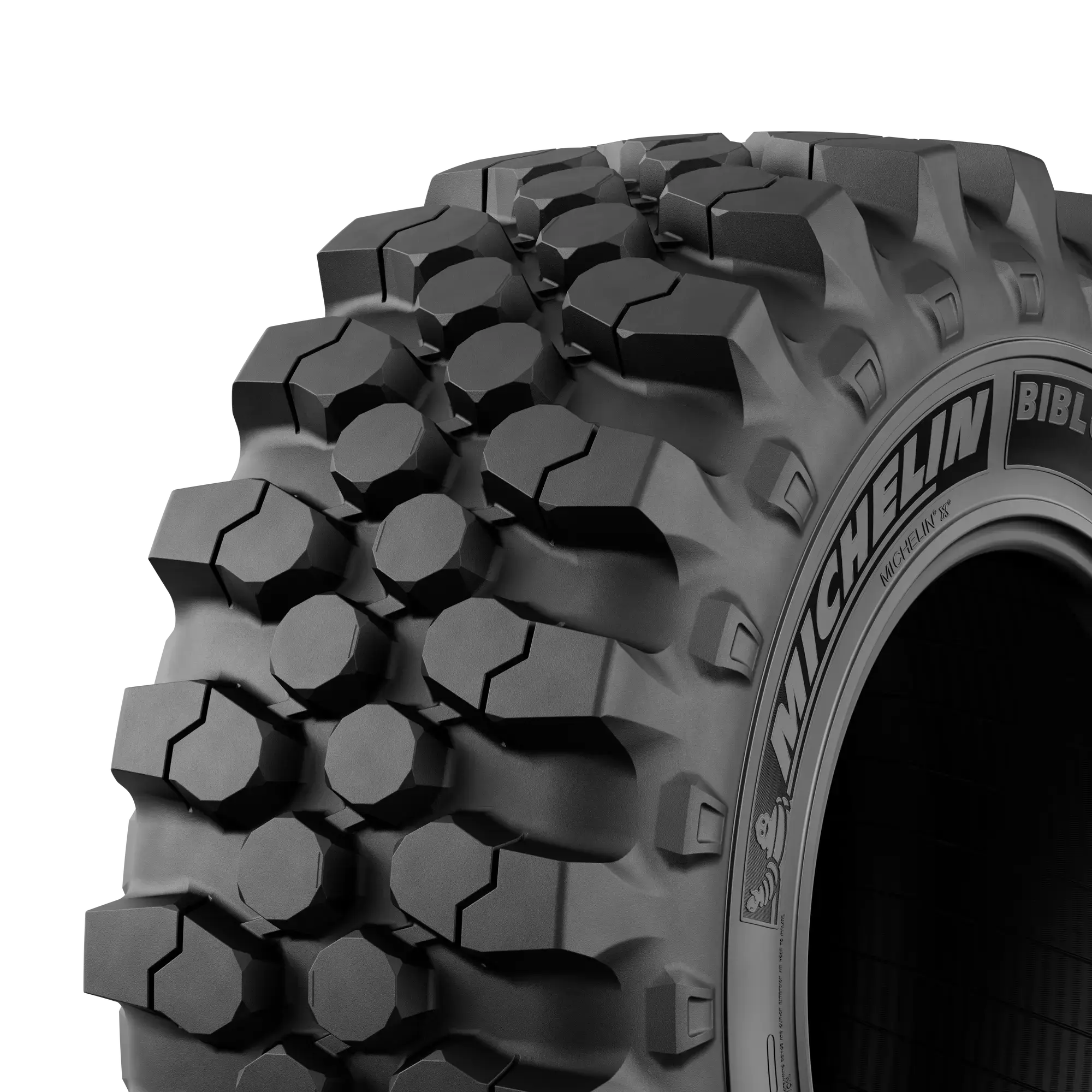

Non-directional steel-belted radial tire

Proven Casing Durability in All Applications
Improved Lateral Traction and Grip vs. Standard R4 Tread Design

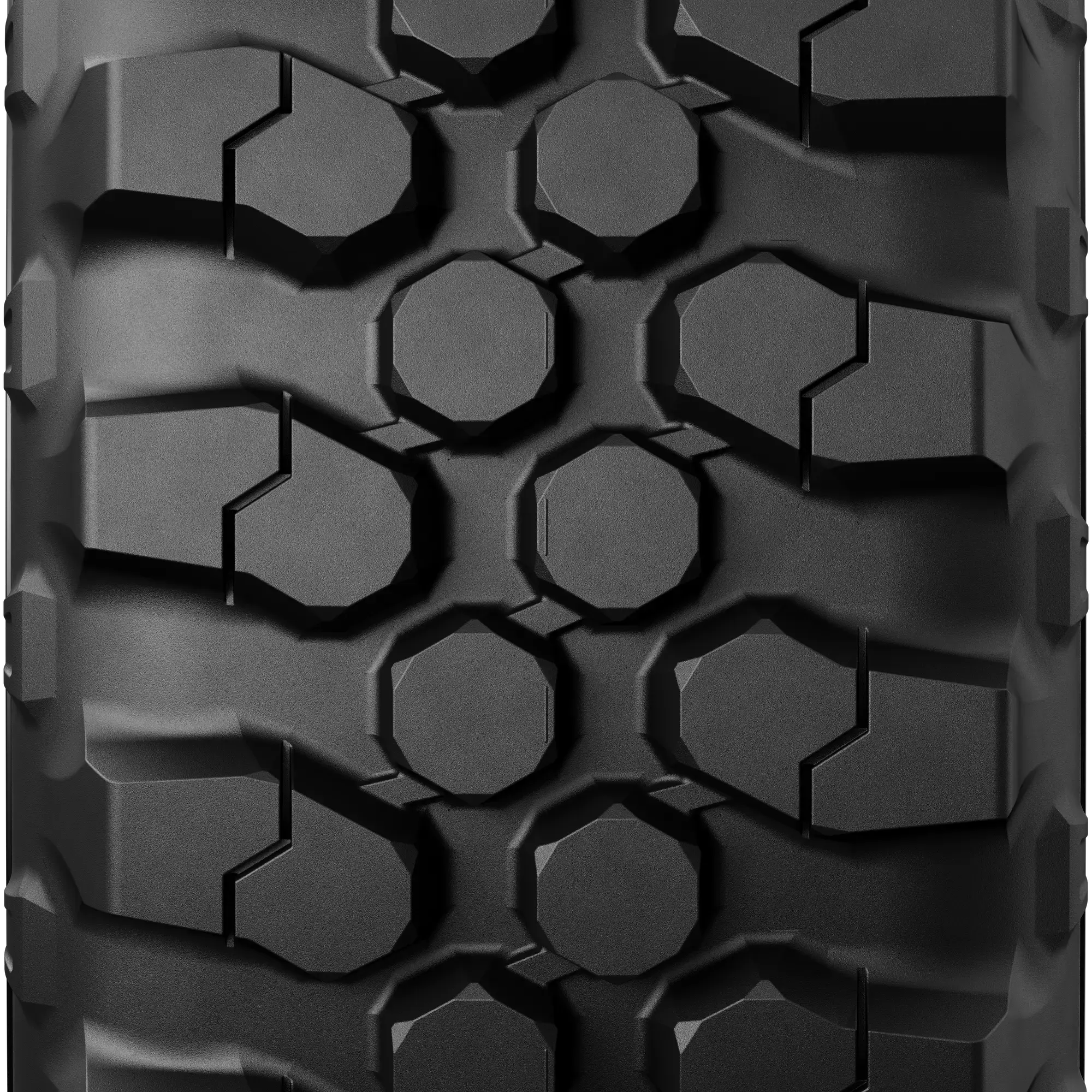

Patented Diamond Lug Pattern Offers Multiple Biting Edges for Traction
Superior Ride Quality

Find a Dealer

All sizes (10)

Steer/All Position

340/80R18 143A8/143B
400/70R18 147A8/147B
340/80R20 144A8/144B
400/70R20 149A8/149B
440/80R24 161A8/161B
460/70R24 159A8/159B
500/70R24 164A8/164B
540/70R24 168A8/168B
480/80R26 167A8/167B
440/80R28 163A8/163B

Technical Specifications

Product	MICHELIN BIBLOAD HARD SURFACE - 340/80R18
Overall Diameter	990 mm
Recommended Wheels	W11x18
Approved Wheels	11SDCx18 \| 11x18 \| 12SDCx18 \| 12x18 \| W10x18
Minimum dual spacing	18 inch
Tread depth	35/32 nds
CAI	415829
MSPN	66605
Load Index	143
Speed Index	A8

Pressures (bar and psi) & Loads (kg and lbs)

Take the load and type of work to be done into account when adjusting the pressure**

bar psi	1.6 23	1.8 26	2 29	2.2 32	2.4 35	2.6 38	2.8 41	3 44	3.2 46	3.4 49	3.6 52	3.8 55	4 58	4.2 61	4.4 64
(kg - lbs)
0 km/h 0 mph	2450 5401	2725 6008	2995 6603	3270 7209	3540 7804	3815 8411	4090 9017	4360 9612	4635 10218	4905 10814	5180 11420	5455 12026	5725 12621	6000 13228	6270 13823
10 km/h Cyclic 6 mph Cyclic	1600 3527	1780 3924	1955 4310	2135 4707	2310 5093	2490 5490	2670 5886	2845 6272	3025 6669	3200 7055	3380 7452	3555 7837	3735 8234	3915 8631	4090 9017
25 km/h 16 mph	1450 3197	1580 3483	1715 3781	1845 4068	1975 4354	2105 4641	2240 4938	2370 5225	2500 5512	2630 5798	2760 6085	2890 6371	3020 6658
30 km/h 19 mph	1390 3064	1520 3351	1645 3627	1775 3913	1900 4189	2030 4475	2155 4751	2285 5038	2410 5313	2540 5600	2665 5875	2795 6162	2920 6437
40 km/h 25 mph	1320 2910	1435 3164	1550 3417	1665 3671	1780 3924	1895 4178	2010 4431	2125 4685	2240 4938	2360 5203	2485 5478	2605 5743	2725 6008
50 km/h 31 mph	1320 2910	1435 3164	1550 3417	1665 3671	1780 3924	1895 4178	2010 4431	2125 4685	2240 4938	2360 5203	2485 5478	2605 5743	2725 6008

bar

psi

1.6

1.8

2.2

2.4

2.6

2.8

3.2

3.4

3.6

3.8

4.2

4.4

(kg - lbs)

0 km/h

0 mph

2450

5401

2725

6008

2995

6603

3270

7209

3540

7804

3815

8411

4090

9017

4360

9612

4635

10218

4905

10814

5180

11420

5455

12026

5725

12621

6000

13228

6270

13823

10 km/h Cyclic

6 mph Cyclic

1600

3527

1780

3924

1955

4310

2135

4707

2310

5093

2490

5490

2670

5886

2845

6272

3025

6669

3200

7055

3380

7452

3555

7837

3735

8234

3915

8631

4090

9017

25 km/h

16 mph

1450

3197

1580

3483

1715

3781

1845

4068

1975

4354

2105

4641

2240

4938

2370

5225

2500

5512

2630

5798

2760

6085

2890

6371

3020

6658

30 km/h

19 mph

1390

3064

1520

3351

1645

3627

1775

3913

1900

4189

2030

4475

2155

4751

2285

5038

2410

5313

2540

5600

2665

5875

2795

6162

2920

6437

40 km/h

25 mph

1320

2910

1435

3164

1550

3417

1665

3671

1780

3924

1895

4178

2010

4431

2125

4685

2240

4938

2360

5203

2485

5478

2605

5743

2725

6008

50 km/h

31 mph

1320

2910

1435

3164

1550

3417

1665

3671

1780

3924

1895

4178

2010

4431

2125

4685

2240

4938

2360

5203

2485

5478

2605

5743

2725

6008

**IMPORTANT

The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes

made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.

MICHELIN BIBLOAD^® HARD SURFACE

Non-directional steel-belted radial tire

PROVEN CASING DURABILITY

IMPROVED LATERAL TRACTION AND GRIP

PATENTED DIAMOND LUG PATTERN

SUPERIOR RIDE QUALITY

LARGER CONTACT AREA WITH HARD SURFACES

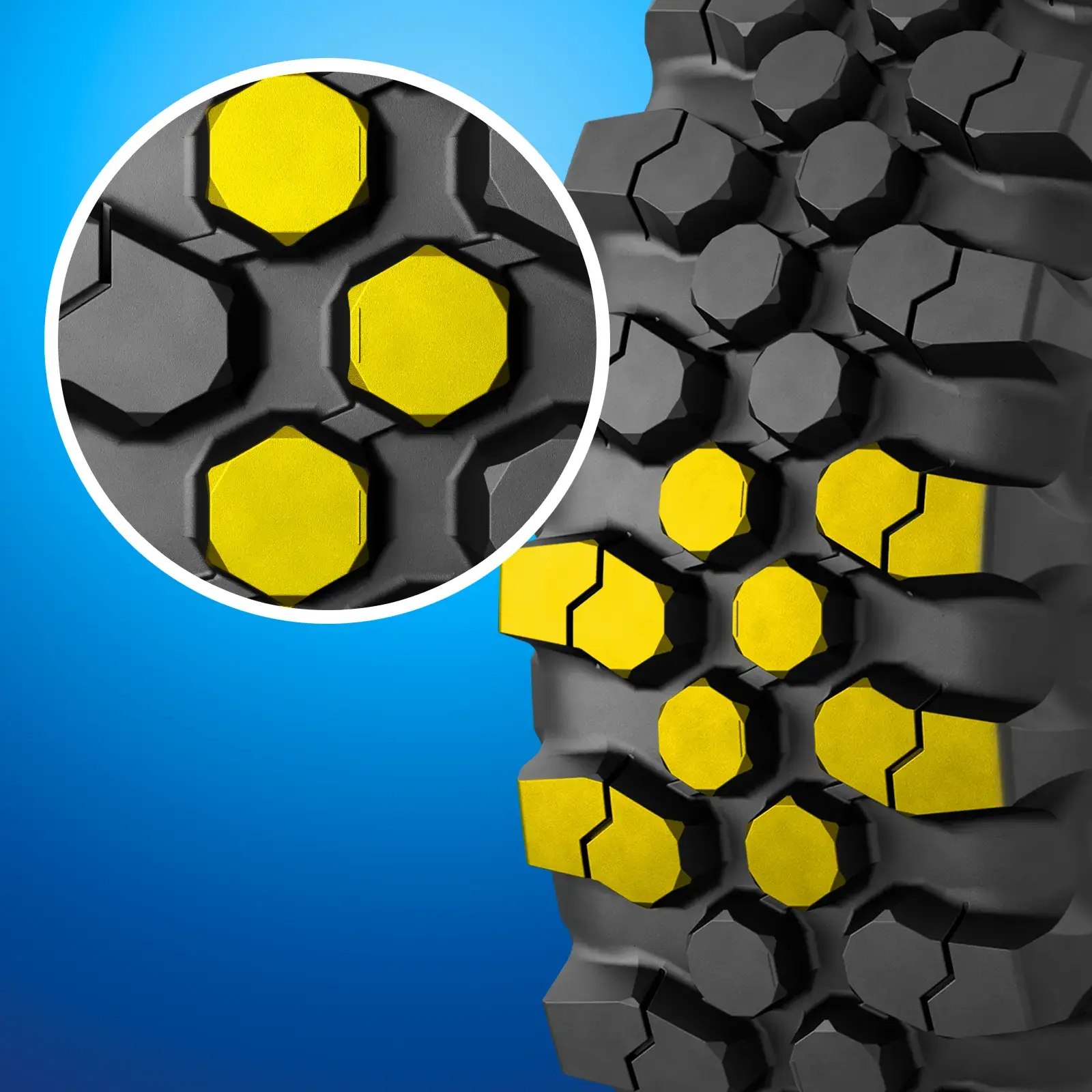

INNOVATION TECHNOLOGY – DIAMOND TREAD PATTERN

Michelin Agriculture Tires BibLoad For The Backhoe.
