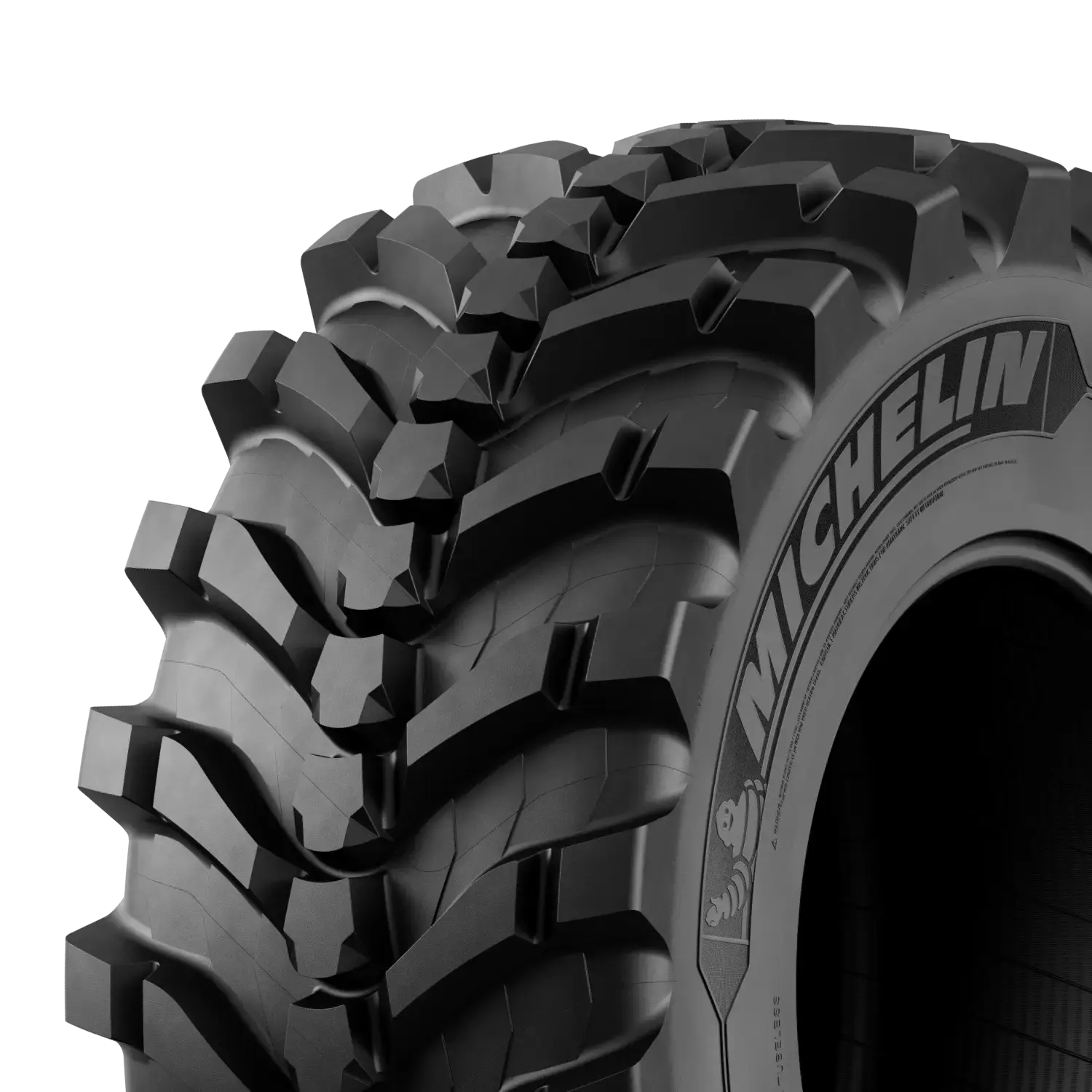

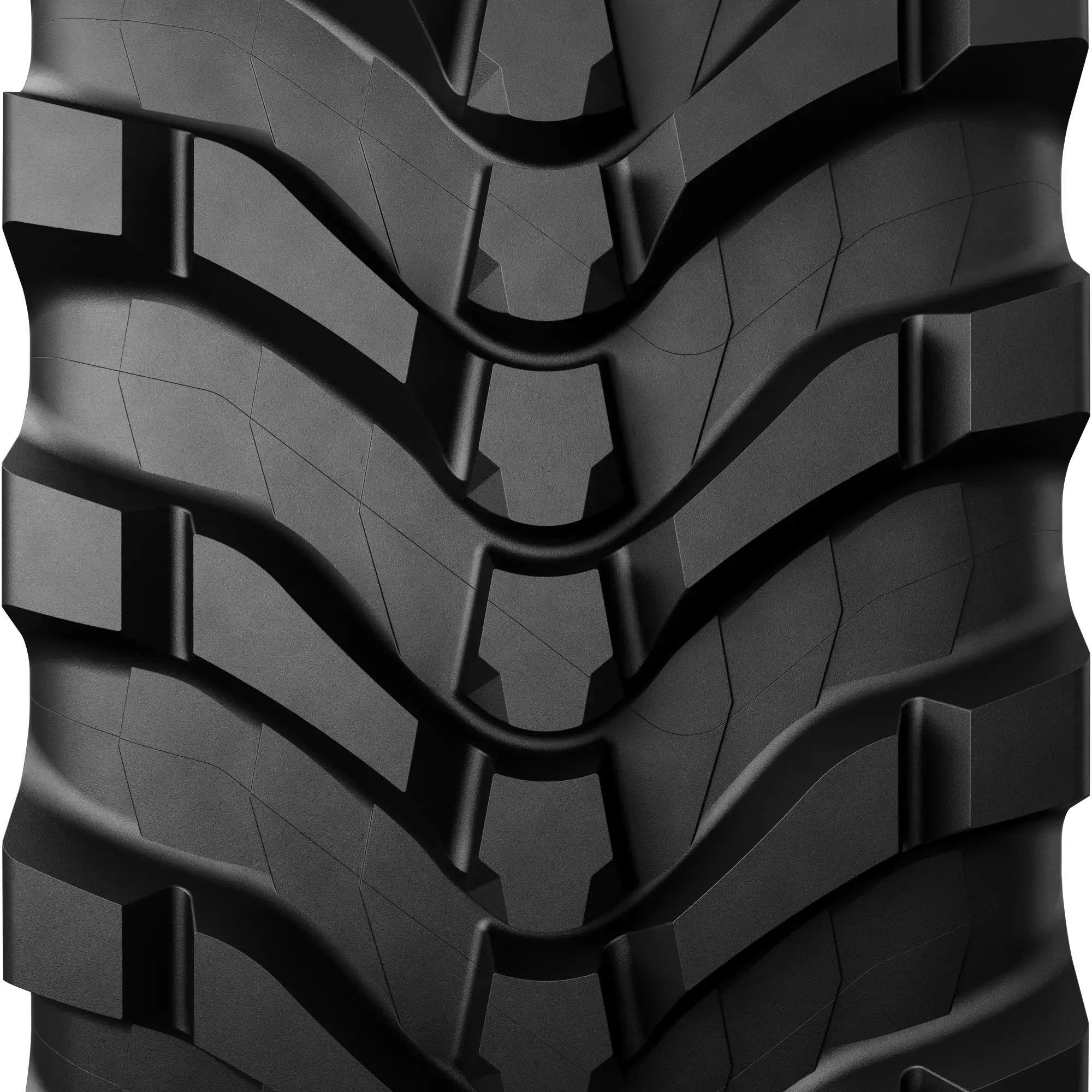

MICHELIN EVOBIB
MICHELIN EVOBIB is the only tire of the market specifically developed for tractor fitted with Central Tire Inflation System. This 2-in-1 tire with specific tread pattern allows to get the best performances on road: fuel savings, wear life and comfort. Also, in the field with better traction and respect the soil. Its contact patch changes depending on the pressure used. MICHELIN EVOBIB takes also advantages of MICHELIN ULTRAFLEX reinforced casing with VF and PFO standards.
CTIS (Central Tire Inflation System) is a convenient inflation system allowing the driver to adjust your vehicle's tire pressure from the cab - without leaving your seat. Discover the benefits and how CTIS works.
Why choose the MICHELIN EVOBIB tire?
Versatility
Productivity
Soil preservation
Comfort
Tractor in a field
MICHELIN EVOBIB Technology
Tire Technical Specifications
Technical Specifications
| Product | VF MICHELIN EVOBIB - 600/70R30 |
|---|---|
| Overall Diameter | 1598.4 mm / 63 inch |
| Recommended Wheels | DW21B(A)x30 |
| Approved Wheels | DW20B(A)x30 |
| Minimum dual spacing | 774 mm / 30.47 inch |
| Tread depth | 53.3 mm / 67/32 nds |
| Loaded radius | 684 mm |
| CAI | 147406 |
| MSPN | 84958 |
| Load Index | 165 |
| Speed Index | D |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
0.6 9 |
0.7 10 |
0.8 12 |
0.9 13 |
1 15 |
1.2 17 |
1.4 20 |
1.6 23 |
1.8 26 |
2 29 |
2.2 32 |
2.3 33 |
2.4 35 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||||
|
3515 7749 |
3808 8395 |
4101 9041 |
4394 9687 |
4687 10333 |
5273 11625 |
5859 12917 |
6445 14209 |
||||||
|
3040 6702 |
3292 7258 |
3544 7813 |
3796 8369 |
4048 8924 |
4552 10035 |
5056 11147 |
5560 12258 |
||||||
|
1815 4001 |
1980 4365 |
2145 4729 |
2475 5456 |
2784 6138 |
3093 6819 |
3402 7500 |
3711 8181 |
4020 8863 |
4585 10108 |
5150 11354 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.
Technical data is subject to change without prior notice.
Technical Specifications
| Product | VF MICHELIN EVOBIB - 600/70R30 |
|---|---|
| Overall Diameter | 1598.4 mm / 63 inch |
| Recommended Wheels | DW21B(A)x30 |
| Approved Wheels | DW20B(A)x30 |
| Minimum dual spacing | 774 mm / 30.47 inch |
| Tread depth | 53.3 mm / 67/32 nds |
| Loaded radius | 684 mm |
| CAI | 147406 |
| MSPN | 84958 |
| Load Index | 165 |
| Speed Index | D |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
0.6 9 |
0.7 10 |
0.8 12 |
0.9 13 |
1 15 |
1.2 17 |
1.4 20 |
1.6 23 |
1.8 26 |
2 29 |
2.2 32 |
2.3 33 |
2.4 35 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||||
|
3515 7749 |
3808 8395 |
4101 9041 |
4394 9687 |
4687 10333 |
5273 11625 |
5859 12917 |
6445 14209 |
||||||
|
3040 6702 |
3292 7258 |
3544 7813 |
3796 8369 |
4048 8924 |
4552 10035 |
5056 11147 |
5560 12258 |
||||||
|
1815 4001 |
1980 4365 |
2145 4729 |
2475 5456 |
2784 6138 |
3093 6819 |
3402 7500 |
3711 8181 |
4020 8863 |
4585 10108 |
5150 11354 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
(1) Using a CTIS system combined with MICHELIN EVOBIB is recommended to enjoy the performance of ADAPTIVE DESIGN TECHNOLOGY. (2) Comparative internal study Michelin Ladoux (Dec 2014 and Nov 2015) between MICHELIN EVOBIB VF 710/70R42 and MICHELIN AXIOBIB IF 710/70R42 at a pressure of 12psi. (3) Within the limits stipulated in the laws in force in the country. Recommended increase of the fields’ pressure for road use.
