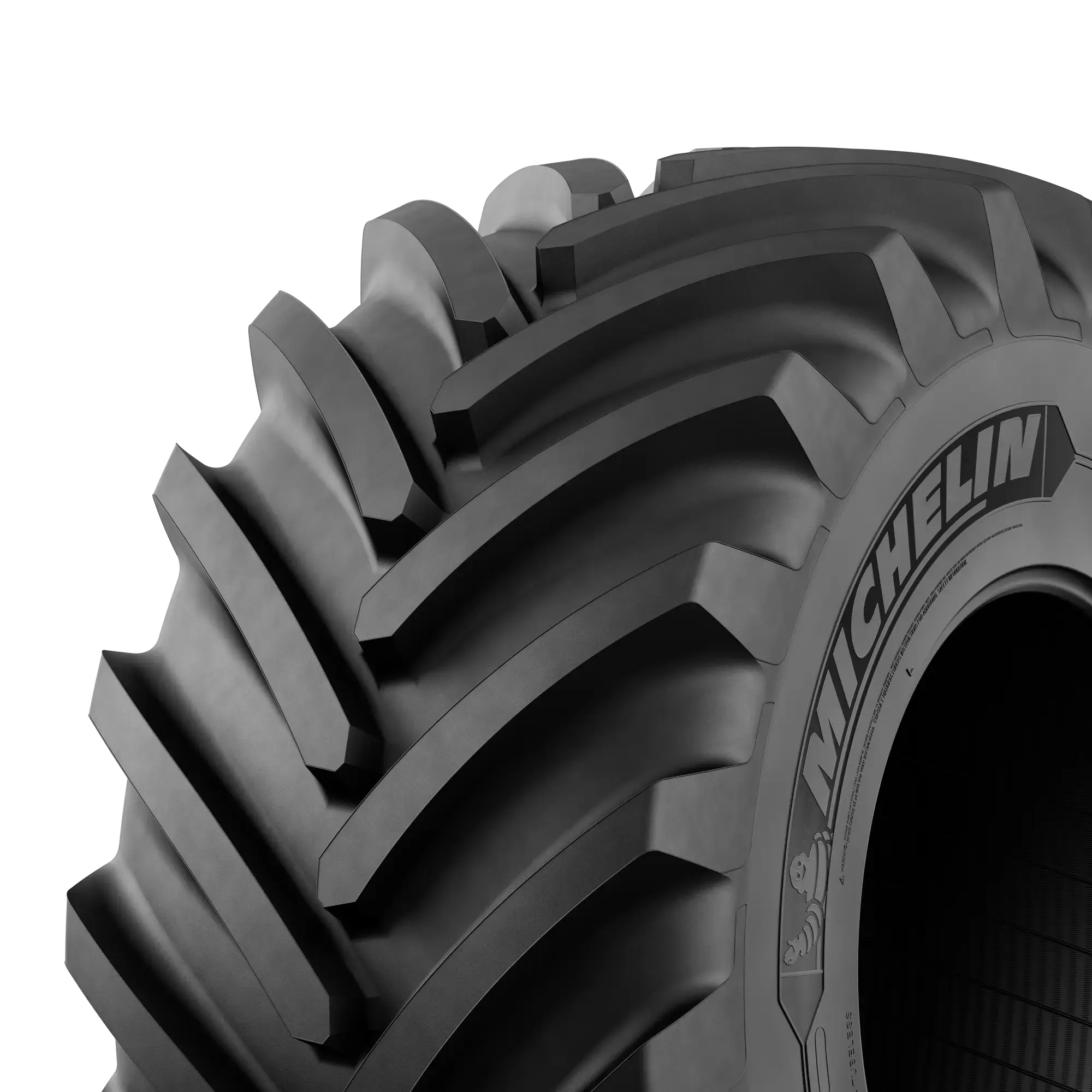

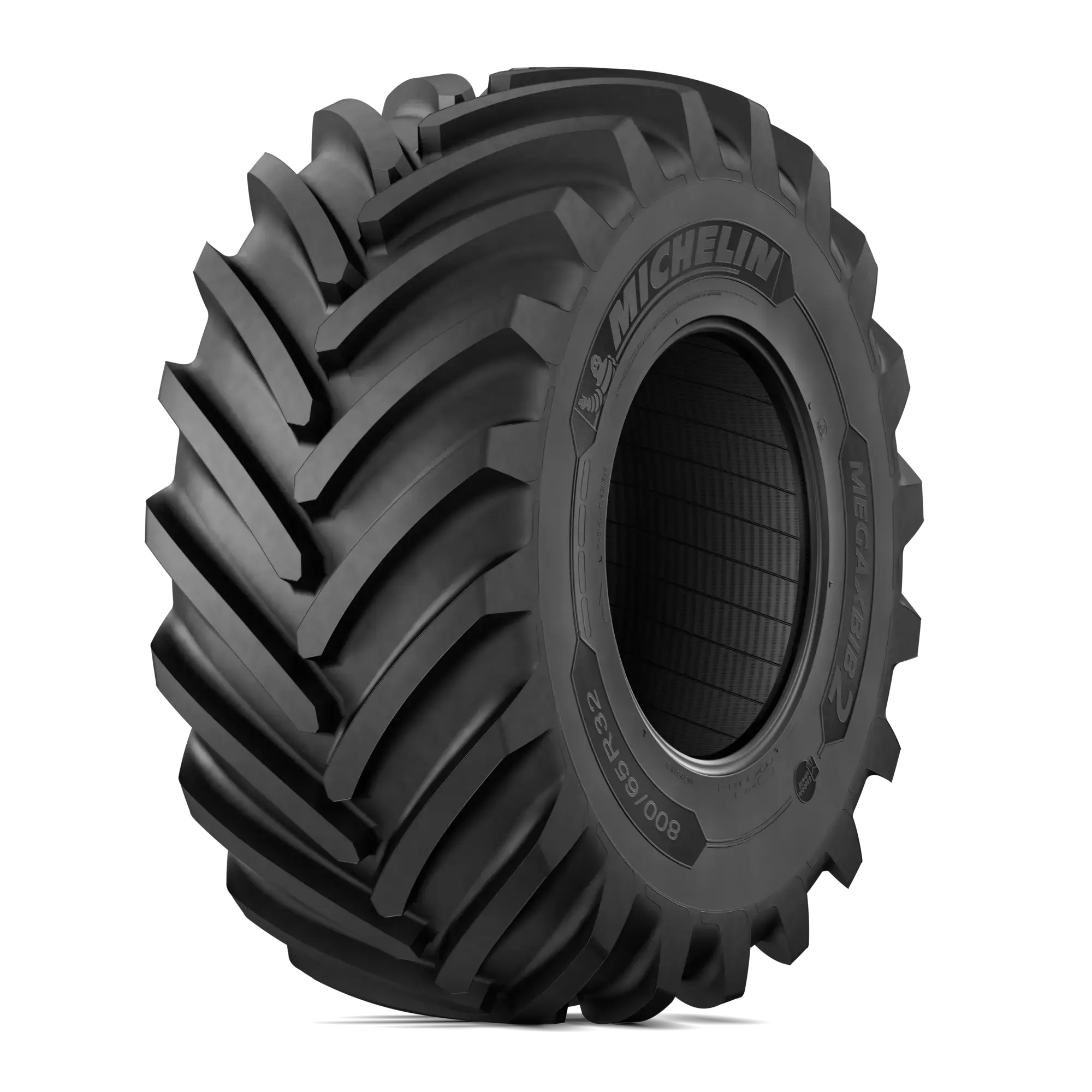

MICHELIN MEGAXBIB® 2
Excellent solution for harvesters, floaters and heavy equipment.
- Robust and Stubble Resistant
- Megaxbib Range Benefits
- Steel Crown Belts
- Stubble Shield
Megaxbib 2
Robust Performance
ROI
Steel Belts
Stubble Shield
Megaxbib2 construction details

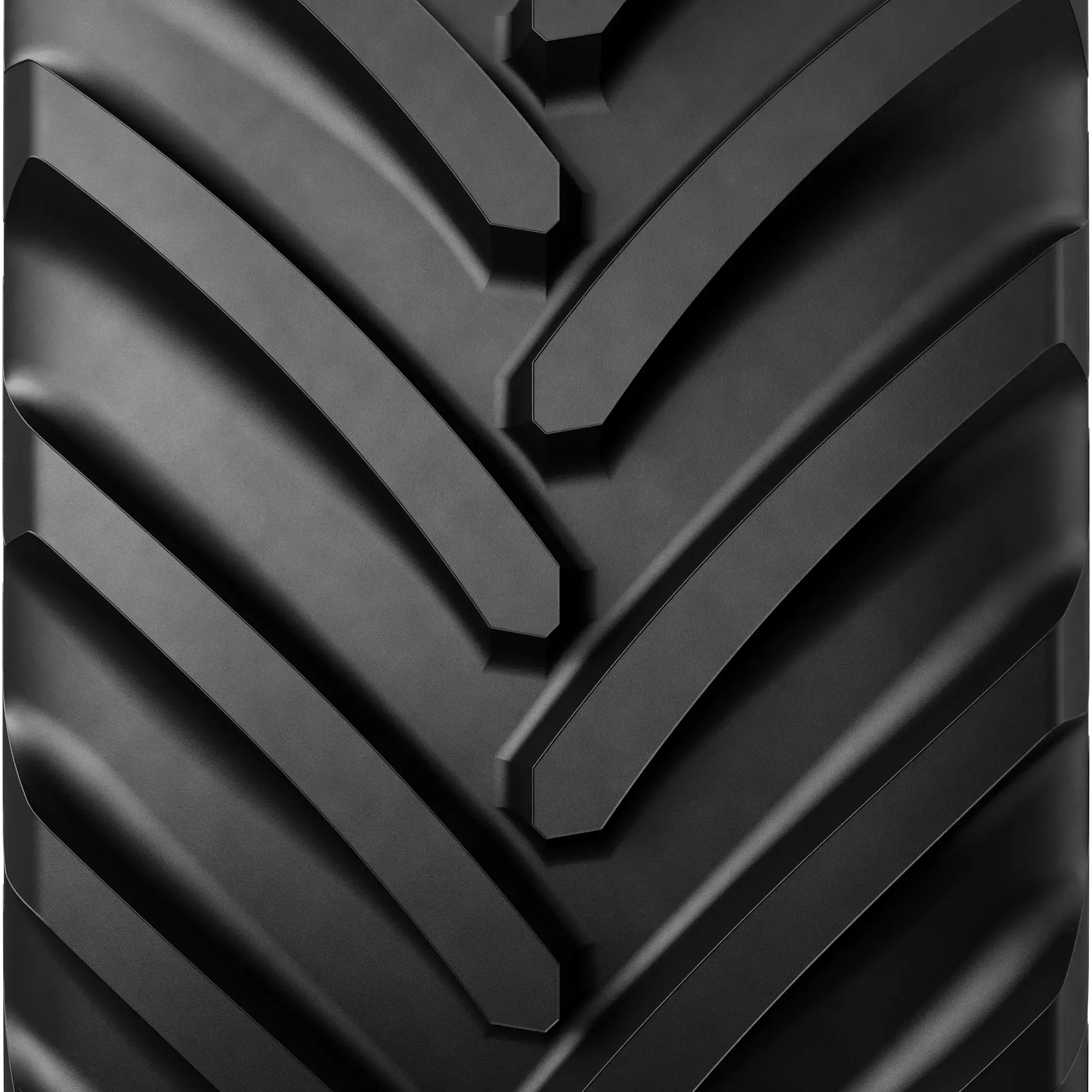

Megaxbib 2 Tread
RELATED SERVICES AND SOLUTIONS
Technical Specifications
| Product | MICHELIN MEGAXBIB 2 - 1000/50R25 |
|---|---|
| Overall Diameter | 1654 mm / 65 inch |
| Recommended Wheels | 36.0THx25 |
| Minimum dual spacing | 1233 mm / 48.54 inch |
| Tread depth | 46 mm / 1.8/32 nds |
| Loaded radius | 732 mm |
| CAI | 852423 |
| MSPN | 76362 |
| Load Index | 172 |
| Speed Index | A8 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
1 15 |
1.3 19 |
1.6 23 |
1.9 28 |
2.2 32 |
2.3 33 |
2.4 35 |
2.5 36 |
2.6 38 |
2.7 39 |
2.8 41 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||
|
10 km/h 6 mph |
5815 12820 |
6940 15300 |
7740 17064 |
8385 18486 |
9025 19897 |
9235 20360 |
9450 20834 |
||||
|
10 km/h Cyclic 6 mph Cyclic |
8290 18276 |
9005 19853 |
9725 21440 |
9960 21958 |
10200 22487 |
10330 22774 |
10455 23049 |
10585 23336 |
10710 23612 |
||
|
30 km/h 19 mph |
4145 9138 |
4950 10913 |
5670 12500 |
6070 13382 |
6475 14275 |
6605 14562 |
6740 14859 |
||||
|
30 km/h Cyclic 19 mph Cyclic |
6565 14473 |
7480 16491 |
8390 18497 |
8695 19169 |
9000 19842 |
9115 20095 |
9225 20338 |
9340 20591 |
9450 20834 |
||
|
40 km/h 25 mph |
3875 8543 |
4625 10196 |
5300 11684 |
5675 12511 |
6050 13338 |
6175 13614 |
6300 13889 |
||||
|
65 km/h 40 mph |
3255 7176 |
3885 8565 |
4450 9811 |
4765 10505 |
5080 11199 |
5185 11431 |
5290 11662 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.
Technical data is subject to change without prior notice.
