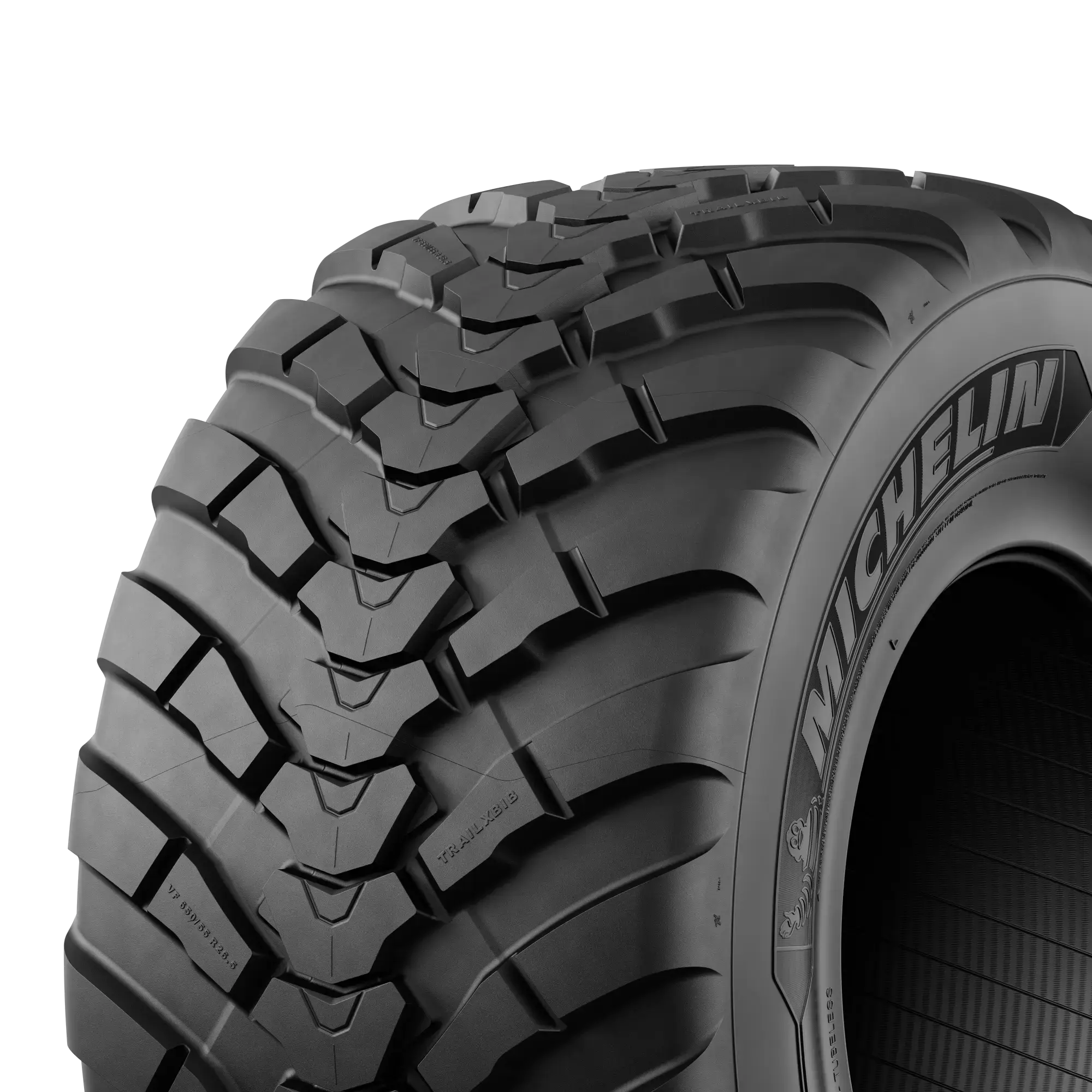

MICHELIN TRAILXBIB^®

Enhanced performance for slurry wagons, spreaders and trailers

• Outstanding Endurance
• Self-Cleaning Tread Design
• Designed for a Long Tire Life
• Low Soil Compaction (VF)

Loading… tires for this product

Get a quote Find a Dealer Technical Specifications

MICHELIN

TRAILXBIB^®

VF 500/60R22.5 IMP 160D TL
VF 560/60R22.5 IMP 166D TL
VF 600/50R22.5 IMP 164D TL
VF 710/45R22.5 IMP 170D TL
VF 710/65R26 IMP 184D TL
28LR26
VF 600/55R26.5 IMP 170D TL
VF 650/55R26.5 IMP 174D TL
VF 650/65R26.5 IMP 179D TL
VF 710/50R26.5 IMP 176D TL
VF 600/60R30.5 IMP 175D TL
VF 650/65R30.5 IMP 181D TL
VF 710/50R30.5 IMP 178D TL
VF 750/60R30.5 IMP 187D TL
VF 850/50R30.5 IMP 188D TL
VF 800/60R32 IMP 191D TL

Get a quote

MICHELIN

TRAILXBIB^®

VF 500/60R22.5 IMP 160D TL
VF 560/60R22.5 IMP 166D TL
VF 600/50R22.5 IMP 164D TL
VF 710/45R22.5 IMP 170D TL
VF 710/65R26 IMP 184D TL
28LR26
VF 600/55R26.5 IMP 170D TL
VF 650/55R26.5 IMP 174D TL
VF 650/65R26.5 IMP 179D TL
VF 710/50R26.5 IMP 176D TL
VF 600/60R30.5 IMP 175D TL
VF 650/65R30.5 IMP 181D TL
VF 710/50R30.5 IMP 178D TL
VF 750/60R30.5 IMP 187D TL
VF 850/50R30.5 IMP 188D TL
VF 800/60R32 IMP 191D TL

Get a quote

TIRE PRESSURE MATTERS

Running at the optimal tire pressure can deliver measureable benefits:

In the Field – Low tire pressures help deliver traction and horsepower to the ground while minimizing soil compaction.

On the Road – Higher tire pressures help you navigate safely and quickly on the road with optimized tire wear and fuel consumption.

A central tire inflation system (CTIS) enables the machine to run at the right pressure in the field and on the road – a farmer can easily adjust the tire pressure on the go at the touch of a button on a control panel.

Technical Specifications

Product	VF MICHELIN TRAILXBIB - 500/60R22.5
Overall Diameter	1173 mm / 46 inch
Recommended Wheels	AG16.00(H2)x22.5
Approved Wheels	15.00x22.5-16.00x22.5-17.00x22.5
Minimum dual spacing	654 mm / 25.75 inch
Tread depth	19.5 mm / 0.8/32 nds
Loaded radius	493 mm
CAI	229116
MSPN	02997
Load Index	160
Speed Index	D

Pressure (bar and psi) & Load (kg and lbs)

Factor the load and type of work when adjusting tire pressure**

bar psi	0.8 12	0.9 13	1 15	1.2 17	1.5 22	1.8 26	2.1 30	2.4 35	2.7 39	3 44	3.2 46
(kg - lbs)
10 km/h 6 mph	3125 6889	3335 7352	3545 7815	3970 8752	4600 10141	5090 11222	5580 12302	6070 13382	6560 14462	7050 15543	7375 16259
25 km/h 16 mph	2775 6118	2965 6537	3155 6956	3530 7782	4100 9039	4535 9998	4975 10968	5410 11927	5845 12886	6285 13856	6575 14495
40 km/h 25 mph	2450 5401	2615 5765	2780 6129	3105 6845	3600 7937	3990 8796	4375 9645	4765 10505	5155 11365	5540 12214	5800 12787
50 km/h 31 mph	2225 4905	2375 5236	2525 5567	2825 6228	3275 7220	3630 8003	3980 8774	4335 9557	4685 10329	5040 11111	5275 11629
65 km/h 40 mph	1900 4189	2030 4475	2155 4751	2415 5324	2800 6173	3100 6834	3400 7496	3700 8157	4000 8818	4300 9480	4500 9921

bar

psi

0.8

0.9

1.2

1.5

1.8

2.1

2.4

2.7

3.2

(kg - lbs)

10 km/h

6 mph

3125

6889

3335

7352

3545

7815

3970

8752

4600

10141

5090

11222

5580

12302

6070

13382

6560

14462

7050

15543

7375

16259

25 km/h

16 mph

2775

6118

2965

6537

3155

6956

3530

7782

4100

9039

4535

9998

4975

10968

5410

11927

5845

12886

6285

13856

6575

14495

40 km/h

25 mph

2450

5401

2615

5765

2780

6129

3105

6845

3600

7937

3990

8796

4375

9645

4765

10505

5155

11365

5540

12214

5800

12787

50 km/h

31 mph

2225

4905

2375

5236

2525

5567

2825

6228

3275

7220

3630

8003

3980

8774

4335

9557

4685

10329

5040

11111

5275

11629

65 km/h

40 mph

1900

4189

2030

4475

2155

4751

2415

5324

2800

6173

3100

6834

3400

7496

3700

8157

4000

8818

4300

9480

4500

9921

**IMPORTANT

The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.

Technical data is subject to change without prior notice.

MICHELIN TRAILXBIB^®

Enhanced performance for slurry wagons, spreaders and trailers

OUTSTANDING ENDURANCE

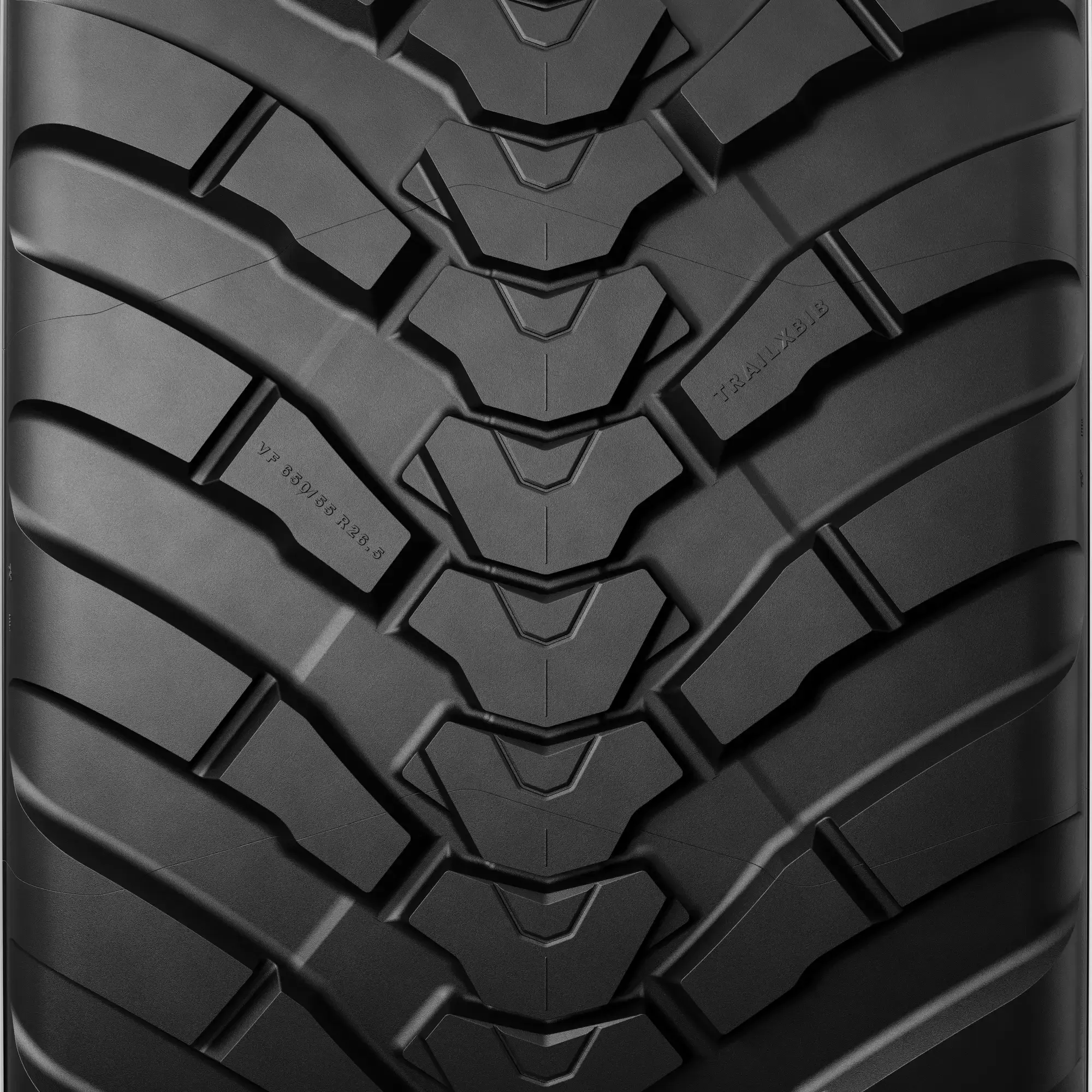

SELF-CLEANING TREAD DESIGN
