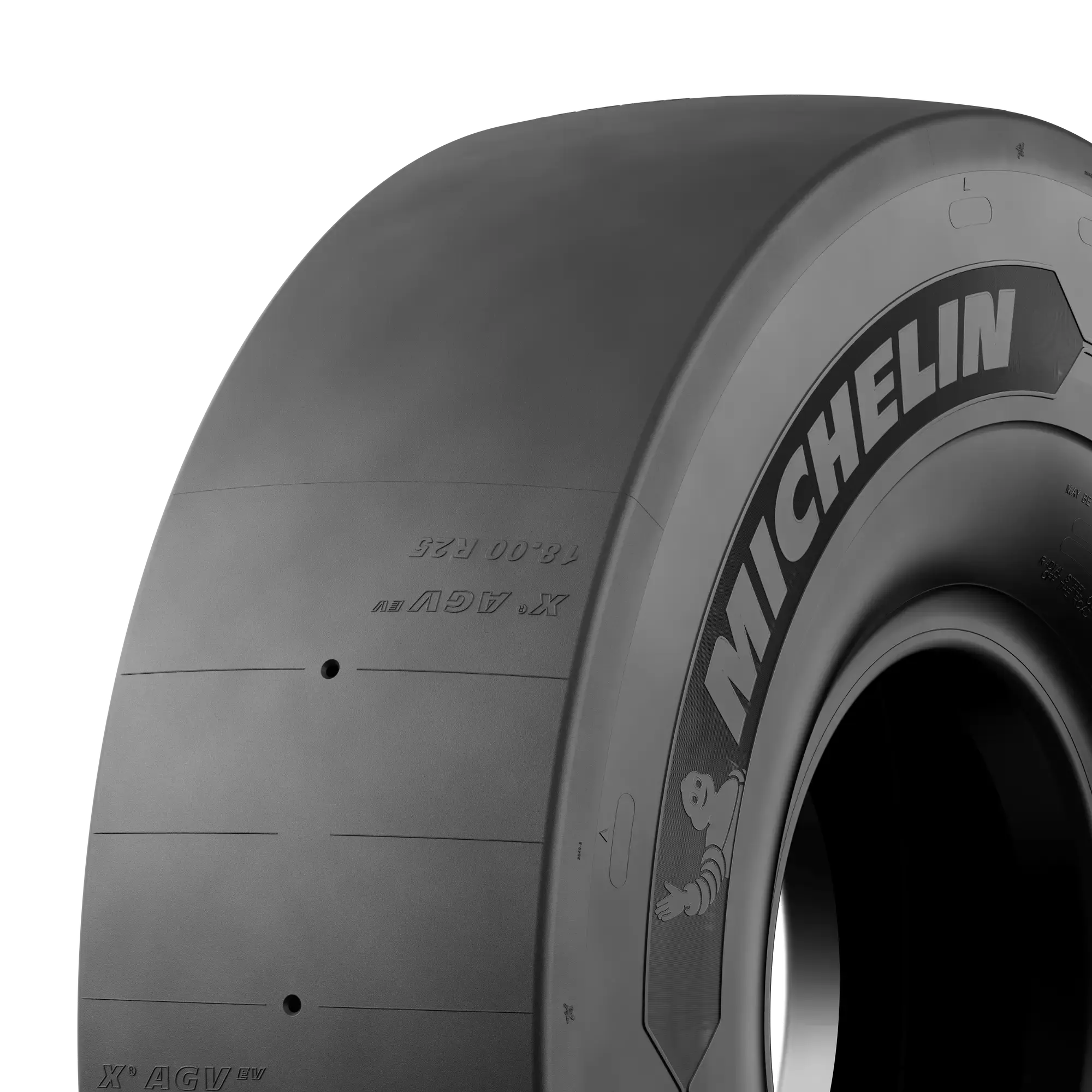

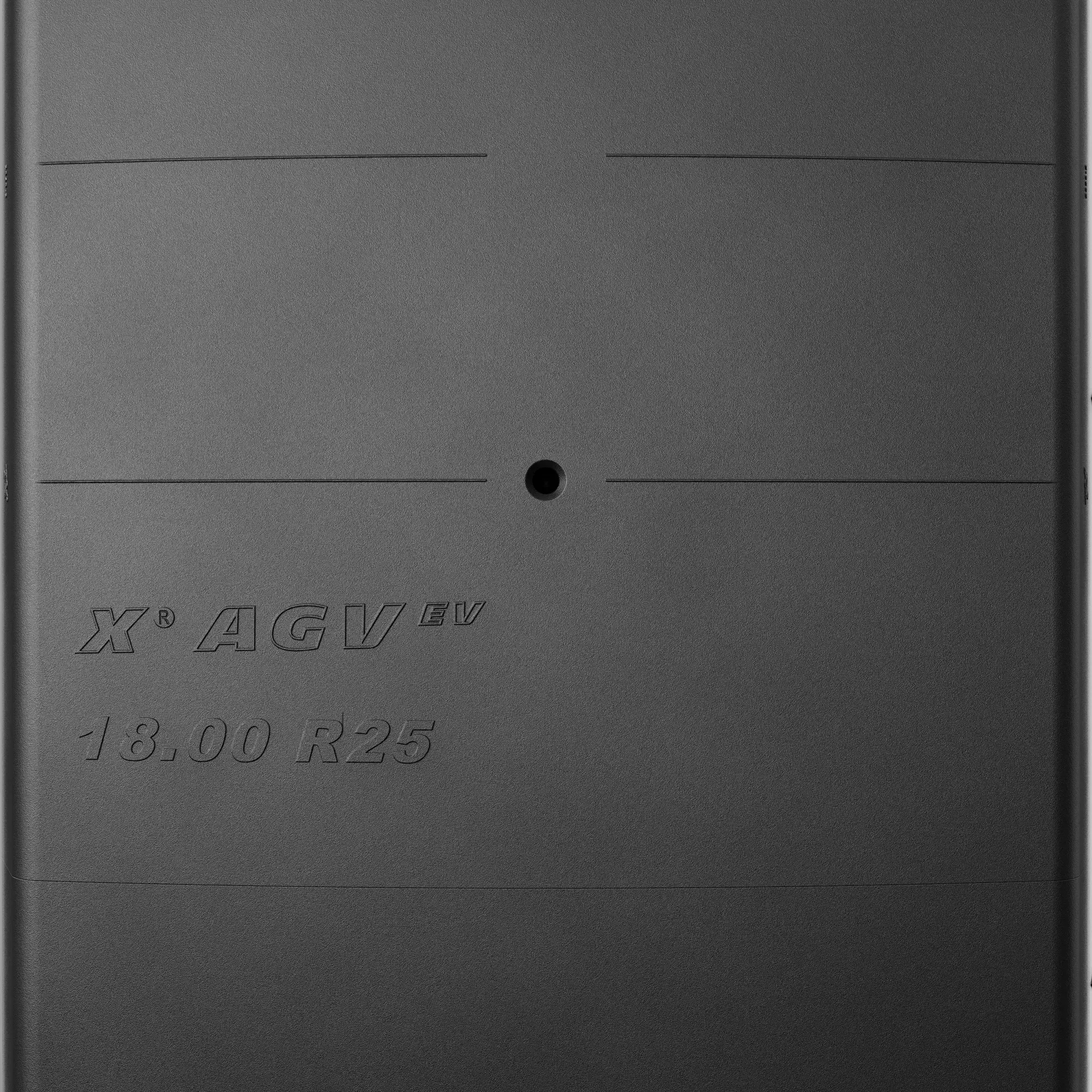

MICHELIN X AGV EV
This new generation radial tire is designed to meet the specific needs of your AGV operation. It is the first AGV EV tire on the market. With unmatched reliability, you can achieve your productivity and efficiency goals.
Why choose the MICHELIN X AGV EV tire?
Durability
Tire Life
Energy Efficiency
MICHELIN X AGV EV Technology
Tire Technical Specifications
Tech Specs
| Product | MICHELIN X AGV EV - 21.00R25 |
|---|---|
| Overall Diameter | 1744 mm / 69 inch |
| Section Width | 559 mm / 22 inch |
| Loaded radius | 774 mm |
| Seat diameter | 25 |
| Rolling circumference | 5006 |
| Tread depth | 40 mm / 51/32 nds |
| Weight | 466 kg / 1027 lbs |
| Recommended Wheels | 15.00/3.0 |
| TRA code | IND-3 |
| TKPH | 230 |
| Max Overall Section Width | 559 mm / 22 inch |
| Min Dual Spacing | 742 mm / 29.21 inch |
| CAI | 043270 |
| MSPN | 24573 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
6 87 |
8 116 |
10 145 |
|---|---|---|---|
| (kg - lbs) container-transporter-agv-nominal-load | |||
|
25 km/h 16 mph |
14000 30865 |
17400 38360 |
20600 45415 |
| (kg - lbs) container-transporter-platform-agv-cyclic-use | |||
|
25 km/h 16 mph |
19000 41888 |
22000 48502 |
26780 59040 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
| Product | MICHELIN X AGV EV - 21.00R25 |
|---|---|
| Overall Diameter | 1744 mm / 69 inch |
| Section Width | 559 mm / 22 inch |
| Loaded radius | 774 mm |
| Seat diameter | 25 |
| Rolling circumference | 5006 |
| Tread depth | 40 mm / 51/32 nds |
| Weight | 466 kg / 1027 lbs |
| Recommended Wheels | 15.00/3.0 |
| TRA code | IND-3 |
| TKPH | 230 |
| Max Overall Section Width | 559 mm / 22 inch |
| Min Dual Spacing | 742 mm / 29.21 inch |
| CAI | 043270 |
| MSPN | 24573 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
6 87 |
8 116 |
10 145 |
|---|---|---|---|
| (kg - lbs) container-transporter-agv-nominal-load | |||
|
25 km/h 16 mph |
14000 30865 |
17400 38360 |
20600 45415 |
| (kg - lbs) container-transporter-platform-agv-cyclic-use | |||
|
25 km/h 16 mph |
19000 41888 |
22000 48502 |
26780 59040 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
(1) Expect to be in operations over 20,000 hours / 4 years under standard operation. Tire tested in real conditions, port of Rotterdam, from 2020 to 2021.(2) Compared to premium BIAS and Radial tires on AGV market. Rolling resistance measured at the Michelin Center, in Ladoux, France from 2020 to 2021.
