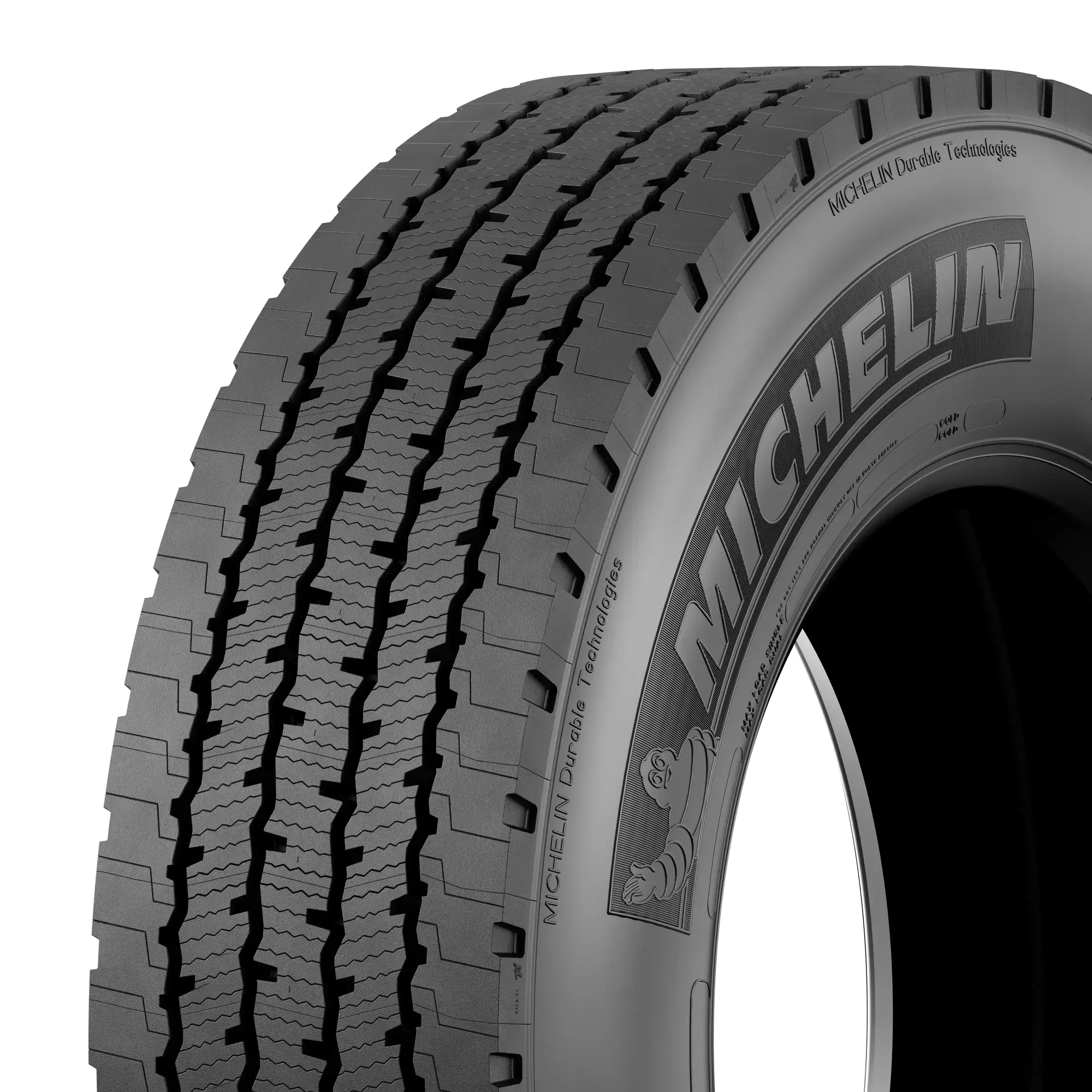

MICHELIN X® LINE ENERGY™ D
SmartWay® verified fuel economy with leading tread life and traction in an energy drive tire for line haul applications.
Vehicle Type
Heavy Truck/Tractor
Heavy Truck/Tractor
Usage of Application
Long Distance Transport
Long Distance Transport
Tire retreading, also known as recapping or remolding, is a process that involves replacing the worn tread of a used tire with a new tread. Retreading tires is perfect for fleets that want to cut their operating costs and environmental footprint. Learn how retreading your tires can have significant benefits on your business.
Why choose the MICHELIN X® LINE ENERGY™ D tire?
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Total Cost of Ownership
Extended mileage thanks to the wear resistance of the wider footprint, Matrix siping, and Dual Energy Compound tread.
SmartWay® verified for fuel economy. Its low rolling resistance, thanks to the Dual Energy Compound tread, helps control costs over the long haul.
Traction

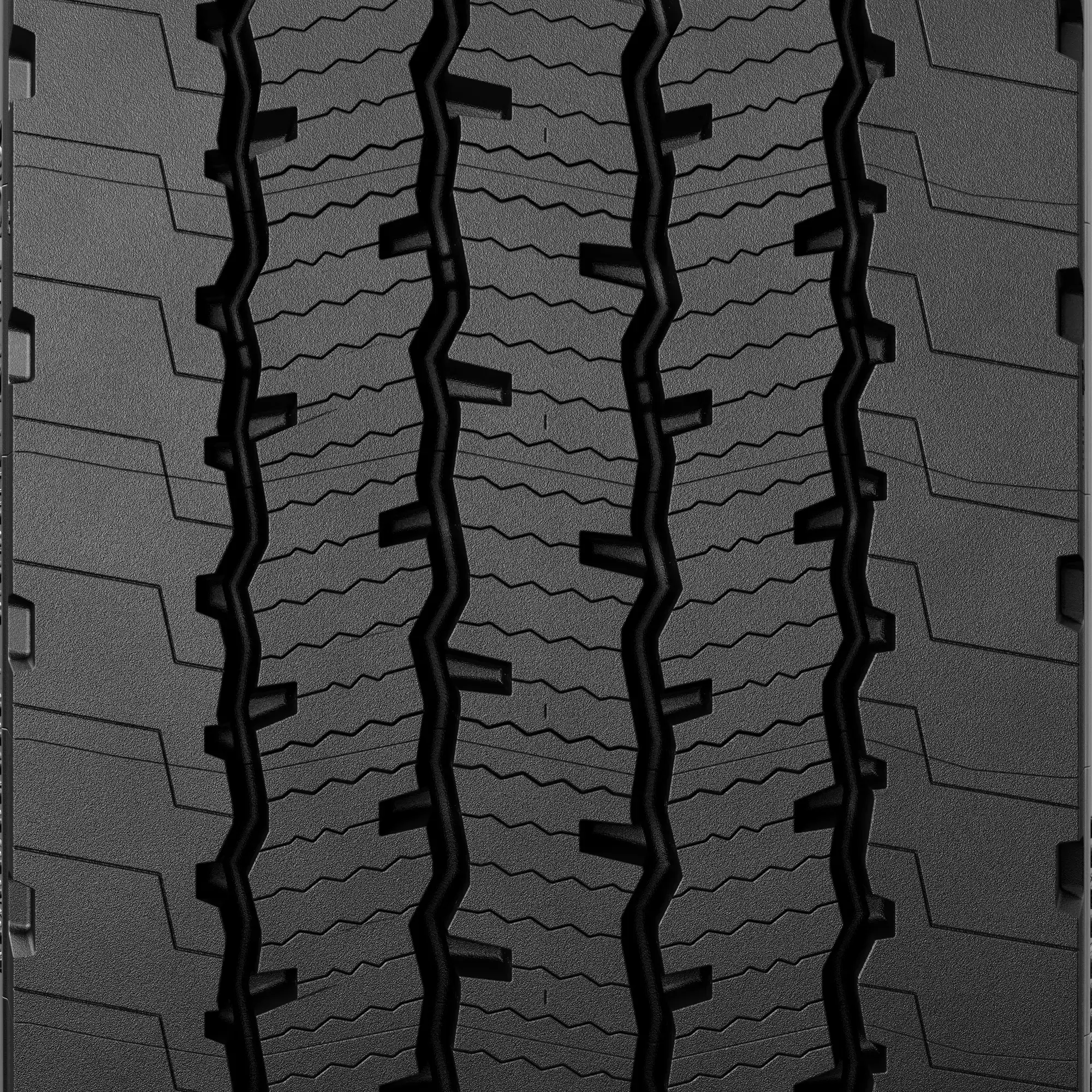

Excellent traction and stability provided by Matrix Siping contribute to driver confidence and satisfaction.
Durability
Minimize unexpected downtime with a Full-Width Elastic Protector Ply that helps protect the working plies from bruising and penetrations.
Truck and bus calculators
CALCULATE YOUR POTENTIAL SAVINGS!
Calculate the benefits of Michelin tires for your business with one of our calculation simulators. From fuel savings to environmental impacts, discover all the advantages of Michelin products and their multiple benefits.
MICHELIN X® LINE ENERGY™ D Technology
Tire Technical Specifications
Technical Specifications
| Product | MICHELIN X LINE ENERGY D - 11R22.5 |
|---|---|
| Overall Diameter | 1050 mm / 41.3 inch |
| Recommended Wheels | 8.25 |
| Approved Wheels | 7.5 |
| Min Dual Spacing | 318 mm / 12.5 inch |
| Tread depth | 23 32nds / 18.3 mm |
| Max Speed | 75 mph / 121 kmh |
| Max Load per Tire Single | 6175 lbs / 2800 kg |
| Loaded Radius | 493 mm / 19.4 inch |
| Seat diameter | 22.5 |
| Suitable for RV | No |
| CAI | 308290 |
| MSPN | 35887 |
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 672/32 nds | 230 mm |
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 672/32 nds | 240 mm |
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 672/32 nds | 220 mm |
Technical Specifications
Technical Specifications
| Product | MICHELIN X LINE ENERGY D - 11R22.5 |
|---|---|
| Overall Diameter | 1050 mm / 41.3 inch |
| Recommended Wheels | 8.25 |
| Approved Wheels | 7.5 |
| Min Dual Spacing | 318 mm / 12.5 inch |
| Tread depth | 23 32nds / 18.3 mm |
| Max Speed | 75 mph / 121 kmh |
| Max Load per Tire Single | 6175 lbs / 2800 kg |
| Loaded Radius | 493 mm / 19.4 inch |
| Seat diameter | 22.5 |
| Suitable for RV | No |
| CAI | 308290 |
| MSPN | 35887 |
Retread Offer
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 672/32 nds | 230 mm |
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 672/32 nds | 240 mm |
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 672/32 nds | 220 mm |
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
