We have been using X MINE D2 with improved protection and convenient tread design for the last few years. It has been performing better than our expectation in terms of traction and damage resistance.

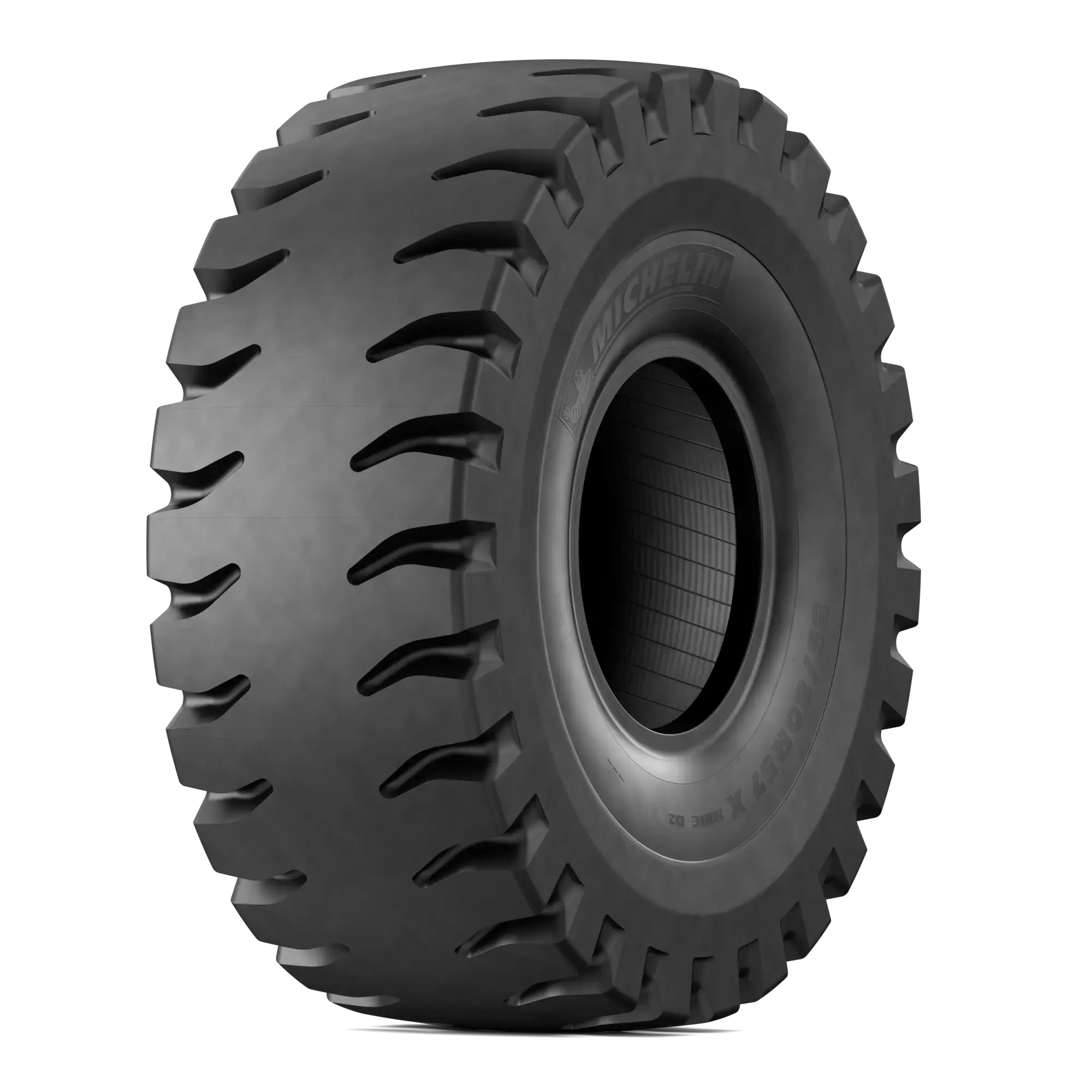

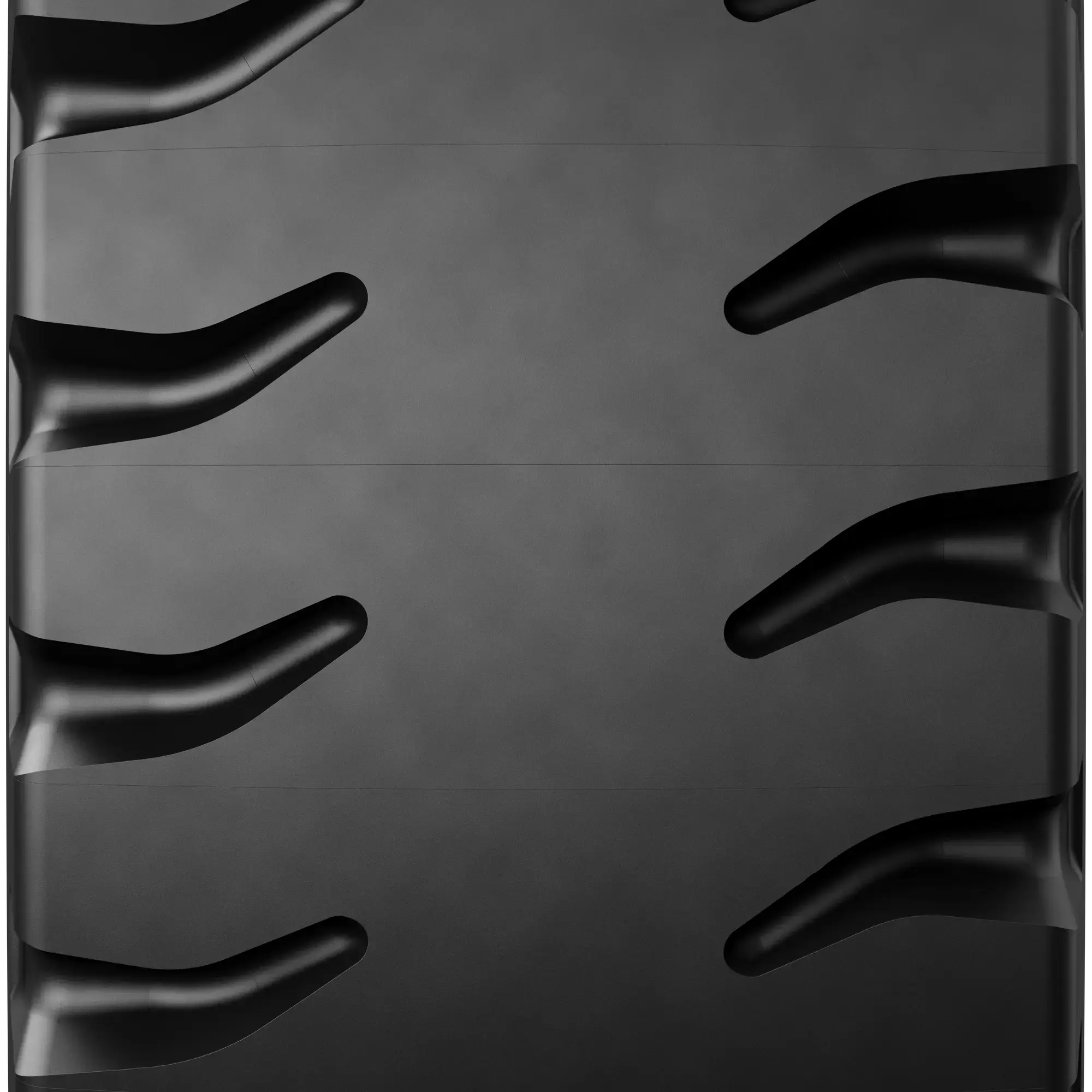

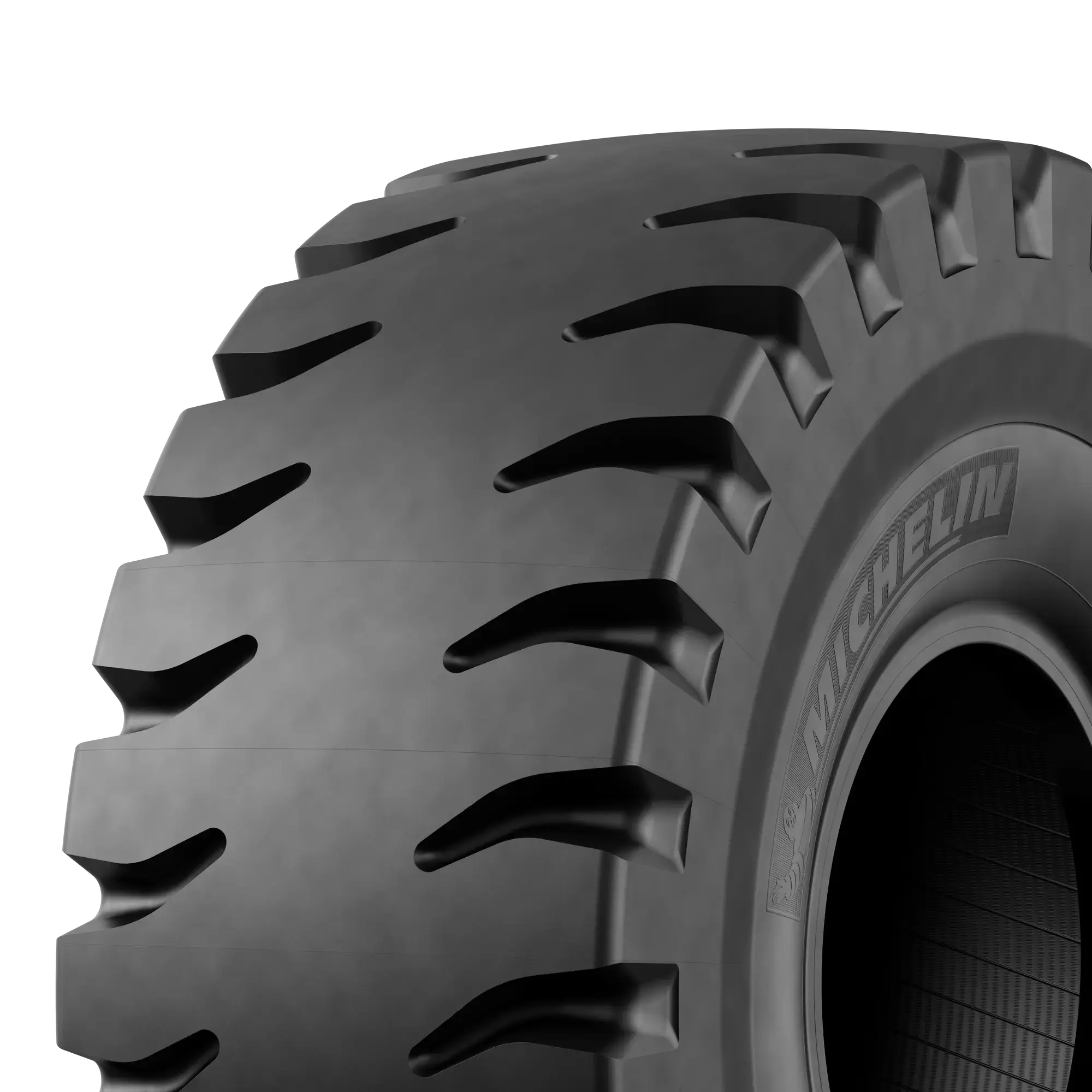

MICHELIN X MINE D2 (Surface)
Built for extreme durability in select off road operations. Its reinforced design ensures excellent resistance to cuts, impacts, and punctures, while providing superior traction on rocky surfaces. This tire is engineered for long-lasting performance, maximizing uptime and productivity in harsh environments.
Vehicle Type
Wheel Loader, Heavy Duty Forklift, Underground Machinery, Light/Medium Duty Forklift
Wheel Loader
Heavy Duty Forklift
Underground Machinery
Light/Medium Duty Forklift
Usage of Application
Quarries, Surface Mining
Quarries
Surface Mining
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
MICHELIN X MINE D2 (Surface) Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN X MINE D2 - 45/65R39 |
|---|---|
| Overall Diameter | 2583 mm / 102 inch |
| Section Width | 1099 mm / 43 inch |
| Loaded radius | 1132 mm |
| Seat diameter | 39 |
| Rolling circumference | 7715 |
| Tread depth | 116 mm / 147/32 nds |
| Weight | 2284 kg / 5035 lbs |
| Recommended Wheels | 36.00/4.5 |
| Approved Wheels | 32.00/4.5 |
| TRA code | L-5 |
| Max Overall Section Width | 1099 mm / 43 inch |
| CAI | 785703 |
| MSPN | 01004 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) loader | ||||||||
|
Front laden |
26500 58422 |
30000 66139 |
33500 73855 |
36500 80469 |
40000 88185 |
42500 93696 |
45000 99208 |
47500 104720 |
|
Rear unladen |
21200 46738 |
24000 52911 |
26800 59084 |
29200 64375 |
32000 70548 |
34000 74957 |
36000 79366 |
38000 83776 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN X MINE D2 - 45/65R39 |
|---|---|
| Overall Diameter | 2583 mm / 102 inch |
| Section Width | 1099 mm / 43 inch |
| Loaded radius | 1132 mm |
| Seat diameter | 39 |
| Rolling circumference | 7715 |
| Tread depth | 116 mm / 147/32 nds |
| Weight | 2284 kg / 5035 lbs |
| Recommended Wheels | 36.00/4.5 |
| Approved Wheels | 32.00/4.5 |
| TRA code | L-5 |
| Max Overall Section Width | 1099 mm / 43 inch |
| CAI | 785703 |
| MSPN | 01004 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) loader | ||||||||
|
Front laden |
26500 58422 |
30000 66139 |
33500 73855 |
36500 80469 |
40000 88185 |
42500 93696 |
45000 99208 |
47500 104720 |
|
Rear unladen |
21200 46738 |
24000 52911 |
26800 59084 |
29200 64375 |
32000 70548 |
34000 74957 |
36000 79366 |
38000 83776 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
