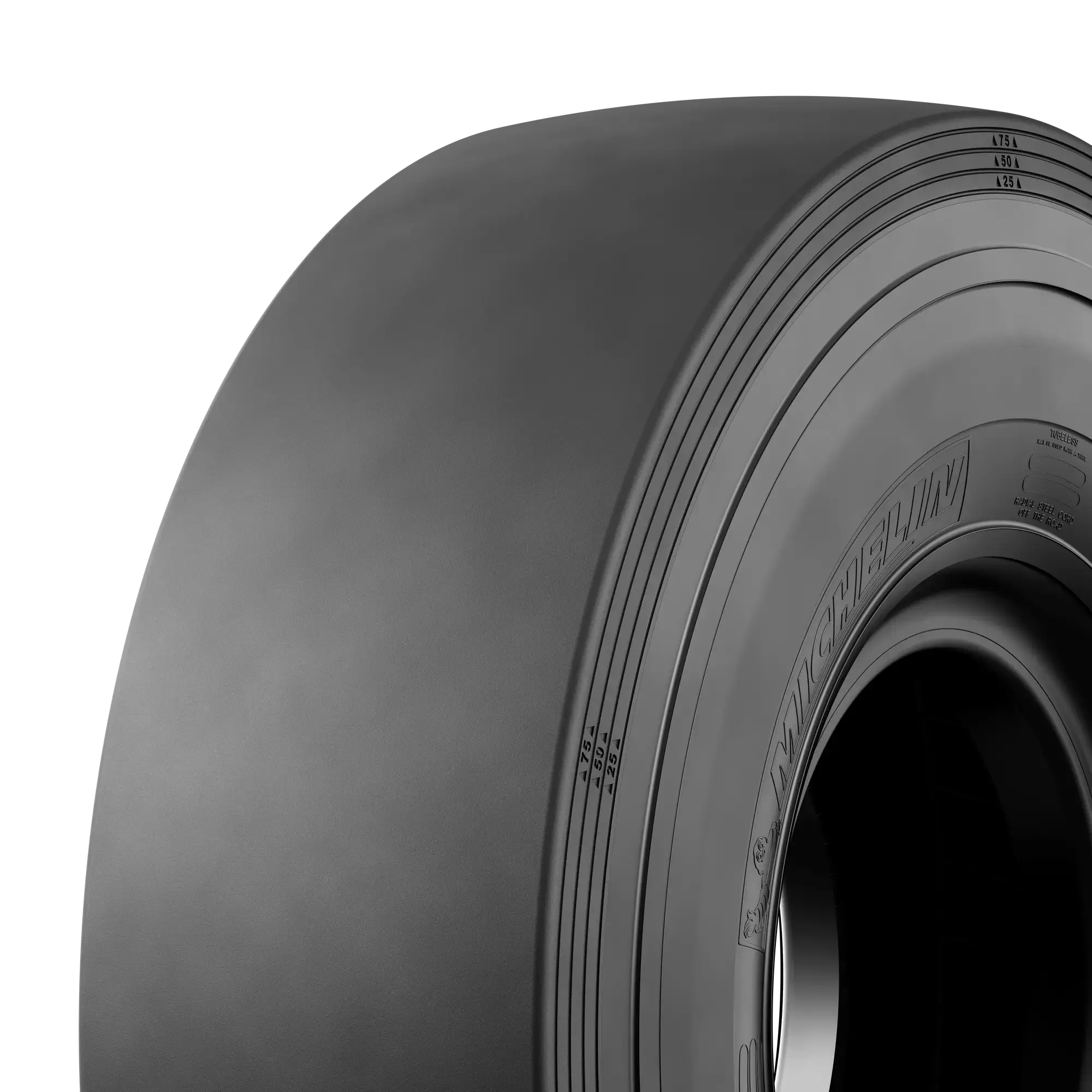

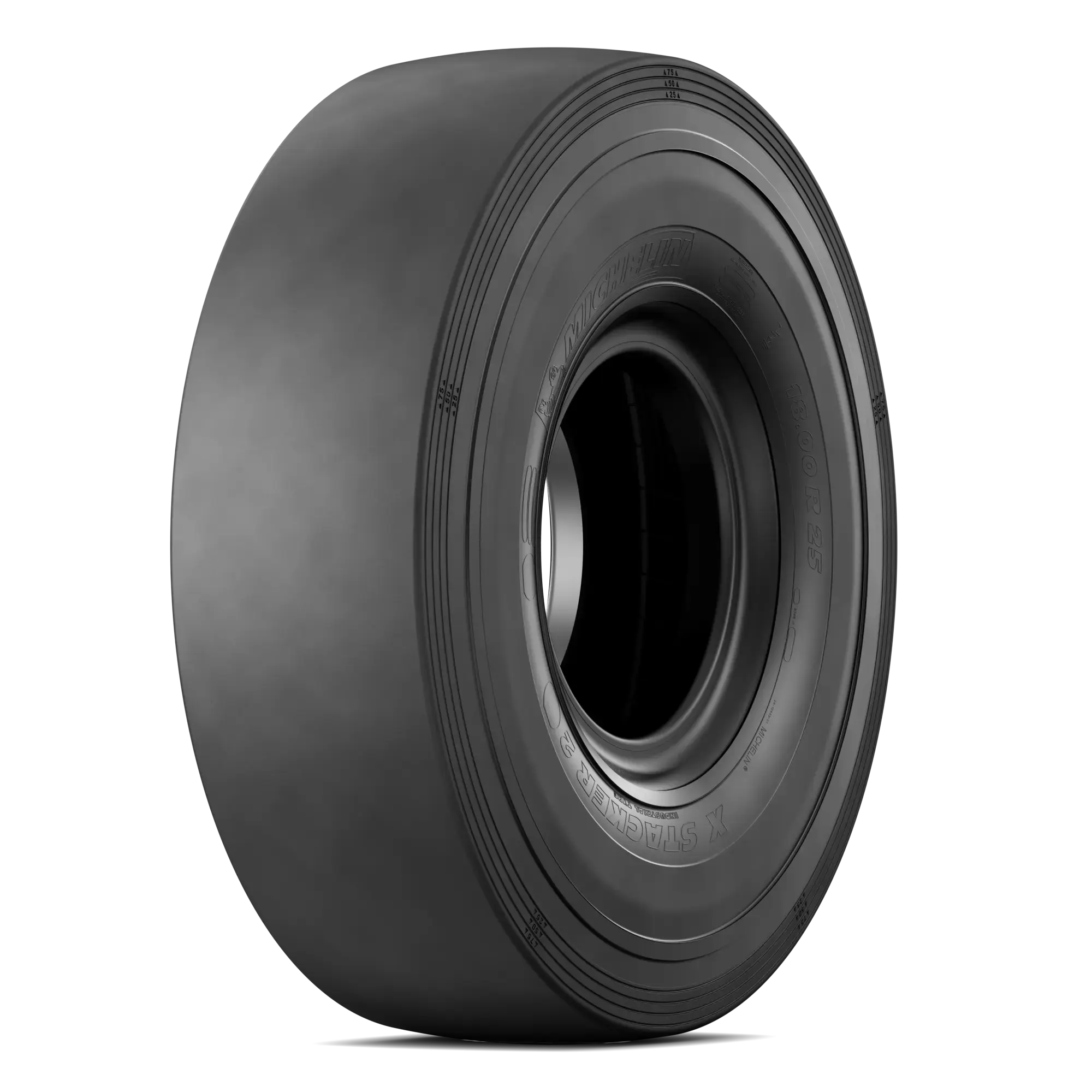

MICHELIN X STACKER 2
For exceptional durability in stacking applications, take a look at the smooth IND5 radial tire. Developed for longer life and puncture resistance, it delivers impressive hourly performance.
Why choose the MICHELIN X STACKER 2 tire?
Tire Life
Durability
Productivity
MICHELIN X STACKER 2 Technology
Tire Technical Specifications
Tech Specs
| Product | MICHELIN X-STACKER2 - 18.00R25 |
|---|---|
| Overall Diameter | 1656 mm / 65 inch |
| Section Width | 501 mm / 20 inch |
| Loaded radius | 750 mm |
| Seat diameter | 25 |
| Rolling circumference | 5006 |
| Tread depth | 72 mm / 90/32 nds |
| Weight | 463 kg / 1021 lbs |
| Recommended Wheels | 13.00/2.5 |
| Approved Wheels | 15.00/2.5 |
| TRA code | IND-4 |
| Max Overall Section Width | 501 mm / 20 inch |
| Min Dual Spacing | 612 mm / 24.09 inch |
| CAI | 101475 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
6 87 |
8 116 |
10 145 |
|---|---|---|---|
| (kg - lbs) counterbalanced-lift-truck-steer-wheel | |||
|
0 km/h 0 mph |
18380 40521 |
22280 49119 |
26250 57871 |
|
25 km/h 16 mph |
12250 27007 |
14750 32518 |
17500 38581 |
| (kg - lbs) Counterbalanced Lift Truck - load wheel | |||
|
10 km/h 6 mph |
15930 35120 |
19180 42285 |
22750 50155 |
|
25 km/h 16 mph |
15930 35120 |
19180 42285 |
22750 50155 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
| Product | MICHELIN X-STACKER2 - 18.00R25 |
|---|---|
| Overall Diameter | 1656 mm / 65 inch |
| Section Width | 501 mm / 20 inch |
| Loaded radius | 750 mm |
| Seat diameter | 25 |
| Rolling circumference | 5006 |
| Tread depth | 72 mm / 90/32 nds |
| Weight | 463 kg / 1021 lbs |
| Recommended Wheels | 13.00/2.5 |
| Approved Wheels | 15.00/2.5 |
| TRA code | IND-4 |
| Max Overall Section Width | 501 mm / 20 inch |
| Min Dual Spacing | 612 mm / 24.09 inch |
| CAI | 101475 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
6 87 |
8 116 |
10 145 |
|---|---|---|---|
| (kg - lbs) counterbalanced-lift-truck-steer-wheel | |||
|
0 km/h 0 mph |
18380 40521 |
22280 49119 |
26250 57871 |
|
25 km/h 16 mph |
12250 27007 |
14750 32518 |
17500 38581 |
| (kg - lbs) Counterbalanced Lift Truck - load wheel | |||
|
10 km/h 6 mph |
15930 35120 |
19180 42285 |
22750 50155 |
|
25 km/h 16 mph |
15930 35120 |
19180 42285 |
22750 50155 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
(1) Compared to Michelin X STACKER 18.00R25 tire based on field service evaluation, 2013-2014, in customer port sites; same size and usages.(2) Compared to Michelin X STACKER 18.00R25 tire. Characteristic of the product measured with the TKPH indicator. Distance per hour is directly correlated to the amount of tons transportable in an hour.
