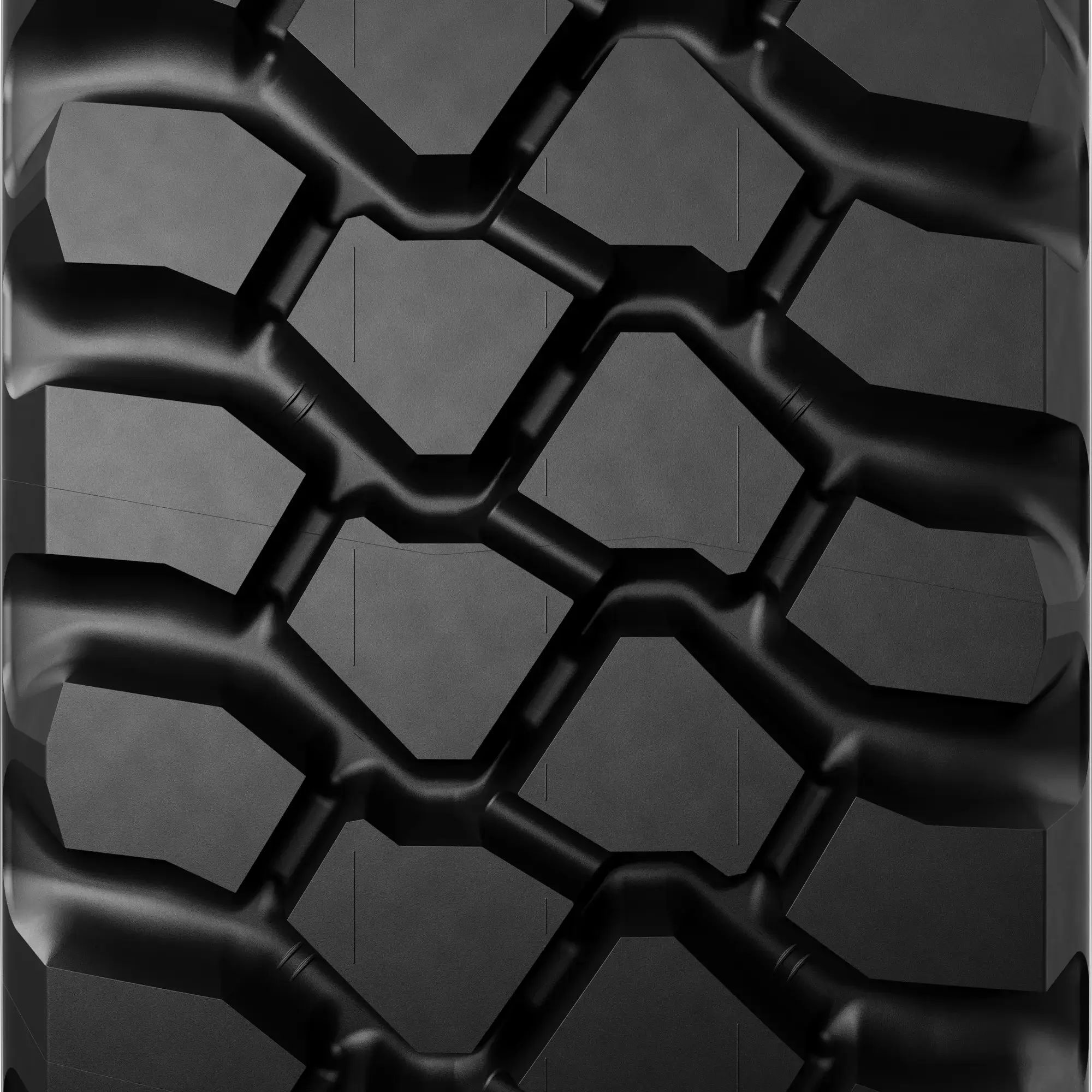

MICHELIN X®-SUPER TERRAIN™+
MICHELIN X®-SUPER TERRAIN™+
The E4 radial tire for articulated dump trucks engineered to deliver long life, maximized protection and excellent traction in a variety of demanding applications.
- Increased Productivity
- More Profitability
- Improved Working Conditions
All sizes (2)
Steer/All Position
Tech Specs
| Product | MICHELIN X-SUPER TERRAIN+ - 26.5/80R25 |
|---|---|
|
Overall Diameter
Tire overall diameter and not only the rim |
1749 mm |
| Section Width | 691 mm |
| Seat diameter | 25 |
| Rolling circumference | 5266 |
| Tread depth | 68/32 nds |
| Weight | 449.0 |
| Recommended Wheels | 22.00/3.0 |
| Approved Wheels | 22.00/3.0 IF |
| TRA code | E-4** |
| TKPH | 221 |
| CAI | 039476 |
| MSPN | 35486 |
Pressures (bar and psi) & Loads (kg and lbs)
|
bar psi |
2.5 36 |
3 44 |
3.25 47 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
|---|---|---|---|---|---|---|---|
| (kg - lbs) articulated-dumper-group-2 | |||||||
|
standard |
6500 14330 |
7500 16535 |
8000 17637 |
8500 18739 |
9500 20944 |
10500 23149 |
11500 25353 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tyre, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
made after the date of publication of these tables (December 2020). Technical data is subject to change without prior notice.
