  • Port/Airport Terminal
  • Fuel Savings
  • Versatility
  • Radial

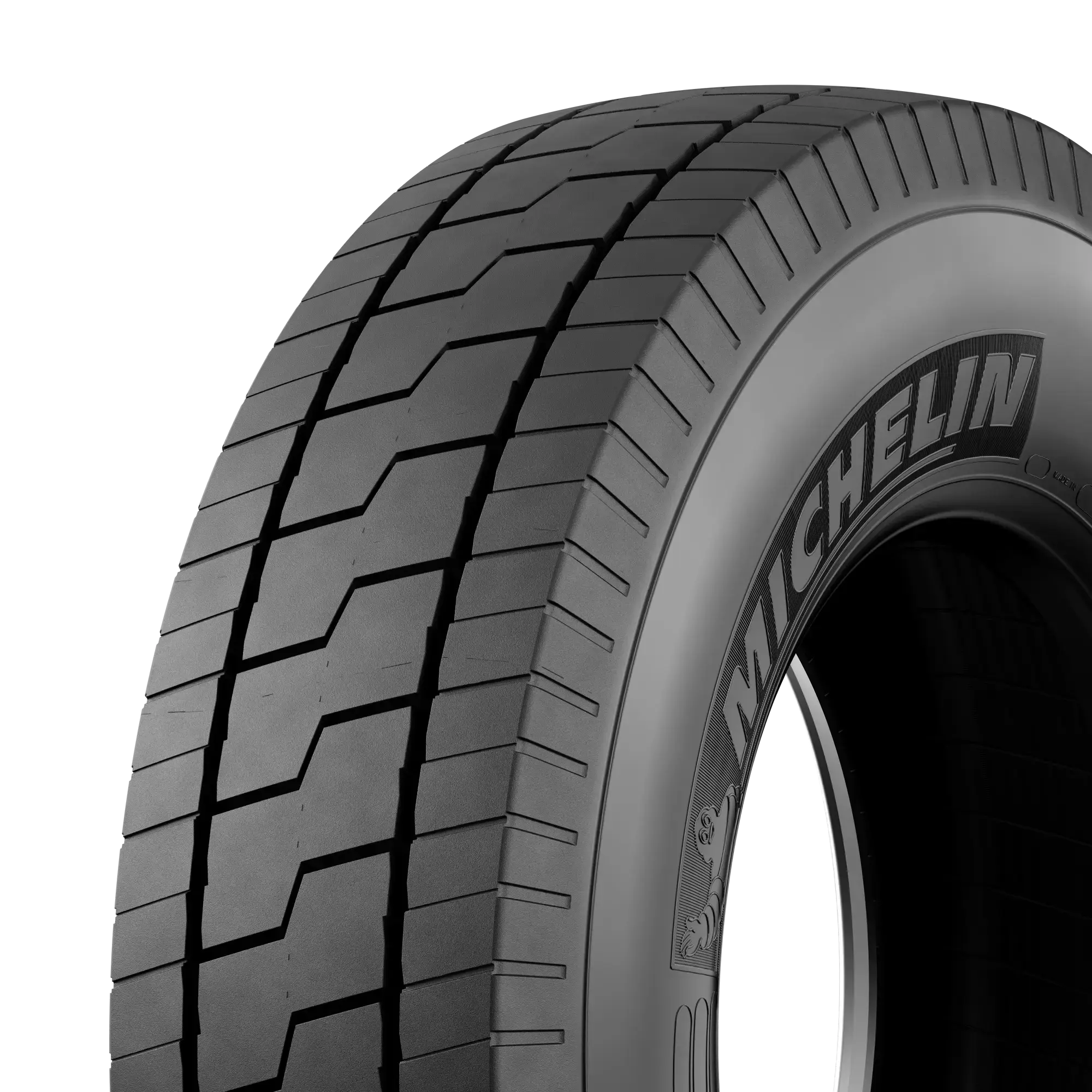

MICHELIN X-TERMINAL T

Close
MICHELIN
X-TERMINAL T
Select a dimension
Back
Select a dimension
  • 280/75R22.5 168A8 TL
  • 310/80R22.5 175A8 TL
  • 310/80R22.5 175A8 TL
Close
MICHELIN
X-TERMINAL T
Select a dimension
Back
Select a dimension
  • 280/75R22.5 168A8 TL
  • 310/80R22.5 175A8 TL
  • 310/80R22.5 175A8 TL

MICHELIN Edito terminaltractorandtrailer 0 43 1024 494 max Tire

WHY THIS TIRE?

VERSATILITY

Same size and tread depth for all axles (front and rear).

Reduced number of SKUs for better tire management, and less downtime.

PRODUCTIVITY

Less downtime: low puncture rate due to reinforced sidewalls and tread compared to truck tires.

Intended for airport terminal tractors: specially designed to be used in conjunction with powerful engines and engine braking at low speeds (average speed between 6 and 15 mph).

Other advantages: tubeless, no rim band or tire tubes, tire can be repaired and retreaded, long service life.

SAFETY AND RELIABILITY

High tread grip level: improved maneuverability and stability during use.

Excellent performance on wet surfaces (driving on ramps).

Tubeless tire: mounted on a drop center rim, easy to install, increased safety (no projecting locking ring). Antistatic.

REDUCED FUEL CONSUMPTION

The MICHELIN X -TERMINAL T (280/75 R22.5) ​can provide up to 15.6% savings on fuel (1) compared to a combination of conventional bias-ply tires (10.00-20 Goodyear Hi-Miler CT 176) with a loaded trailer on solid rubber tires (10.00-20 Simex), and up to 7% when empty. (2)

Keep Moving with Michelin

Tech Specs

MICHELIN X TERMINAL T - 280/75R22.5
995 mm
279 mm
22.5
3000
39/32 nds
69.0
8.25
13 inch
004371

Pressure (bar and psi) & Load (kg and lbs)

Take the load and type of work to be done into account when adjusting the pressure**

bar

psi

6

87

8

116

10

145

(kg - lbs) Terminal tractor

0 km/h

0 mph

5350

11795

6900

15212

8450

18629

5 km/h

3 mph

5060

11155

6450

14220

7840

17284

10 km/h

6 mph

4370

9634

5800

12787

7280

16050

25 km/h

16 mph

4200

9259

5300

11684

6300

13889

40 km/h

25 mph

3750

8267

4675

10307

5600

12346

**IMPORTANT

The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes

Technical data is subject to change without prior notice.

picto visuel contact hero image yellow bib heart tire

See More…

Download the product sheet to find technical data and information on our warranties.

Legal Footnotes

(1) TEST CONDITIONS: Total distance: 1.35 miles; Kalmar Ottawa terminal tractor; nominal load: 28.5 metric tons; speed of travel: 18.6 mph (30 km/h).

(2) These fuel consumption tests were conducted over 2 days at the Port of Tanjung Pelepas (Malaysia) with 2 equipped trucks. The test was conducted in a typical environment with real port equipment. This test enabled us to calculate a savings of 238 ml/mi when the vehicles were loaded, and 50 ml/mi when the vehicles were empty.
