Our highest productivity for UGM trucks over 60 tons. It features an 8.6% higher load-carrying capacity, allowing trucks to carry up to 31.5 tons at 7 bar with an average max distance of 14 km/hr.

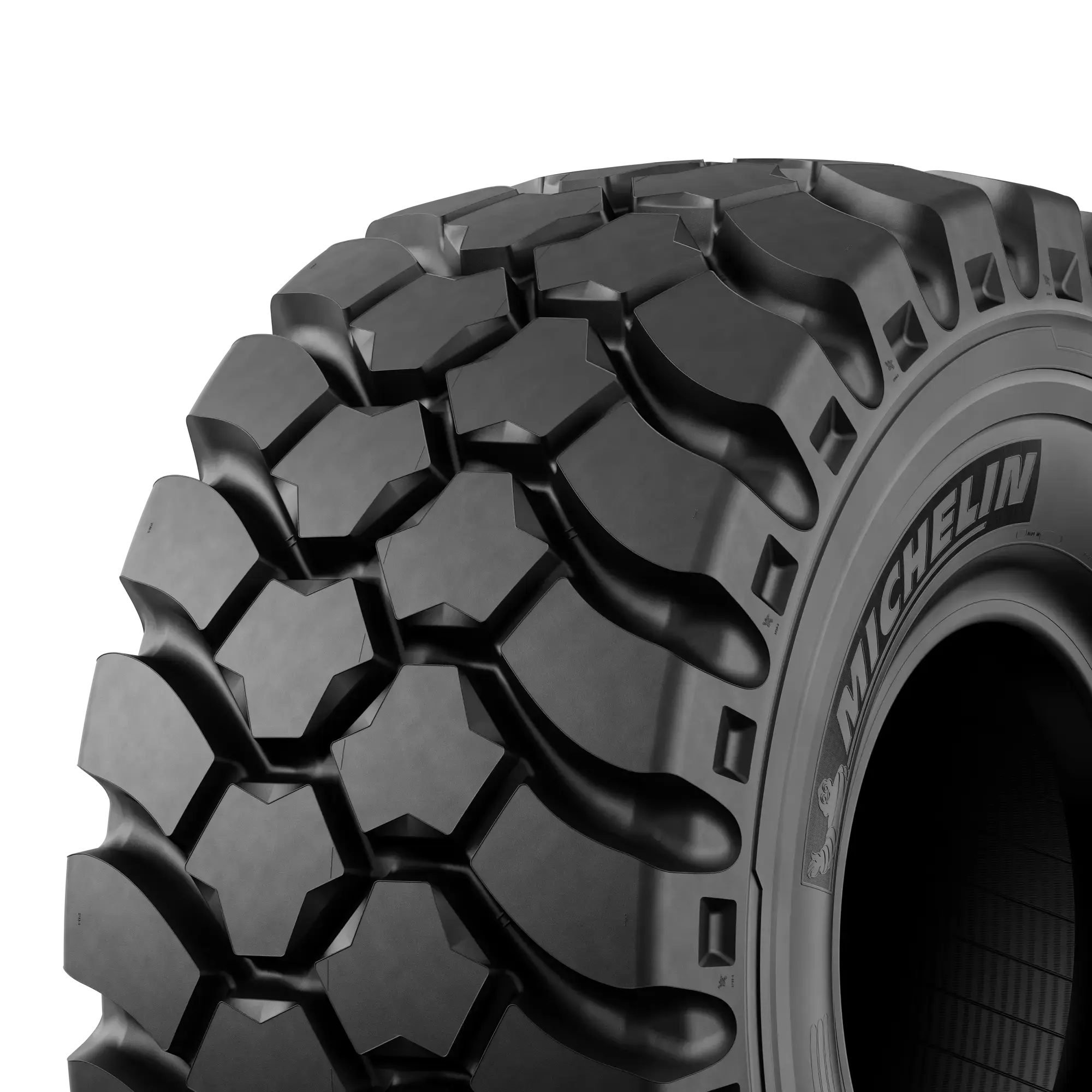

MICHELIN X UM HAUL
Our most productive tire on the market (1) for trucks greater than 60 tons, offering higher load-carrying capacity, more distance per hour and excellent adhesion.
Vehicle Type
Underground Machinery
Underground Machinery
Usage of Application
Underground Mining, Quarries
Underground Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN X UM HAUL tire?
Productivity under heavy hauls.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Productivity
High load-carrying capacity and speed with up to 360 TKPH (1)
High load-carrying capacity and speed make it our most
productive tire of its size on the market, with up to
360 TKPH.(1) Gain More Distance in an Hour with average max distance of 14 km/hr.(2)
Load capacity
8.6% more (3) load capacity to carry up to 31.5 tons at 101.5 psi
Designed with new, bigger cables and innovative 6-ply architecture.
Traction
Superior Adhesion for Better Grip(4)

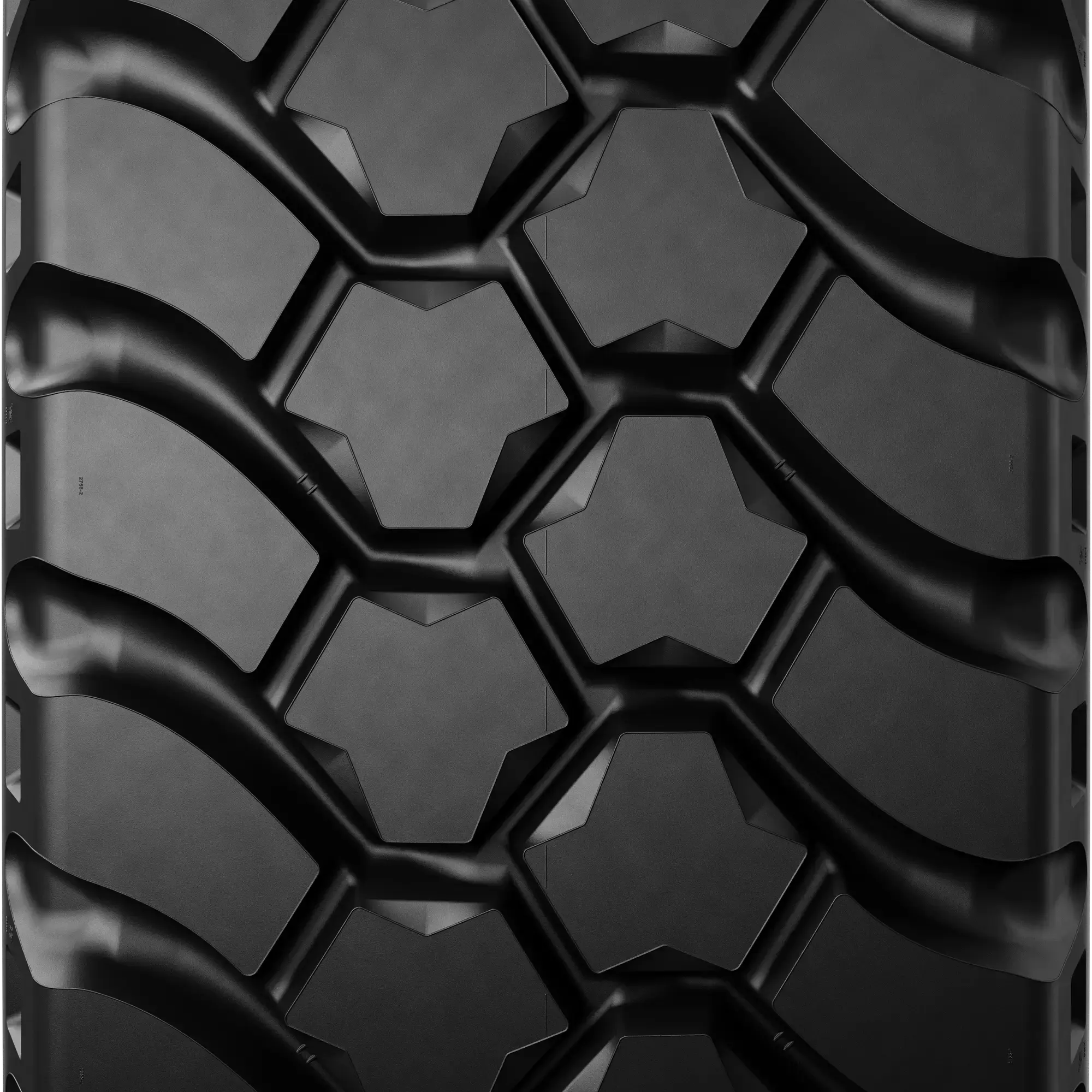

Innovative tread pattern with center groove increases grip
MICHELIN X UM HAUL Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN X UM HAUL - 35/65R33 |
|---|---|
| Overall Diameter | 2081 mm / 82 inch |
| Section Width | 922 mm / 36 inch |
| Loaded radius | 909 mm |
| Seat diameter | 33 |
| Tread depth | 60 mm / 77/32 nds |
| Weight | 1031 kg / 2273 lbs |
| Recommended Wheels | 28.00/3.5 |
| TRA code | SH-4 |
| TKPH | 360 |
| Max Overall Section Width | 922 mm / 36 inch |
| CAI | 645051 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | ||||||
|
All Axles |
23000 50706 |
24300 53572 |
25750 56769 |
27250 60076 |
29000 63934 |
31500 69446 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN X UM HAUL - 35/65R33 |
|---|---|
| Overall Diameter | 2081 mm / 82 inch |
| Section Width | 922 mm / 36 inch |
| Loaded radius | 909 mm |
| Seat diameter | 33 |
| Tread depth | 60 mm / 77/32 nds |
| Weight | 1031 kg / 2273 lbs |
| Recommended Wheels | 28.00/3.5 |
| TRA code | SH-4 |
| TKPH | 360 |
| Max Overall Section Width | 922 mm / 36 inch |
| CAI | 645051 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | ||||||
|
All Axles |
23000 50706 |
24300 53572 |
25750 56769 |
27250 60076 |
29000 63934 |
31500 69446 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) The new Michelin tire size: 35/65R33 X® UM HAUL tire is our MOST PRODUCTIVE Underground TIRE ON THE MARKET for trucks greater than 60 tons of payload, with up to 360 TKPH. (2) The new Michelin 35/65R33 X® UM HAUL tire was designed to get 14 KM MAX DISTANCE PER HOUR thanks to a larger tire and cooler compound vs. the Michelin 35/65R33 XTXL.(3) The new Michelin 35/65R33 X® UM HAUL tire gets 8.6% more load capacity, to carry up to 31.5 tons at 101.5 psi due to new cables, architecture and larger tire vs. the Michelin 35/65R33 XTXL.(4) vs. the Michelin 35/65R33 XTXL tire
