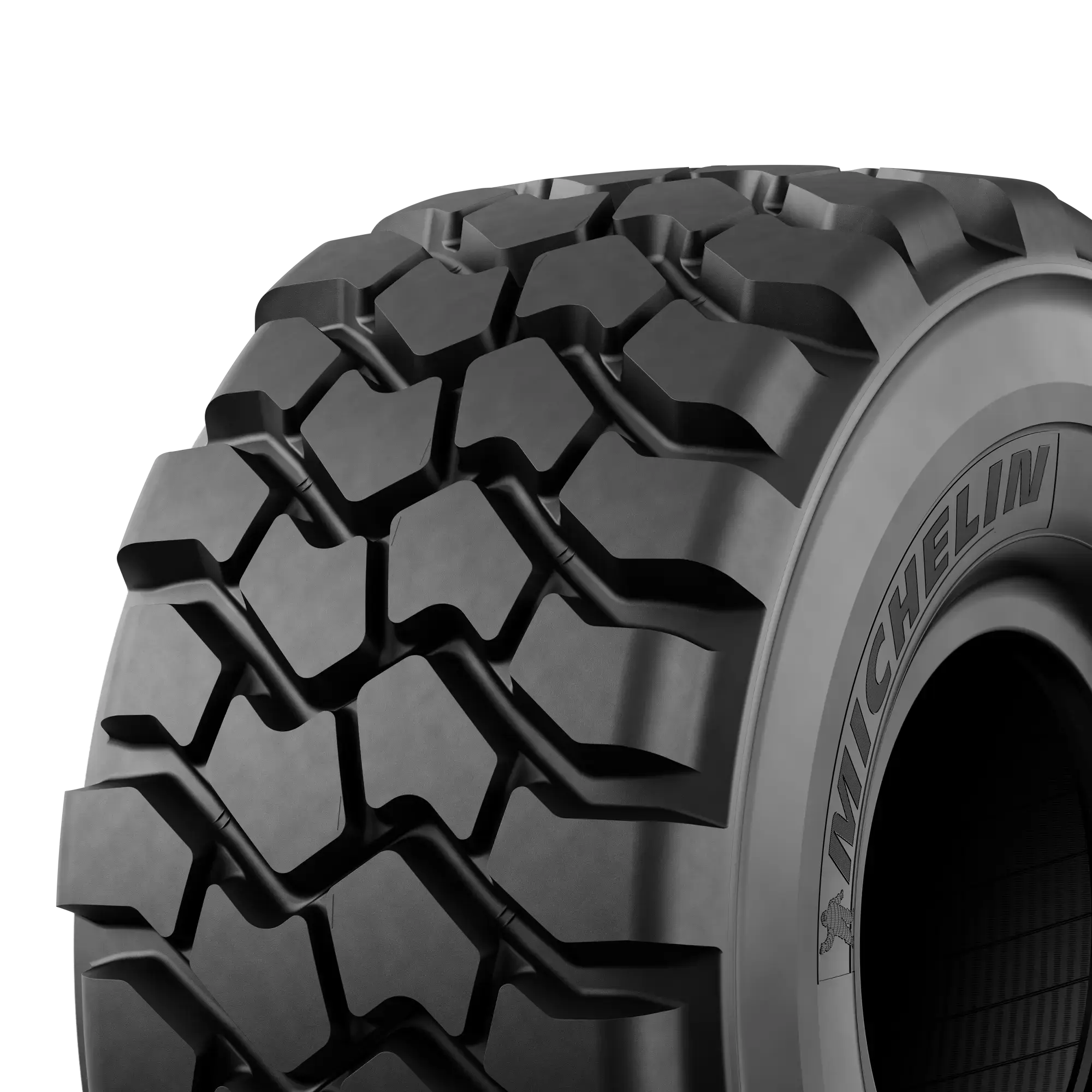

MICHELIN XAD65 (Construction)
Designed for articulated dump trucks operating in soft soil or muddy conditions, making it ideal for construction sites and quarries. This tire features a low profile and a wide tread area that reduces ground contact pressure, enhancing flotation, mobility, and traction.
Why choose the MICHELIN XAD65 (Construction) tire?
Traction
Productivity
Total cost of ownership
MICHELIN XAD65 (Construction) Technology
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XAD65-1 - 650/65R25 |
|---|---|
| Overall Diameter | 1494 mm / 59 inch |
| Section Width | 630 mm / 25 inch |
| Loaded radius | 669 mm |
| Seat diameter | 25 |
| Rolling circumference | 4498 mm / 177 inch |
| Tread depth | 40 mm / 51/32 nds |
| Weight | 316.75 kg / 698 lbs |
| Recommended Wheels | 19.50/2.5 |
| Approved Wheels | 22.00/3.0 |
| TRA code | E-3 |
| TKPH | 179 |
| Max Overall Section Width | 630 mm / 25 inch |
| CAI | 840573 |
| MSPN | 89647 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
|---|---|---|---|---|
| (kg - lbs) articulated-dump-truck | ||||
|
Standard |
5450 12015 |
6300 13889 |
7150 15763 |
8000 17637 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
| Product | MICHELIN XAD65-1 - 650/65R25 |
|---|---|
| Overall Diameter | 1494 mm / 59 inch |
| Section Width | 630 mm / 25 inch |
| Loaded radius | 669 mm |
| Seat diameter | 25 |
| Rolling circumference | 4498 mm / 177 inch |
| Tread depth | 40 mm / 51/32 nds |
| Weight | 316.75 kg / 698 lbs |
| Recommended Wheels | 19.50/2.5 |
| Approved Wheels | 22.00/3.0 |
| TRA code | E-3 |
| TKPH | 179 |
| Max Overall Section Width | 630 mm / 25 inch |
| CAI | 840573 |
| MSPN | 89647 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
|---|---|---|---|---|
| (kg - lbs) articulated-dump-truck | ||||
|
Standard |
5450 12015 |
6300 13889 |
7150 15763 |
8000 17637 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
The TMPH (Tons / Miles Per Hour) of the Michelin E3 tire (including wide-base tires) is 38% (1) higher than the average TMPH of all its premium competitors.(2) Measurements taken in retreading facilities in Europe between 2012 and 2014.
