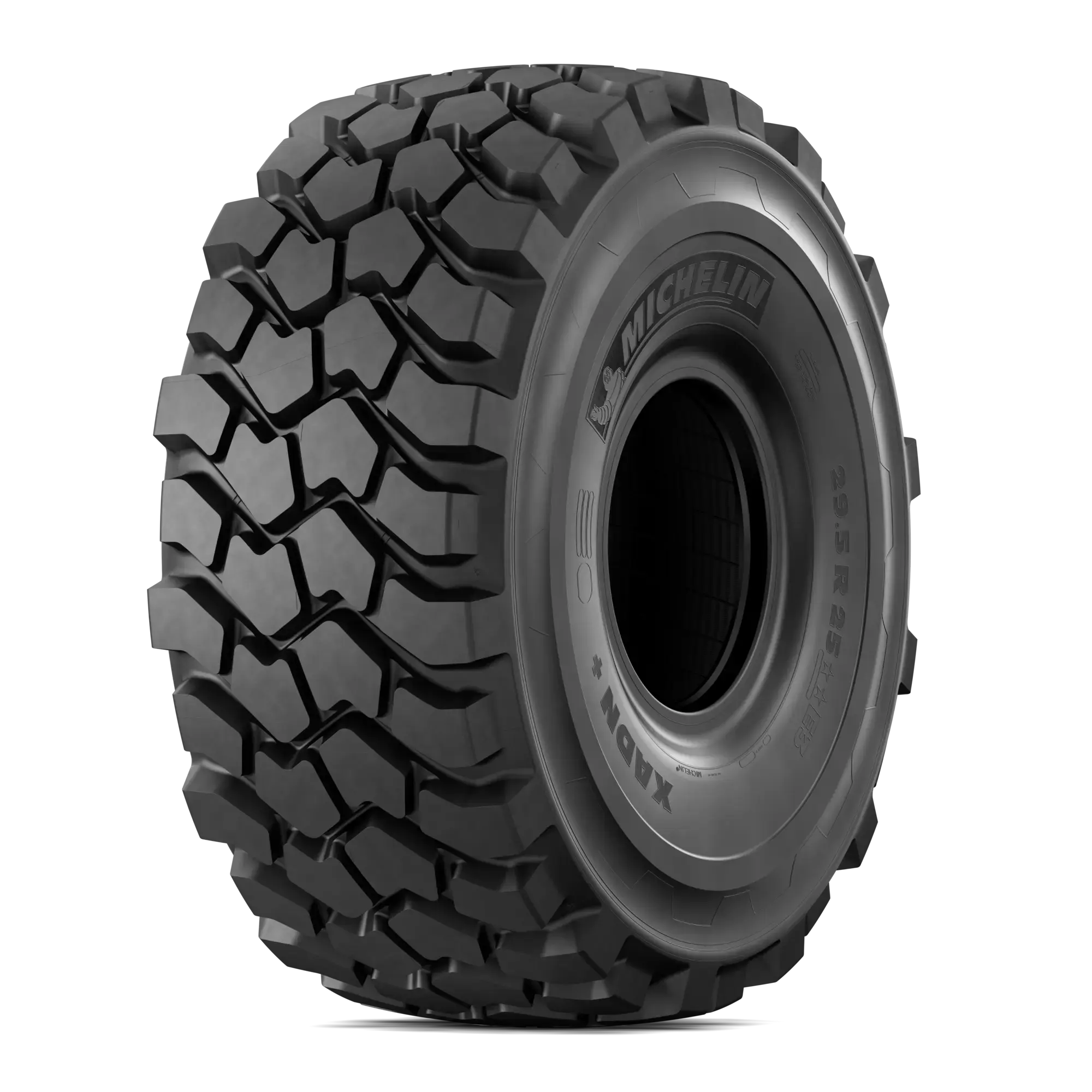

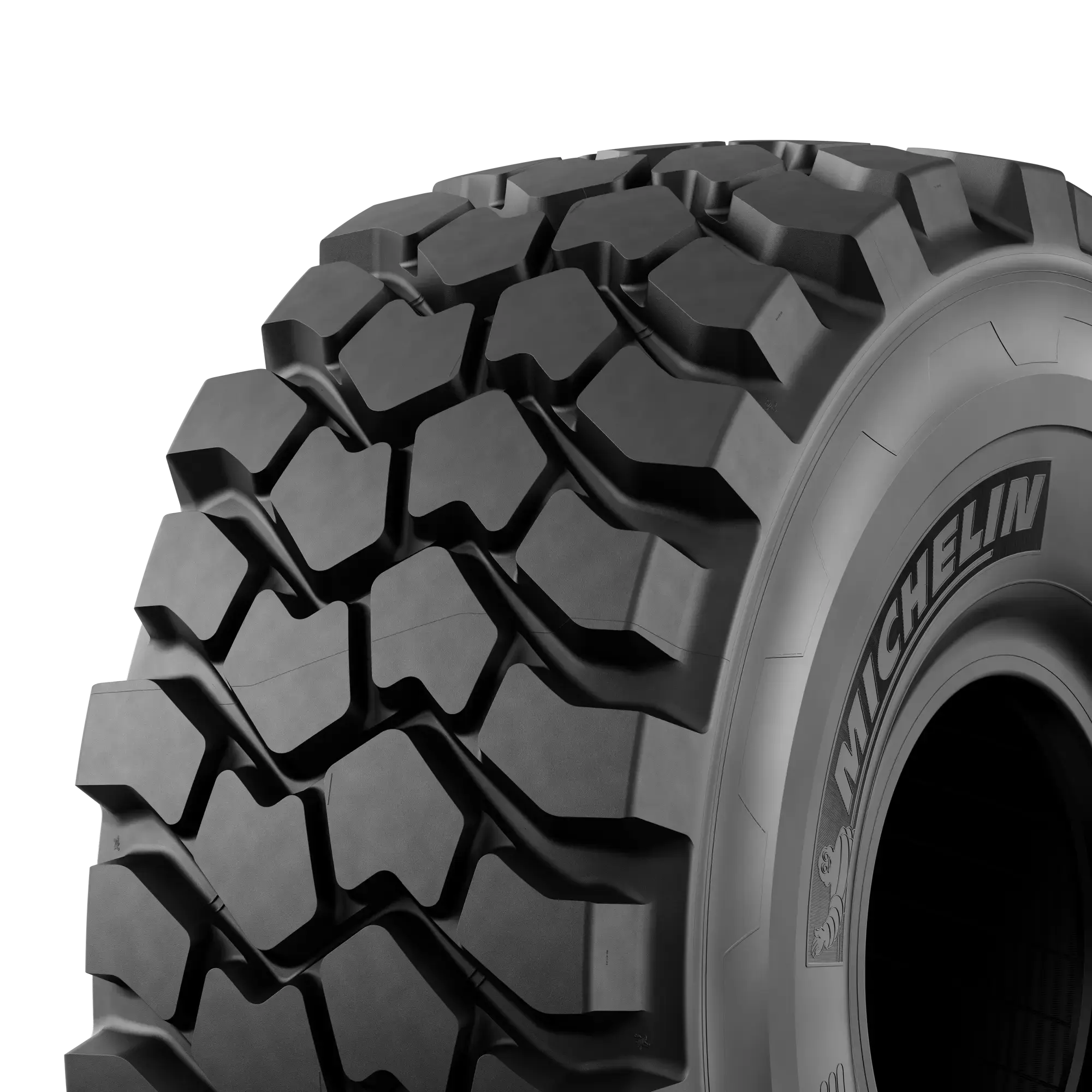

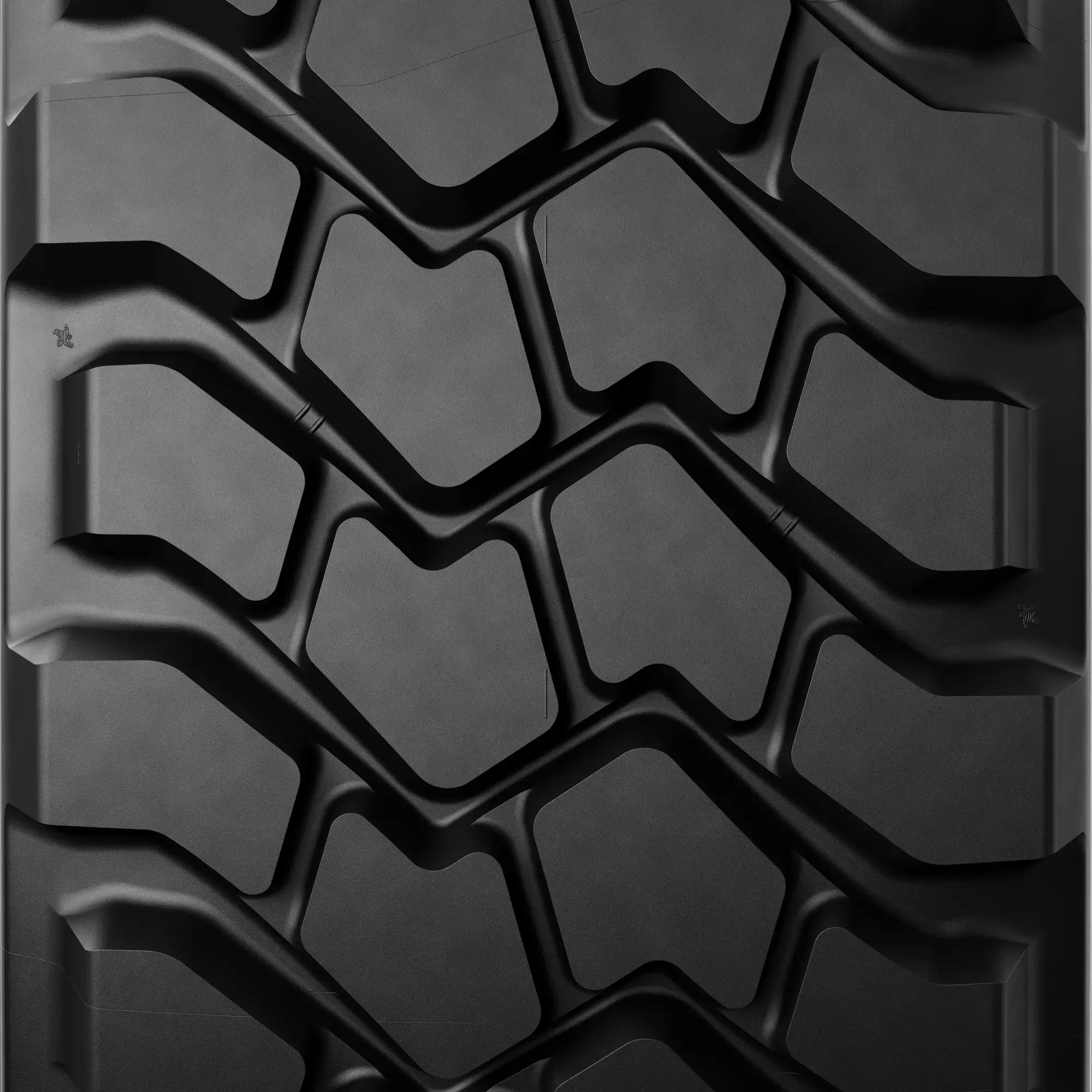

MICHELIN XADN+
The retreadable Michelin E3 Radial tire for articulated trucks designed to deliver exceptional reliability in a variety of application. C2 technology lowers casing temperature which provides a cooler running tire.
Why choose the MICHELIN XADN+ tire?
Total cost of ownership
Productivity
MICHELIN XADN+ Technology
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XADN+ - 23.5R25 |
|---|---|
| Overall Diameter | 1598 mm / 63 inch |
| Section Width | 602 mm / 24 inch |
| Loaded radius | 721 mm |
| Seat diameter | 25 |
| Rolling circumference | 4824 mm / 190 inch |
| Tread depth | 38 mm / 48/32 nds |
| Weight | 321 kg / 708 lbs |
| Recommended Wheels | 19.50/2.5 |
| TRA code | E-3 |
| TKPH | 207 |
| Max Overall Section Width | 602 mm / 24 inch |
| CAI | 295773 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
3.75 54 |
4 58 |
4.5 65 |
5 73 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) articulated-dump-truck | ||||||||
|
Standard |
4930 10869 |
5650 12456 |
6380 14065 |
7100 15653 |
7450 16424 |
7800 17196 |
8550 18850 |
9250 20393 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
| Product | MICHELIN XADN+ - 23.5R25 |
|---|---|
| Overall Diameter | 1598 mm / 63 inch |
| Section Width | 602 mm / 24 inch |
| Loaded radius | 721 mm |
| Seat diameter | 25 |
| Rolling circumference | 4824 mm / 190 inch |
| Tread depth | 38 mm / 48/32 nds |
| Weight | 321 kg / 708 lbs |
| Recommended Wheels | 19.50/2.5 |
| TRA code | E-3 |
| TKPH | 207 |
| Max Overall Section Width | 602 mm / 24 inch |
| CAI | 295773 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
3.75 54 |
4 58 |
4.5 65 |
5 73 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) articulated-dump-truck | ||||||||
|
Standard |
4930 10869 |
5650 12456 |
6380 14065 |
7100 15653 |
7450 16424 |
7800 17196 |
8550 18850 |
9250 20393 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
(1) Internal Michelin projection study conducted in 2016, based on European studies in real-life conditions, and comparing the wear and service life of twenty-four 23.5 R25 E3 size tires (Bridgestone VLT and Goodyear TL- 3A+ compared to MICHELIN XADN+). Methodology available upon request. (2) Measurements taken in retreading facilities in Europe between 2012 and 2014.(3) Compared to the average TMPH of Michelin's premium competitors, published in the following data sources: Goodyear OTR tire engineering data (02/07/2014) and Goodyear OTR website (http://www.goodyearotr.com, 11/2015), and the Bridgestone OTR tires data book (2015).(4) Internal Michelin projection study conducted in 2016, based on European studies in real-life conditions, and comparing the wear and service life of twenty-four 23.5 R25 E3 size tires (Bridgestone VLT and Goodyear TL- 3A+ compared to MICHELIN XADN+). Methodology available upon request.
