MICHELIN XD GRIP excels in tough off-road conditions. Its aggressive tread pattern delivers exceptional traction on loose and rocky terrain, while the reinforced design ensures high resistance.

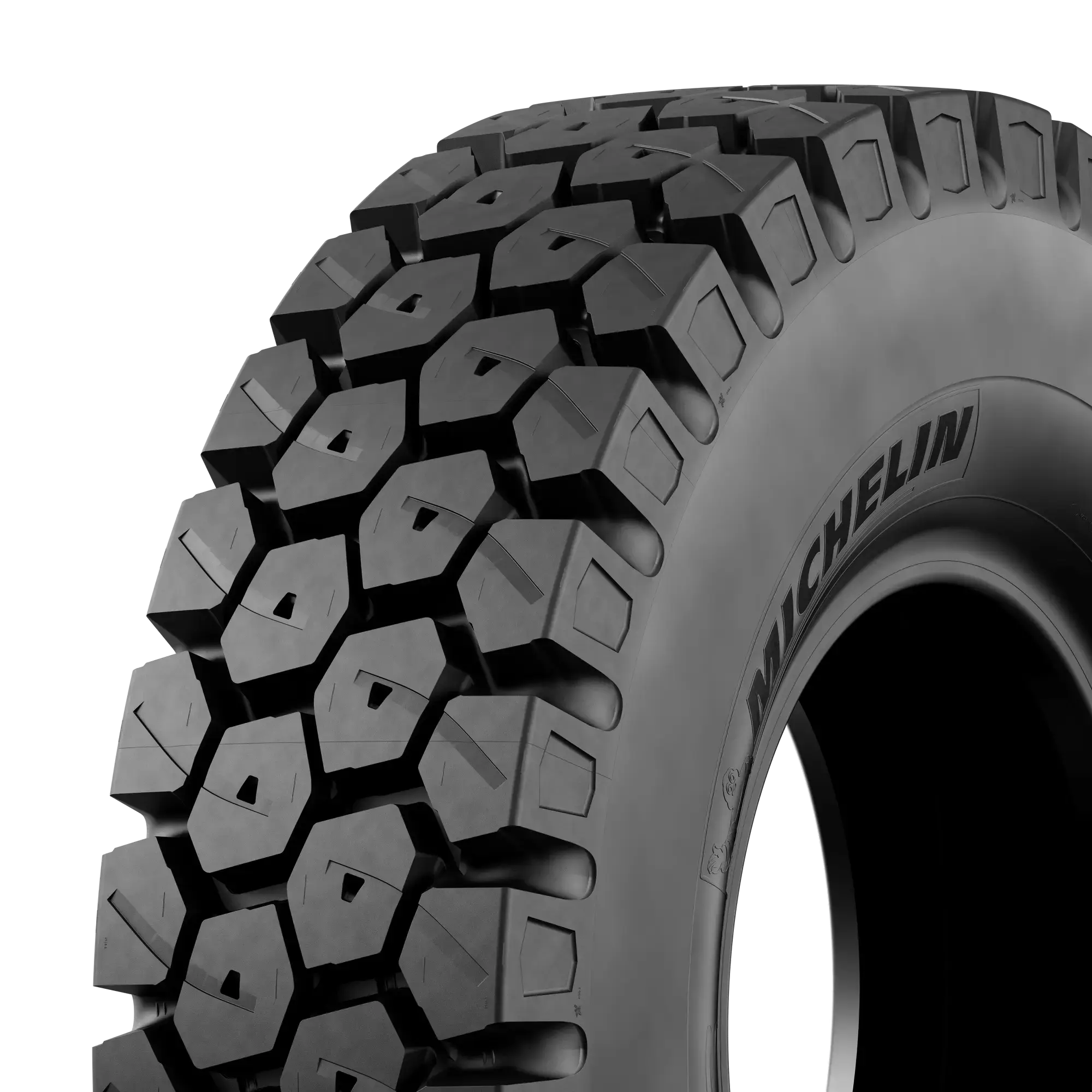

MICHELIN XD GRIP
Designed for superior traction in the most demanding off-road conditions. With its aggressive tread pattern, this tire provides excellent grip on loose and rocky terrain, while its reinforced structure offers high resistance to cuts and damage.
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining, Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XD GRIP tire?
Better grip, bigger benefits.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Traction
30% more lug edges (1)
Durability
Aggression resistance from hidden obstacles(2)
New design with larger contact patch, extra protection and more tread volume.
Productivity
10% more life (2), load (2) or speed (2)
MICHELIN XD GRIP Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XD GRIP - 27.00R49 |
|---|---|
| Overall Diameter | 2726 mm / 107 inch |
| Section Width | 733 mm / 29 inch |
| Loaded radius | 1235 mm |
| Seat diameter | 49 |
| Tread depth | 79 mm / 99/32 nds |
| Compound | B |
| Weight | 1330 kg / 2932 lbs |
| Recommended Wheels | 19.50/4.0 [3.2] |
| Approved Wheels | 19.50/4.0 [2.7] |
| TRA code | E-4 |
| TKPH | 720 |
| Max Overall Section Width | 733 mm / 29 inch |
| Min Dual Spacing | 892 mm / 35.12 inch |
| CAI | 047262 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport load per tire <= 27.25 t | ||||||||||
|
Standard |
16850 37148 |
18550 40896 |
20300 44754 |
22050 48612 |
24000 52911 |
25500 56218 |
27250 60076 |
|||
| (kg - lbs) Transport load per tire > 27.25 t | ||||||||||
|
Standard |
29000 63934 |
30000 66139 |
32100 70768 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XD GRIP - 27.00R49 |
|---|---|
| Overall Diameter | 2726 mm / 107 inch |
| Section Width | 733 mm / 29 inch |
| Loaded radius | 1235 mm |
| Seat diameter | 49 |
| Tread depth | 79 mm / 99/32 nds |
| Compound | B |
| Weight | 1330 kg / 2932 lbs |
| Recommended Wheels | 19.50/4.0 [3.2] |
| Approved Wheels | 19.50/4.0 [2.7] |
| TRA code | E-4 |
| TKPH | 720 |
| Max Overall Section Width | 733 mm / 29 inch |
| Min Dual Spacing | 892 mm / 35.12 inch |
| CAI | 047262 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport load per tire <= 27.25 t | ||||||||||
|
Standard |
16850 37148 |
18550 40896 |
20300 44754 |
22050 48612 |
24000 52911 |
25500 56218 |
27250 60076 |
|||
| (kg - lbs) Transport load per tire > 27.25 t | ||||||||||
|
Standard |
29000 63934 |
30000 66139 |
32100 70768 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) Compared to the MICHELIN® X-TRACTION™ tire in size 27.00R49 and based on internal measurement results. Actual results may vary.(2) Compared to the MICHELIN® X-TRACTION™ tire. Actual results may vary.
