The MICHELIN XDC tire is designed for rigid dump trucks operating on well-maintained site roads. It offers excellent traction and handling with a non-directional tread pattern with bridging reinforcement.
MICHELIN XDC
The MICHELIN XDC tire is made to optimize the performance of rigid dump trucks under high speeds or long cycles.
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining, Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XDC tire?
A high speed or long cycle tire.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Confidence
Precise handling. Excellent adhesion

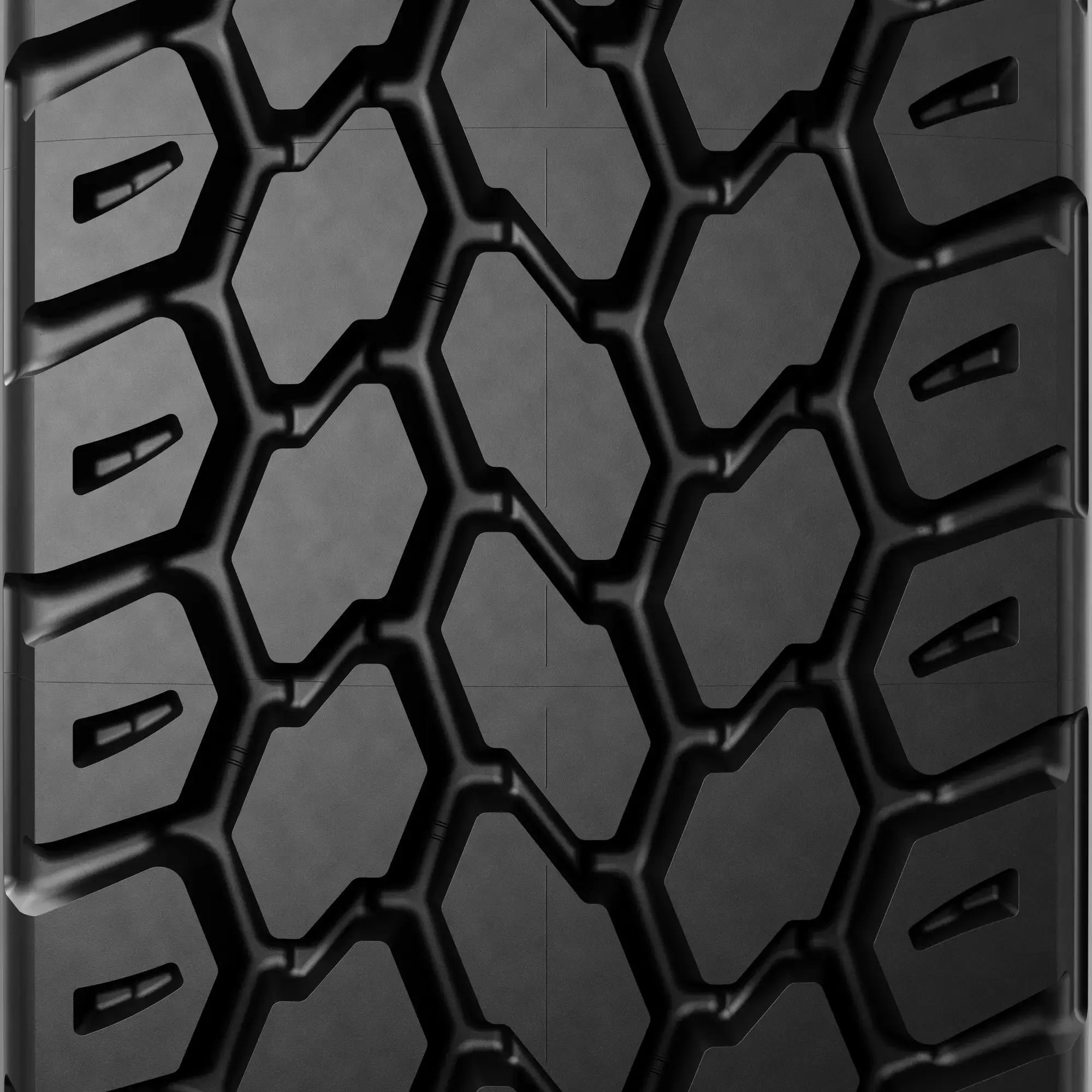

Non directional tread pattern with bridging reinforcement between blocks.
Multi-usage tread pattern composed of independent blocks.
Tire Life
Good protection against crown impact and accidental damage
Crown architecture and cables
Productivity
High speed use
Specific rubber compounds resistant to heat.
MICHELIN XDC Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XDC - 33.00R51 |
|---|---|
| Overall Diameter | 2966 mm / 117 inch |
| Section Width | 889 mm / 35 inch |
| Loaded radius | 1318 mm |
| Seat diameter | 51 |
| Rolling circumference | 8903 |
| Tread depth | 48 mm / 61/32 nds |
| Compound | C4 |
| Weight | 1792.88 kg / 3953 lbs |
| Recommended Wheels | 24.00/5.0 [4.4] |
| Approved Wheels | 24.00/5.0 [3.9] |
| TRA code | E-3 |
| TKPH | 1395 |
| Max Overall Section Width | 889 mm / 35 inch |
| Min Dual Spacing | 1107 mm / 43.58 inch |
| CAI | 645788 |
| MSPN | 28097 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | ||||||||
|
Standard |
25550 56328 |
28200 62170 |
30800 67902 |
33450 73745 |
36600 80689 |
38750 85429 |
40100 88405 |
41400 91271 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XDC - 33.00R51 |
|---|---|
| Overall Diameter | 2966 mm / 117 inch |
| Section Width | 889 mm / 35 inch |
| Loaded radius | 1318 mm |
| Seat diameter | 51 |
| Rolling circumference | 8903 |
| Tread depth | 48 mm / 61/32 nds |
| Compound | C4 |
| Weight | 1792.88 kg / 3953 lbs |
| Recommended Wheels | 24.00/5.0 [4.4] |
| Approved Wheels | 24.00/5.0 [3.9] |
| TRA code | E-3 |
| TKPH | 1395 |
| Max Overall Section Width | 889 mm / 35 inch |
| Min Dual Spacing | 1107 mm / 43.58 inch |
| CAI | 645788 |
| MSPN | 28097 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | ||||||||
|
Standard |
25550 56328 |
28200 62170 |
30800 67902 |
33450 73745 |
36600 80689 |
38750 85429 |
40100 88405 |
41400 91271 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
