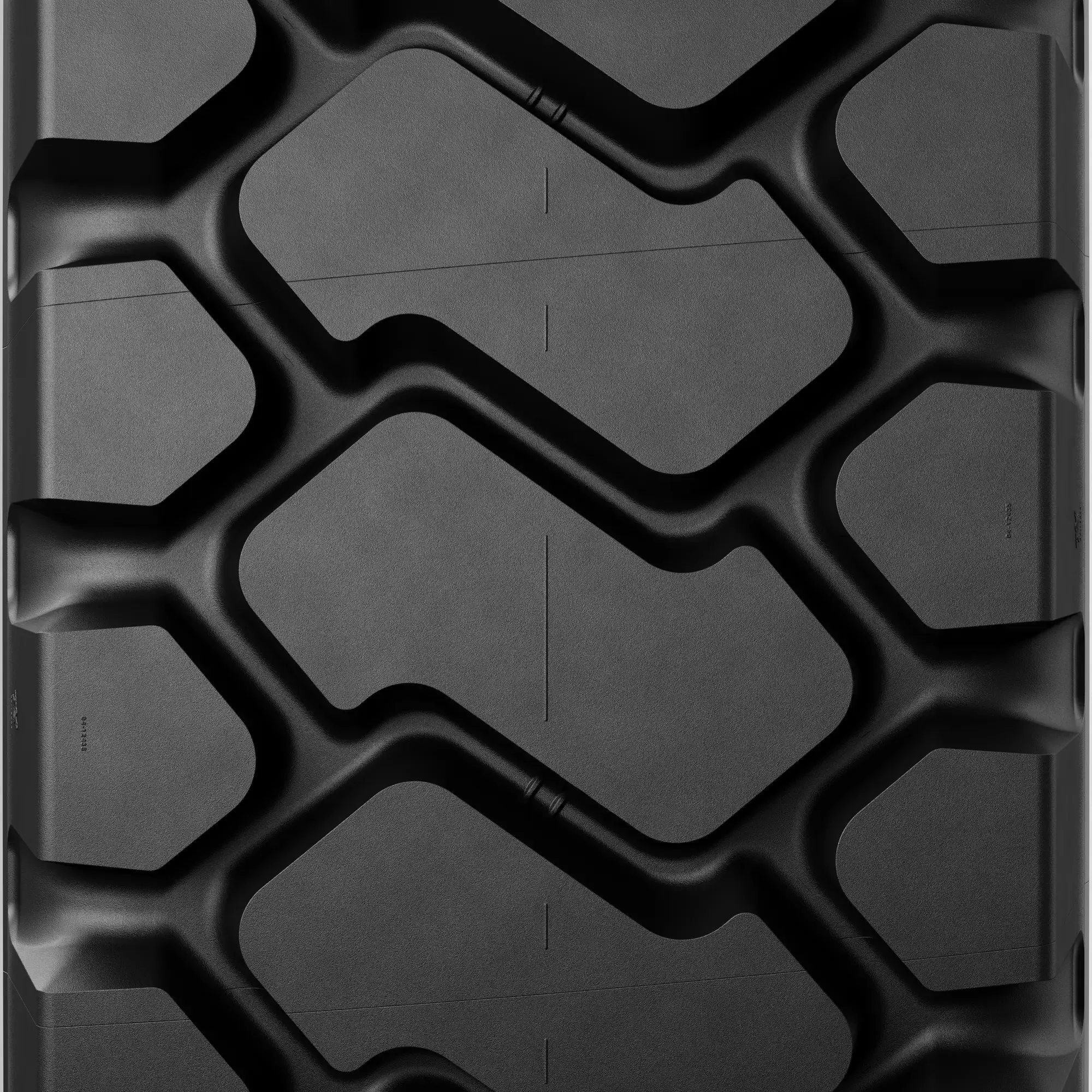

MICHELIN XDHT
Designed for heavy-duty construction applications, offering exceptional durability and traction on rugged terrains. Its robust tread pattern enhances grip and stability, making it suitable for various machines operating in challenging environments.
Why choose the MICHELIN XDHT tire?
Productivity
Traction
Durability
MICHELIN XDHT Technology
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XHDT - 18.00R25 |
|---|---|
| Overall Diameter | 1621 mm / 64 inch |
| Section Width | 496 mm / 20 inch |
| Loaded radius | 732 mm |
| Seat diameter | 25 |
| Rolling circumference | 4896 mm / 193 inch |
| Tread depth | 47 mm / 61/32 nds |
| Compound | A |
| Weight | 315 kg / 694 lbs |
| Recommended Wheels | 13.00/2.5 |
| Approved Wheels | 15.00/2.5 |
| TRA code | E-4 |
| TKPH | 170 |
| Max Overall Section Width | 496 mm / 20 inch |
| Min Dual Spacing | 587 mm / 23.11 inch |
| CAI | 199475 |
| MSPN | 18573 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
4 58 |
4.25 62 |
4.5 65 |
5 73 |
6 87 |
7 102 |
7.5 109 |
|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | |||||||
|
Standard |
6800 14991 |
7100 15653 |
7400 16314 |
8000 17637 |
9250 20393 |
9850 21716 |
10150 22377 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
