XDR designed for the extreme conditions of mining and construction sites. With its reinforced casing and innovative rubber compound, it offers exceptional resistance to cuts and tears.
MICHELIN XDR (Mining)
Long-life E4 tire, protection and traction in tough mining and quarrying conditions.
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining |
Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XDR (Mining) tire?
Exceptional longetivity.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Tire Life

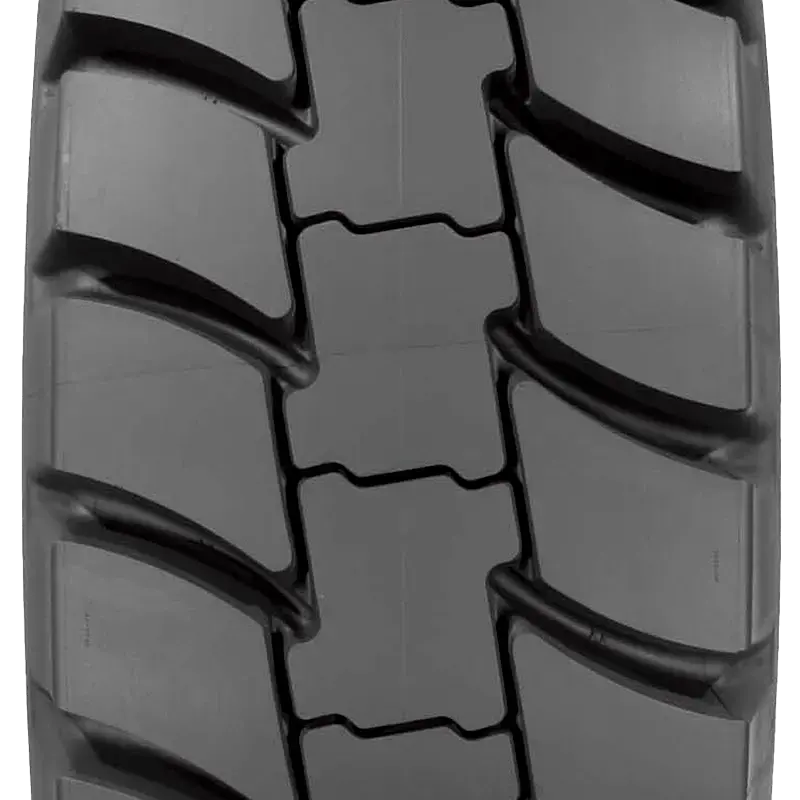

Substantial tread with a revolutionary design
Independent tread pattern blocks. Reduced heat generation in the tread and crown. Reduction in tread wear rate. Innovative tread pattern design. Better distribution of the stresses in the crown area.
Productivity
Excellent damage protection in severe conditions of use
Square shoulders. Large, durable tread band. More stability, tractive capacity and acceleration.
Traction
Excellent traction in transverse and longitudinal directions
Because of the circumferential grooves in the pattern. Due to the transverse edges of the pattern in the centre of the tread.
MICHELIN XDR (Mining) Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XDR - 27.00R49 |
|---|---|
| Overall Diameter | 107 inch / 2712 mm |
| Section Width | 29 inch / 740 mm |
| Loaded radius | 1224 mm |
| Seat diameter | 49 |
| Rolling circumference | 8188 |
| Tread depth | 96/32 nds / 76 mm |
| Compound | A |
| Weight | 3025 lbs / 1371.93 kg |
| Recommended Wheels | 19.50/4.0 [3.2] |
| Approved Wheels | 19.50/4.0 [2.7]-22.00/4.0 |
| TRA code | E-4 |
| TKPH | 392 |
| Max Overall Section Width | 29 inch / 740 mm |
| Min Dual Spacing | 35.12 inch / 892 mm |
| CAI | 123170 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | ||||||||||
|
Standard |
16850 37148 |
18550 40896 |
20300 44754 |
22050 48612 |
24000 52911 |
25500 56218 |
27250 60076 |
28100 61950 |
29000 63934 |
29850 65808 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XDR - 27.00R49 |
|---|---|
| Overall Diameter | 107 inch / 2712 mm |
| Section Width | 29 inch / 740 mm |
| Loaded radius | 1224 mm |
| Seat diameter | 49 |
| Rolling circumference | 8188 |
| Tread depth | 96/32 nds / 76 mm |
| Compound | A |
| Weight | 3025 lbs / 1371.93 kg |
| Recommended Wheels | 19.50/4.0 [3.2] |
| Approved Wheels | 19.50/4.0 [2.7]-22.00/4.0 |
| TRA code | E-4 |
| TKPH | 392 |
| Max Overall Section Width | 29 inch / 740 mm |
| Min Dual Spacing | 35.12 inch / 892 mm |
| CAI | 123170 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | ||||||||||
|
Standard |
16850 37148 |
18550 40896 |
20300 44754 |
22050 48612 |
24000 52911 |
25500 56218 |
27250 60076 |
28100 61950 |
29000 63934 |
29850 65808 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
