Designed for surface mines that need a high TKPH and resistance to aggression. Its new tread pattern offers improved thermal properties and crown protection with an enhanced bead area.

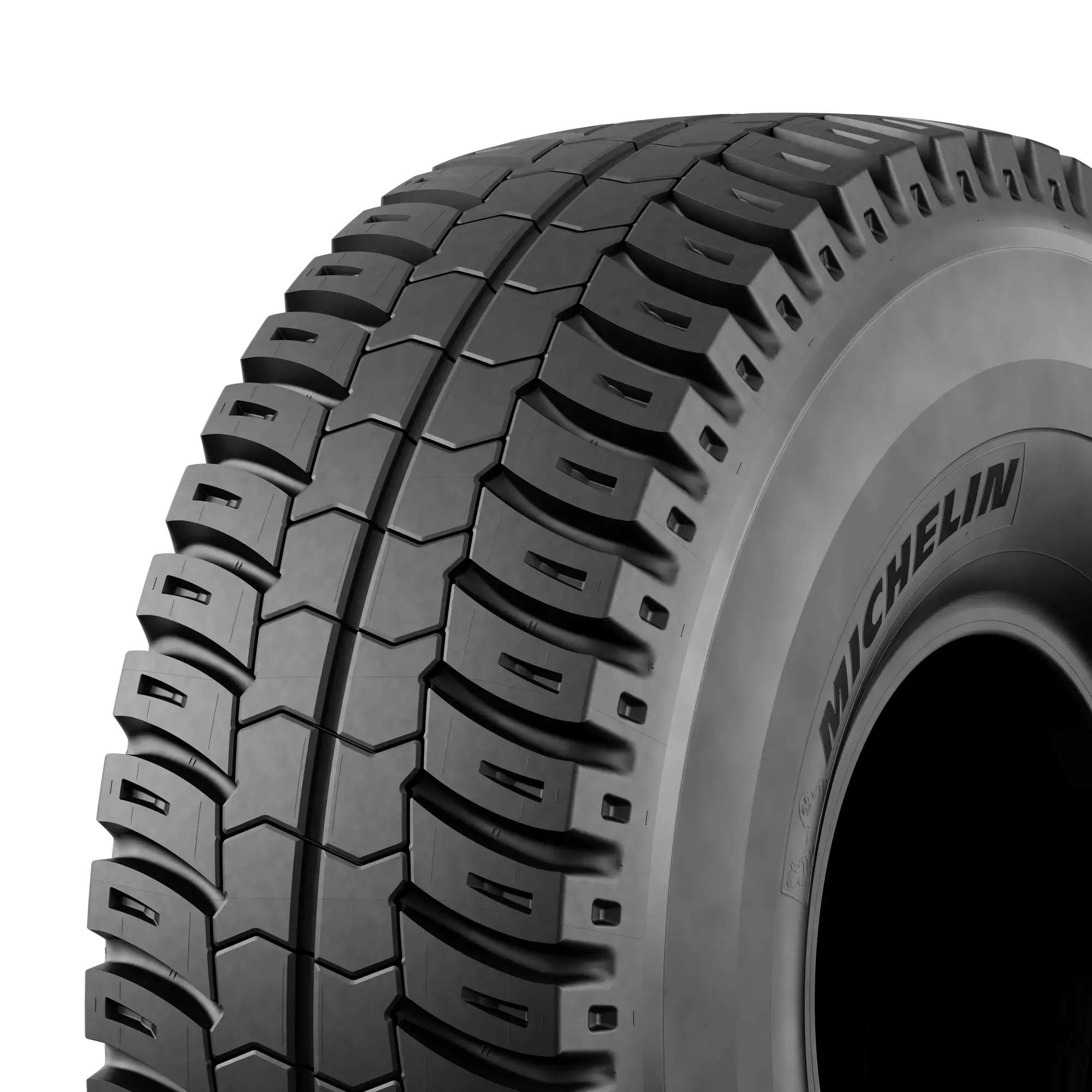

MICHELIN XDR2 S
Designed for surface mines that need a high TKPH and resistance to aggression. Its new tread pattern offers improved thermal properties and crown protection, while the bead area endurance is enhanced with a 20% wider bead bundle.
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining, Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XDR2 S tire?
Works at your speed.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Productivity
High level of TKPH for high speed haulage

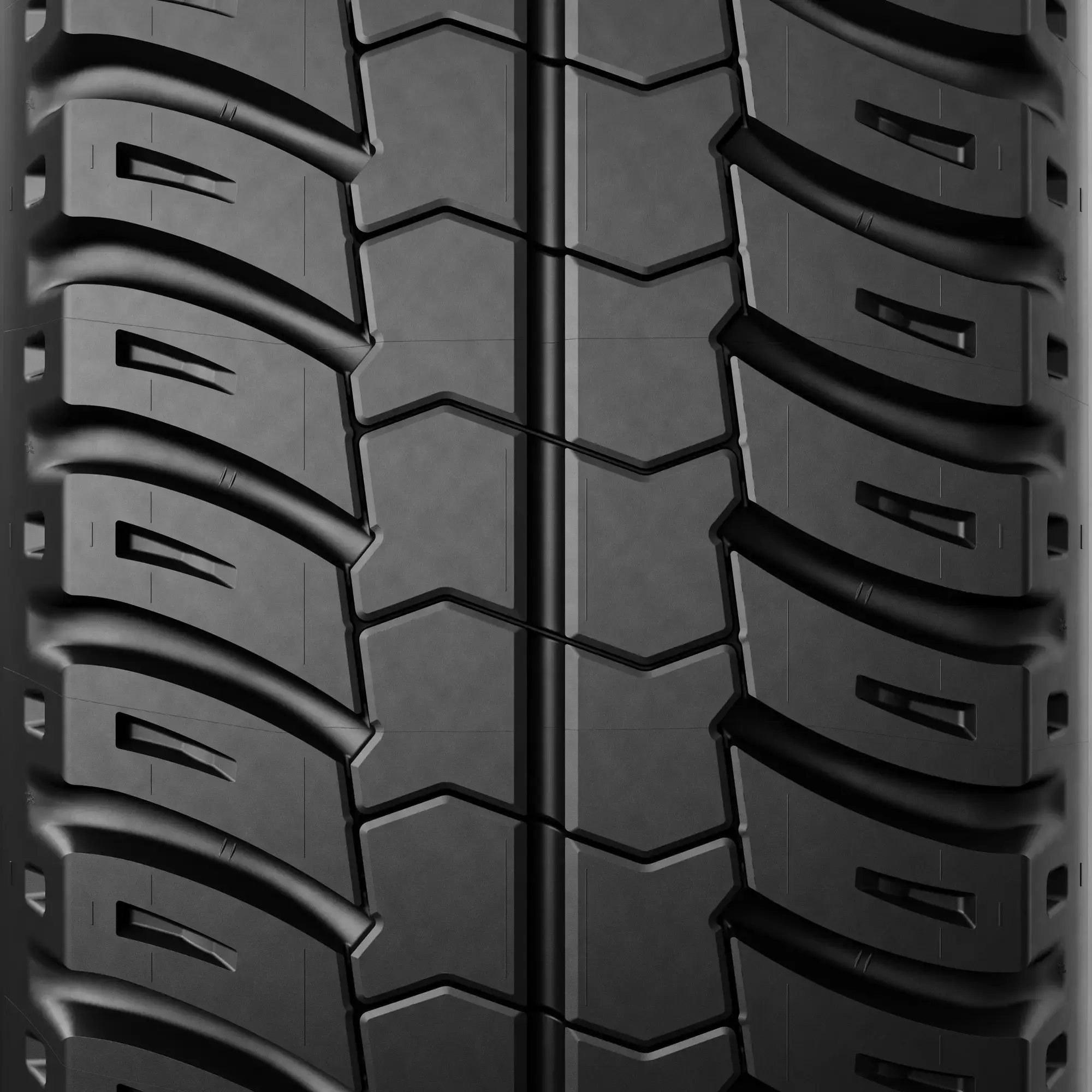

An optimized tread pattern with better thermal properties in the tread compounds.
Durability
Enhanced architecture and crown design
High resistance steel for stronger cables & plies and
rubber encased cables, and 20% wider bead bundle and better rim contact surface.
MICHELIN XDR2 S Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XDR2 S - 59/80R63 |
|---|---|
| Overall Diameter | 4029 mm / 159 inch |
| Section Width | 1495 mm / 59 inch |
| Loaded radius | 1734 mm |
| Seat diameter | 63 |
| Rolling circumference | 11954 |
| Tread depth | 72 mm / 90/32 nds |
| Compound | C4 |
| Weight | 4700 kg / 10362 lbs |
| Recommended Wheels | 44.00/5.0 [6.0] |
| Approved Wheels | 44.00/5.0 [5.5] |
| TRA code | E-3 |
| TKPH | 2535 |
| Max Overall Section Width | 1495 mm / 59 inch |
| Min Dual Spacing | 1834 mm / 72.20 inch |
| CAI | 416409 |
| MSPN | 68652 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
6 87 |
6.5 94 |
6.8 99 |
|---|---|---|---|
| (kg - lbs) Transport | |||
|
Standard |
100000 220462 |
102100 225092 |
104000 229281 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XDR2 S - 59/80R63 |
|---|---|
| Overall Diameter | 4029 mm / 159 inch |
| Section Width | 1495 mm / 59 inch |
| Loaded radius | 1734 mm |
| Seat diameter | 63 |
| Rolling circumference | 11954 |
| Tread depth | 72 mm / 90/32 nds |
| Compound | C4 |
| Weight | 4700 kg / 10362 lbs |
| Recommended Wheels | 44.00/5.0 [6.0] |
| Approved Wheels | 44.00/5.0 [5.5] |
| TRA code | E-3 |
| TKPH | 2535 |
| Max Overall Section Width | 1495 mm / 59 inch |
| Min Dual Spacing | 1834 mm / 72.20 inch |
| CAI | 416409 |
| MSPN | 68652 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
6 87 |
6.5 94 |
6.8 99 |
|---|---|---|---|
| (kg - lbs) Transport | |||
|
Standard |
100000 220462 |
102100 225092 |
104000 229281 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) Compared to the MICHELIN 59/80R63 XDR S tire.(1) Compared to the MICHELIN® 59/80R63 XDR® S tire.
