TheXDR 250 tire designed for surface mining and quarry operations, offering excellent durability and performance. Its innovative tread pattern enhances cooling and increases TKPH/TMPH by at least 25%.

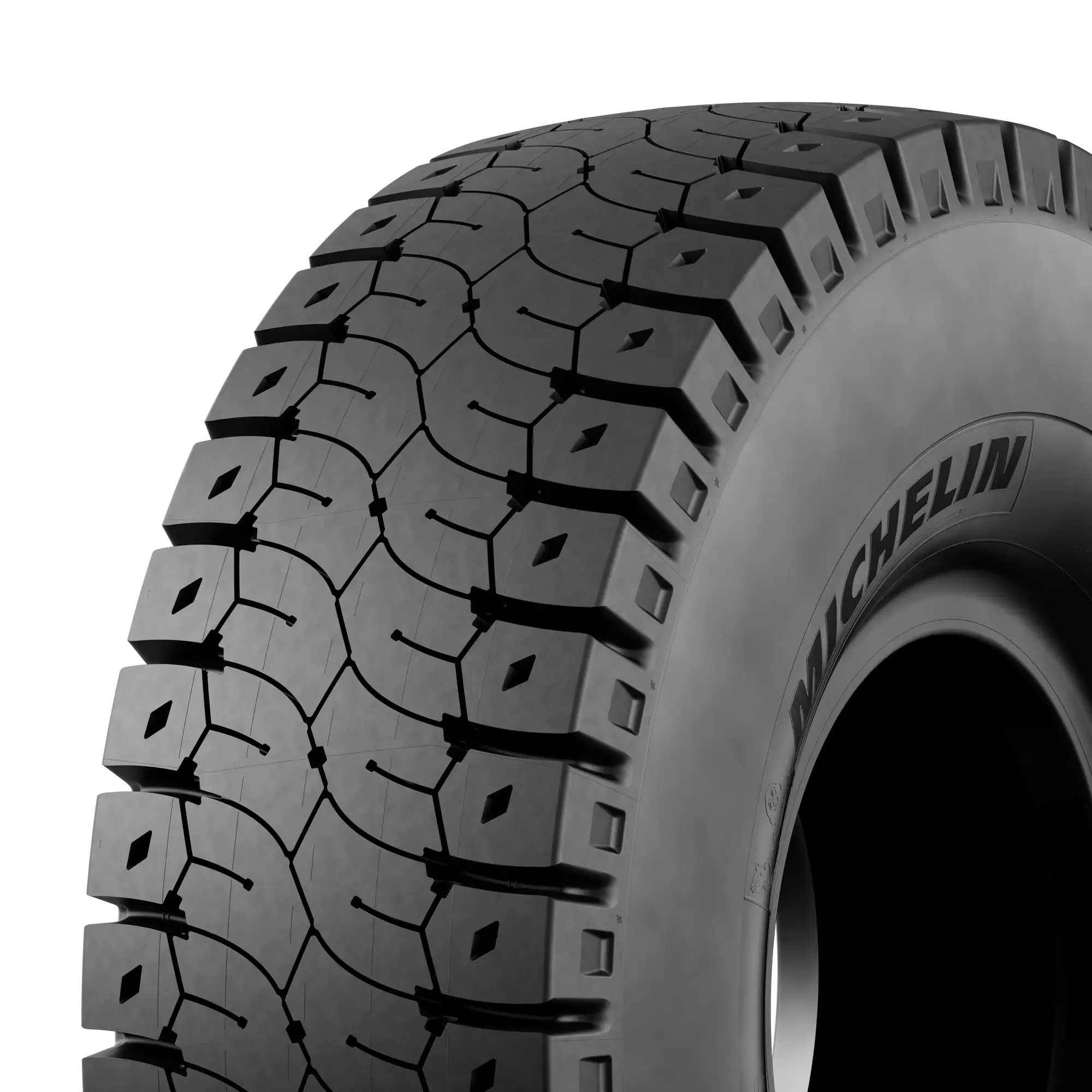

MICHELIN XDR250
A more productive tire for compounds C4 and C with at least 25%(1) more TKPH.
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining, Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XDR250 tire?
Run harder, keep cool, get more.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Load Capacity
TKPH increase thanks to a bigger tire diameter
Productivity
Increase TKPH without compromising tire life

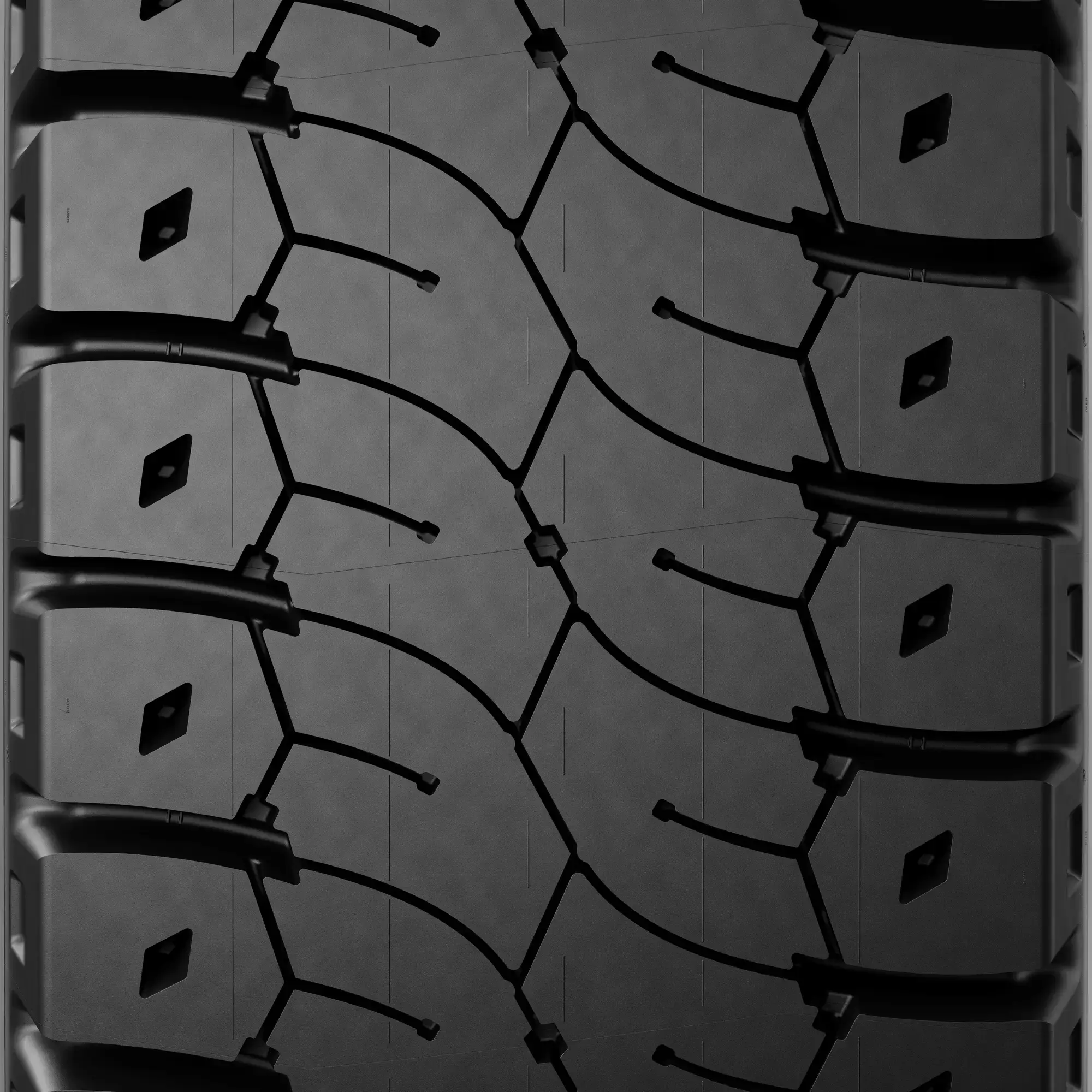

Ventilated tread pattern delivers a cooler tire.
Tire Life
Exceptional tire life due to long lasting compounds.
MICHELIN XDR250 Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XDR250 - 50/80R57 |
|---|---|
| Overall Diameter | 3610 mm / 142 inch |
| Section Width | 1204 mm / 47 inch |
| Loaded radius | 1579 mm |
| Seat diameter | 57 |
| Rolling circumference | 10791 |
| Tread depth | 94 mm / 118/32 nds |
| Compound | C4 |
| Weight | 3865 kg / 8521 lbs |
| Recommended Wheels | 32.00/6.0 [5.2] |
| Approved Wheels | 29.00/6.0 [5.2]-29.00/6.0 [5.7]-32.00/6.0 [4.8] |
| TRA code | E-4 |
| TKPH | 1447 |
| Max Overall Section Width | 1204 mm / 47 inch |
| Min Dual Spacing | 1420 mm / 55.91 inch |
| CAI | 253293 |
| MSPN | 48751 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
5 73 |
5.25 76 |
5.5 80 |
5.75 83 |
6 87 |
6.25 91 |
6.5 94 |
6.75 98 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | |||||||||
|
Standard |
57000 125663 |
59000 130073 |
61000 134482 |
63000 138891 |
65000 143300 |
67000 147710 |
69000 152119 |
71000 156528 |
73000 160937 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XDR250 - 50/80R57 |
|---|---|
| Overall Diameter | 3610 mm / 142 inch |
| Section Width | 1204 mm / 47 inch |
| Loaded radius | 1579 mm |
| Seat diameter | 57 |
| Rolling circumference | 10791 |
| Tread depth | 94 mm / 118/32 nds |
| Compound | C4 |
| Weight | 3865 kg / 8521 lbs |
| Recommended Wheels | 32.00/6.0 [5.2] |
| Approved Wheels | 29.00/6.0 [5.2]-29.00/6.0 [5.7]-32.00/6.0 [4.8] |
| TRA code | E-4 |
| TKPH | 1447 |
| Max Overall Section Width | 1204 mm / 47 inch |
| Min Dual Spacing | 1420 mm / 55.91 inch |
| CAI | 253293 |
| MSPN | 48751 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
5 73 |
5.25 76 |
5.5 80 |
5.75 83 |
6 87 |
6.25 91 |
6.5 94 |
6.75 98 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | |||||||||
|
Standard |
57000 125663 |
59000 130073 |
61000 134482 |
63000 138891 |
65000 143300 |
67000 147710 |
69000 152119 |
71000 156528 |
73000 160937 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) Compared to BRIDGESTONE 46/90R57 VRPS tire based on the 2024 Bridgestone databook.
