The MICHELIN XDR250+ tire is designed for 250-ton rigid dump trucks in surface mining operations. It features innovative compounds and layering technology that increase tire life by 8%.

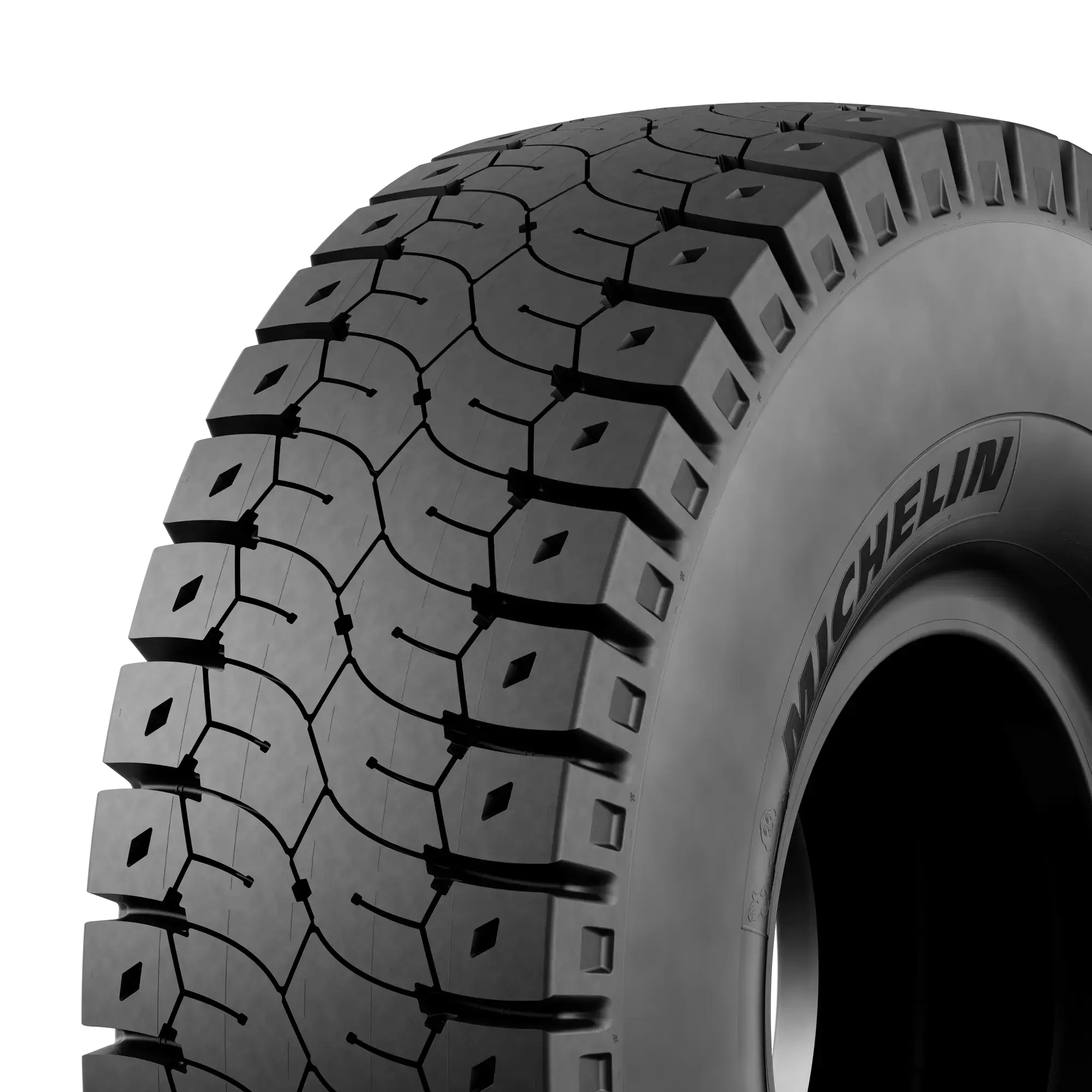

MICHELIN XDR250+
Increase tire life by 8%(1) for MB4 and MB tread compounds.
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining, Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XDR250+ tire?
Run Harder, Get More Life.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Tire Life
Increased wear resistance due to revolutionary compounds
Second generation of revolutionary compounds - MB4 and MB - provide superior level of carbon black dispersion.
Durability
Increased aggression resistance
Optimized contact patch that delivers improved wear profile and protects your truck.
Tread Durability
Optimized wear in front and rear axles
Michelin Multilayer Technology is optimized for front axles for the first cycle of the tire's life then to be rotated to the rear axles to increase tire life.
MICHELIN XDR250+ Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XDR250+ - 50/80R57 |
|---|---|
| Overall Diameter | 3610 mm / 142 inch |
| Section Width | 1204 mm / 47 inch |
| Loaded radius | 1579 mm |
| Seat diameter | 57 |
| Rolling circumference | 10791 |
| Tread depth | 94 mm / 118/32 nds |
| Compound | MB4 |
| Weight | 3850 kg / 8488 lbs |
| Recommended Wheels | 32.00/6.0 [5.2] |
| Approved Wheels | 29.00/6.0 [5.2]-29.00/6.0 [5.7]-32.00/6.0 [4.8] |
| TRA code | E-4 |
| TKPH | 1072 |
| Max Overall Section Width | 1204 mm / 47 inch |
| Min Dual Spacing | 1420 mm / 55.91 inch |
| CAI | 238454 |
| MSPN | 22280 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
5 73 |
5.25 76 |
5.5 80 |
5.75 83 |
6 87 |
6.25 91 |
6.5 94 |
6.75 98 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | |||||||||
|
Standard |
57000 125663 |
59000 130073 |
61000 134482 |
63000 138891 |
65000 143300 |
67000 147710 |
69000 152119 |
71000 156528 |
73000 160937 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XDR250+ - 50/80R57 |
|---|---|
| Overall Diameter | 3610 mm / 142 inch |
| Section Width | 1204 mm / 47 inch |
| Loaded radius | 1579 mm |
| Seat diameter | 57 |
| Rolling circumference | 10791 |
| Tread depth | 94 mm / 118/32 nds |
| Compound | MB4 |
| Weight | 3850 kg / 8488 lbs |
| Recommended Wheels | 32.00/6.0 [5.2] |
| Approved Wheels | 29.00/6.0 [5.2]-29.00/6.0 [5.7]-32.00/6.0 [4.8] |
| TRA code | E-4 |
| TKPH | 1072 |
| Max Overall Section Width | 1204 mm / 47 inch |
| Min Dual Spacing | 1420 mm / 55.91 inch |
| CAI | 238454 |
| MSPN | 22280 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
5 73 |
5.25 76 |
5.5 80 |
5.75 83 |
6 87 |
6.25 91 |
6.5 94 |
6.75 98 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | |||||||||
|
Standard |
57000 125663 |
59000 130073 |
61000 134482 |
63000 138891 |
65000 143300 |
67000 147710 |
69000 152119 |
71000 156528 |
73000 160937 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
1 The new Michelin 50/80R57 XDR 250+ tire has INCREASED TIRE LIFE BY 8%, thanks to new generation of compounds, innovative tread layers(1) and improved aggression resistance.(2) (1) Compared to the Michelin XDR 250 50/80R57 tire. Average performance by mine site. Projected improvement in tire life based on field performance in 70 customer mine sites over 25 months. Actual results may vary. (2) Compared to the Michelin XDR 250 50/80R57 tire, thanks to carrying the same load capacity at lower air pressure, according to the 2023 Michelin Data Book.(1) Compared to the MICHELIN® XDR® 250 50/80R57 tire. Average performance by mine site. Projected improvement in tire life based on field performance in 70 customer mine sites over 25 months. (2) Compared to the MICHELIN® XDR® 250 50/80R57 tire, thanks to carrying the same load capacity at lower air pressure, according to the 2019 MICHELIN® Data Book.
