MICHELIN XDR3 is built for maximum durability and performance in mining applications. Its advanced design provides superior resistance to wear, cuts, and impacts, while offering excellent traction.

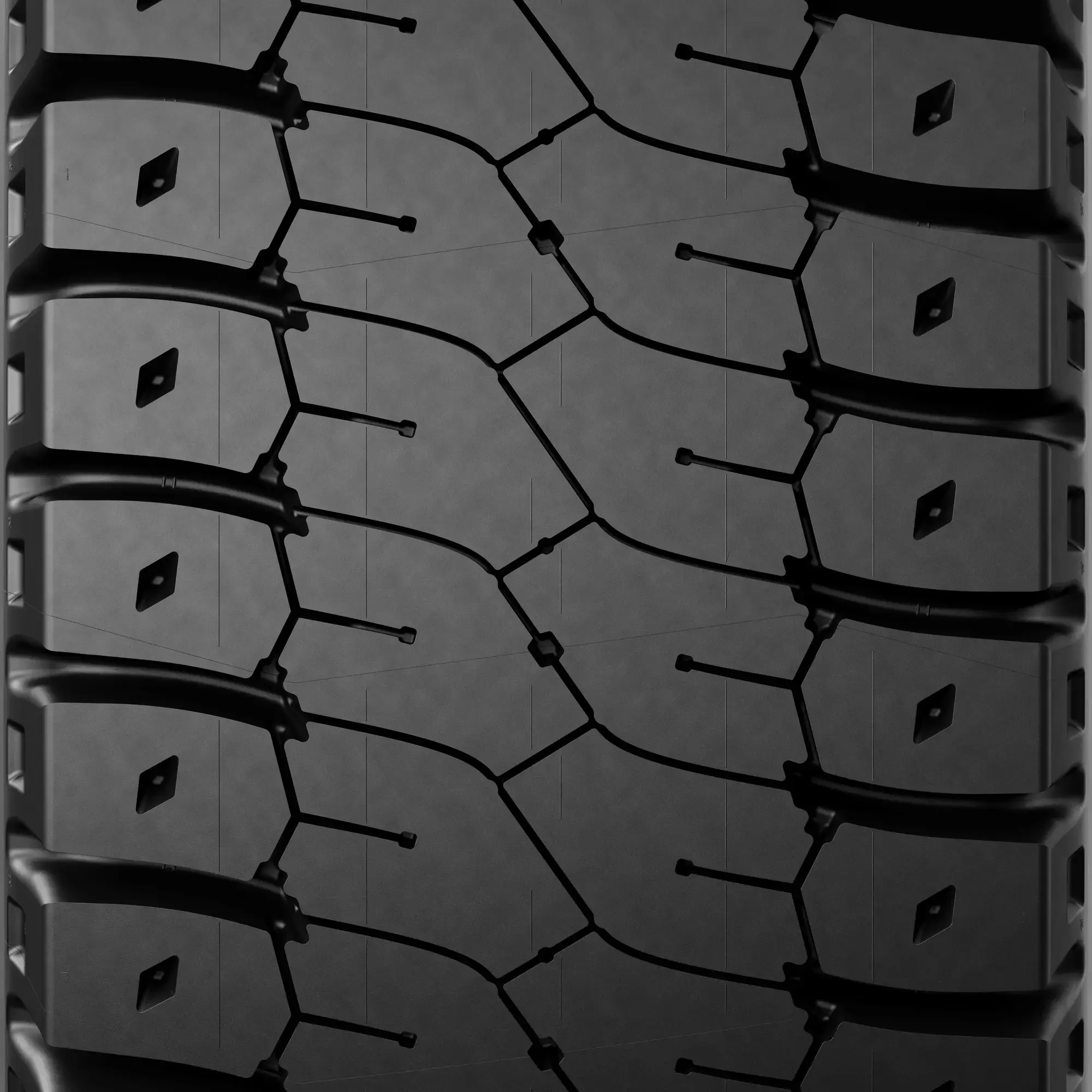

MICHELIN XDR3
Exceptional tire life, increased by a minimum of 8-10% (1).
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining, Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XDR3 tire?
Long lasting innovations.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Durability
Corrosion-proof cables that are 10% stronger (1)
The steel integrated into the rubber prevents the spread of corrosion for greater robustness.
Stronger steel inside the cable.
Tire Life
increase in tire life by a minimum of 8-10% (2)
Exclusive new mixing process. The mixture is a lot more uniform which gives a reduced rate of wear.
Higher level of carbon black dispersion, which improves wear resistance.
Productivity
Same TKPH as XDR 2 tire (Note: 10% increase in TKPH for 27.00R49 size)
Good endurance due to improved heat dissipation from the innovative tread pattern. Better resistance to damage thanks to a slower rate of wear.(27.00R49 *** capacity casing with 10% load increase). (1)
MICHELIN XDR3 Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XDR3 - 27.00R49 |
|---|---|
| Overall Diameter | 2730 mm / 107 inch |
| Section Width | 730 mm / 29 inch |
| Loaded radius | 1236 mm |
| Seat diameter | 49 |
| Rolling circumference | 8257 |
| Tread depth | 90 mm / 112/32 nds |
| Compound | B4 |
| Weight | 1390 kg / 3064 lbs |
| Recommended Wheels | 19.50/4.0 [3.2] |
| Approved Wheels | 19.50/4.0 [2.7] |
| TRA code | E-4 |
| TKPH | 528 |
| Max Overall Section Width | 730 mm / 29 inch |
| Min Dual Spacing | 892 mm / 35.12 inch |
| CAI | 395114 |
| MSPN | 24794 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport load per tire <= 27.25 t | ||||||||||
|
Standard |
16850 37148 |
18550 40896 |
20300 44754 |
22050 48612 |
24000 52911 |
25500 56218 |
27250 60076 |
|||
| (kg - lbs) Transport load per tire > 27.25 t | ||||||||||
|
Standard |
29000 63934 |
30000 66139 |
32100 70768 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XDR3 - 27.00R49 |
|---|---|
| Overall Diameter | 2730 mm / 107 inch |
| Section Width | 730 mm / 29 inch |
| Loaded radius | 1236 mm |
| Seat diameter | 49 |
| Rolling circumference | 8257 |
| Tread depth | 90 mm / 112/32 nds |
| Compound | B4 |
| Weight | 1390 kg / 3064 lbs |
| Recommended Wheels | 19.50/4.0 [3.2] |
| Approved Wheels | 19.50/4.0 [2.7] |
| TRA code | E-4 |
| TKPH | 528 |
| Max Overall Section Width | 730 mm / 29 inch |
| Min Dual Spacing | 892 mm / 35.12 inch |
| CAI | 395114 |
| MSPN | 24794 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport load per tire <= 27.25 t | ||||||||||
|
Standard |
16850 37148 |
18550 40896 |
20300 44754 |
22050 48612 |
24000 52911 |
25500 56218 |
27250 60076 |
|||
| (kg - lbs) Transport load per tire > 27.25 t | ||||||||||
|
Standard |
29000 63934 |
30000 66139 |
32100 70768 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
TIRE SIZES1: 27.00R49, 33.00R51, 37.00R57, 40.00R57, 50/90R57, 53/80R63, 59/80R63(1) vs. MICHELIN XDR 2 tire, all sizes.(2) TIRE SIZES: 27.00R49,33.00R51, 37.00R57, 40.00R57, 50/90R57, 53/80R63, 59/80R63 Compared to the MICHELIN® XDR or MICHELIN XDR 2. Average performance by mine site. Projected improvement in tire life based on field performance in customer mine sites over 29 months.
