MICHELIN XDR 3+ EXTRA LOAD tire is engineered for rigid dump trucks in surface mining, offering a 4% increase in tire life with its advanced compounds and robust construction.

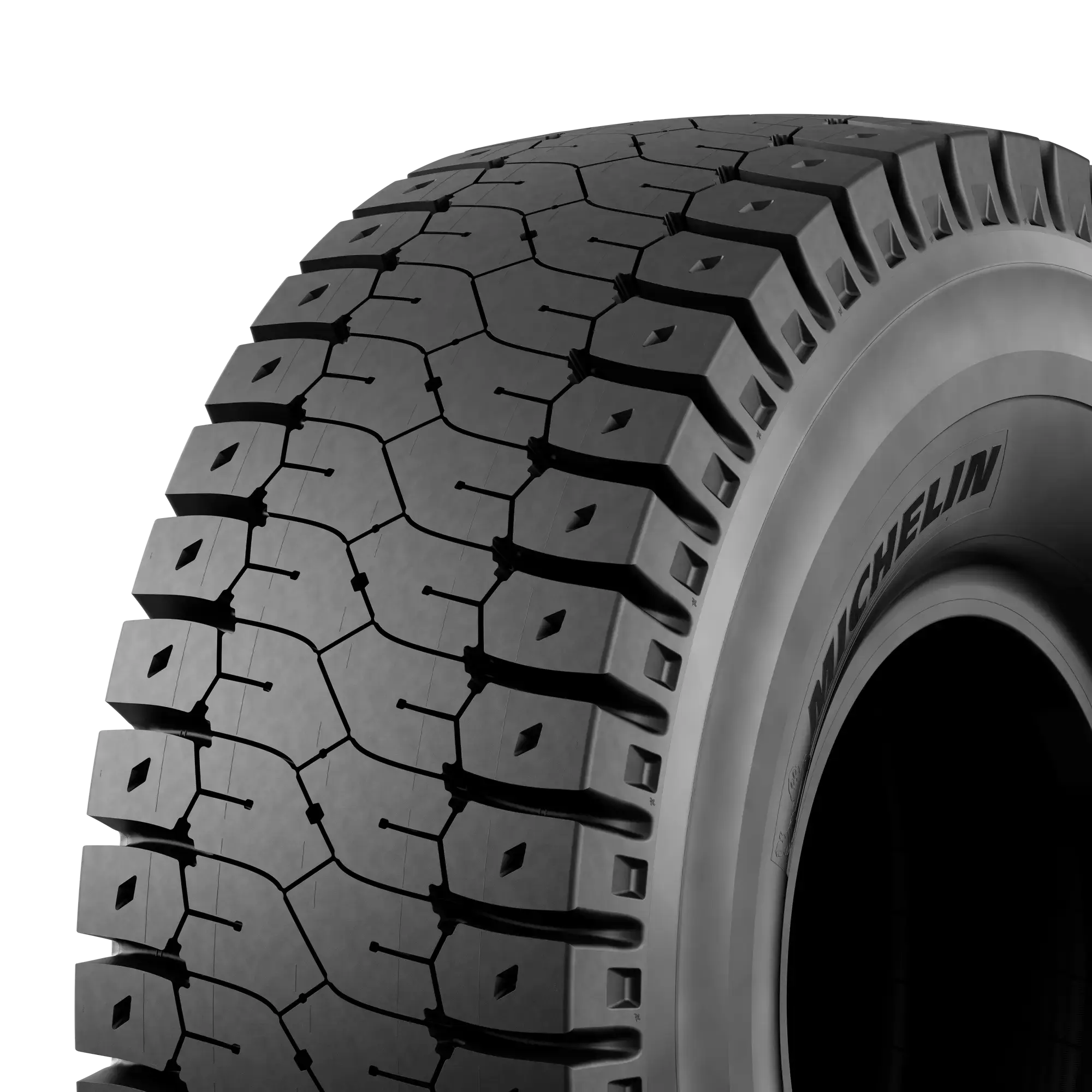

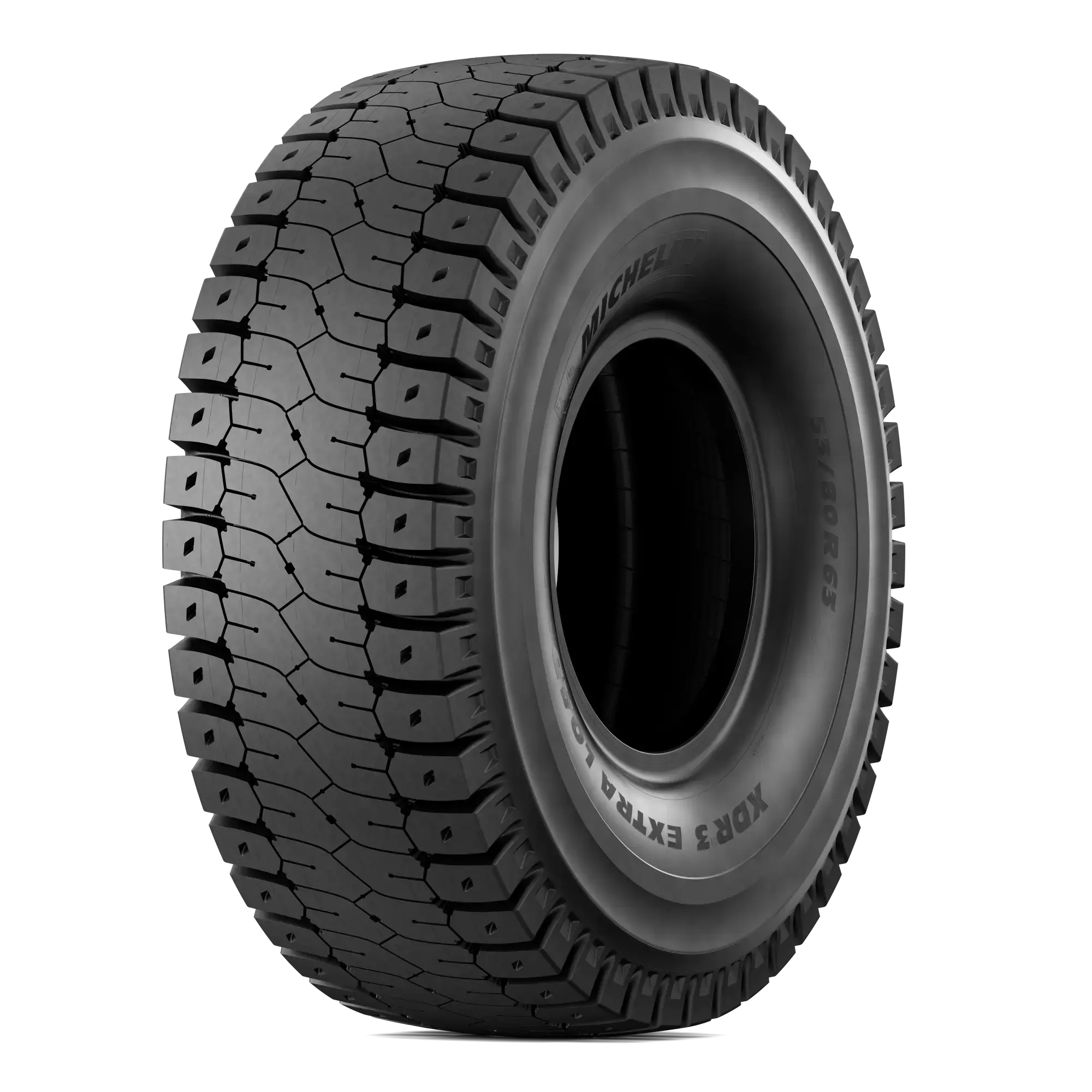

MICHELIN XDR3+ EXTRA LOAD
The XDR 3+ Extra Load tire features a more homogeneous tread mix for a slower wear rate and the second generation of revolutionary compounds, leading to an increase of at least 4% in tire life for the MB4 compound.(2)
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining, Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XDR3+ EXTRA LOAD tire?
Long lasting innovations.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Load Capacity
Built for extra load conditions

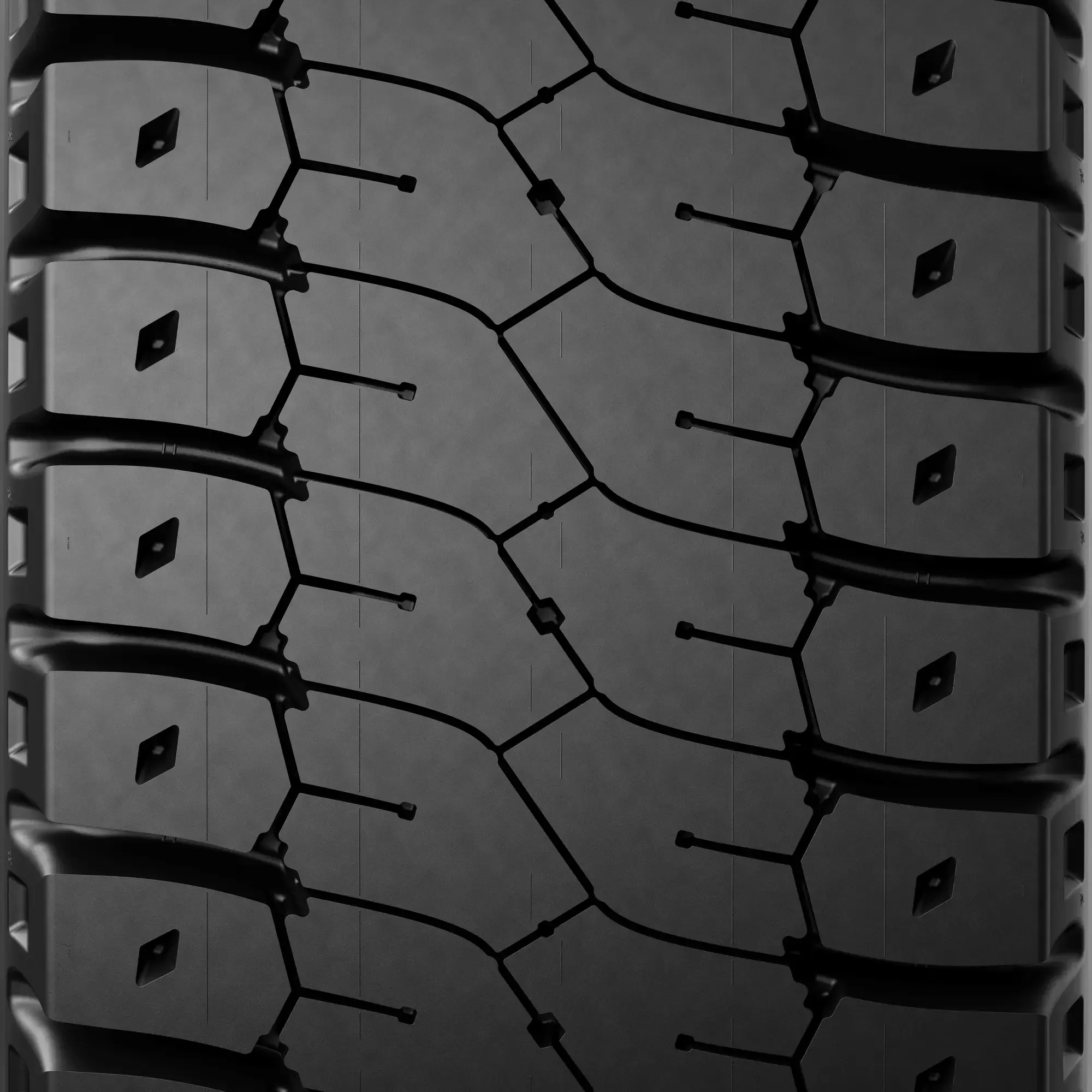

Interlocking blocks of rubber create better load distribution and carrying capacity.
Tire Life
Extend tire life by at least 4% (2).
Second generation revolutionary compound— MB4.
The tires have Michelin Multilayer Technology, and are designed to be rotated to the rear axles to increase tire life.
Durability
Robust structure with additional strength
Stronger cables(1), new plies, and robust structure designed
to deliver additional strength.
MICHELIN XDR3+ EXTRA LOAD Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XDR3+ EXTRA LOAD - 53/80R63 |
|---|---|
| Overall Diameter | 3806 mm / 150 inch |
| Section Width | 1357 mm / 53 inch |
| Loaded radius | 1661 mm |
| Seat diameter | 63 |
| Rolling circumference | 11324 |
| Tread depth | 110 mm / 138/32 nds |
| Compound | MB4 |
| Weight | 4900 kg / 10803 lbs |
| Recommended Wheels | 36.00/5.0 [5.5] |
| Approved Wheels | 36.00/5.0 [5]-38.00/5.0 [5.5]-38.00/5.0 [5] |
| TRA code | E-4 |
| TKPH | 1520 |
| Max Overall Section Width | 1357 mm / 53 inch |
| Min Dual Spacing | 1637 mm / 64.45 inch |
| CAI | 509797 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
7 102 |
7.25 105 |
7.5 109 |
|---|---|---|---|
| (kg - lbs) Transport | |||
|
Standard |
90000 198416 |
92500 203928 |
95000 209439 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XDR3+ EXTRA LOAD - 53/80R63 |
|---|---|
| Overall Diameter | 3806 mm / 150 inch |
| Section Width | 1357 mm / 53 inch |
| Loaded radius | 1661 mm |
| Seat diameter | 63 |
| Rolling circumference | 11324 |
| Tread depth | 110 mm / 138/32 nds |
| Compound | MB4 |
| Weight | 4900 kg / 10803 lbs |
| Recommended Wheels | 36.00/5.0 [5.5] |
| Approved Wheels | 36.00/5.0 [5]-38.00/5.0 [5.5]-38.00/5.0 [5] |
| TRA code | E-4 |
| TKPH | 1520 |
| Max Overall Section Width | 1357 mm / 53 inch |
| Min Dual Spacing | 1637 mm / 64.45 inch |
| CAI | 509797 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
7 102 |
7.25 105 |
7.5 109 |
|---|---|---|---|
| (kg - lbs) Transport | |||
|
Standard |
90000 198416 |
92500 203928 |
95000 209439 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) Based on comparisons to the MICHELIN® XDR® 3 tire.(2) Compared to the MICHELIN® XDR® 3 tire. Actual results may vary.
