The MICHELIN XDR4 EXTRA LOAD tire is designed for surface mining operations, offering excellent durability and performance. With a 10% increase in load capacity, it boosts productivity and efficiency.

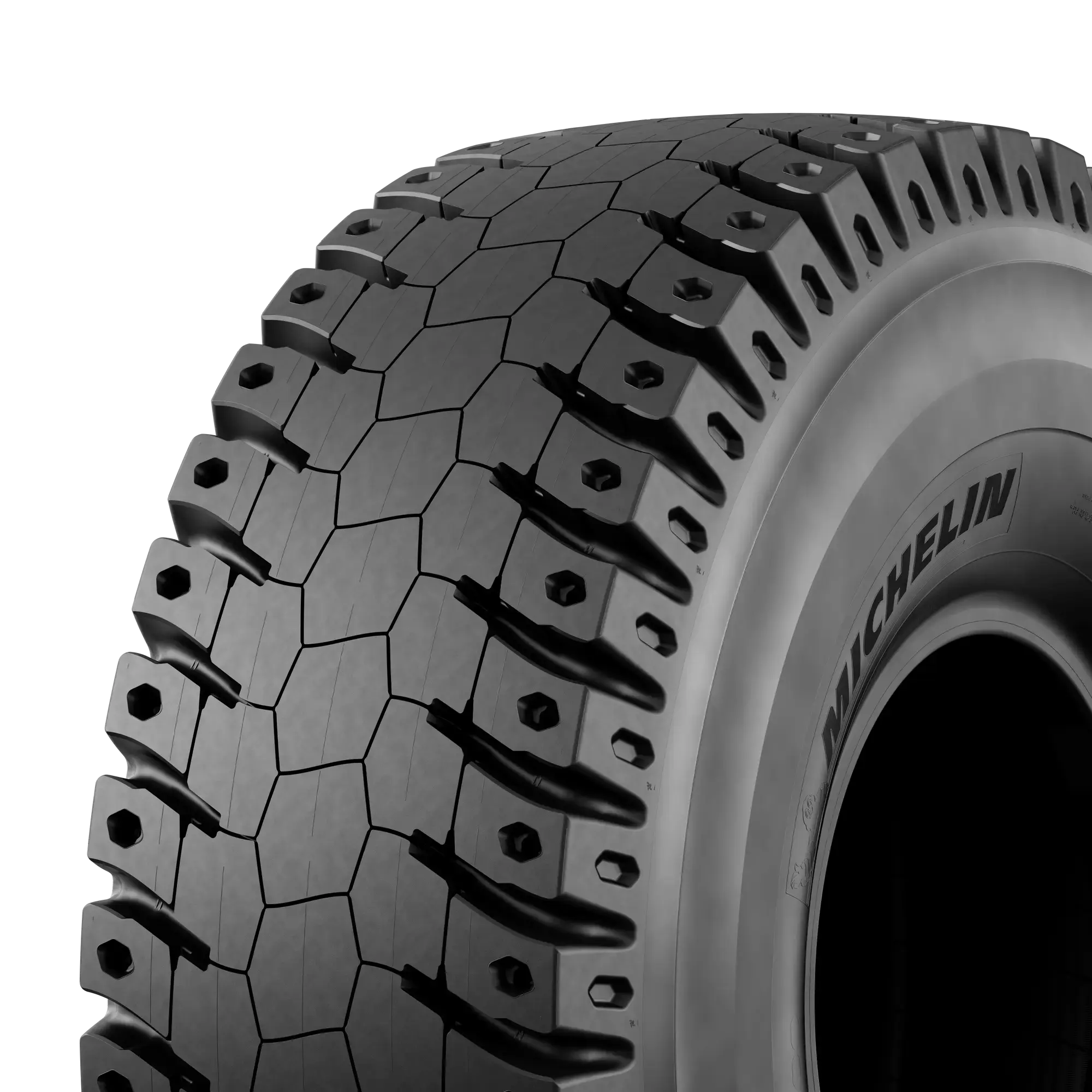

MICHELIN XDR4 EXTRA LOAD
TIRE SIZE: 59/80R63
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining, Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XDR4 EXTRA LOAD tire?
Boost payload, boost productivity.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Load Capacity
10% more load capacity (1)
Optimized to carry up to 115 tons, thanks to new cables, architecture and larger size.
Productivity
UP TO 2576 TKPH (1)
New cables, architecture and larger size.
Tire Life
Improved heat resistance, adherence and wear profile (2)

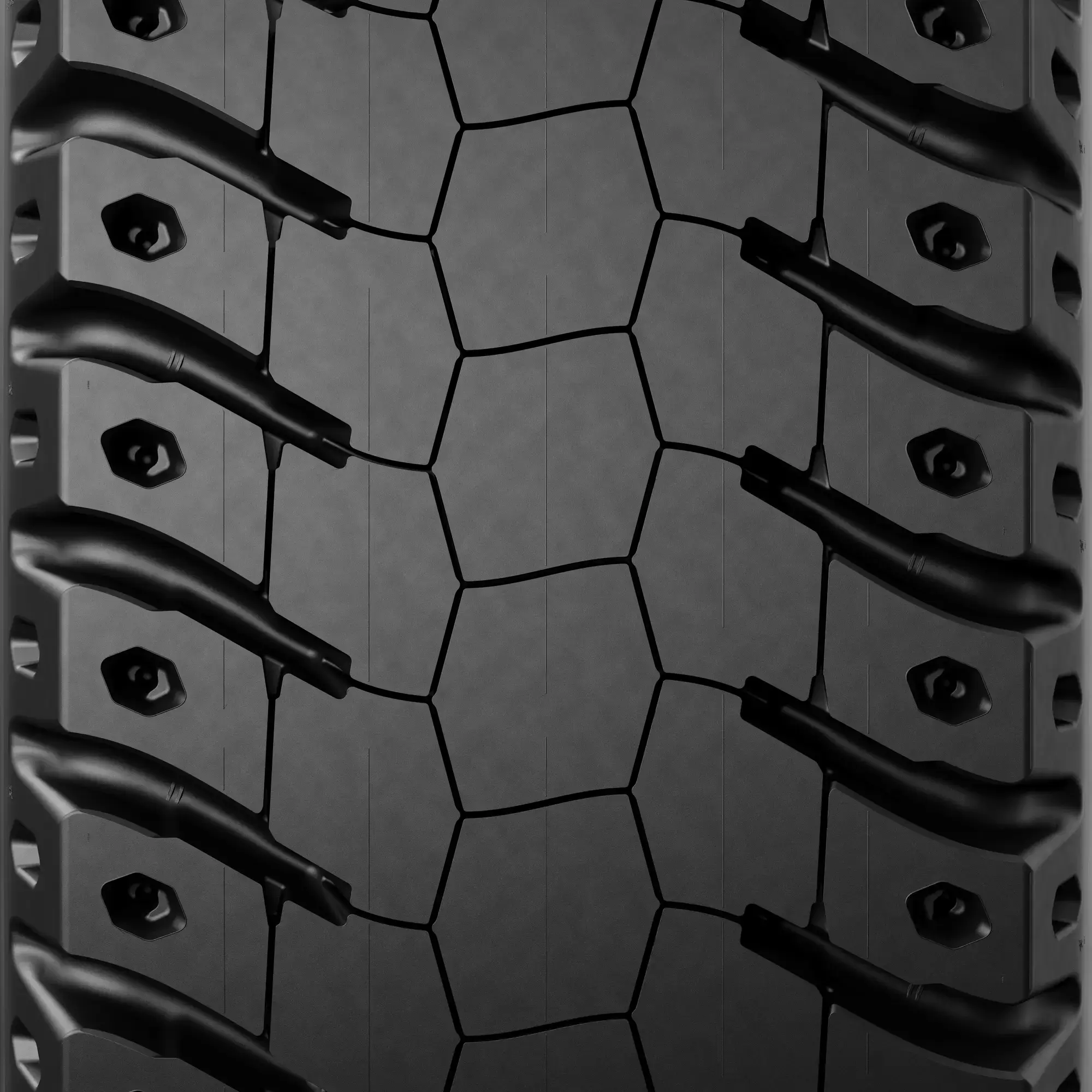

Innovative tread pattern.
MICHELIN XDR4 EXTRA LOAD Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XDR4 EXTRA LOAD - 59/80R63 |
|---|---|
| Overall Diameter | 4027 mm / 159 inch |
| Section Width | 1495 mm / 59 inch |
| Loaded radius | 1737 mm |
| Seat diameter | 63 |
| Tread depth | 100 mm / 125/32 nds |
| Weight | 5350 kg / 11795 lbs |
| Recommended Wheels | 44.00/5.0 [6.0] |
| Approved Wheels | 44.00/5.0 [5.5] |
| TRA code | E-4 |
| TKPH | 1840 |
| Max Overall Section Width | 1495 mm / 59 inch |
| CAI | 233050 |
| MSPN | 17772 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
7 102 |
7.25 105 |
7.5 109 |
|---|---|---|---|
| (kg - lbs) Transport | |||
|
Standard |
109000 240304 |
112000 246918 |
115000 253532 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XDR4 EXTRA LOAD - 59/80R63 |
|---|---|
| Overall Diameter | 4027 mm / 159 inch |
| Section Width | 1495 mm / 59 inch |
| Loaded radius | 1737 mm |
| Seat diameter | 63 |
| Tread depth | 100 mm / 125/32 nds |
| Weight | 5350 kg / 11795 lbs |
| Recommended Wheels | 44.00/5.0 [6.0] |
| Approved Wheels | 44.00/5.0 [5.5] |
| TRA code | E-4 |
| TKPH | 1840 |
| Max Overall Section Width | 1495 mm / 59 inch |
| CAI | 233050 |
| MSPN | 17772 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
7 102 |
7.25 105 |
7.5 109 |
|---|---|---|---|
| (kg - lbs) Transport | |||
|
Standard |
109000 240304 |
112000 246918 |
115000 253532 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) With the new Michelin 59/80R63 XDR 4 EXTRA LOAD tire, get 10% more load capacity, to carry up to 115 tons, due to new cables, architecture and larger size vs. the Michelin 59/80R63 XDR 3+ tire.(2) The new Michelin 59/80R63 XDR 4 EXTRA LOAD tire was designed for improved heat resistance, adherence and wear profile, thanks to a new tread pattern vs. the Michelin 59/80R63 XDR 3+ tire.
