The MICHELIN XDR4 SPEED tire is engineered for rigid dump trucks, delivering a minimum of 7% longer tire life with its innovative tread pattern and wear-resistant compound.

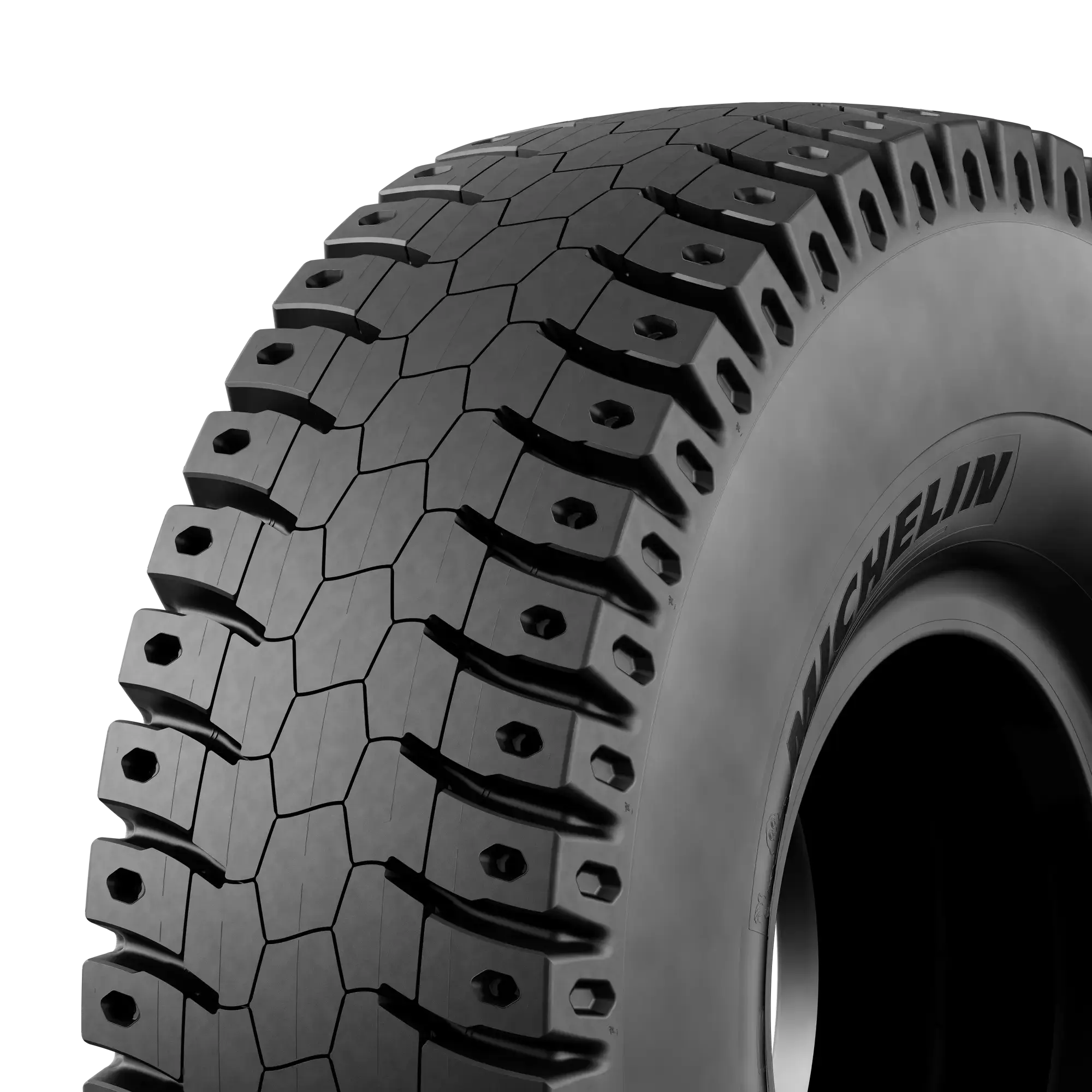

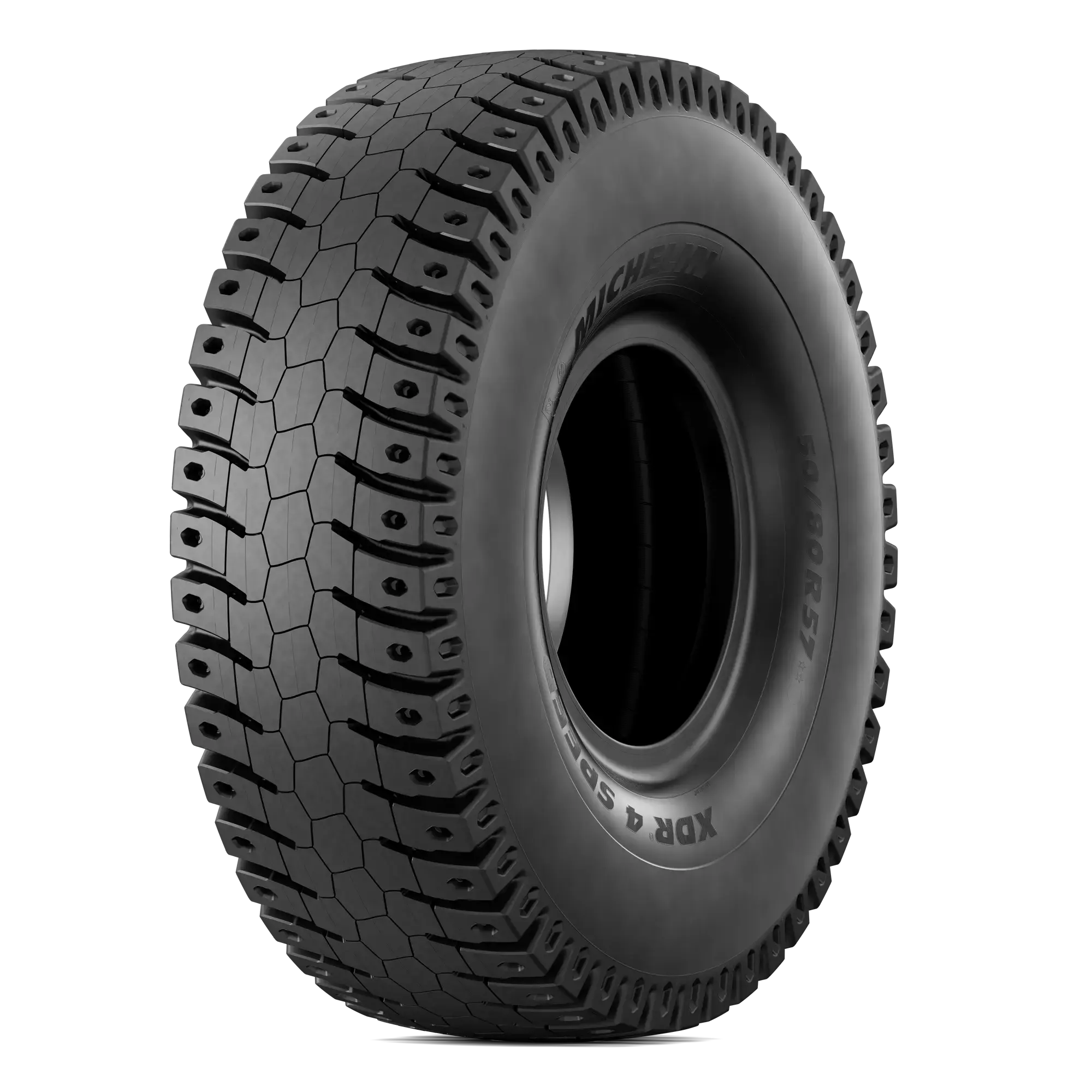

MICHELIN XDR4 SPEED
Designed for rigid dump trucks, offering exceptional tire life and performance. It features a new tread pattern that improves aggression resistance and a wear-resistant tread compound, providing a minimum of 7% longer tire life compared to the Michelin XDR 250 C.(2) THE MICHELIN® XDR® 4 SPEED + MD 50/80R57 tire offers the highest TKPH on the market,(1) offering 13% higher TKPH than the earlier MICHELIN® XDR® 250 C tire.(2)
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining, Quarries
Surface Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XDR4 SPEED tire?
RUN FAST, RUN COOLER (1), RUN LONGER (2)
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Tire Life
7% longer tire life (1)
Without compromising TKPH (1,608), thanks to a tread pattern that improves aggression resistance and a tread compound that is more wear resistant. (2)
Traction
More grip (2)

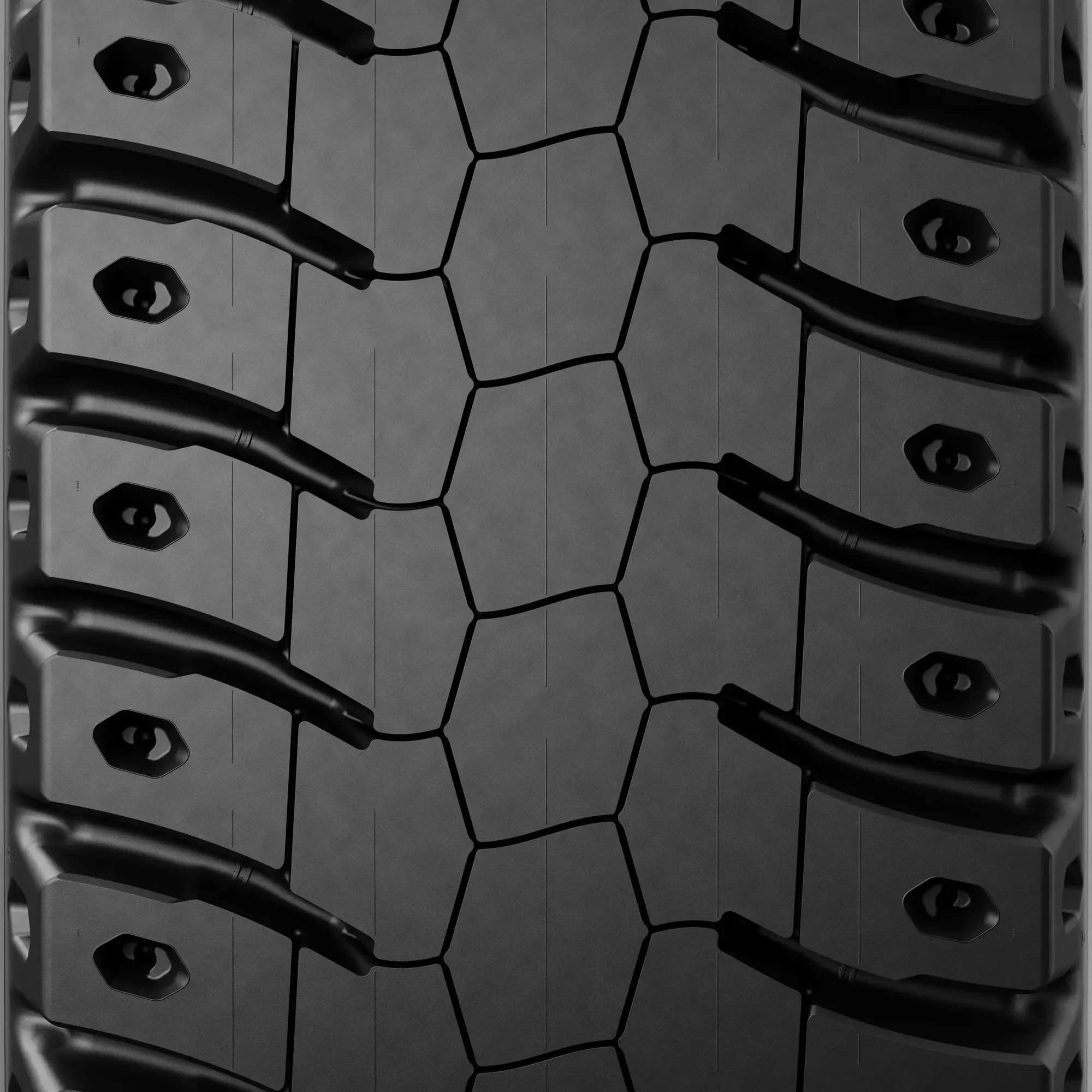

Optimized lateral grooves assist in faster evacuation of mud, dirt and wate
Productivity
Cooler Tire at the Same Speed(3)
Better internal thermal capacity reduces TPMS temperature alarms.
MICHELIN XDR4 SPEED Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XDR4 SPEED - 50/80R57 |
|---|---|
| Overall Diameter | 3607 mm / 142 inch |
| Section Width | 1197 mm / 47 inch |
| Loaded radius | 1582 mm |
| Seat diameter | 57 |
| Rolling circumference | 10791 |
| Tread depth | 85 mm / 106/32 nds |
| Compound | MC |
| Weight | 3740 kg / 8245 lbs |
| Recommended Wheels | 32.00/6.0 [5.2] |
| Approved Wheels | 29.00/6.0 [5.2]-29.00/6.0 [5.7]-32.00/6.0 [4.8] |
| TRA code | E-4 |
| TKPH | 1608 |
| Max Overall Section Width | 1197 mm / 47 inch |
| Min Dual Spacing | 1420 mm / 55.91 inch |
| CAI | 398033 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
5 73 |
5.25 76 |
5.5 80 |
5.75 83 |
6 87 |
6.25 91 |
6.5 94 |
6.75 98 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | |||||||||
|
Standard |
57000 125663 |
59000 130073 |
61000 134482 |
63000 138891 |
65000 143300 |
67000 147710 |
69000 152119 |
71000 156528 |
73000 160937 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XDR4 SPEED - 50/80R57 |
|---|---|
| Overall Diameter | 3607 mm / 142 inch |
| Section Width | 1197 mm / 47 inch |
| Loaded radius | 1582 mm |
| Seat diameter | 57 |
| Rolling circumference | 10791 |
| Tread depth | 85 mm / 106/32 nds |
| Compound | MC |
| Weight | 3740 kg / 8245 lbs |
| Recommended Wheels | 32.00/6.0 [5.2] |
| Approved Wheels | 29.00/6.0 [5.2]-29.00/6.0 [5.7]-32.00/6.0 [4.8] |
| TRA code | E-4 |
| TKPH | 1608 |
| Max Overall Section Width | 1197 mm / 47 inch |
| Min Dual Spacing | 1420 mm / 55.91 inch |
| CAI | 398033 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
5 73 |
5.25 76 |
5.5 80 |
5.75 83 |
6 87 |
6.25 91 |
6.5 94 |
6.75 98 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | |||||||||
|
Standard |
57000 125663 |
59000 130073 |
61000 134482 |
63000 138891 |
65000 143300 |
67000 147710 |
69000 152119 |
71000 156528 |
73000 160937 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) COOLER Tire (1.1) AT THE SAME SPEED (1.2) thanks to better thermal capacity that reduces TPMS temperature alarms (1.1) Compared to MICHELIN® 50/80R57 XDR® 250 C tire. Actual results may vary. (1.2) TKPH figures from Michelin 2019 Databook and Bridgestone 2021 Databook. Actual site TKPH will vary based on many factors, including cycle distance, temperature, and load conditions. (2) The new MICHELIN® 50/80R57 XDR® 4 SPEED MC tire PROVIDES EXCEPTIONAL tire LIFE with an INCREASE of A MINIMUM of 7% additional tire life (2.1) (2.1) Compared to MICHELIN® 50/80R57 XDR® 250 C, based on average projected performance by mine site. Actual results may vary. (3) MORE GRIP thanks to optimized lateral grooves.(3.1) (3.1) Improved grip compared to the MICHELIN® XDR® 250 C 50/80R57 tire. (2) Compared to MICHELIN® 50/80R57 XDR® 250 C, based on average projected performance by mine site. Actual results may vary.(1) The new MICHELIN® 50/80R57 XDR® 4 SPEED MC tire PROVIDES EXCEPTIONAL tire LIFE with an INCREASE of A MINIMUM of 7% additional tire life (1.1) (1.1) Compared to MICHELIN® 50/80R57 XDR® 250 C, based on average projected performance by mine site. Actual results may vary.(2) MORE GRIP thanks to optimized lateral grooves.(3.1) (2.1) Improved grip compared to the MICHELIN® XDR® 250 C 50/80R57 tire(3) COOLER Tire (1) AT THE SAME SPEED (2) thanks to better thermal capacity that reduces TPMS temperature alarms (3) Compared to MICHELIN® 50/80R57 XDR® 250 C tire. Actual results may vary.
