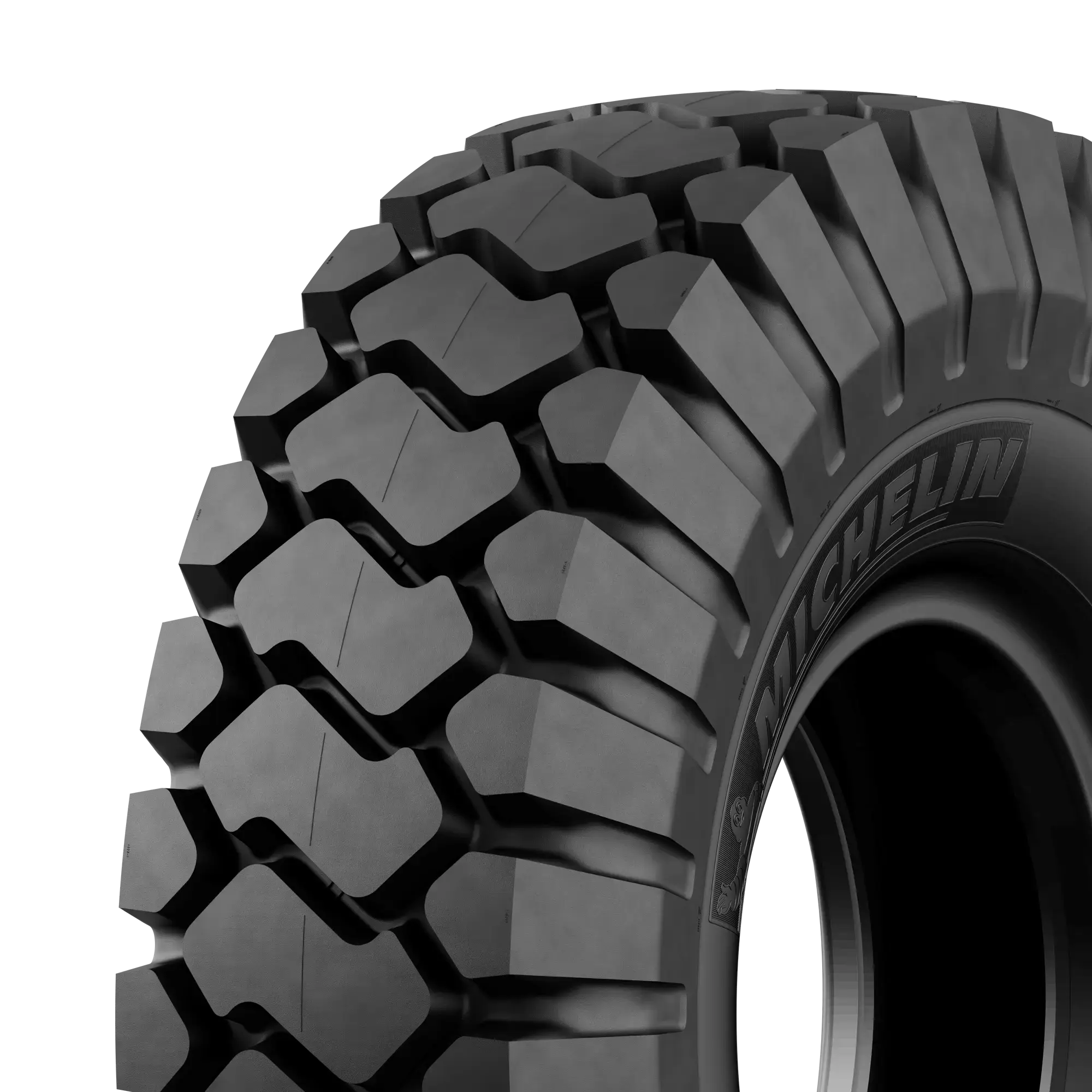

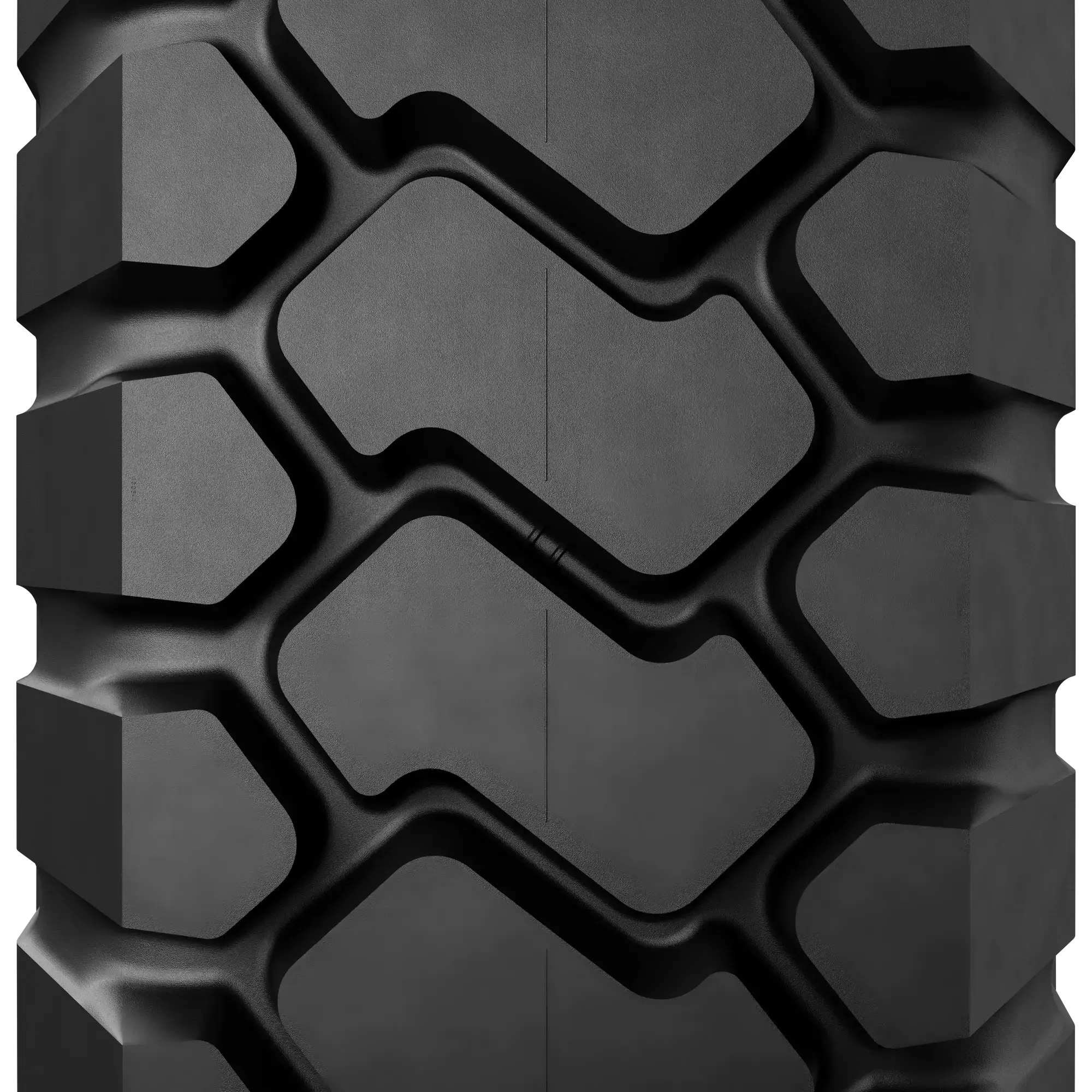

MICHELIN XH D1
Designed for rigid dump trucks operating in quarries and harsh mining environments. With a deep tread for superior traction, it offers outstanding durability and longevity. Reinforced sidewalls protect against cuts and abrasions, while maximizing productivity and retreadability.
Why choose the MICHELIN XH D1 tire?
Traction
Tire Life
Durability
MICHELIN XH D1 Technology
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XH D1 - 14.00R25 |
|---|---|
| Overall Diameter | 1410 mm / 56 inch |
| Section Width | 401 mm / 16 inch |
| Loaded radius | 650 mm |
| Seat diameter | 25 |
| Rolling circumference | 4291 mm / 169 inch |
| Tread depth | 38 mm / 48/32 nds |
| Compound | A |
| Weight | 174.9 kg / 386 lbs |
| Recommended Wheels | 10.00/1.5 |
| Approved Wheels | 11.25/1.3 |
| TRA code | E-4 |
| TKPH | 102 |
| Max Overall Section Width | 401 mm / 16 inch |
| CAI | 123331 |
| MSPN | 34504 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
5.75 83 |
6 87 |
7 102 |
8.5 123 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | ||||||||
|
Standard |
3750 8267 |
4100 9039 |
4500 9921 |
4850 10692 |
5100 11244 |
5250 11574 |
5800 12787 |
6350 13999 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
| Product | MICHELIN XH D1 - 14.00R25 |
|---|---|
| Overall Diameter | 1410 mm / 56 inch |
| Section Width | 401 mm / 16 inch |
| Loaded radius | 650 mm |
| Seat diameter | 25 |
| Rolling circumference | 4291 mm / 169 inch |
| Tread depth | 38 mm / 48/32 nds |
| Compound | A |
| Weight | 174.9 kg / 386 lbs |
| Recommended Wheels | 10.00/1.5 |
| Approved Wheels | 11.25/1.3 |
| TRA code | E-4 |
| TKPH | 102 |
| Max Overall Section Width | 401 mm / 16 inch |
| CAI | 123331 |
| MSPN | 34504 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
5.75 83 |
6 87 |
7 102 |
8.5 123 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | ||||||||
|
Standard |
3750 8267 |
4100 9039 |
4500 9921 |
4850 10692 |
5100 11244 |
5250 11574 |
5800 12787 |
6350 13999 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
