The MICHELIN XK tire is designed to deliver maximum protection in severe transport and abrasive underground mining conditions. Its massive buttressed shoulders and sidewalls provide stability and long life.

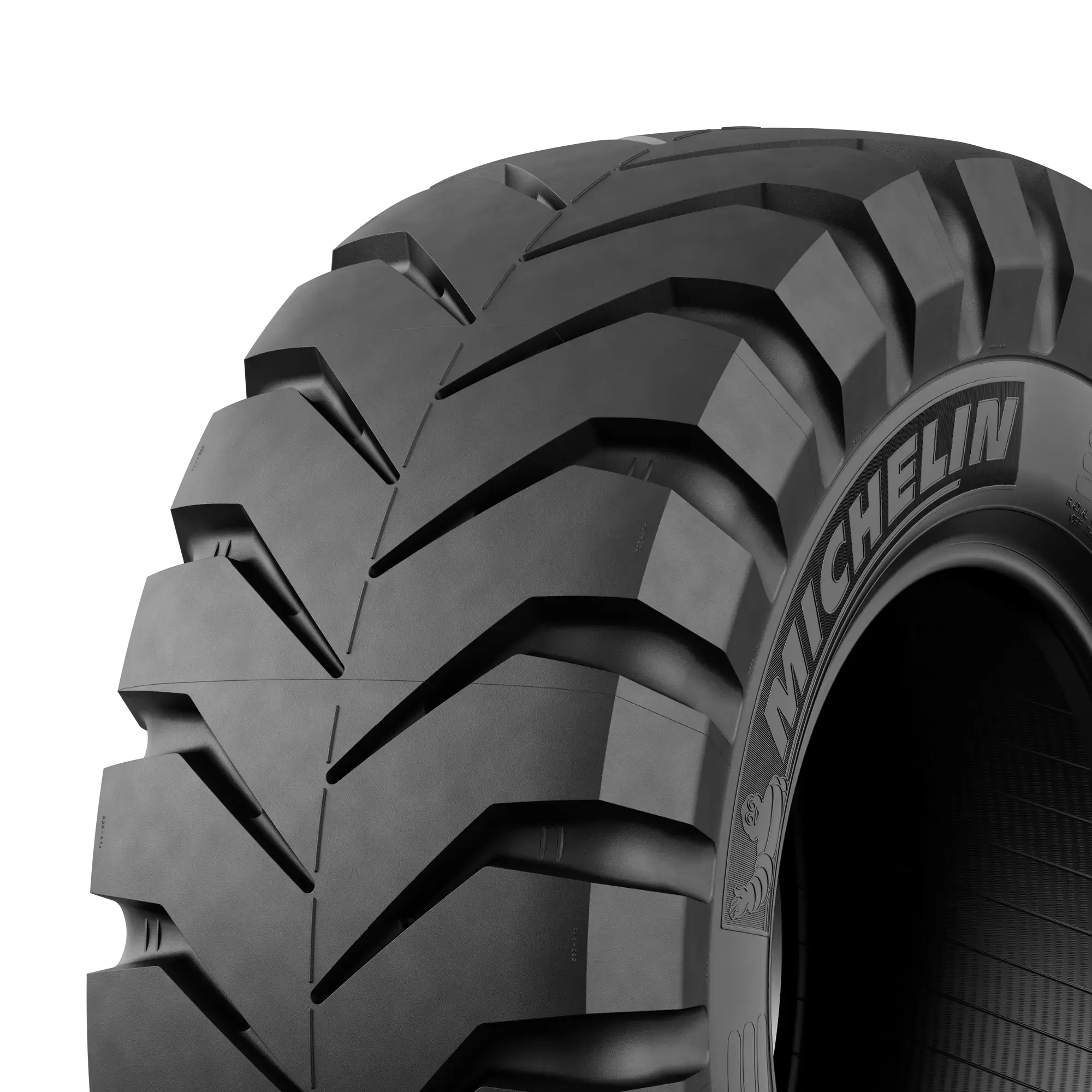

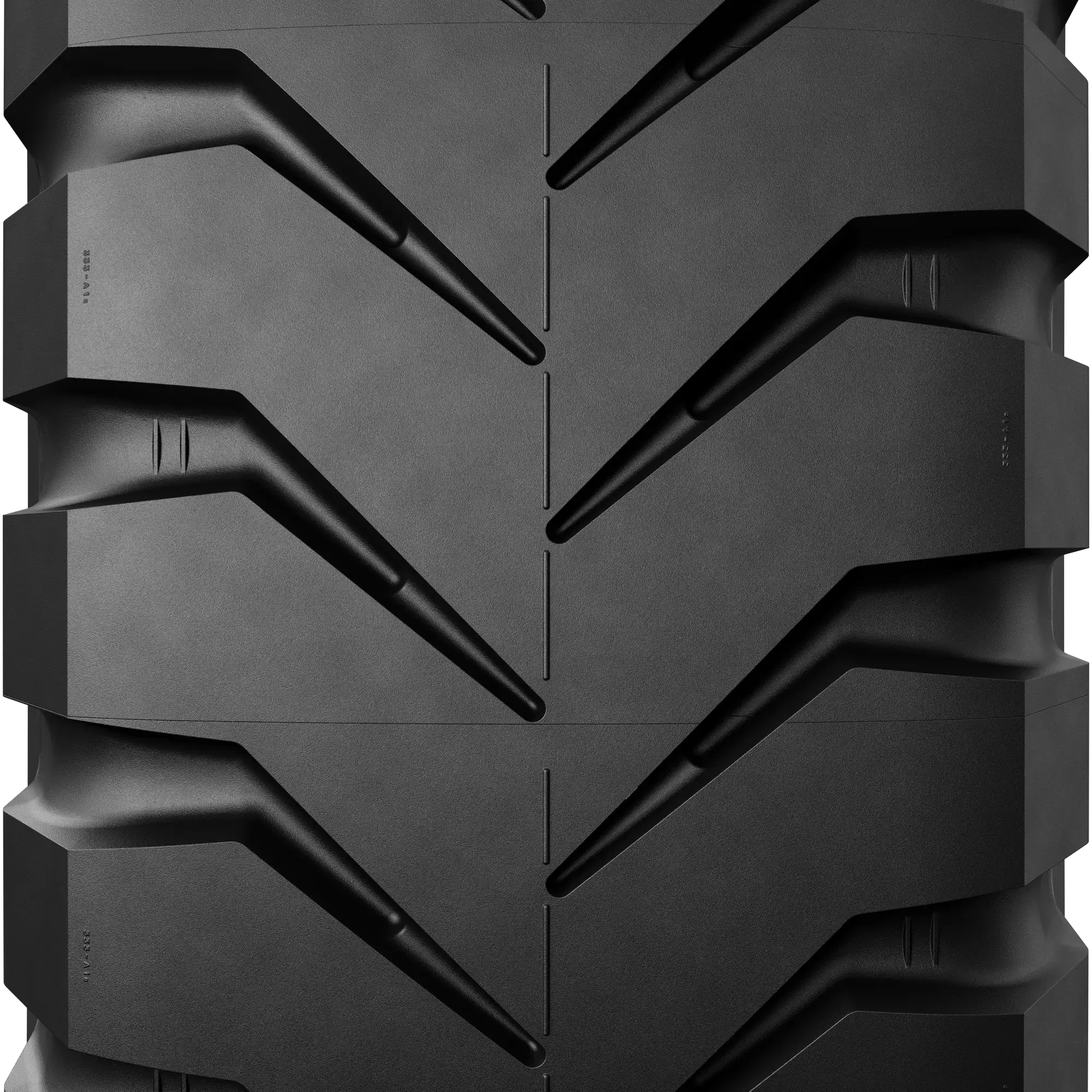

MICHELIN XK
Designed to deliver maximum protection in severe transport and abrasive underground mining conditions.
Vehicle Type
Rigid Dump Truck, Underground Machinery
Rigid Dump Truck
Underground Machinery
Usage of Application
Underground Mining, Quarries
Underground Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XK tire?
Excellent protection in severe and abrasive conditions.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Durability
Protection against shocks, cuts and impacts.
Tire Life
Buttressed shoulders and sidewalls provide stability and durability.
MICHELIN XK Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XK - 12.00R24 |
|---|---|
| Overall Diameter | 1244 mm / 49 inch |
| Section Width | 330 mm / 13 inch |
| Loaded radius | 569 mm |
| Seat diameter | 24 |
| Rolling circumference | 3775 |
| Tread depth | 21 mm / 26/32 nds |
| Compound | A |
| Weight | 118.77 kg / 262 lbs |
| Recommended Wheels | 8.5 |
| Approved Wheels | 7.33V-7.5-8.0-8.00V-8.50V |
| TRA code | L-3 |
| Max Overall Section Width | 330 mm / 13 inch |
| CAI | 242110 |
| MSPN | 06809 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Underground mine machines | ||||||||||
|
All Axles |
2050 4519 |
2450 5401 |
2750 6063 |
3100 6834 |
3450 7606 |
3800 8378 |
4150 9149 |
4475 9866 |
4800 10582 |
5500 12125 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XK - 12.00R24 |
|---|---|
| Overall Diameter | 1244 mm / 49 inch |
| Section Width | 330 mm / 13 inch |
| Loaded radius | 569 mm |
| Seat diameter | 24 |
| Rolling circumference | 3775 |
| Tread depth | 21 mm / 26/32 nds |
| Compound | A |
| Weight | 118.77 kg / 262 lbs |
| Recommended Wheels | 8.5 |
| Approved Wheels | 7.33V-7.5-8.0-8.00V-8.50V |
| TRA code | L-3 |
| Max Overall Section Width | 330 mm / 13 inch |
| CAI | 242110 |
| MSPN | 06809 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Underground mine machines | ||||||||||
|
All Axles |
2050 4519 |
2450 5401 |
2750 6063 |
3100 6834 |
3450 7606 |
3800 8378 |
4150 9149 |
4475 9866 |
4800 10582 |
5500 12125 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
