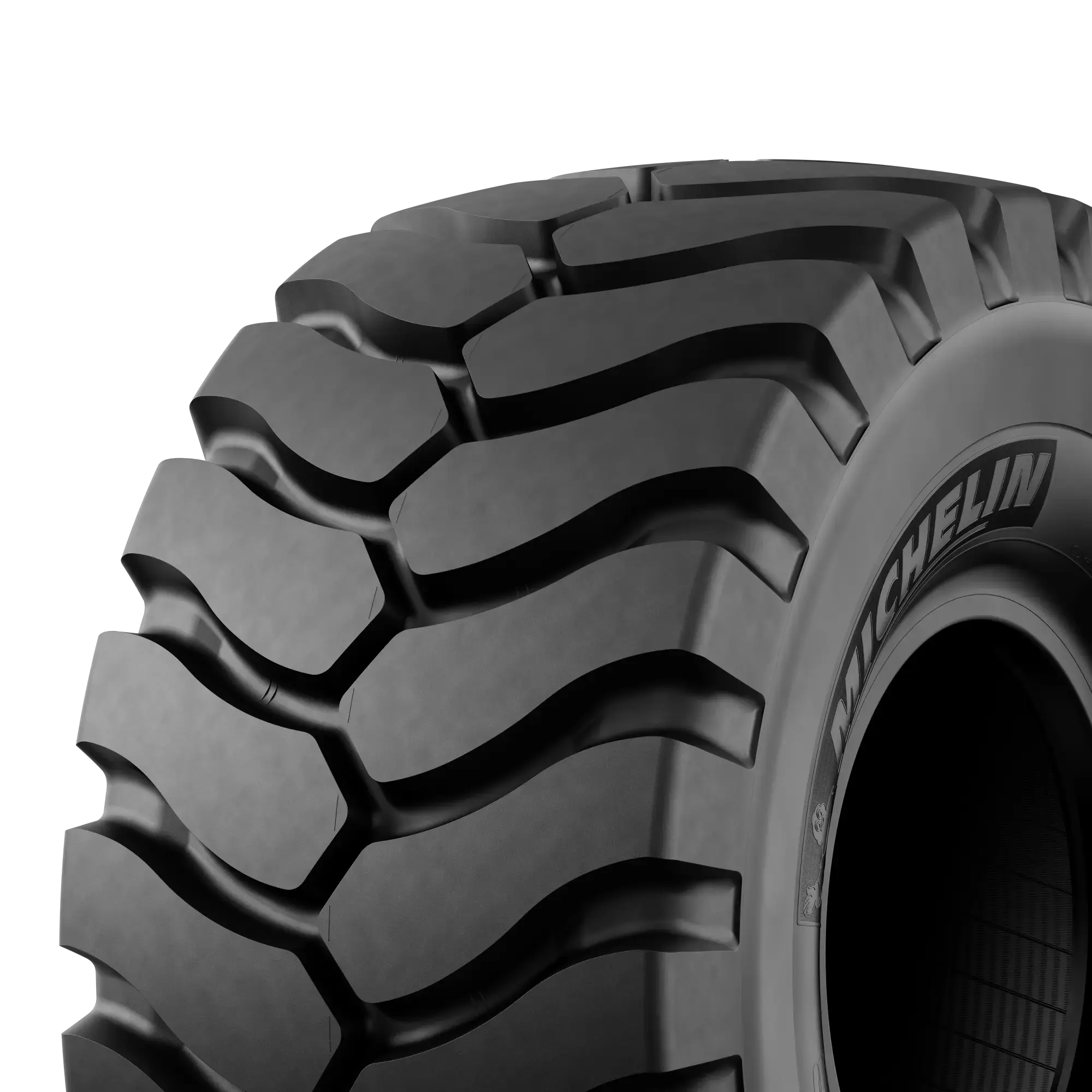

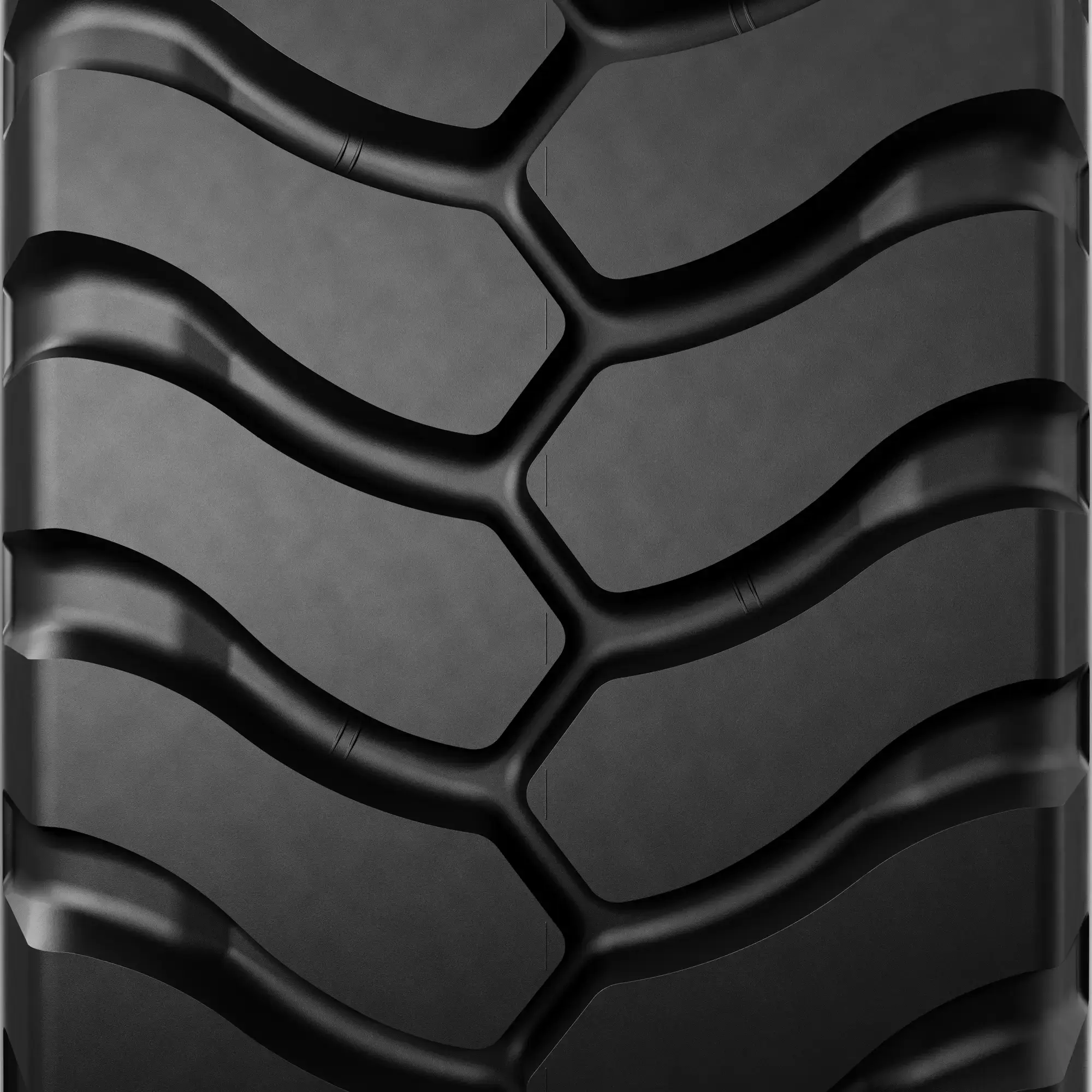

MICHELIN XLD D1 (Construction)
The directional MICHELIN L4 Radial tire for wheel loaders in a load-and-carry application designed to provide high levels of stability and protection with a cushioned ride for operator comfort.
Why choose the MICHELIN XLD D1 (Construction) tire?
Load Capacity
Durability
Self-Cleaning
MICHELIN XLD D1 (Construction) Technology
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XLDD1 [Michelin, Radial, Construction, Infrastructure] - 26.5R25 |
|---|---|
| Overall Diameter | 1803 mm / 71 inch |
| Section Width | 690 mm / 27 inch |
| Loaded radius | 780 mm |
| Seat diameter | 25 |
| Rolling circumference | 5360 mm / 211 inch |
| Tread depth | 53 mm / 67/32 nds |
| Compound | A |
| Weight | 518.9 kg / 1144 lbs |
| Recommended Wheels | 22.00/3.0 |
| Approved Wheels | 22.00/3.0 IF |
| TRA code | L-4 |
| Max Overall Section Width | 690 mm / 27 inch |
| CAI | 123495 |
| MSPN | 70042 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | ||||||||
|
All Axles |
9000 19842 |
10300 22708 |
11200 24692 |
12500 27558 |
13200 29101 |
14500 31967 |
||
| (kg - lbs) loader | ||||||||
|
Front laden |
9300 20503 |
10300 22708 |
12150 26786 |
13600 29983 |
15000 33069 |
16150 35605 |
17350 38250 |
18500 40786 |
|
Rear unladen |
7450 16424 |
8250 18188 |
9700 21385 |
10900 24030 |
12000 26455 |
12900 28440 |
13900 30644 |
14800 32628 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
| Product | MICHELIN XLDD1 [Michelin, Radial, Construction, Infrastructure] - 26.5R25 |
|---|---|
| Overall Diameter | 1803 mm / 71 inch |
| Section Width | 690 mm / 27 inch |
| Loaded radius | 780 mm |
| Seat diameter | 25 |
| Rolling circumference | 5360 mm / 211 inch |
| Tread depth | 53 mm / 67/32 nds |
| Compound | A |
| Weight | 518.9 kg / 1144 lbs |
| Recommended Wheels | 22.00/3.0 |
| Approved Wheels | 22.00/3.0 IF |
| TRA code | L-4 |
| Max Overall Section Width | 690 mm / 27 inch |
| CAI | 123495 |
| MSPN | 70042 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | ||||||||
|
All Axles |
9000 19842 |
10300 22708 |
11200 24692 |
12500 27558 |
13200 29101 |
14500 31967 |
||
| (kg - lbs) loader | ||||||||
|
Front laden |
9300 20503 |
10300 22708 |
12150 26786 |
13600 29983 |
15000 33069 |
16150 35605 |
17350 38250 |
18500 40786 |
|
Rear unladen |
7450 16424 |
8250 18188 |
9700 21385 |
10900 24030 |
12000 26455 |
12900 28440 |
13900 30644 |
14800 32628 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
