The MICHELIN X MINE D2 PRO built for the most demanding underground mining and quarry environments. It features advanced NRF technology and new cables for superior resistance to aggression and reduced downtime.

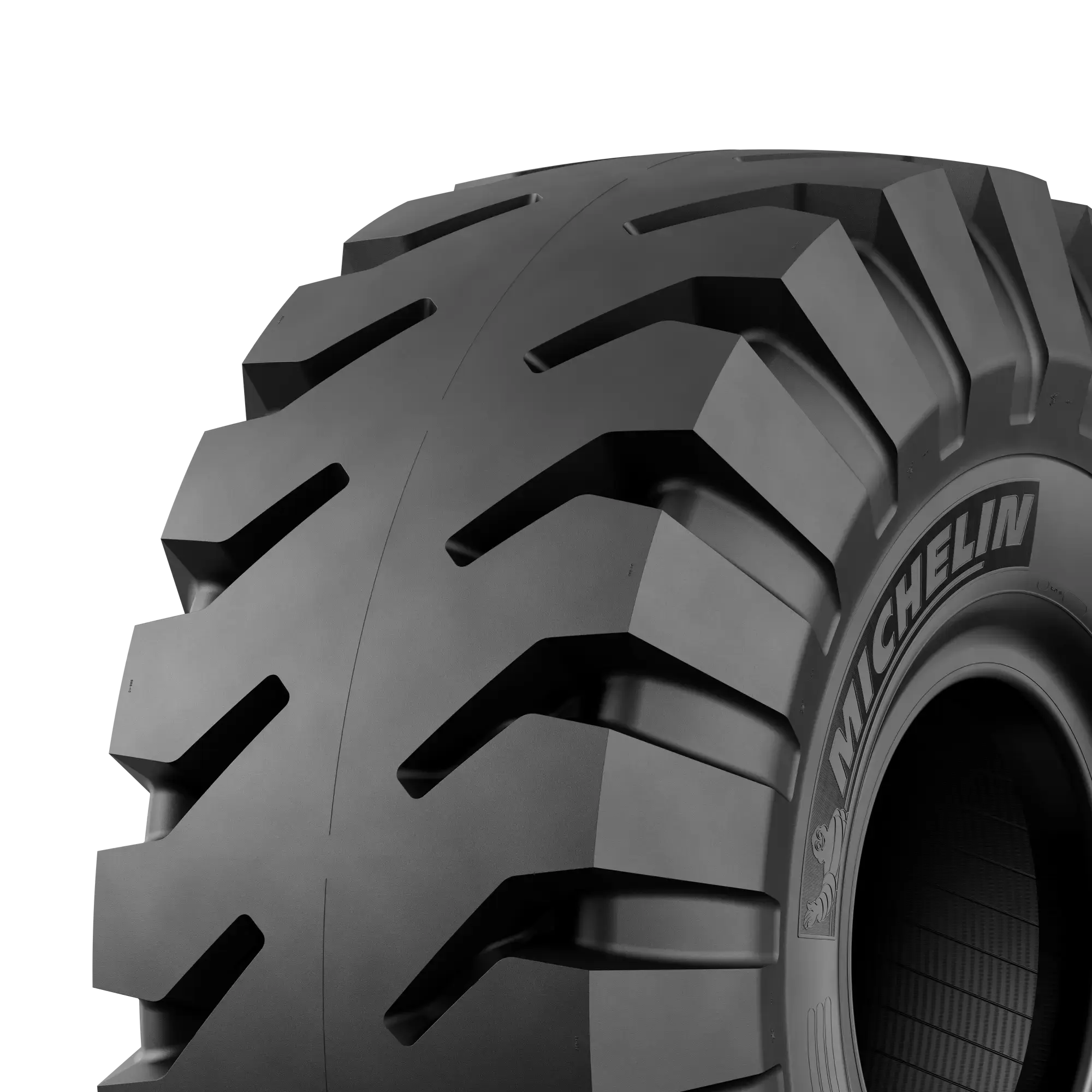

MICHELIN XMINE D2 PRO
Designed for extreme underground mining and quarry conditions. It offers improved aggression resistance and reduced downtime, thanks to new cables and NRF technology. The tire also boasts an increased load capacity of up to 18% and enhanced tire life due to optimized compounds.
Vehicle Type
Wheel Loader, Heavy Duty Forklift, Underground Machinery, Light/Medium Duty Forklift
Wheel Loader
Heavy Duty Forklift
Underground Machinery
Light/Medium Duty Forklift
Usage of Application
Underground Mining, Quarries
Underground Mining
Quarries
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XMINE D2 PRO tire?
Improved agression resistance and reduction in downtime.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Load capacity
Extreme conditions demand tough tires
Up to 18% increased load capacity (1).
Durability
Improved agression resistance
More resistance to damage due to new crown cables and NRF technology.
Tire Life
Extended tire life
Service life improved (2) in harsh conditions thanks to an optimized tread compound.
MICHELIN XMINE D2 PRO Technology
MICHELIN XMINE D2 PRO Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XMINE D2 PRO - 17.5R25 |
|---|---|
| Overall Diameter | 1404 mm / 55 inch |
| Section Width | 477 mm / 19 inch |
| Loaded radius | 627 mm |
| Seat diameter | 25 |
| Rolling circumference | 4254 |
| Tread depth | 65 mm / 83/32 nds |
| Weight | 262 kg / 578 lbs |
| Recommended Wheels | 14.00/1.5 |
| TRA code | L-5 |
| Max Overall Section Width | 477 mm / 19 inch |
| CAI | 720557 |
| MSPN | 01143 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | |||||||||
|
All Axles |
4250 9370 |
4750 10472 |
5300 11684 |
5800 12787 |
6300 13889 |
6700 14771 |
7100 15653 |
7500 16535 |
9000 19842 |
| (kg - lbs) loader | |||||||||
|
Front laden |
4750 10472 |
5450 12015 |
6000 13228 |
6500 14330 |
7100 15653 |
7500 16535 |
8000 17637 |
8500 18739 |
10000 22046 |
|
Rear unladen |
3800 8378 |
4360 9612 |
4800 10582 |
5200 11464 |
5680 12522 |
6000 13228 |
6400 14110 |
6800 14991 |
8000 17637 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XMINE D2 PRO - 17.5R25 |
|---|---|
| Overall Diameter | 1404 mm / 55 inch |
| Section Width | 477 mm / 19 inch |
| Loaded radius | 627 mm |
| Seat diameter | 25 |
| Rolling circumference | 4254 |
| Tread depth | 65 mm / 83/32 nds |
| Weight | 262 kg / 578 lbs |
| Recommended Wheels | 14.00/1.5 |
| TRA code | L-5 |
| Max Overall Section Width | 477 mm / 19 inch |
| CAI | 720557 |
| MSPN | 01143 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | |||||||||
|
All Axles |
4250 9370 |
4750 10472 |
5300 11684 |
5800 12787 |
6300 13889 |
6700 14771 |
7100 15653 |
7500 16535 |
9000 19842 |
| (kg - lbs) loader | |||||||||
|
Front laden |
4750 10472 |
5450 12015 |
6000 13228 |
6500 14330 |
7100 15653 |
7500 16535 |
8000 17637 |
8500 18739 |
10000 22046 |
|
Rear unladen |
3800 8378 |
4360 9612 |
4800 10582 |
5200 11464 |
5680 12522 |
6000 13228 |
6400 14110 |
6800 14991 |
8000 17637 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) Based on comparisons of the MICHELIN® XSM® D2+ PRO and X MINE® D2 PRO to the MICHELIN® XSM® D2+ and MICHELIN® X MINE® D2. Actual results may vary.(2) Based upon improved aggression resistance and on computer modeling comparing the tread compounds included in the MICHELIN® XSM® D2+ PRO to the MICHELIN® XSM® D2+. Actual results may vary.
