Provides excellent longitudinal/lateral traction and exceptional tread and sidewall cut protection.

Why choose the MICHELIN XMS tire?

Non-directional radial tire for large scrapers.

Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.

Durability

Maximum resistance to damage and punctures

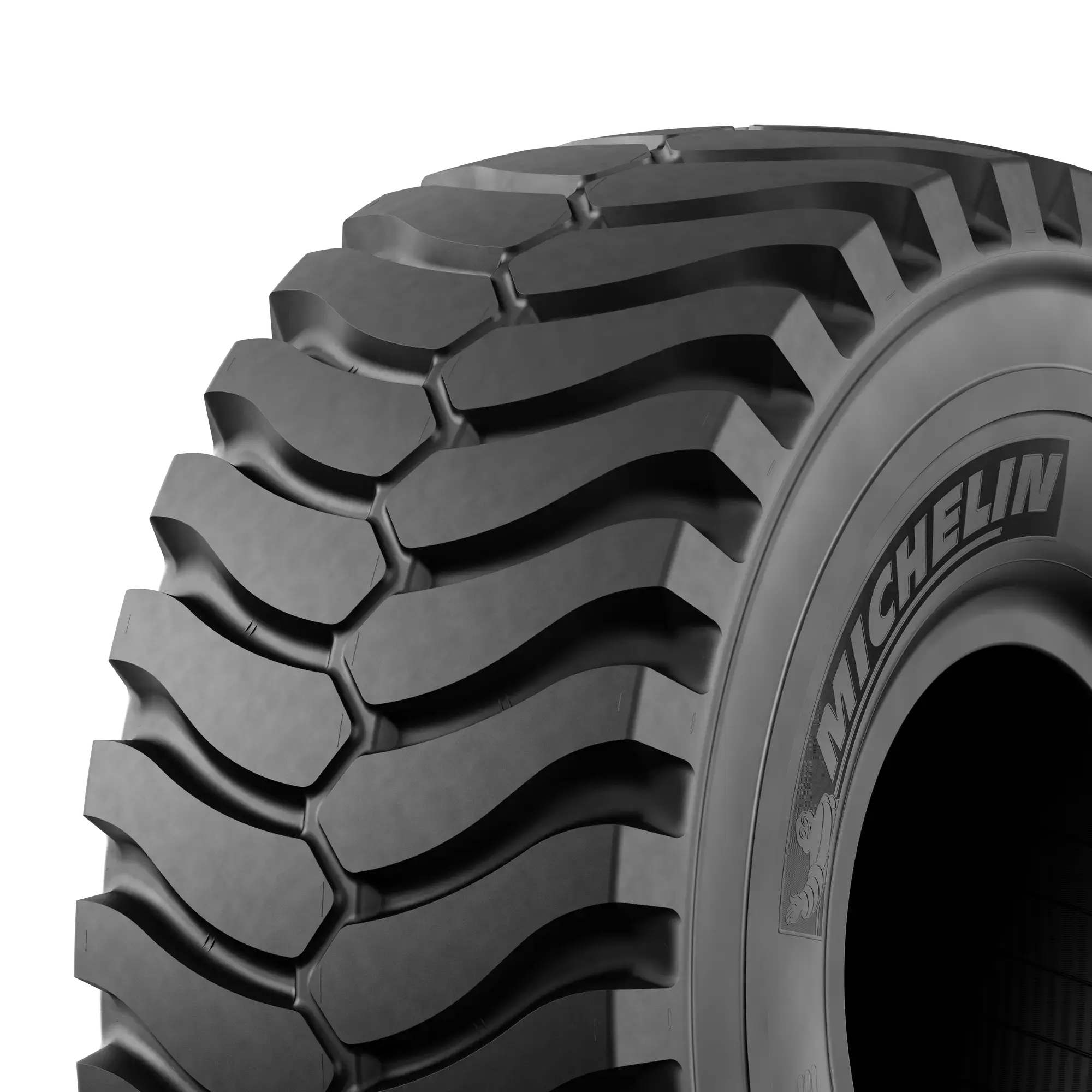

Square shoulder design protects the shoulders and sidewalls from damage. Thick rubber base for the tread blocks increases overall durability for better puncture resistance.

Traction

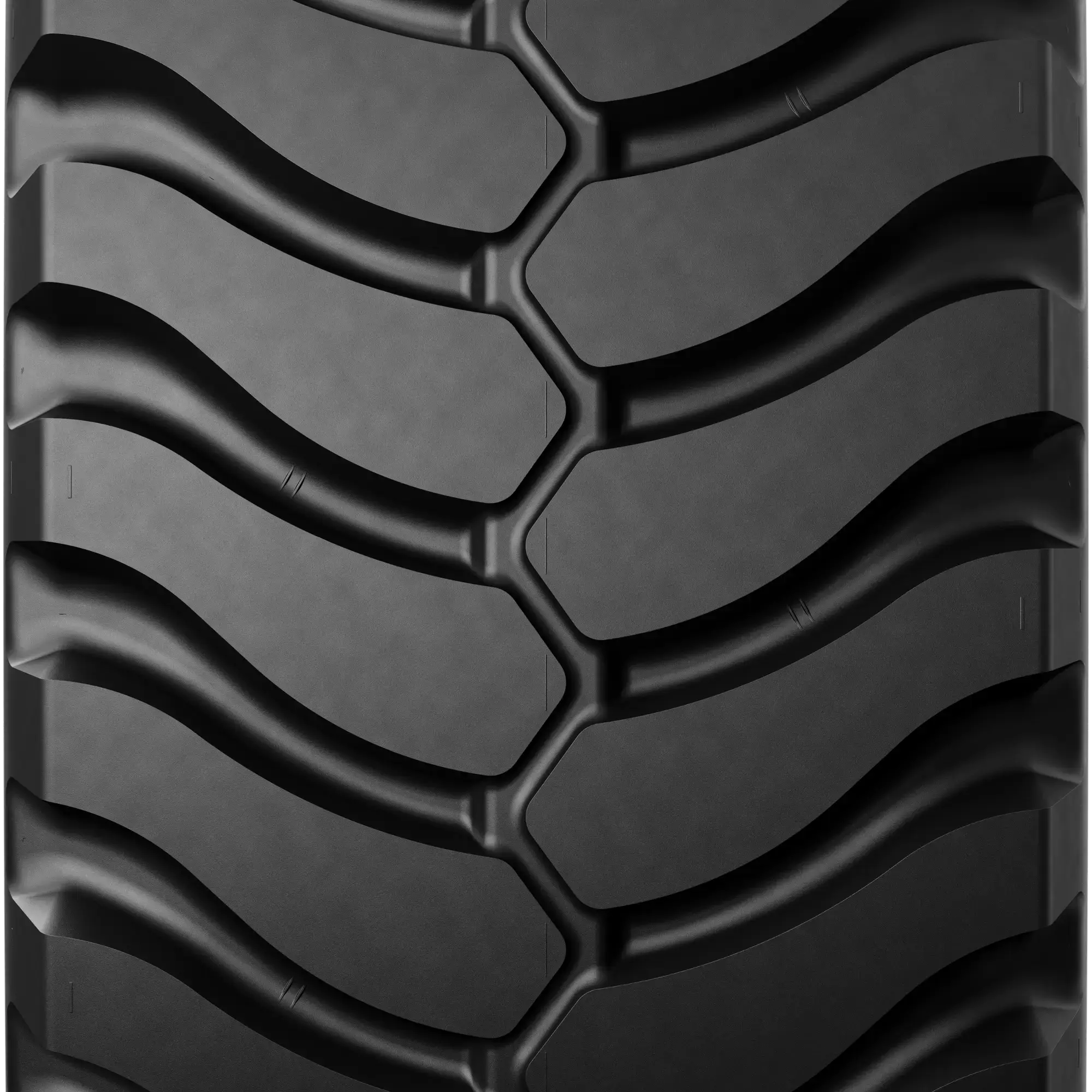

The tread design's shoulders provide exceptional grip

An innovative tread design with thick tread blocks provides this tire with better ground contact and exceptional durability.

Comfort

Optimal comfort

With its staggered tread design, this tire provides excellent operator comfort.

MICHELIN XMS Technology

The radial tire - The Michelin innovation that revolutionized tire construction

Sold under the name Michelin X®, this tire was a real breakthrough thanks to its exceptional performance: incredible longevity (it lasted 2 to 4 times longer than a conventional tire), greater safety, and, above all, reduced vehicle fuel consumption.

Tire Technical Specifications

Tech Specs

Product	MICHELIN XMS - 40.5/75R39
Overall Diameter	2588 mm / 102 inch
Section Width	998 mm / 39 inch
Loaded radius	1151 mm
Seat diameter	39
Rolling circumference	7770 mm / 306 inch
Tread depth	51 mm / 64/32 nds
Compound	B
Weight	1460.94 kg / 3221 lbs
Recommended Wheels	32.00/4.5
TRA code	E-3
TKPH	766
Max Overall Section Width	998 mm / 39 inch
CAI	379296
MSPN	93211

Pressure (bar and psi) & Load (kg and lbs)

Factor the load and type of work when adjusting tire pressure**

bar psi	3 44	3.5 51	4 58	4.25 62	4.5 65	5 73	5.5 80	6 87
(kg - lbs) Transport
Standard	20200 44533	22400 49384	24600 54234	25700 56659	26800 59084	29000 63934	30100 66359	31200 68784

bar

psi

3.5

4.25

4.5

5.5

(kg - lbs) Transport

Standard

20200

44533

22400

49384

24600

54234

25700

56659

26800

59084

29000

63934

30100

66359

31200

68784

**IMPORTANT

The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes

Technical data is subject to change without prior notice.

Tech Specs

Product	MICHELIN XMS - 40.5/75R39
Overall Diameter	2588 mm / 102 inch
Section Width	998 mm / 39 inch
Loaded radius	1151 mm
Seat diameter	39
Rolling circumference	7770 mm / 306 inch
Tread depth	51 mm / 64/32 nds
Compound	B
Weight	1460.94 kg / 3221 lbs
Recommended Wheels	32.00/4.5
TRA code	E-3
TKPH	766
Max Overall Section Width	998 mm / 39 inch
CAI	379296
MSPN	93211

Pressure (bar and psi) & Load (kg and lbs)

Factor the load and type of work when adjusting tire pressure**

bar psi	3 44	3.5 51	4 58	4.25 62	4.5 65	5 73	5.5 80	6 87
(kg - lbs) Transport
Standard	20200 44533	22400 49384	24600 54234	25700 56659	26800 59084	29000 63934	30100 66359	31200 68784

bar

psi

3.5

4.25

4.5

5.5

(kg - lbs) Transport

Standard

20200

44533

22400

49384

24600

54234

25700

56659

26800

59084

29000

63934

30100

66359

31200

68784

**IMPORTANT

The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes

Technical data is subject to change without prior notice.

Tire Product Sheet and Databook

Find the technical and commercial specifications downloadable documents below.

Product sheet Michelin XMS - 2025

Michelin Earthmover, Off-Road, and Industrial Tires Limited Warranty

Earthmover Total Satisfaction Guarantee

Data Book Michelin Compact Equipment Tires
