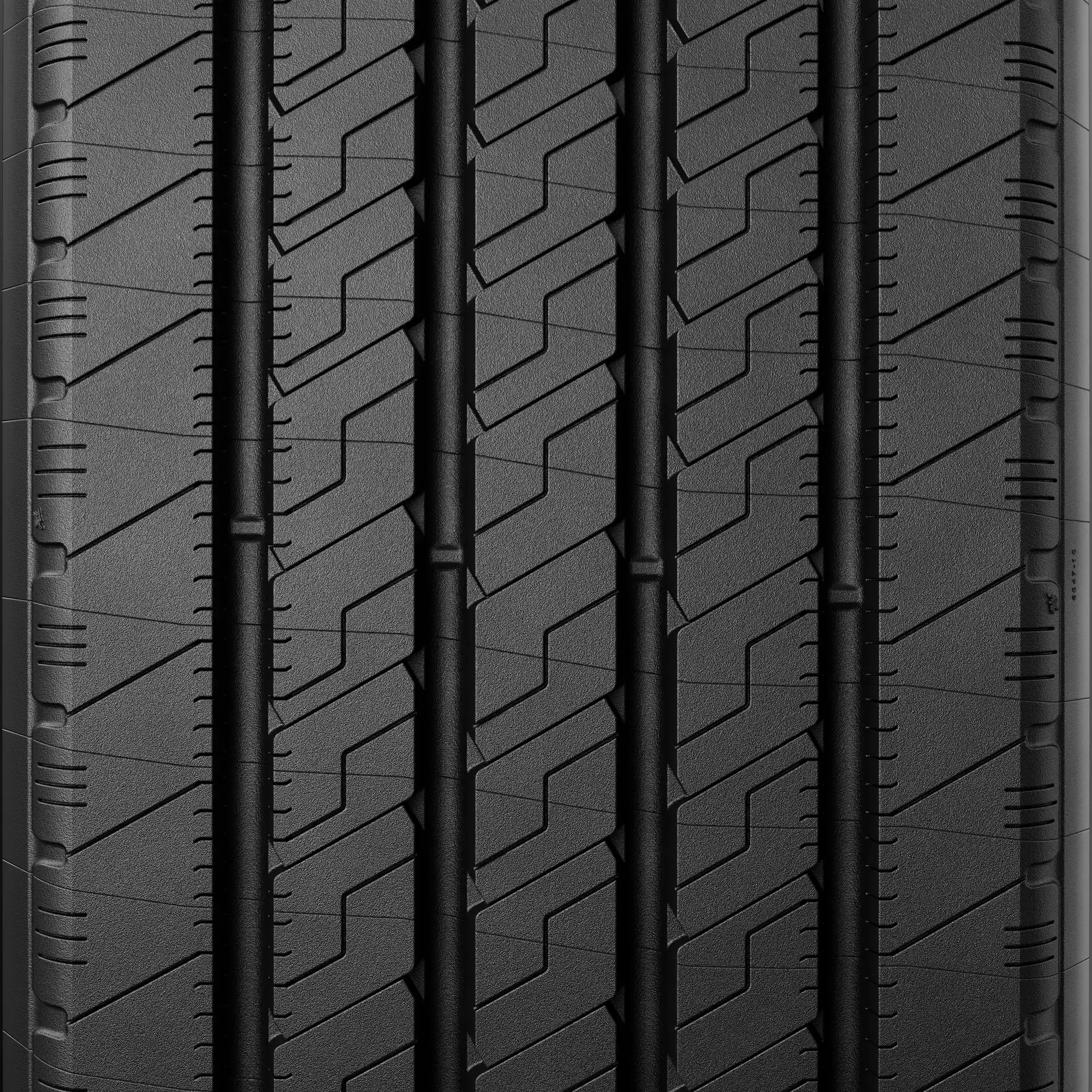

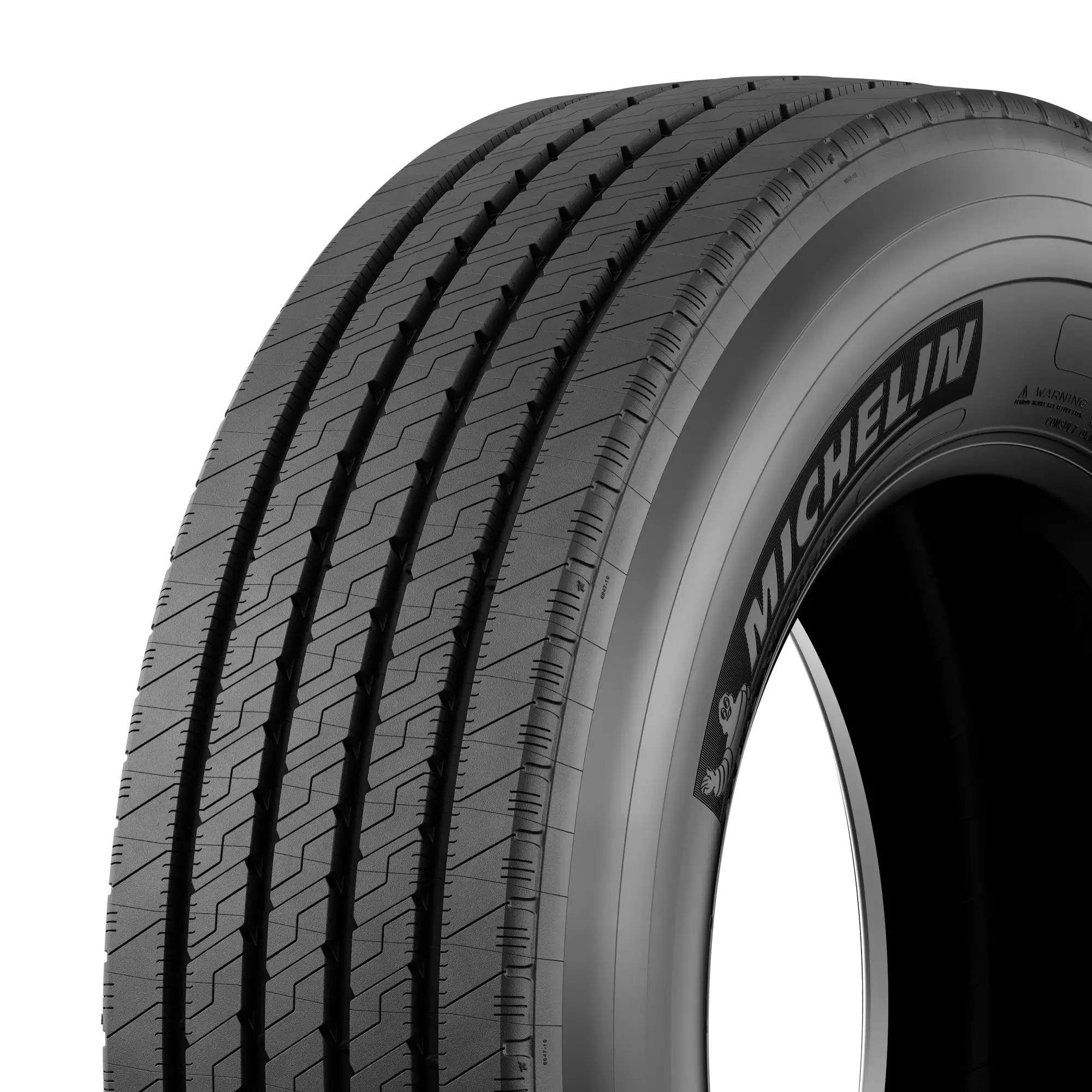

MICHELIN XRV
All-position radial designed specifically for exceptional performance on recreational vehicles and motor homes in coach applications.(*)
Tire retreading, also known as recapping or remolding, is a process that involves replacing the worn tread of a used tire with a new tread. Retreading tires is perfect for fleets that want to cut their operating costs and environmental footprint. Learn how retreading your tires can have significant benefits on your business.
Why choose the MICHELIN XRV tire?
Casing Durability
Traction
Longevity
Truck and bus calculators
Tire Technical Specifications
Technical Specifications
| Product | MICHELIN XRV - 235/80R22.5 |
|---|---|
| Overall Diameter | 943 mm / 37.1 inch |
| Recommended Wheels | 6.75 |
| Approved Wheels | 7.50 |
| Min Dual Spacing | 262 mm / 10.3 inch |
| Tread depth | 16 32nds / 12.7 mm |
| Max Speed | 75 mph / 121 kmh |
| Max Load per Tire Single | 4675 lbs / 2120 kg |
| Loaded Radius | 443.2 mm / 17.4 inch |
| Seat diameter | 22.5 |
| Suitable for RV | Yes |
| CAI | 023869 |
| MSPN | 87511 |
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN XZA - 235/80R22.5 | Z | Line Haul, Regional Transport | 13 /32nds | 170 mm |
| MICHELIN XZA - 235/80R22.5 | Z | Line Haul, Regional Transport | 13 /32nds | 180 mm |
| MICHELIN XZA - 235/80R22.5 | Z | Line Haul, Regional Transport | 15 /32nds | 194 mm |
| MICHELIN XZA - 235/80R22.5 | Z | Line Haul, Regional Transport | 15 /32nds | 203 mm |
| MICHELIN XZA Siped - 235/80R22.5 | Z | Line Haul, Regional Transport | 15 /32nds | 194 mm |
| MICHELIN XZA Siped - 235/80R22.5 | Z | Line Haul, Regional Transport | 15 /32nds | 203 mm |
| MICHELIN XZE Siped - 235/80R22.5 | Z | Line Haul, Regional Transport | 18 /32nds | 211 mm |
| MICHELIN XZE Siped - 235/80R22.5 | Z | Line Haul, Regional Transport | 18 /32nds | 194 mm |
Technical Specifications
| Product | MICHELIN XRV - 235/80R22.5 |
|---|---|
| Overall Diameter | 943 mm / 37.1 inch |
| Recommended Wheels | 6.75 |
| Approved Wheels | 7.50 |
| Min Dual Spacing | 262 mm / 10.3 inch |
| Tread depth | 16 32nds / 12.7 mm |
| Max Speed | 75 mph / 121 kmh |
| Max Load per Tire Single | 4675 lbs / 2120 kg |
| Loaded Radius | 443.2 mm / 17.4 inch |
| Seat diameter | 22.5 |
| Suitable for RV | Yes |
| CAI | 023869 |
| MSPN | 87511 |
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN XZA - 235/80R22.5 | Z | Line Haul, Regional Transport | 13 /32nds | 170 mm |
| MICHELIN XZA - 235/80R22.5 | Z | Line Haul, Regional Transport | 13 /32nds | 180 mm |
| MICHELIN XZA - 235/80R22.5 | Z | Line Haul, Regional Transport | 15 /32nds | 194 mm |
| MICHELIN XZA - 235/80R22.5 | Z | Line Haul, Regional Transport | 15 /32nds | 203 mm |
| MICHELIN XZA Siped - 235/80R22.5 | Z | Line Haul, Regional Transport | 15 /32nds | 194 mm |
| MICHELIN XZA Siped - 235/80R22.5 | Z | Line Haul, Regional Transport | 15 /32nds | 203 mm |
| MICHELIN XZE Siped - 235/80R22.5 | Z | Line Haul, Regional Transport | 18 /32nds | 211 mm |
| MICHELIN XZE Siped - 235/80R22.5 | Z | Line Haul, Regional Transport | 18 /32nds | 194 mm |
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Semi-truck blog
DISCOVER OUR MICHELIN BLOG
(*) “No bus shall be operated with regrooved, recapped or retreaded tires on the front wheels.” US Code of Federal Regulations: Title 49, Transportation; Part 393.75.
