MICHELIN XSM D2+ tire excels in the most extreme underground mining conditions. Its robust design and deep tread significantly reduce maintenance costs and downtime.

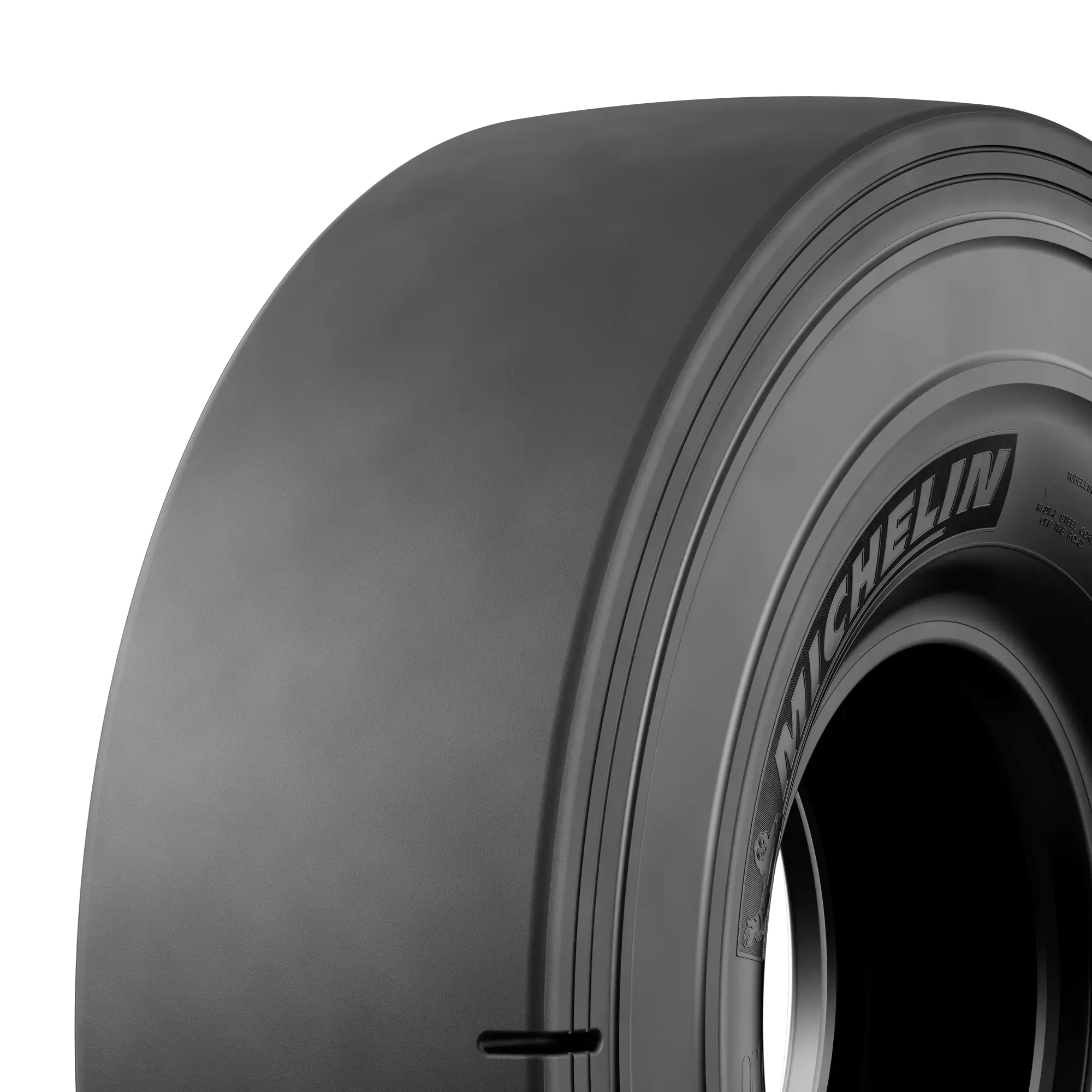

MICHELIN XSM D2+
MICHELIN XSM D2+ is an underground mining loader tire designed for extreme conditions. It reduces downtime and maintenance costs, features robust shoulders with sidewall protection, and offers excellent adhesion with a smooth, deep 78 mm tread. Suitable for underground loaders, surface loaders, and forklifts.
Vehicle Type
Wheel Loader, Heavy Duty Forklift, Underground Machinery
Wheel Loader
Heavy Duty Forklift
Underground Machinery
Usage of Application
Underground Mining, Hard/Abrasive Surface
Underground Mining
Hard/Abrasive Surface
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XSM D2+ tire?
The underground mining loader tire for extreme conditions
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Productivity
Engineered to withstand extreme conditions
The protected casing and robust shoulders with sidewall protection minimize damage from impacts and penetration.
Maneuverability
Delivers optimal performance in challenging conditions
The smooth, deep 78 mm tread design ensures exceptional adhesion.
Tire Life
long-lasting performance in demanding environments
The robust design and high-quality materials extend the tire’s lifespan.
MICHELIN XSM D2+ Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XSM D2+ - 12.00R24 |
|---|---|
| Overall Diameter | 1264 mm / 50 inch |
| Section Width | 325 mm / 13 inch |
| Loaded radius | 580 mm |
| Seat diameter | 24 |
| Rolling circumference | 3840 |
| Tread depth | 57 mm / 70/32 nds |
| Weight | 164.85 kg / 363 lbs |
| Recommended Wheels | 8.5 |
| Approved Wheels | 7.33V-7.5-8.0-8.00V-8.50V |
| TRA code | L-5S |
| Max Overall Section Width | 325 mm / 13 inch |
| CAI | 123647 |
| MSPN | 80803 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Underground mine machines | ||||||||||
|
All Axles |
2050 4519 |
2450 5401 |
2750 6063 |
3100 6834 |
3450 7606 |
3800 8378 |
4150 9149 |
4475 9866 |
4800 10582 |
5500 12125 |
| (kg - lbs) loader | ||||||||||
|
Front laden |
2300 5071 |
2700 5952 |
3050 6724 |
3450 7606 |
3850 8488 |
4200 9259 |
4600 10141 |
4975 10968 |
5350 11795 |
6100 13448 |
|
Rear unladen |
1850 4079 |
2150 4740 |
2450 5401 |
2750 6063 |
3100 6834 |
3350 7385 |
3700 8157 |
4000 8818 |
4300 9480 |
4900 10803 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XSM D2+ - 12.00R24 |
|---|---|
| Overall Diameter | 1264 mm / 50 inch |
| Section Width | 325 mm / 13 inch |
| Loaded radius | 580 mm |
| Seat diameter | 24 |
| Rolling circumference | 3840 |
| Tread depth | 57 mm / 70/32 nds |
| Weight | 164.85 kg / 363 lbs |
| Recommended Wheels | 8.5 |
| Approved Wheels | 7.33V-7.5-8.0-8.00V-8.50V |
| TRA code | L-5S |
| Max Overall Section Width | 325 mm / 13 inch |
| CAI | 123647 |
| MSPN | 80803 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Underground mine machines | ||||||||||
|
All Axles |
2050 4519 |
2450 5401 |
2750 6063 |
3100 6834 |
3450 7606 |
3800 8378 |
4150 9149 |
4475 9866 |
4800 10582 |
5500 12125 |
| (kg - lbs) loader | ||||||||||
|
Front laden |
2300 5071 |
2700 5952 |
3050 6724 |
3450 7606 |
3850 8488 |
4200 9259 |
4600 10141 |
4975 10968 |
5350 11795 |
6100 13448 |
|
Rear unladen |
1850 4079 |
2150 4740 |
2450 5401 |
2750 6063 |
3100 6834 |
3350 7385 |
3700 8157 |
4000 8818 |
4300 9480 |
4900 10803 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
