MICHELIN XSM D2+ EXTRA LOAD
Find a Dealer

MICHELIN XSM D2+ EXTRA LOAD

Load Capacity Durability Tread Durability

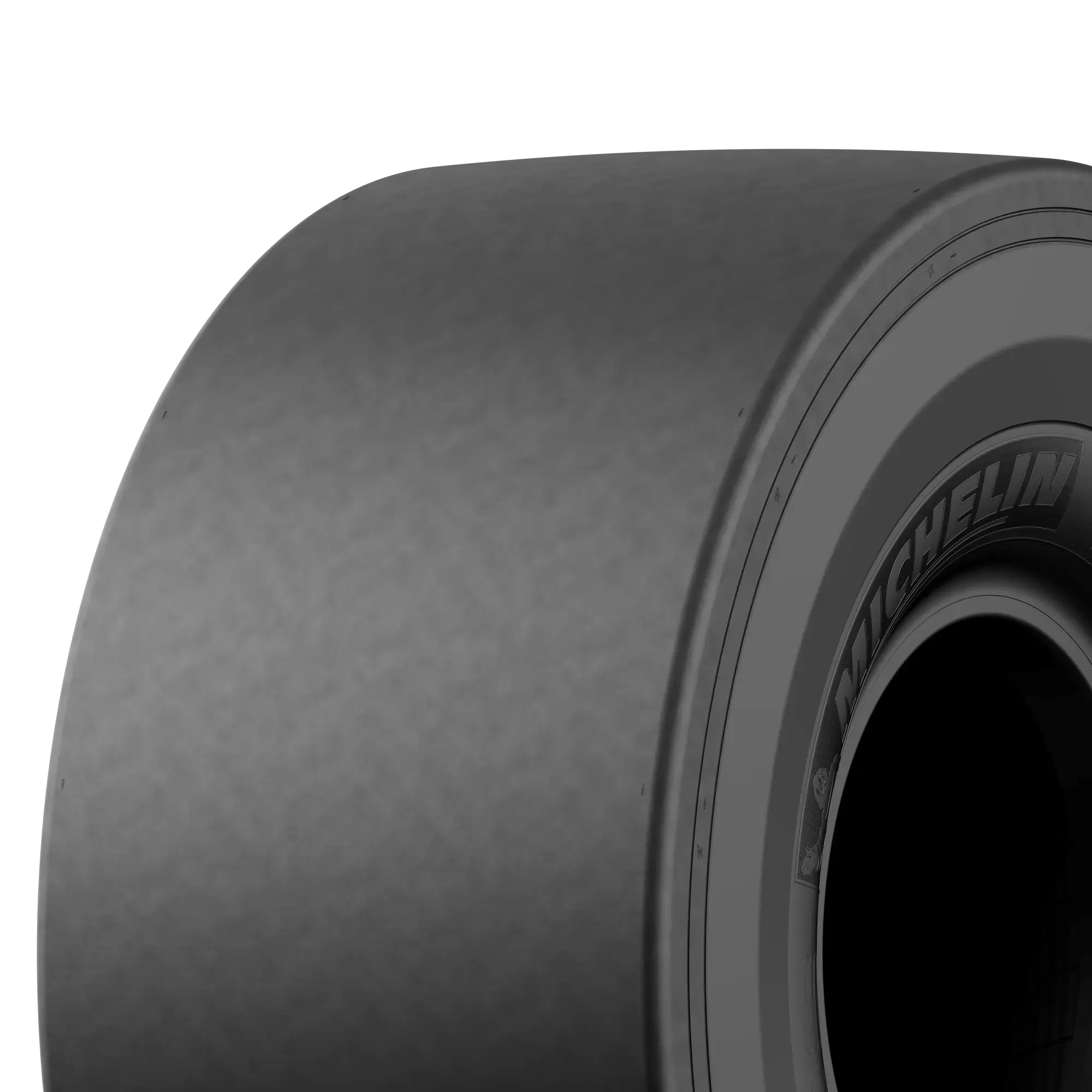

Tire MICHELIN XSM D2+ EXTRA LOAD 35/65R33 tire + rim Square
Tire MICHELIN XSM D2+ EXTRA LOAD 35/65R33 tire + rim Square
Tire MICHELIN XSM D2+ EXTRA LOAD 35/65R33 tire + rim Square
Tire MICHELIN XSM D2+ EXTRA LOAD 35/65R33 tire + rim Square
Tire MICHELIN XSM D2+ EXTRA LOAD 35/65R33 tire + rim Square
Tire MICHELIN XSM D2+ EXTRA LOAD 35/65R33 tire + rim Square

Designed for underground mining loaders, offering high load capacity, aggression resistance, and extended tire life. It features a new bead area and crown designed to support more load capacity, making it one of the most productive L5S tires for underground mining.

MEMS Ready

MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:

Discover Michelin MEMS Solutions
Find a Dealer

Why choose the MICHELIN XSM D2+ EXTRA LOAD tire?

More productivity and tire life in aggressive conditions (1).
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Square

Load Capacity

Our most productive L5S*** tire (1) carrying up to 32,500 kg (71,650 lbs)
New bead area enhances the robustness of the bead zone to support extra load capacity (1). Stronger, more durable architecture supports increased load capacity (1).
Square

Durability

The most aggression-resistant smooth tire design.
Thanks to two new extra plies on the tire sidewall. Rock cuts are prevented from penetrating the sidewall stronger crown cables.
Square

Tread Durability

5% more tire life (1) when used in ** applications .
More durable crown cables and sidewall protection.

Tire Technical Specifications

Close
Select tire size
Back
Select tire size
  • 35/65R33 L5*** 229A2 TL
  • Tech Specs
  • Pressure (bar and psi) & Load (kg and lbs)

Tech Specs

Product MICHELIN XSMD2+ EXTRA LOAD - 35/65R33
Overall Diameter 2063 mm / 81 inch
Section Width 921 mm / 36 inch
Loaded radius 921 mm
Seat diameter 33
Tread depth 95 mm / 118/32 nds
Weight 1330 kg / 2932 lbs
Recommended Wheels 28.00/3.5
TRA code L-5
Max Overall Section Width 921 mm / 36 inch
CAI 964718
MSPN 68871

Pressure (bar and psi) & Load (kg and lbs)

Factor the load and type of work when adjusting tire pressure**

bar

psi

3

44

4

58

4.5

65

5

73

5.5

80

6

87

6.5

94

7

102

7.5

109

8

116
(kg - lbs) loader

Front laden

15500

34172

19000

41888

21200

46738

23000

50706

25000

55116

26500

58422

28000

61729

30000

66139

31500

69446

32500

71650

Rear unladen

12400

27337

15200

33510

16950

37368

18400

40565

20000

44092

21200

46738

22400

49384

24000

52911

25200

55556

26000

57320

**IMPORTANT

The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes

Technical data is subject to change without prior notice.

Tech Specs

Tech Specs

Product MICHELIN XSMD2+ EXTRA LOAD - 35/65R33
Overall Diameter 2063 mm / 81 inch
Section Width 921 mm / 36 inch
Loaded radius 921 mm
Seat diameter 33
Tread depth 95 mm / 118/32 nds
Weight 1330 kg / 2932 lbs
Recommended Wheels 28.00/3.5
TRA code L-5
Max Overall Section Width 921 mm / 36 inch
CAI 964718
MSPN 68871

Tire Product Sheet and Databook

Find the technical and commercial specifications downloadable documents below.

Michelin Mining Technical Databook
