MICHELIN XSM D2+ PRO delivers the durability and traction needed for underground mining. Its deep smooth tread and reinforced sidewalls provide excellent resistance to cuts and impacts.

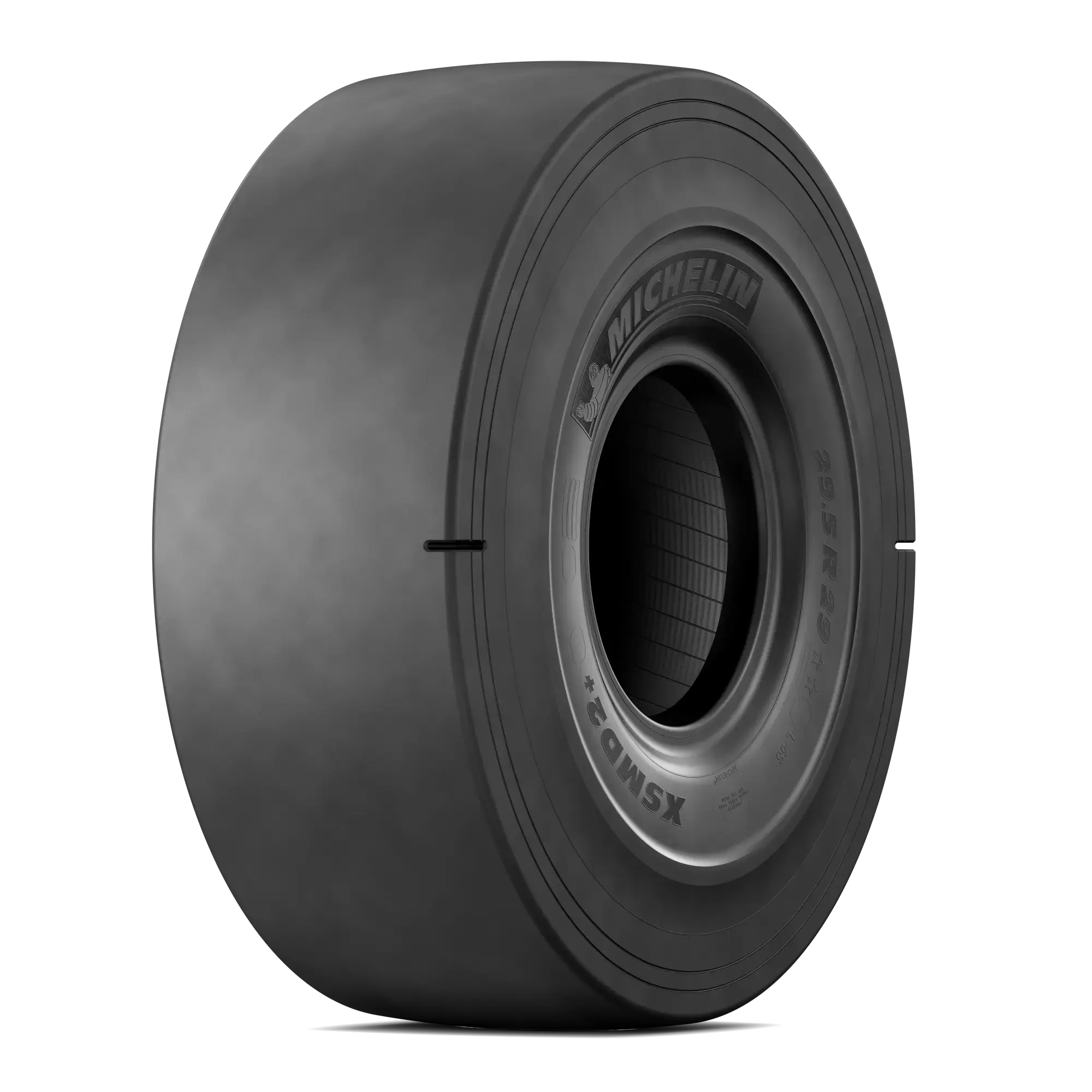

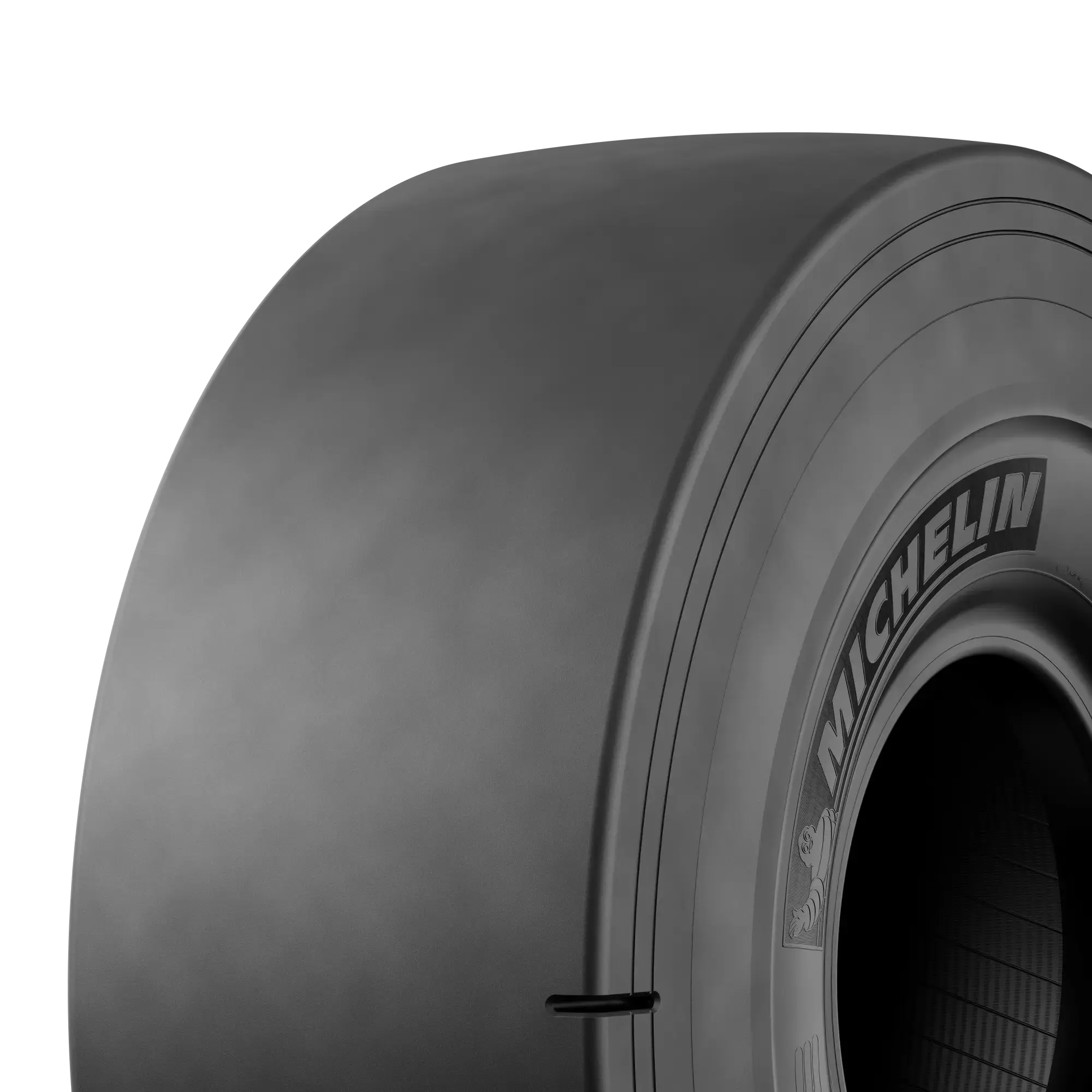

MICHELIN XSM D2+ PRO
Designed specifically for underground mining operations, offering exceptional durability and resistance to cuts and impacts. Its deep smooth tread pattern provides excellent traction and protection on tough, rocky surfaces, while its reinforced sidewalls protect against damage in harsh conditions.
Vehicle Type
Underground Machinery
Underground Machinery
Usage of Application
Underground Mining, Hard/Abrasive Surface
Underground Mining
Hard/Abrasive Surface
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XSM D2+ PRO tire?
Extreme conditions demand tough tires.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Load capacity
Increase load capacity by up to 18% (1)
Durability
Improved aggression resistance (2)
Due to new cables and NRF technology (reinforced sidewall plies) (2).
Tire Life
Improved tire life (3)
In the harshest of conditions thanks to optimized tread compounds (3).
MICHELIN XSM D2+ PRO Technology
MICHELIN XSM D2+ PRO Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XSM D2+ PRO - 17.5R25 |
|---|---|
| Overall Diameter | 1396 mm / 55 inch |
| Section Width | 453 mm / 18 inch |
| Loaded radius | 635 mm |
| Seat diameter | 25 |
| Rolling circumference | 4246 |
| Tread depth | 78 mm / 99/32 nds |
| Weight | 308 kg / 679 lbs |
| Recommended Wheels | 14.00/1.5 |
| TRA code | L-5 |
| Max Overall Section Width | 453 mm / 18 inch |
| CAI | 822869 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) loader | |||||||||
|
Front laden |
4750 10472 |
5450 12015 |
6000 13228 |
6500 14330 |
7100 15653 |
7500 16535 |
8000 17637 |
8500 18739 |
10000 22046 |
|
Rear unladen |
3800 8378 |
4360 9612 |
4800 10582 |
5200 11464 |
5680 12522 |
6000 13228 |
6400 14110 |
6800 14991 |
8000 17637 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XSM D2+ PRO - 17.5R25 |
|---|---|
| Overall Diameter | 1396 mm / 55 inch |
| Section Width | 453 mm / 18 inch |
| Loaded radius | 635 mm |
| Seat diameter | 25 |
| Rolling circumference | 4246 |
| Tread depth | 78 mm / 99/32 nds |
| Weight | 308 kg / 679 lbs |
| Recommended Wheels | 14.00/1.5 |
| TRA code | L-5 |
| Max Overall Section Width | 453 mm / 18 inch |
| CAI | 822869 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) loader | |||||||||
|
Front laden |
4750 10472 |
5450 12015 |
6000 13228 |
6500 14330 |
7100 15653 |
7500 16535 |
8000 17637 |
8500 18739 |
10000 22046 |
|
Rear unladen |
3800 8378 |
4360 9612 |
4800 10582 |
5200 11464 |
5680 12522 |
6000 13228 |
6400 14110 |
6800 14991 |
8000 17637 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Product Legal Information
(1) Based on comparisons of the MICHELIN® XSM® D2+ PRO and X MINE® D2 PRO to the MICHELIN® XSM® D2+ and MICHELIN® X MINE® D2, as set forth in the 2024 Michelin Data Book. Actual results may vary.(2) Based on computer modeling comparisons of the MICHELIN® XSM® D2 + PRO and X MINE® D2 PRO tires compared to MICHELIN® XSM® D2+ and MICHELIN X MINE® D2 tires. Actual results may vary.(3) Based upon improved aggression resistance and on computer modeling comparing the tread compounds included in the MICHELIN XSM® D2+ PRO to the MICHELIN XSM® D2+. Actual results may vary.
