MICHELIN XSM DN+ tire is designed for underground mining, providing a perfect balance between load capacity, speed, and protection. Its robust construction and advanced bead technology ensure durability.

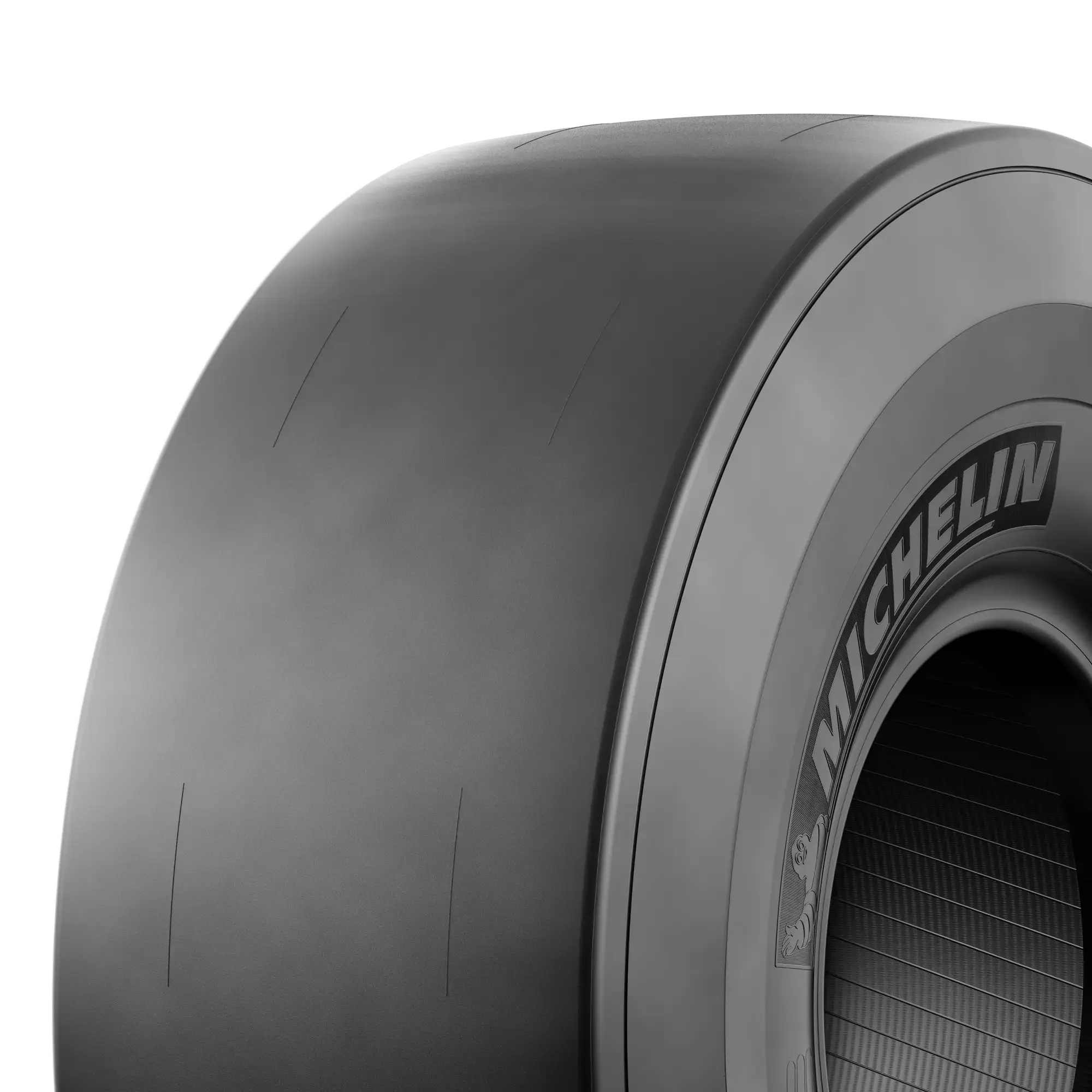

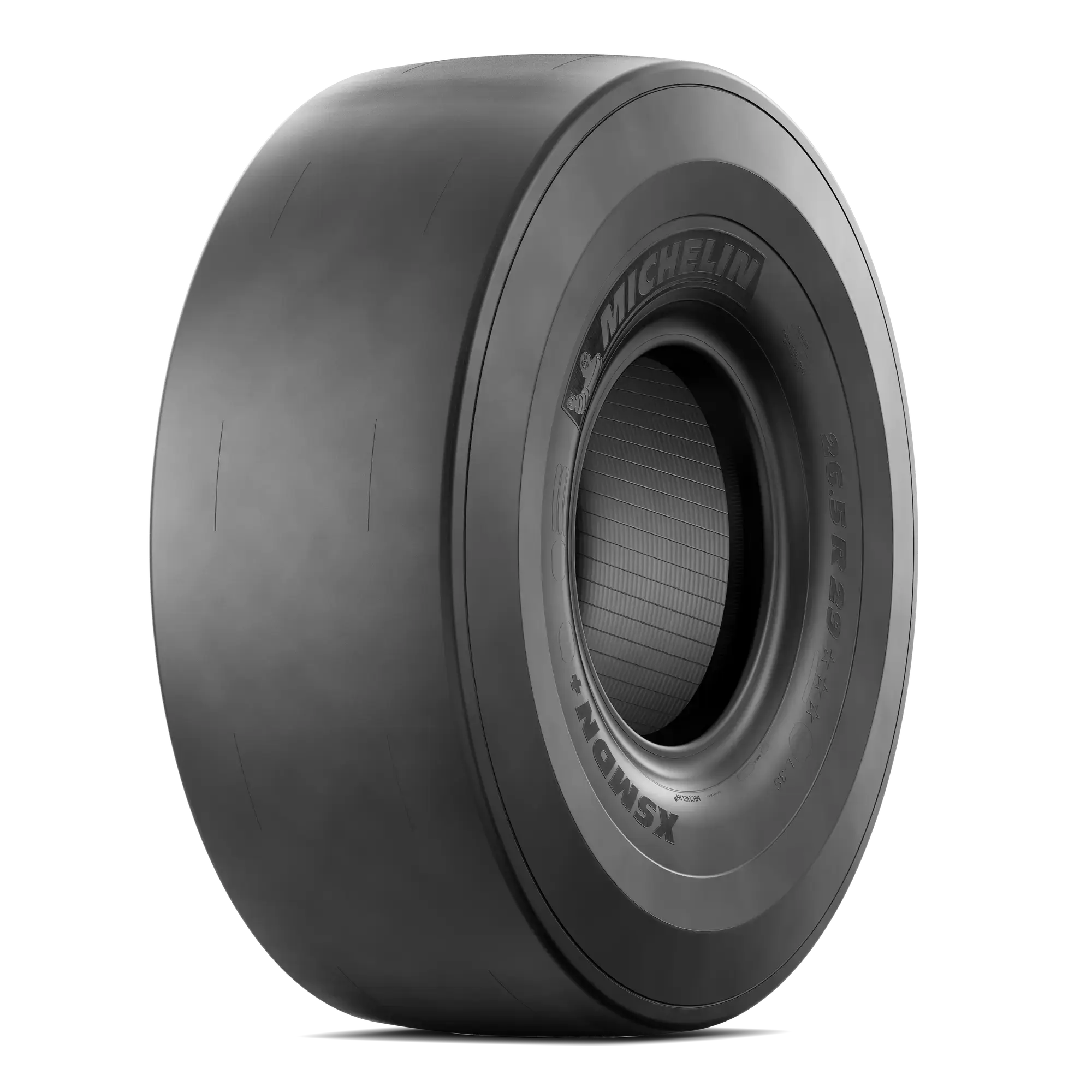

MICHELIN XSM DN+
L3S radial tire provides a balance between load, speed and protection in underground mines: Long cycle usage. Higher loads. Robust bead.
Vehicle Type
Wheel Loader, Heavy Duty Forklift, Underground Machinery
Wheel Loader
Heavy Duty Forklift
Underground Machinery
Usage of Application
Underground Mining, Hard/Abrasive Surface
Underground Mining
Hard/Abrasive Surface
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XSM DN+ tire?
A balance between load, speed and protection.
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Productivity
Specially designed for use in long cycles - 6 mph @ distance.
Load Capacity
Reinforced casing for high load capacity.
Durability
Robust bead area
Bead with B2 technology for extreme conditions.
MICHELIN XSM DN+ Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XSM DN+ - 26.5R25 |
|---|---|
| Overall Diameter | 1727 mm / 68 inch |
| Section Width | 704 mm / 28 inch |
| Loaded radius | 770 mm |
| Seat diameter | 25 |
| Rolling circumference | 5192 |
| Tread depth | 44 mm / 54/32 nds |
| Weight | 630 kg / 1389 lbs |
| Recommended Wheels | 22.00/3.0 |
| Approved Wheels | 22.00/3.0 IF |
| TRA code | L-3S |
| Max Overall Section Width | 704 mm / 28 inch |
| CAI | 569259 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) loader | ||||||||||
|
Front laden |
10300 22708 |
12850 28329 |
14000 30865 |
15000 33069 |
16000 35274 |
17000 37479 |
18500 40786 |
19500 42990 |
20600 45415 |
21200 46738 |
|
Rear unladen |
9100 20062 |
10600 23369 |
11450 25243 |
12300 27117 |
13100 28881 |
13800 30424 |
14650 32298 |
15400 33951 |
16200 35715 |
16850 37148 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XSM DN+ - 26.5R25 |
|---|---|
| Overall Diameter | 1727 mm / 68 inch |
| Section Width | 704 mm / 28 inch |
| Loaded radius | 770 mm |
| Seat diameter | 25 |
| Rolling circumference | 5192 |
| Tread depth | 44 mm / 54/32 nds |
| Weight | 630 kg / 1389 lbs |
| Recommended Wheels | 22.00/3.0 |
| Approved Wheels | 22.00/3.0 IF |
| TRA code | L-3S |
| Max Overall Section Width | 704 mm / 28 inch |
| CAI | 569259 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) loader | ||||||||||
|
Front laden |
10300 22708 |
12850 28329 |
14000 30865 |
15000 33069 |
16000 35274 |
17000 37479 |
18500 40786 |
19500 42990 |
20600 45415 |
21200 46738 |
|
Rear unladen |
9100 20062 |
10600 23369 |
11450 25243 |
12300 27117 |
13100 28881 |
13800 30424 |
14650 32298 |
15400 33951 |
16200 35715 |
16850 37148 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
