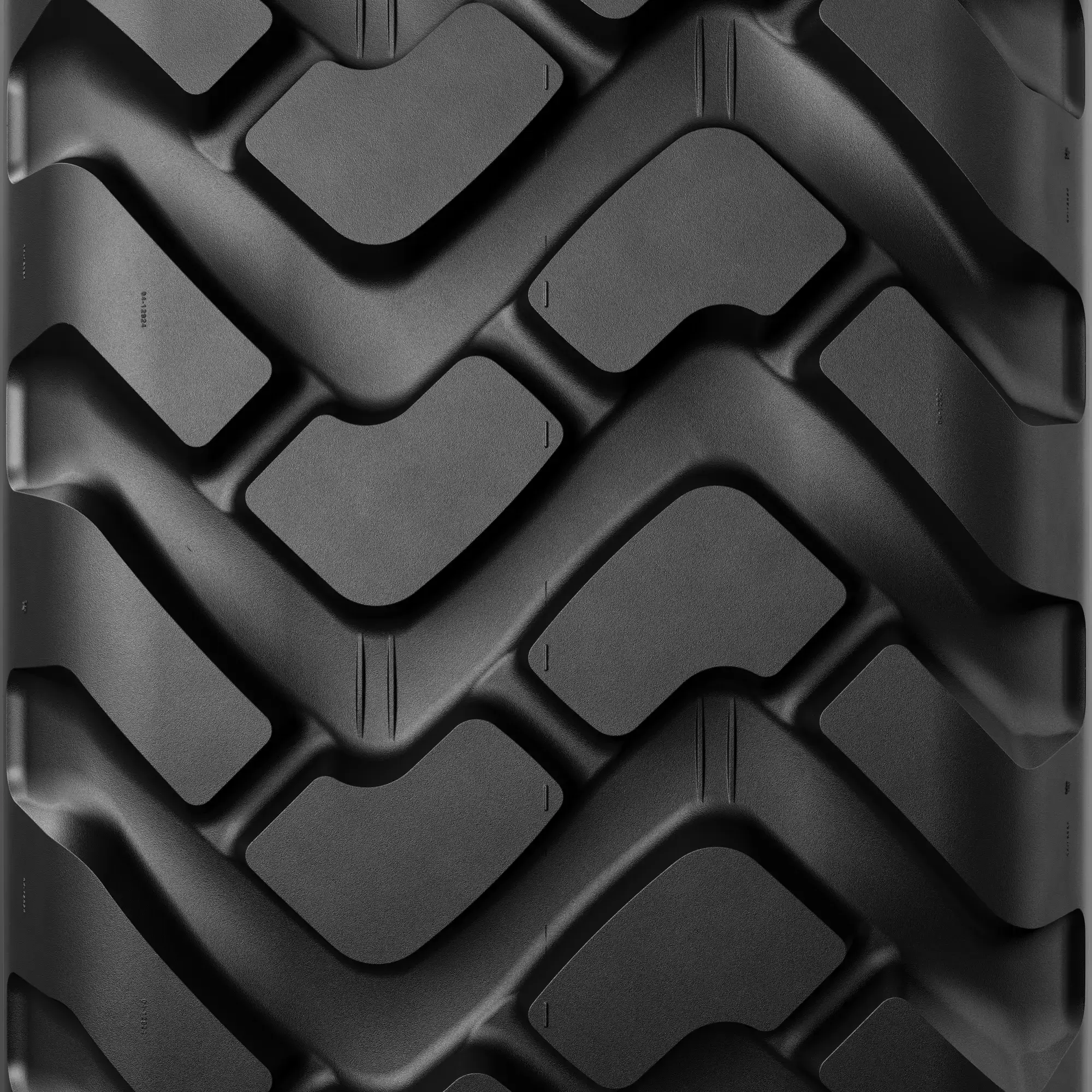

MICHELIN XTLA
The MICHELIN L2/G2 Radial tire designed to provide exceptional traction and long, even treadwear on loaders and graders.
Why choose the MICHELIN XTLA tire?
Traction
Total Cost of Ownership
Stability
MICHELIN XTLA Technology
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XTL A - 15.5R25 |
|---|---|
| Overall Diameter | 1272 mm / 50 inch |
| Section Width | 397 mm / 16 inch |
| Loaded radius | 556 mm |
| Seat diameter | 25 |
| Rolling circumference | 3795 mm / 149 inch |
| Tread depth | 26 mm / 32/32 nds |
| Compound | A |
| Weight | 102.84 kg / 227 lbs |
| Recommended Wheels | 12.00/1.3 |
| Approved Wheels | 12.00/1.3 DC-13.00/1.4 DC |
| TRA code | L-2 |
| Max Overall Section Width | 397 mm / 16 inch |
| CAI | 123415 |
| MSPN | 94687 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
|---|---|---|---|---|---|---|
| (kg - lbs) grader | ||||||
|
All Axles |
2325 5126 |
2650 5842 |
3000 6614 |
|||
| (kg - lbs) loader | ||||||
|
Front laden |
3700 8157 |
4250 9370 |
4800 10582 |
5350 11795 |
5800 12787 |
6450 14220 |
|
Rear unladen |
2950 6504 |
3400 7496 |
3850 8488 |
4300 9480 |
4650 10251 |
5150 11354 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
| Product | MICHELIN XTL A - 15.5R25 |
|---|---|
| Overall Diameter | 1272 mm / 50 inch |
| Section Width | 397 mm / 16 inch |
| Loaded radius | 556 mm |
| Seat diameter | 25 |
| Rolling circumference | 3795 mm / 149 inch |
| Tread depth | 26 mm / 32/32 nds |
| Compound | A |
| Weight | 102.84 kg / 227 lbs |
| Recommended Wheels | 12.00/1.3 |
| Approved Wheels | 12.00/1.3 DC-13.00/1.4 DC |
| TRA code | L-2 |
| Max Overall Section Width | 397 mm / 16 inch |
| CAI | 123415 |
| MSPN | 94687 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
2 29 |
2.5 36 |
3 44 |
3.5 51 |
4 58 |
4.5 65 |
|---|---|---|---|---|---|---|
| (kg - lbs) grader | ||||||
|
All Axles |
2325 5126 |
2650 5842 |
3000 6614 |
|||
| (kg - lbs) loader | ||||||
|
Front laden |
3700 8157 |
4250 9370 |
4800 10582 |
5350 11795 |
5800 12787 |
6450 14220 |
|
Rear unladen |
2950 6504 |
3400 7496 |
3850 8488 |
4300 9480 |
4650 10251 |
5150 11354 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
