The Michelin E3T Rdial tire for mid-size scrapers is engineered to provide exceptionally long life, excellent resistance to damage and enhanced traction.

Get a quote Find a Dealer

Why choose the MICHELIN XTS tire?

E3T mid-power scraper tire for serious traction applications.

Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.

Durability

Better resistance to damage and abrasion

Thanks to square shoulders and protective sidewall bands.

Traction

Increased traction and grip

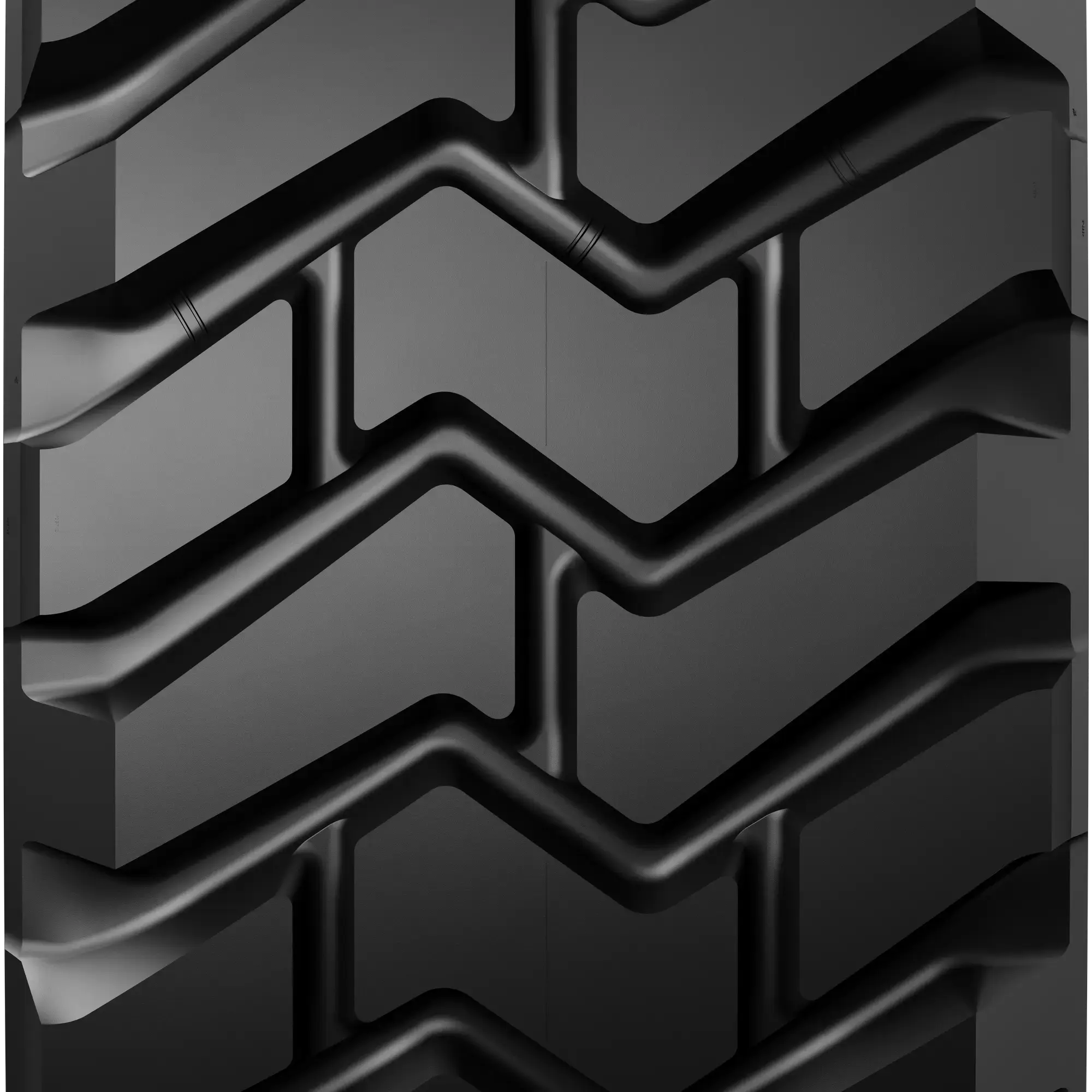

Thanks to open tread surface with widely spaced tread blocks and a self-cleaning tread design.

Tire Life

Better resistance to wear

Thanks to extra deep tread design and new rubber compound.

MICHELIN XTS Technology

The radial tire - The Michelin innovation that revolutionized tire construction

Sold under the name Michelin X®, this tire was a real breakthrough thanks to its exceptional performance: incredible longevity (it lasted 2 to 4 times longer than a conventional tire), greater safety, and, above all, reduced vehicle fuel consumption.

Tire Technical Specifications

Tech Specs

Product	MICHELIN XTS - 29.5R29
Overall Diameter	1963 mm / 77 inch
Section Width	765 mm / 30 inch
Loaded radius	869 mm
Seat diameter	29
Rolling circumference	5884 mm / 232 inch
Tread depth	43 mm / 54/32 nds
Weight	562 kg / 1239 lbs
Recommended Wheels	25.00/3.5
Approved Wheels	24.00/3.5
TRA code	E-3
TKPH	348
Max Overall Section Width	765 mm / 30 inch
CAI	708648

Pressure (bar and psi) & Load (kg and lbs)

Factor the load and type of work when adjusting tire pressure**

bar psi	2 29	2.5 36	3 44	3.5 51	4 58	4.25 62	4.5 65	5 73	5.5 80
(kg - lbs) Transport
Standard	9150 20172	10325 22763	11500 25353	12650 27888	13850 30534	14425 31802	15000 33069	16150 35605	16750 36927

bar

psi

2.5

3.5

4.25

4.5

5.5

(kg - lbs) Transport

Standard

9150

20172

10325

22763

11500

25353

12650

27888

13850

30534

14425

31802

15000

33069

16150

35605

16750

36927

**IMPORTANT

The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes

Technical data is subject to change without prior notice.

Tech Specs

Product	MICHELIN XTS - 29.5R29
Overall Diameter	1963 mm / 77 inch
Section Width	765 mm / 30 inch
Loaded radius	869 mm
Seat diameter	29
Rolling circumference	5884 mm / 232 inch
Tread depth	43 mm / 54/32 nds
Weight	562 kg / 1239 lbs
Recommended Wheels	25.00/3.5
Approved Wheels	24.00/3.5
TRA code	E-3
TKPH	348
Max Overall Section Width	765 mm / 30 inch
CAI	708648

Pressure (bar and psi) & Load (kg and lbs)

Factor the load and type of work when adjusting tire pressure**

bar psi	2 29	2.5 36	3 44	3.5 51	4 58	4.25 62	4.5 65	5 73	5.5 80
(kg - lbs) Transport
Standard	9150 20172	10325 22763	11500 25353	12650 27888	13850 30534	14425 31802	15000 33069	16150 35605	16750 36927

bar

psi

2.5

3.5

4.25

4.5

5.5

(kg - lbs) Transport

Standard

9150

20172

10325

22763

11500

25353

12650

27888

13850

30534

14425

31802

15000

33069

16150

35605

16750

36927

**IMPORTANT

The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes

Technical data is subject to change without prior notice.

Tire Product Sheet and Databook

Find the technical and commercial specifications downloadable documents below.

Product sheet Michelin XTS - 2025

Michelin Earthmover, Off-Road, and Industrial Tires Limited Warranty

Earthmover Total Satisfaction Guarantee

Data Book Michelin Compact Equipment Tires
