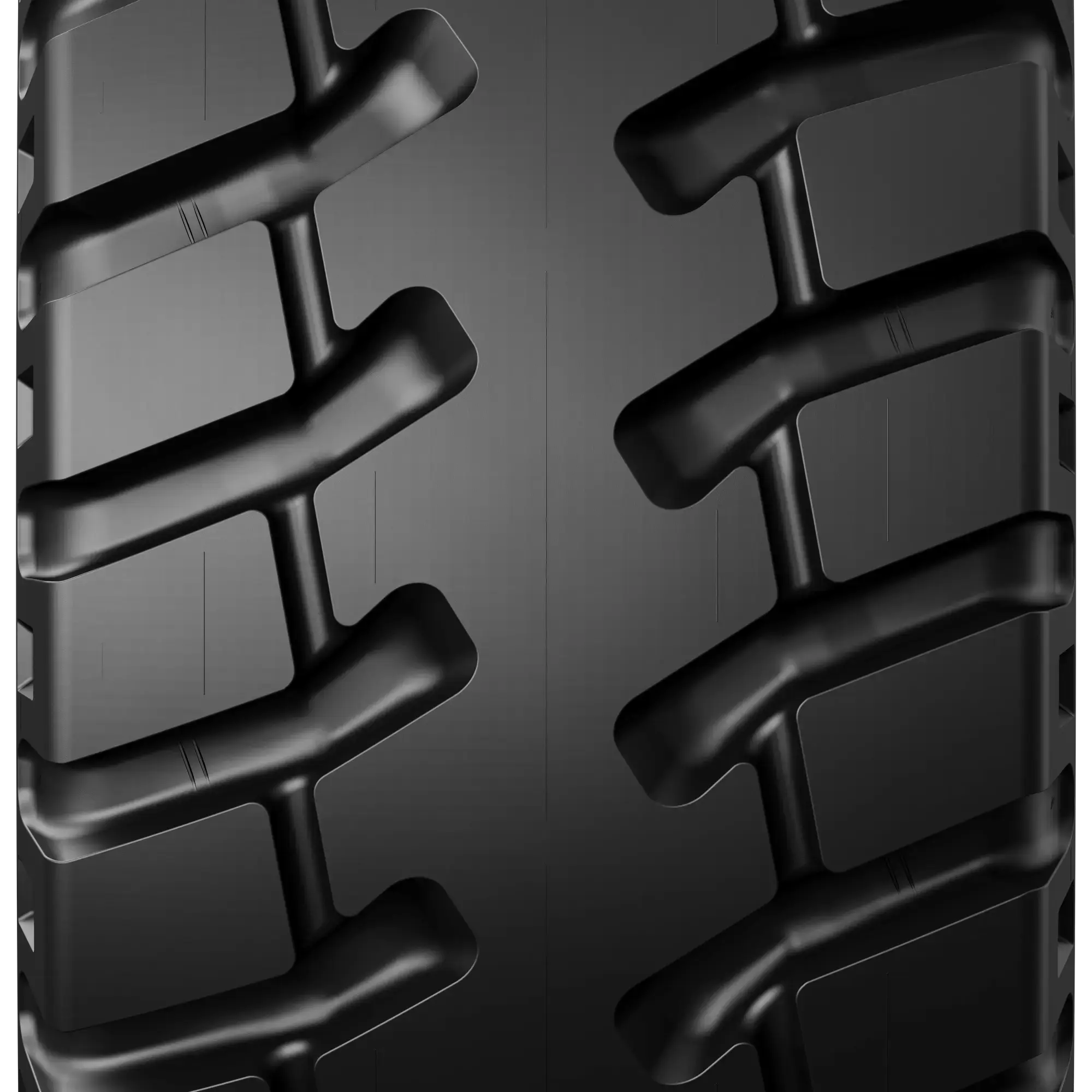

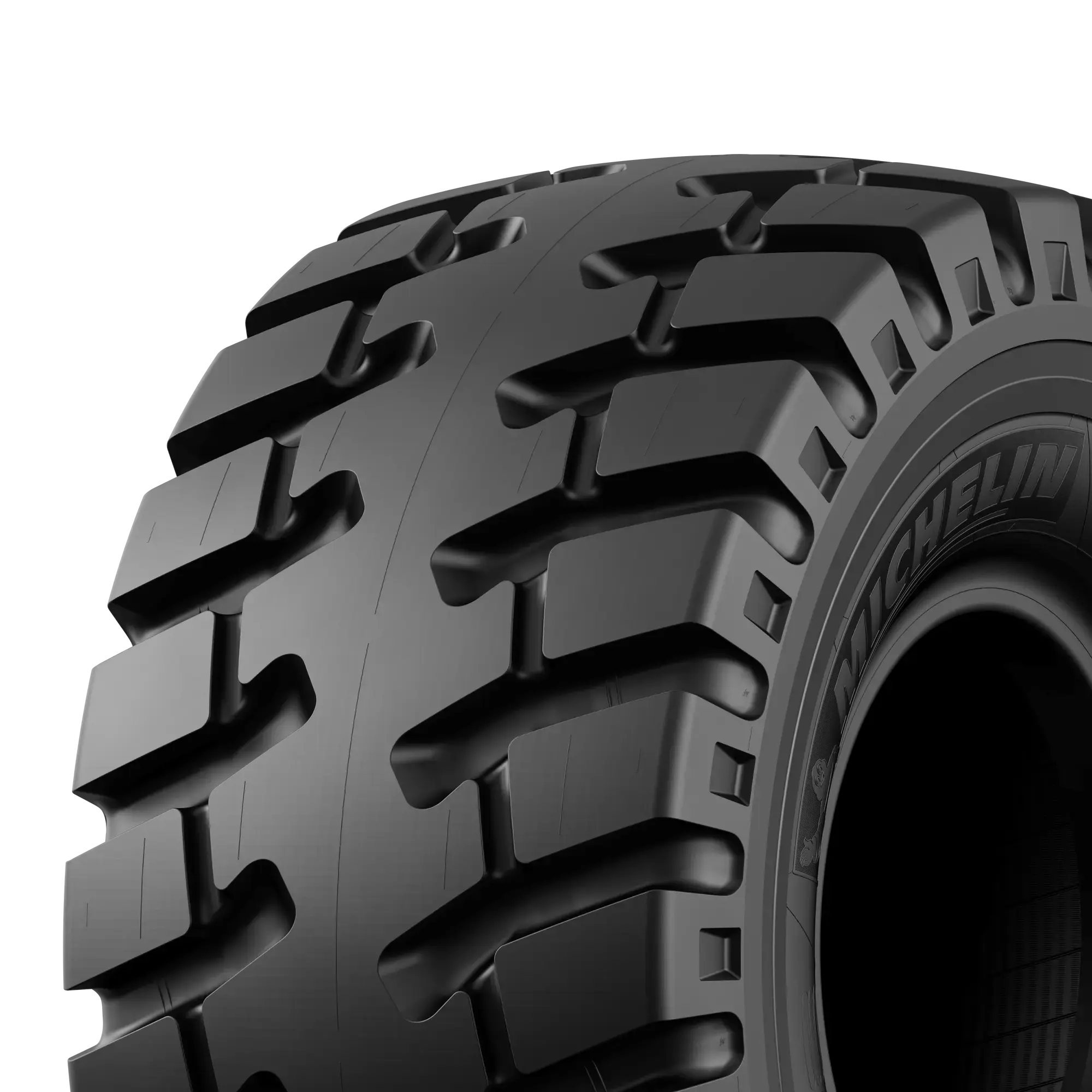

MICHELIN XTXL (Construction)
With exceptional load capacity and maximum tire life, the Michelin XTXL tire is engineered to strengthen your productivity. It offers outsanding durability that provides the comfort and safety your operator needs to get the job done.
Why choose the MICHELIN XTXL (Construction) tire?
Load Capacity
Durability
Productivity
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XTXL - 35/65R33 |
|---|---|
| Overall Diameter | 2026 mm / 80 inch |
| Section Width | 907 mm / 36 inch |
| Loaded radius | 887 mm |
| Seat diameter | 33 |
| Rolling circumference | 6048 mm / 238 inch |
| Tread depth | 60 mm / 77/32 nds |
| Weight | 900 kg / 1984 lbs |
| Recommended Wheels | 28.00/3.5 |
| TRA code | E-4,L-4 |
| TKPH | 250 |
| Max Overall Section Width | 907 mm / 36 inch |
| CAI | 845075 |
| MSPN | 46729 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | ||||||||||
|
All Axles |
20000 44092 |
21200 46738 |
23000 50706 |
24300 53572 |
25750 56769 |
27250 60076 |
29000 63934 |
|||
| (kg - lbs) Loader load per tire <= 28 t | ||||||||||
|
Front laden |
16100 35494 |
19000 41888 |
21200 46738 |
23000 50706 |
24300 53572 |
25750 56769 |
28000 61729 |
|||
|
Rear unladen |
12900 28440 |
15200 33510 |
16950 37368 |
18400 40565 |
19450 42880 |
20600 45415 |
22400 49384 |
|||
| (kg - lbs) Loader load per tire > 28 t | ||||||||||
|
Front laden |
30000 66139 |
31500 69446 |
32500 71650 |
|||||||
|
Rear unladen |
24000 52911 |
25200 55556 |
26000 57320 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
| Product | MICHELIN XTXL - 35/65R33 |
|---|---|
| Overall Diameter | 2026 mm / 80 inch |
| Section Width | 907 mm / 36 inch |
| Loaded radius | 887 mm |
| Seat diameter | 33 |
| Rolling circumference | 6048 mm / 238 inch |
| Tread depth | 60 mm / 77/32 nds |
| Weight | 900 kg / 1984 lbs |
| Recommended Wheels | 28.00/3.5 |
| TRA code | E-4,L-4 |
| TKPH | 250 |
| Max Overall Section Width | 907 mm / 36 inch |
| CAI | 845075 |
| MSPN | 46729 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3 44 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) underground-transport-machine | ||||||||||
|
All Axles |
20000 44092 |
21200 46738 |
23000 50706 |
24300 53572 |
25750 56769 |
27250 60076 |
29000 63934 |
|||
| (kg - lbs) Loader load per tire <= 28 t | ||||||||||
|
Front laden |
16100 35494 |
19000 41888 |
21200 46738 |
23000 50706 |
24300 53572 |
25750 56769 |
28000 61729 |
|||
|
Rear unladen |
12900 28440 |
15200 33510 |
16950 37368 |
18400 40565 |
19450 42880 |
20600 45415 |
22400 49384 |
|||
| (kg - lbs) Loader load per tire > 28 t | ||||||||||
|
Front laden |
30000 66139 |
31500 69446 |
32500 71650 |
|||||||
|
Rear unladen |
24000 52911 |
25200 55556 |
26000 57320 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
(1) Internal comparison between Michelin® XTXL 29.5R25 and Michelin® XLD D1 29.5R25. Measurement certified by Michelin center of technology. Reference Michelin® Technical Earthmover Data Book 2023.(2) Internal comparison between Michelin® XTXL 29.5R25 and Michelin® XLD D1 29.5R25. Measurement certified by Michelin center of technology. Reference Michelin® Technical Earthmover Data Book 2019.
