MICHELIN XVC tire is an E2 radial tire designed for high-speed applications on well-maintained site roads. It offers excellent traction, handling, and wear resistance.

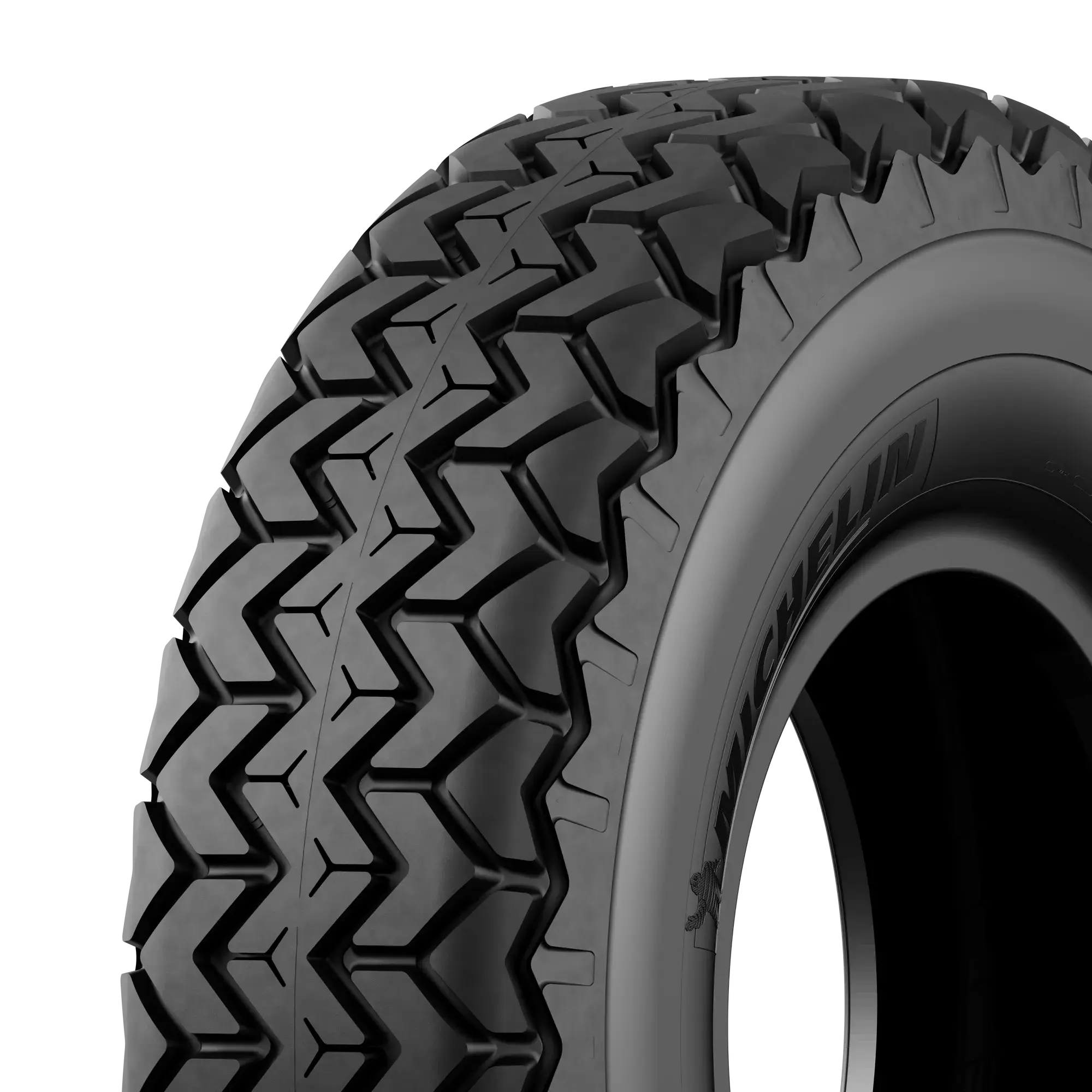

MICHELIN XV C (Mining surface)
The E2 radial tire designed for high-speed applications on well-maintained site roads.
Vehicle Type
Rigid Dump Truck
Rigid Dump Truck
Usage of Application
Surface Mining
Surface Mining
MICHELIN MEMS is a TPMS solution for mining vehicles to remotely monitor activity, performance and maintenance throughout your tire lifecycle. Find the benefits and MEMS solution that works for you:
Why choose the MICHELIN XV C (Mining surface) tire?
For high speed applications
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Productivity
High-speed capabilities
Traction
Excellent traction due to tread sculpture
Tire Life
Extended tire life due to wear resistant tread pattern.
MICHELIN XV C (Mining surface) Tire Reviews
Tire Technical Specifications
Tech Specs
| Product | MICHELIN XV C - 27.00R49 |
|---|---|
| Overall Diameter | 2648 mm / 104 inch |
| Section Width | 745 mm / 29 inch |
| Loaded radius | 1170 mm |
| Seat diameter | 49 |
| Rolling circumference | 7934 |
| Tread depth | 33 mm / 42/32 nds |
| Compound | C |
| Weight | 981.7 kg / 2164 lbs |
| Recommended Wheels | 19.50/4.0 [3.2] |
| Approved Wheels | 19.50/4.0 [2.7]-22.00/4.0 |
| TRA code | E-3 |
| TKPH | 1090 |
| Max Overall Section Width | 745 mm / 29 inch |
| Min Dual Spacing | 909 mm / 35.79 inch |
| CAI | 280557 |
| MSPN | 06957 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | ||||||||||
|
Standard |
16850 37148 |
18550 40896 |
20300 44754 |
22050 48612 |
24000 52911 |
25500 56218 |
27250 60076 |
28100 61950 |
29000 63934 |
29850 65808 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tech Specs
Tech Specs
| Product | MICHELIN XV C - 27.00R49 |
|---|---|
| Overall Diameter | 2648 mm / 104 inch |
| Section Width | 745 mm / 29 inch |
| Loaded radius | 1170 mm |
| Seat diameter | 49 |
| Rolling circumference | 7934 |
| Tread depth | 33 mm / 42/32 nds |
| Compound | C |
| Weight | 981.7 kg / 2164 lbs |
| Recommended Wheels | 19.50/4.0 [3.2] |
| Approved Wheels | 19.50/4.0 [2.7]-22.00/4.0 |
| TRA code | E-3 |
| TKPH | 1090 |
| Max Overall Section Width | 745 mm / 29 inch |
| Min Dual Spacing | 909 mm / 35.79 inch |
| CAI | 280557 |
| MSPN | 06957 |
Pressure (bar and psi) & Load (kg and lbs)
Factor the load and type of work when adjusting tire pressure**
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
3.5 51 |
4 58 |
4.5 65 |
5 73 |
5.5 80 |
6 87 |
6.5 94 |
7 102 |
7.5 109 |
8 116 |
|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) Transport | ||||||||||
|
Standard |
16850 37148 |
18550 40896 |
20300 44754 |
22050 48612 |
24000 52911 |
25500 56218 |
27250 60076 |
28100 61950 |
29000 63934 |
29850 65808 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to changes
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
