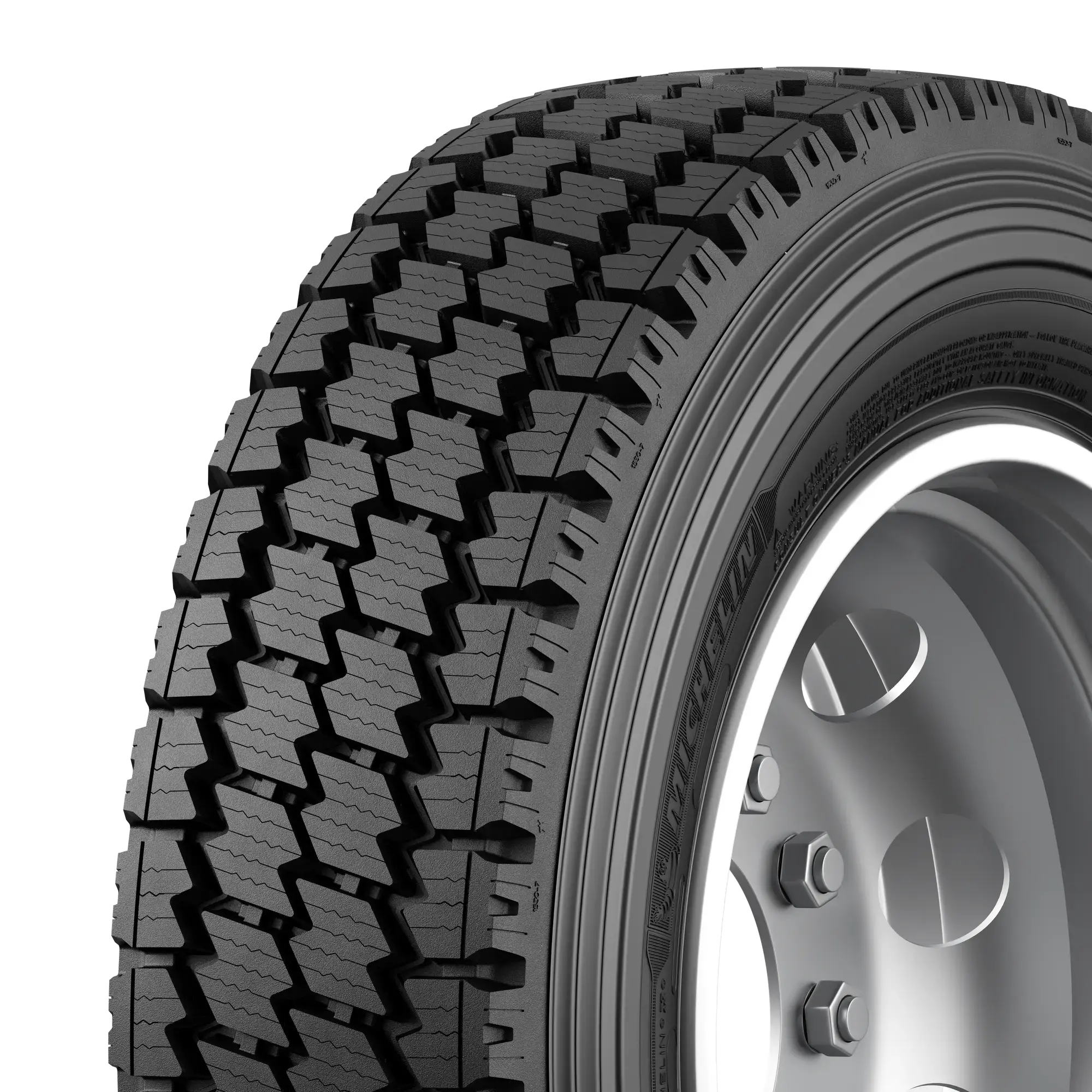

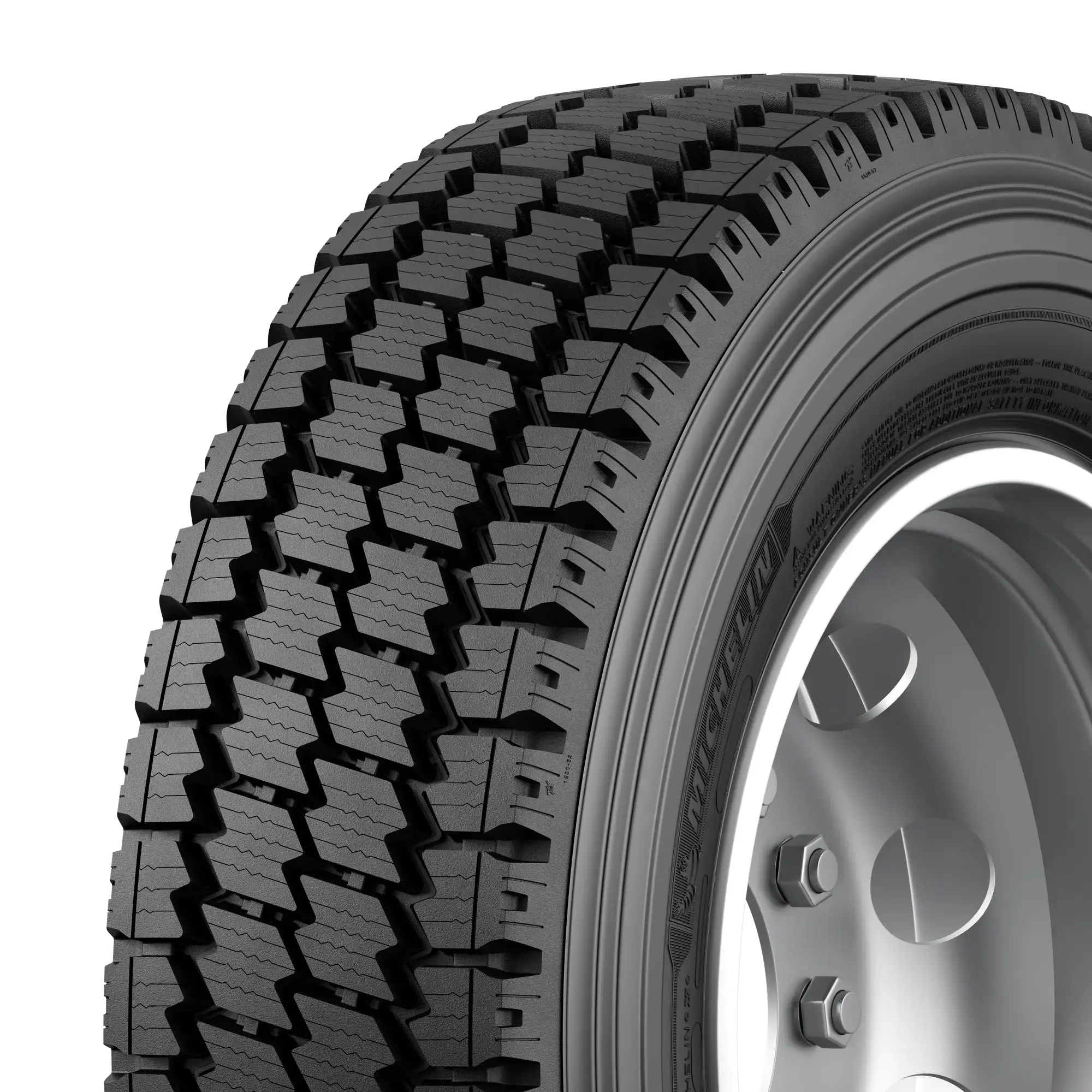

MICHELIN AGILIS HD GRIP D
The drive tire for year-round traction, optimized for winter conditions and limited all-position service in regional and on/off road applications.
Vehicle Type
Van, light truck, Bus
Van
light truck
Bus
Usage of Application
Regional Transport, Urban Transport, Winter
Regional Transport
Urban Transport
Winter
Tire retreading, also known as recapping or remolding, is a process that involves replacing the worn tread of a used tire with a new tread. Retreading tires is perfect for fleets that want to cut their operating costs and environmental footprint. Learn how retreading your tires can have significant benefits on your business.
Why choose the MICHELIN AGILIS HD GRIP D tire?
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Traction
This tire provides up to 35% better snow traction(1) performance than leading competitors, helping to minimize delays in vehicle operations, with its aggressive tread design and 3PMSF rating.
Durability
Minimize downtime with three full-width steel belts that provide long casing life and exceptional retreadability.
Plus, this tire has curb guards that provide additional protection against curb impacts, as well as groove bottom protectors & variable pitch groove walls that function as barriers against stone drilling, enhancing the tire’s overall durability.
Confidence
Navigate with confidence in all weather conditions with outstanding traction in wet, mud and snow, thanks to aggressive zigzag grooves and 3D matrix siping.
Total Cost of Ownership
This tire's tough, retreadable casing is built to withstand the demands of the street and help reduce total cost of ownership.
Truck and bus calculators
CALCULATE YOUR POTENTIAL SAVINGS!
Calculate the benefits of Michelin tires for your business with one of our calculation simulators. From fuel savings to environmental impacts, discover all the advantages of Michelin products and their multiple benefits.
MICHELIN AGILIS HD GRIP D Technology
Tire Technical Specifications
Technical Specifications
| Product | MICHELIN AGILIS HD GRIP D - 225/70R19.5 |
|---|---|
| Overall Diameter | 824 mm / 32.4 inch |
| Recommended Wheels | 6.75 |
| Approved Wheels | 6.00 |
| Min Dual Spacing | 254 mm / 10.0 inch |
| Tread depth | 18 32nds / 14.3 mm |
| Max Speed | 87 mph / 140 kmh |
| Max Load per Tire Single | 3970 lbs / 1800 kg |
| Loaded Radius | 386.4 mm / 15.2 inch |
| Seat diameter | 19.5 |
| Suitable for RV | No |
| CAI | 754921 |
| MSPN | 79805 |
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN MD XDN2 - 225/70R19.5 | D | Regional Transport | 576/32 nds | 190 mm |
| MICHELIN MD XDN2 - 225/70R19.5 | D | Regional Transport | 576/32 nds | 200 mm |
| MICHELIN MD XDN2 - 225/70R19.5 | D | Regional Transport | 640/32 nds | 210 mm |
| MICHELIN X Multi Energy D - 225/70R19.5 | D | Regional Transport | 672/32 nds | 220 mm |
| MICHELIN XDS2+ - 225/70R19.5 | D | Regional Transport, Urban Transport | 800/32 nds | 210 mm |
| MICHELIN XDS2+ - 225/70R19.5 | D | Regional Transport, Urban Transport | 800/32 nds | 220 mm |
| MICHELIN XDS2+ - 225/70R19.5 | D | Regional Transport, Urban Transport | 800/32 nds | 230 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 704/32 nds | 210 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 640/32 nds | 190 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 576/32 nds | 170 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 576/32 nds | 180 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 640/32 nds | 200 mm |
| MICHELIN XDHT - 225/70R19.5 | D | Line Haul, Regional Transport | 736/32 nds | 203 mm |
| MICHELIN XDHT - 225/70R19.5 | D | Line Haul, Regional Transport | 736/32 nds | 194 mm |
| MICHELIN XDHT - 225/70R19.5 | D | Line Haul, Regional Transport | 608/32 nds | 180 mm |
| MICHELIN XM+S4 - 225/70R19.5 | D | Line Haul, Regional Transport | 672/32 nds | 211 mm |
Technical Specifications
Technical Specifications
| Product | MICHELIN AGILIS HD GRIP D - 225/70R19.5 |
|---|---|
| Overall Diameter | 824 mm / 32.4 inch |
| Recommended Wheels | 6.75 |
| Approved Wheels | 6.00 |
| Min Dual Spacing | 254 mm / 10.0 inch |
| Tread depth | 18 32nds / 14.3 mm |
| Max Speed | 87 mph / 140 kmh |
| Max Load per Tire Single | 3970 lbs / 1800 kg |
| Loaded Radius | 386.4 mm / 15.2 inch |
| Seat diameter | 19.5 |
| Suitable for RV | No |
| CAI | 754921 |
| MSPN | 79805 |
Retread Offer
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN MD XDN2 - 225/70R19.5 | D | Regional Transport | 576/32 nds | 190 mm |
| MICHELIN MD XDN2 - 225/70R19.5 | D | Regional Transport | 576/32 nds | 200 mm |
| MICHELIN MD XDN2 - 225/70R19.5 | D | Regional Transport | 640/32 nds | 210 mm |
| MICHELIN X Multi Energy D - 225/70R19.5 | D | Regional Transport | 672/32 nds | 220 mm |
| MICHELIN XDS2+ - 225/70R19.5 | D | Regional Transport, Urban Transport | 800/32 nds | 210 mm |
| MICHELIN XDS2+ - 225/70R19.5 | D | Regional Transport, Urban Transport | 800/32 nds | 220 mm |
| MICHELIN XDS2+ - 225/70R19.5 | D | Regional Transport, Urban Transport | 800/32 nds | 230 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 704/32 nds | 210 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 640/32 nds | 190 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 576/32 nds | 170 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 576/32 nds | 180 mm |
| MICHELIN XDE M/S - 225/70R19.5 | D | Regional Transport | 640/32 nds | 200 mm |
| MICHELIN XDHT - 225/70R19.5 | D | Line Haul, Regional Transport | 736/32 nds | 203 mm |
| MICHELIN XDHT - 225/70R19.5 | D | Line Haul, Regional Transport | 736/32 nds | 194 mm |
| MICHELIN XDHT - 225/70R19.5 | D | Line Haul, Regional Transport | 608/32 nds | 180 mm |
| MICHELIN XM+S4 - 225/70R19.5 | D | Line Haul, Regional Transport | 672/32 nds | 211 mm |
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Semi-truck blog
DISCOVER OUR MICHELIN BLOG
Michelin For My Business is a free blog entirely dedicated to the transport community! You’ll find useful and inspiring stories, articles, podcasts, videos, webinars and practical guides. Join the community!
Product Benefit Legal Information
Traction
(1) Based on third-party snow traction tests using the acceleration method of UN/ECE Regulation No. 117 in size 225/70R19.5 versus the following competitors. Snow index value relative to SRTT: Michelin Agilis HD Grip D (2.14), Bridgestone M729F (1.59), Goodyear Fuel Max RTDTM ULT (1.95), and Continental HDR+ (1.97). Actual on-road results may vary.
