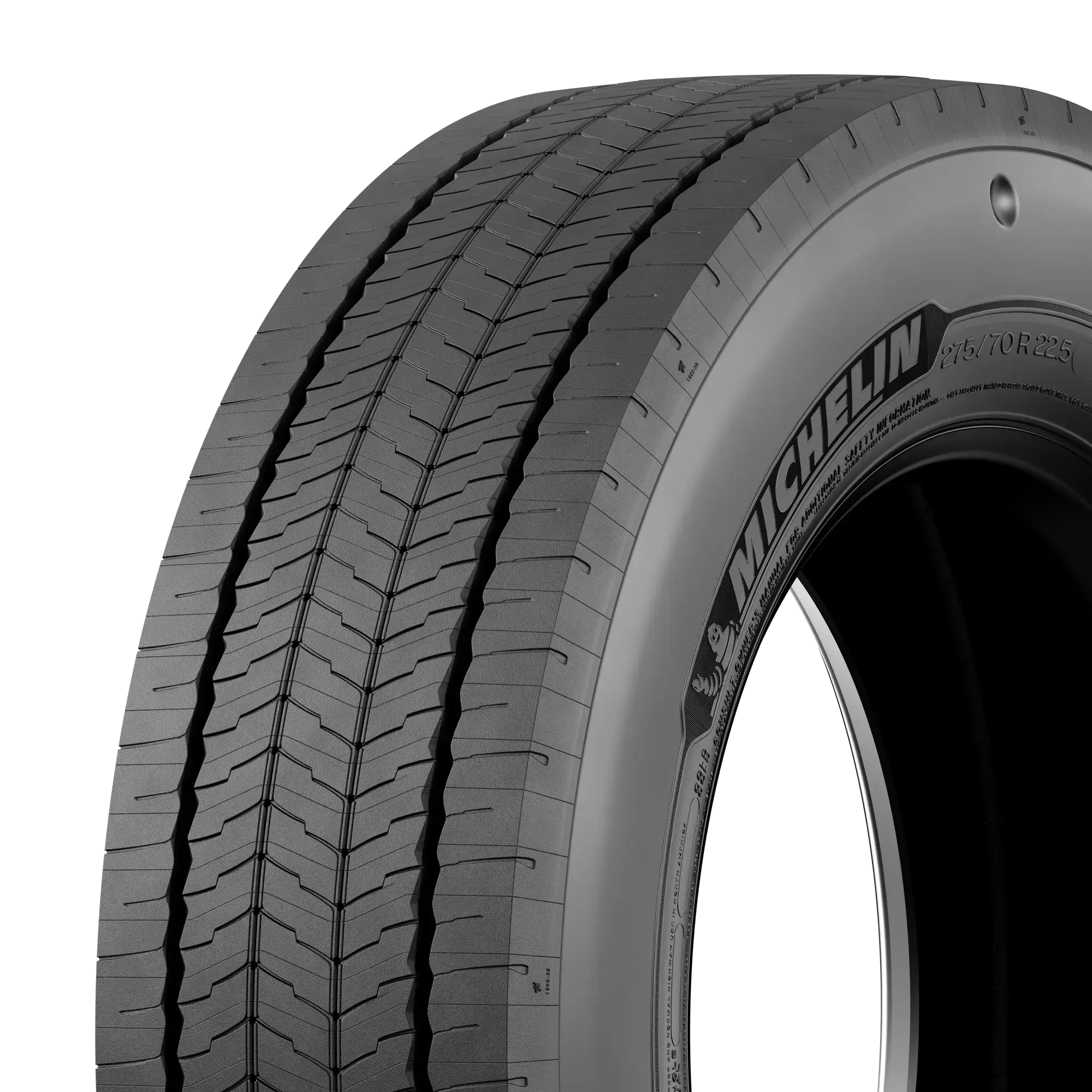

MICHELIN X® INCITY EV Z
Designed for electric vehicles. Outstanding for traditional buses.*
Vehicle Type
Bus
Bus
Usage of Application
Urban Transport
Urban Transport
Tire retreading, also known as recapping or remolding, is a process that involves replacing the worn tread of a used tire with a new tread. Retreading tires is perfect for fleets that want to cut their operating costs and environmental footprint. Learn how retreading your tires can have significant benefits on your business.
Why choose the MICHELIN X® INCITY EV Z tire?
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Mileage
The tire is optimized to maximize mileage for urban bus conditions and for the reduction of irregular wear
thanks to a wear-resistant tread pattern utilising Michelin REGENION technology and Michelin INFINI-COIL technology to provide long lasting even wear.
Durability
Extra thick sidewalls create strong protection against sidewall damage from shocks, impacts and curb scrub. The sidewalls are also equipped with sidewall wear indicators to promote timely tire rotation for long casing life and enhanced retreadability.
Plus, with INFINI-COIL technology, over 850 feet of patented metallic cable applied at 0 degrees help to stabilize the footprint shape for even wear, while providing additional protection from shocks and impacts.
Load Capacity
Supports a higher load capacity: 8 tons capacity on front axle to carry battery (for Electric Vehicle) while keeping passenger capacity. (1)
(1) Comparison of Load Index between 275/70R22.5 MICHELIN® X® INCITY EV Z (152/149J) versus 275/70R22.5 MICHELIN® X® INCITY Z (148/145J). Up to 8 tons due to the +15% load capacity as defined in ETRTO when the average speed does not exceed 40 km/h (25 mph). LI 152 for single fitment = 15,700lbs / 7100kg + 15% = 18,055lbs / 8165 kg on front axle.
Traction
REGENION technology allows for longitudinal and lateral adherence to be maintained throughout the life of the tire. Full width grooves also appear at end of life for improved wet traction.
3 Peak Mountain Snow Flake Certification (3PMSF) (1)
Truck and bus calculators
CALCULATE YOUR POTENTIAL SAVINGS!
Calculate the benefits of Michelin tires for your business with one of our calculation simulators. From fuel savings to environmental impacts, discover all the advantages of Michelin products and their multiple benefits.
MICHELIN X® INCITY EV Z Technology
Tire Technical Specifications
Technical Specifications
| Product | MICHELIN XINCITY EV Z [Michelin, Radial, Urban transportation, Urban bus] - 275/70R22.5 |
|---|---|
| Overall Diameter | 968 mm / 38.1 inch |
| Recommended Wheels | 7.5 |
| Approved Wheels | 8.25 |
| Min Dual Spacing | 310 mm / 12.2 inch |
| Tread depth | 22 32nds / 17.5 mm |
| Max Speed | 65 mph / 105 kmh |
| Max Load per Tire Single | 7830 lbs / 3550 kg |
| Loaded Radius | 448 mm / 17.6 inch |
| Seat diameter | 22.5 |
| Suitable for RV | No |
| CAI | 241377 |
| MSPN | 30103 |
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN XZU 2 - 275/70R22.5 | Z | Urban Transport | 24 /32nds | 240 mm |
| MICHELIN XZU 2 - 275/70R22.5 | Z | Urban Transport | 24 /32nds | 250 mm |
| MICHELIN XZU S - 275/70R22.5 | Z | Urban Transport | 26 /32nds | 230 mm |
| MICHELIN XZU S - 275/70R22.5 | Z | Urban Transport | 26 /32nds | 250 mm |
| MICHELIN XZU S - 275/70R22.5 | Z | Urban Transport | 26 /32nds | 220 mm |
| MICHELIN XZU S - 275/70R22.5 | Z | Urban Transport | 26 /32nds | 240 mm |
| MICHELIN X InCity HD Z - 275/70R22.5 | Z | Urban Transport | 27 /32nds | 220 mm |
| MICHELIN X InCity HD Z - 275/70R22.5 | Z | Urban Transport | 27 /32nds | 230 mm |
| MICHELIN X InCity HD Z - 275/70R22.5 | Z | Urban Transport | 27 /32nds | 240 mm |
| MICHELIN X InCity HD Z - 275/70R22.5 | Z | Urban Transport | 27 /32nds | 250 mm |
Technical Specifications
Technical Specifications
| Product | MICHELIN XINCITY EV Z [Michelin, Radial, Urban transportation, Urban bus] - 275/70R22.5 |
|---|---|
| Overall Diameter | 968 mm / 38.1 inch |
| Recommended Wheels | 7.5 |
| Approved Wheels | 8.25 |
| Min Dual Spacing | 310 mm / 12.2 inch |
| Tread depth | 22 32nds / 17.5 mm |
| Max Speed | 65 mph / 105 kmh |
| Max Load per Tire Single | 7830 lbs / 3550 kg |
| Loaded Radius | 448 mm / 17.6 inch |
| Seat diameter | 22.5 |
| Suitable for RV | No |
| CAI | 241377 |
| MSPN | 30103 |
Retread Offer
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN XZU 2 - 275/70R22.5 | Z | Urban Transport | 24 /32nds | 240 mm |
| MICHELIN XZU 2 - 275/70R22.5 | Z | Urban Transport | 24 /32nds | 250 mm |
| MICHELIN XZU S - 275/70R22.5 | Z | Urban Transport | 26 /32nds | 230 mm |
| MICHELIN XZU S - 275/70R22.5 | Z | Urban Transport | 26 /32nds | 250 mm |
| MICHELIN XZU S - 275/70R22.5 | Z | Urban Transport | 26 /32nds | 220 mm |
| MICHELIN XZU S - 275/70R22.5 | Z | Urban Transport | 26 /32nds | 240 mm |
| MICHELIN X InCity HD Z - 275/70R22.5 | Z | Urban Transport | 27 /32nds | 220 mm |
| MICHELIN X InCity HD Z - 275/70R22.5 | Z | Urban Transport | 27 /32nds | 230 mm |
| MICHELIN X InCity HD Z - 275/70R22.5 | Z | Urban Transport | 27 /32nds | 240 mm |
| MICHELIN X InCity HD Z - 275/70R22.5 | Z | Urban Transport | 27 /32nds | 250 mm |
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Semi-truck blog
DISCOVER OUR MICHELIN BLOG
Michelin For My Business is a free blog entirely dedicated to the transport community! You’ll find useful and inspiring stories, articles, podcasts, videos, webinars and practical guides. Join the community!
Product Legal Information
* “No bus shall be operated with regrooved, recapped or retreaded tires on the front wheels.” US Code of Federal Regulations: Title 49, Transportation; Part 393.75.
Product Benefit Legal Information
Traction
(1) Meets the USTMA (U.S. Tire Manufacturers Association) snow traction performance requirements. Meets the Tire and Rubber Association of Canada (TRAC) requirements for severe snow traction.
