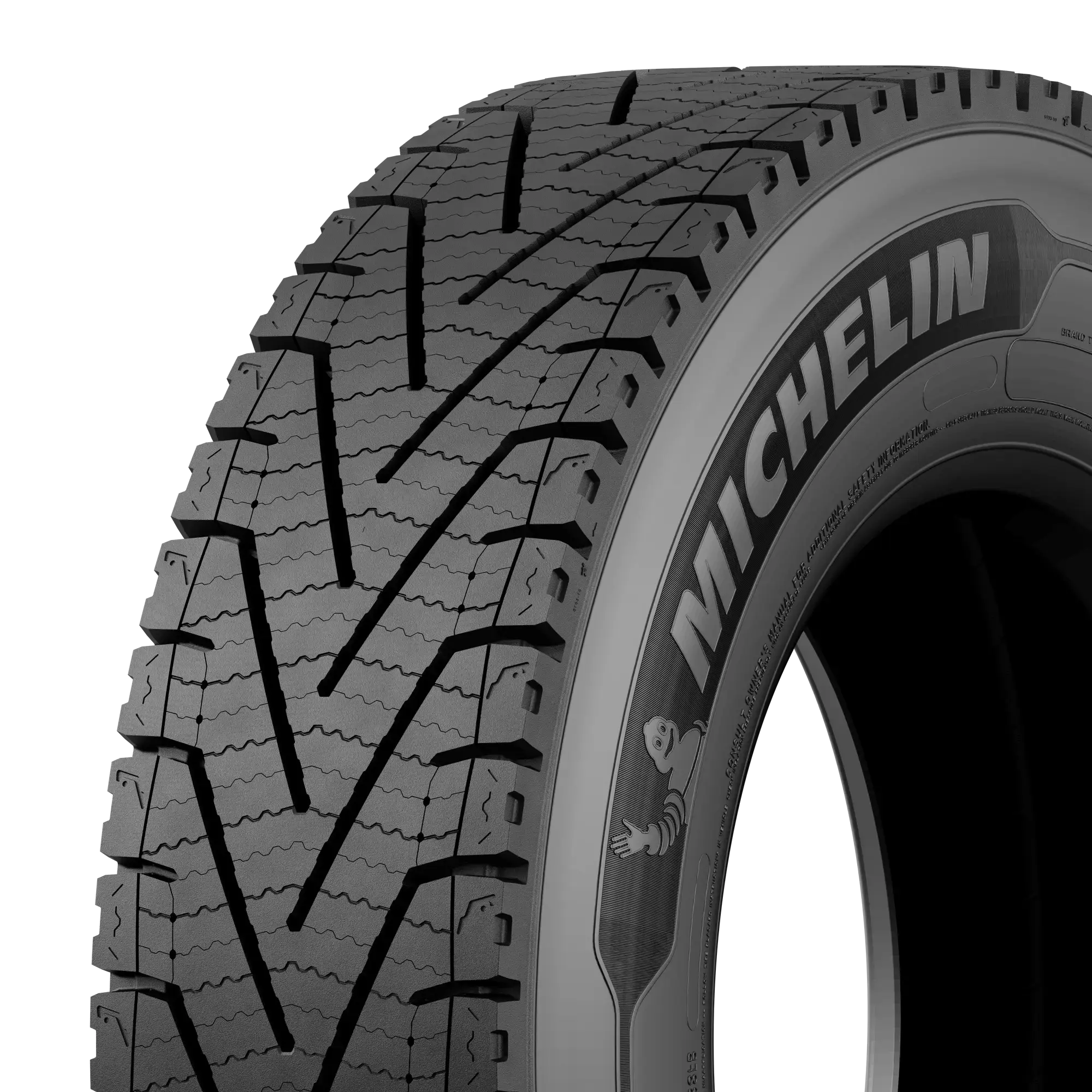

MICHELIN X LINE GRIP D
A drive tire that provides exceptional mileage, lasting traction and features a casing so durable it’s designed to reach up to 1 million miles with up to 4 retreads.
Vehicle Type
Heavy Truck/Tractor
Heavy Truck/Tractor
Usage of Application
Long Distance Transport, Regional Transport
Long Distance Transport
Regional Transport
Tire retreading, also known as recapping or remolding, is a process that involves replacing the worn tread of a used tire with a new tread. Retreading tires is perfect for fleets that want to cut their operating costs and environmental footprint. Learn how retreading your tires can have significant benefits on your business.
Why choose the MICHELIN X LINE GRIP D tire?
The Michelin X® Line Grip D tire delivers 20% more miles than the Michelin XDN2 tire.(1)
Explore Michelin technology and innovation designed to support your business, reducing your costs while respecting the environment.
Longevity

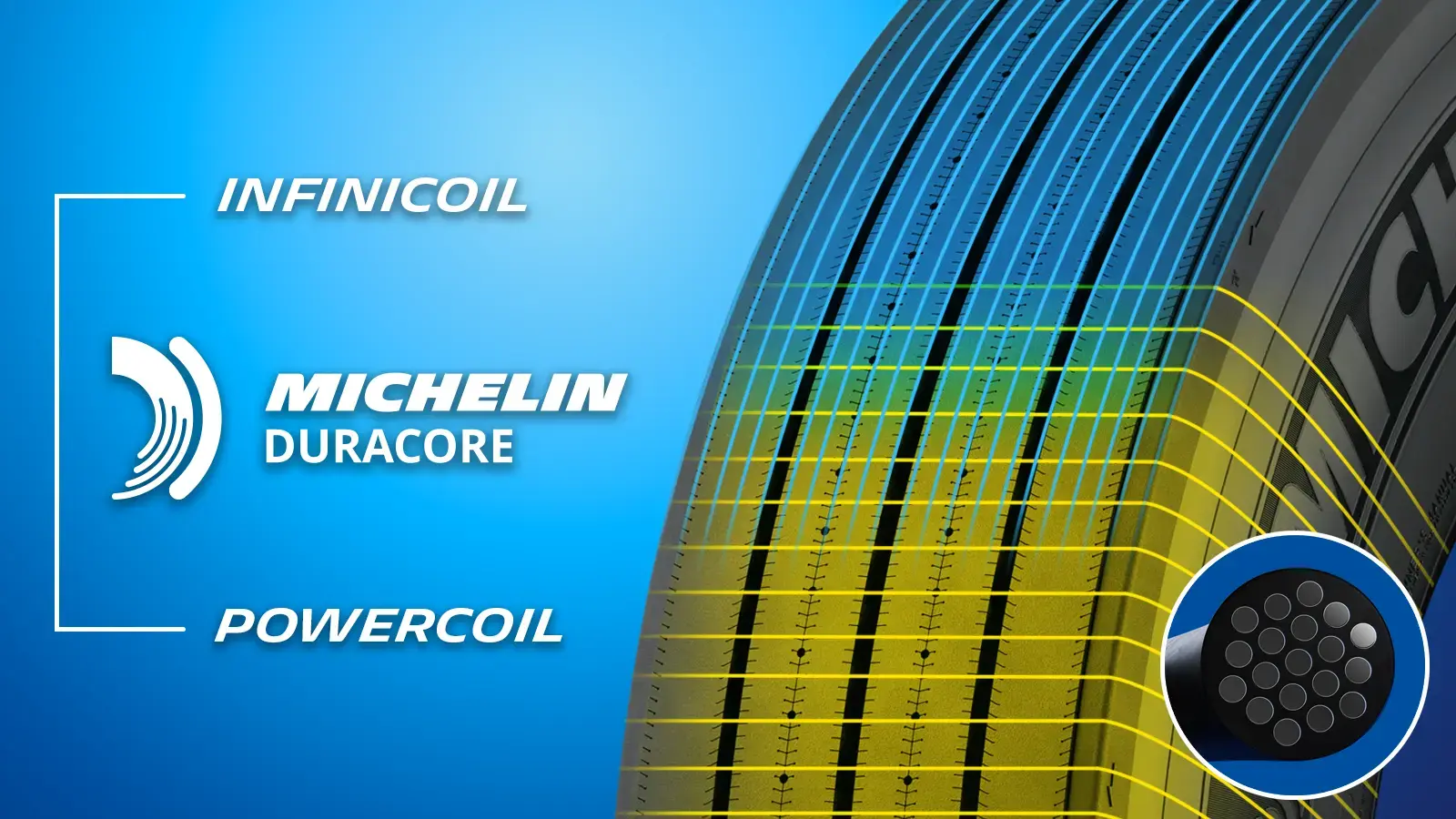

Long wear and casing life with Infini-Coil technology
1/8 mile steel cable wound circumferentially around the belt package to provide casing protection, consistent footprint and long, even wear.
Casing Durability
Long Casing Life
Casing ply made with high tensile steel cables infused with rubber to resist damage due to oxidation and friction for excellent casing durability and maximum retreading.
Traction

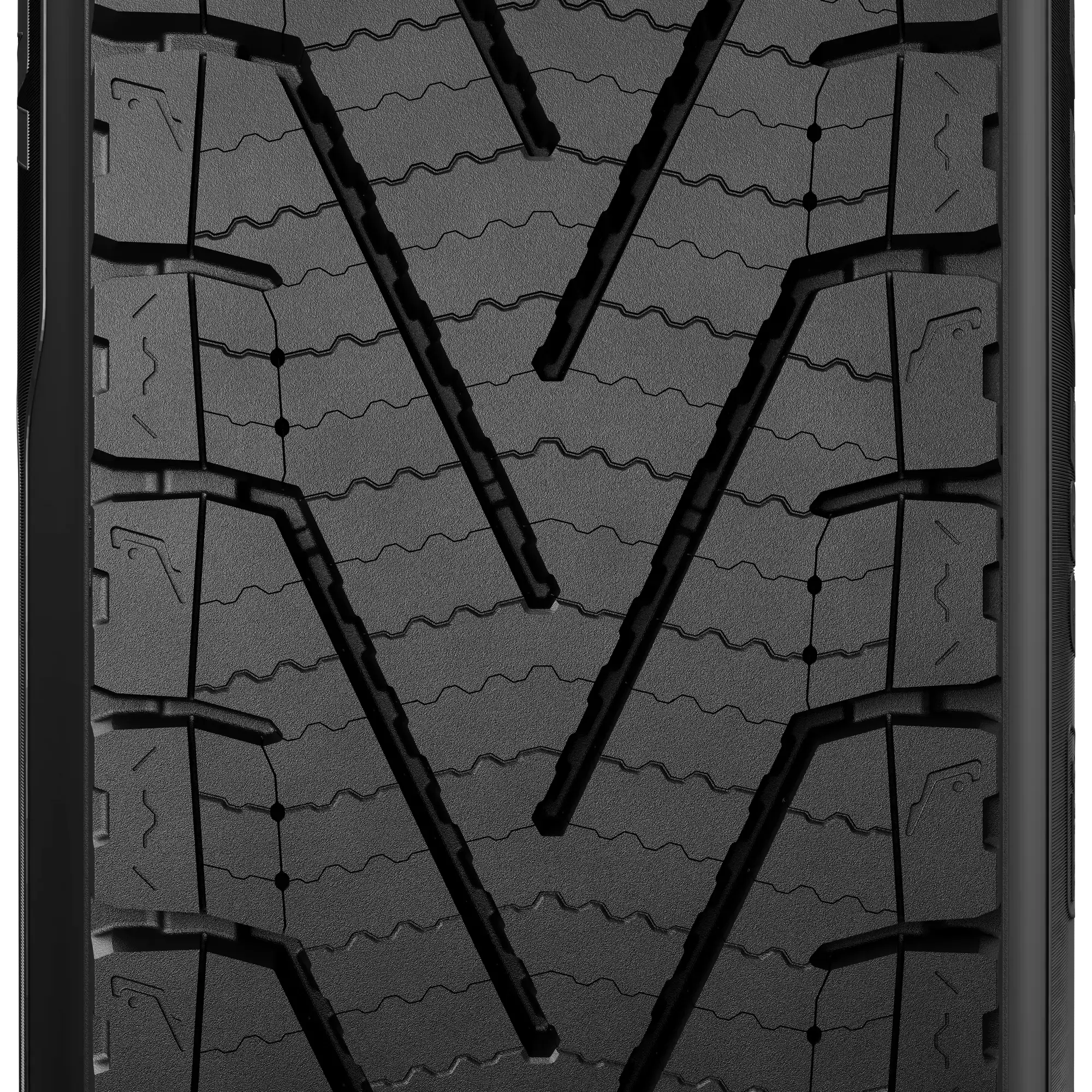

Advanced Tread Design
Compact tread design utilizing angled grooves designed to improve wear life as well as provide lasting traction in snowy and wet conditions.
Truck and bus calculators
CALCULATE YOUR POTENTIAL SAVINGS!
Calculate the benefits of Michelin tires for your business with one of our calculation simulators. From fuel savings to environmental impacts, discover all the advantages of Michelin products and their multiple benefits.
Tire Technical Specifications
Technical Specifications
| Product | MICHELIN X LINE GRIP D - 11R22.5 |
|---|---|
| Overall Diameter | 1059 mm / 41.7 inch |
| Recommended Wheels | 8.25 |
| Approved Wheels | 7.5 |
| Min Dual Spacing | 318 mm / 12.5 inch |
| Tread depth | 24 32nds / 19.0 mm |
| Max Speed | 75 mph / 121 kmh |
| Max Load per Tire Single | 6175 lbs / 2800 kg |
| Loaded Radius | 500.8 mm / 19.7 inch |
| Seat diameter | 22.5 |
| Suitable for RV | No |
| CAI | 961276 |
| MSPN | 26206 |
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN X Multi D - 11R22.5 | D | Regional Transport, Urban Transport | 896/32 nds | 230 mm |
| MICHELIN X Multi D - 11R22.5 | D | Regional Transport, Urban Transport | 896/32 nds | 220 mm |
| MICHELIN X Multi D - 11R22.5 | D | Regional Transport, Urban Transport | 896/32 nds | 240 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 576/32 nds | 190 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 576/32 nds | 200 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 640/32 nds | 210 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 640/32 nds | 220 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 640/32 nds | 230 mm |
| MICHELIN X Multi Energy D - 11R22.5 | D | Regional Transport | 672/32 nds | 240 mm |
| MICHELIN X Multi Energy D - 11R22.5 | D | Regional Transport | 672/32 nds | 230 mm |
| MICHELIN X Multi Energy D - 11R22.5 | D | Regional Transport | 672/32 nds | 220 mm |
| MICHELIN XD4 - 11R22.5 | D | Line Haul, Regional Transport | 896/32 nds | 220 mm |
| MICHELIN XD4 - 11R22.5 | D | Line Haul, Regional Transport | 896/32 nds | 230 mm |
| MICHELIN XD4 - 11R22.5 | D | Line Haul, Regional Transport | 896/32 nds | 210 mm |
| MICHELIN XDC 22 - 11R22.5 | D | Line Haul, Regional Transport | 704/32 nds | 211 mm |
| MICHELIN XDC 22 - 11R22.5 | D | Line Haul, Regional Transport | 704/32 nds | 225 mm |
| MICHELIN XDC 22 - 11R22.5 | D | Line Haul, Regional Transport | 704/32 nds | 219 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 210 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 220 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 230 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 240 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 250 mm |
| MICHELIN XDHT Siped - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 219 mm |
| MICHELIN XDHT Siped - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 211 mm |
| MICHELIN XDHT Siped - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 225 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 704/32 nds | 230 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 576/32 nds | 180 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 640/32 nds | 190 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 704/32 nds | 220 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 640/32 nds | 200 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 704/32 nds | 210 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 240 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 194 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 203 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 211 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 219 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 232 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 225 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 608/32 nds | 180 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 230 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 270 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 220 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 250 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 240 mm |
| MICHELIN XM+S4 - 11R22.5 | D | Line Haul, Regional Transport | 672/32 nds | 219 mm |
| MICHELIN XM+S4 - 11R22.5 | D | Line Haul, Regional Transport | 672/32 nds | 211 mm |
| MICHELIN XM+S4 - 11R22.5 | D | Line Haul, Regional Transport | 672/32 nds | 225 mm |
Technical Specifications
Technical Specifications
| Product | MICHELIN X LINE GRIP D - 11R22.5 |
|---|---|
| Overall Diameter | 1059 mm / 41.7 inch |
| Recommended Wheels | 8.25 |
| Approved Wheels | 7.5 |
| Min Dual Spacing | 318 mm / 12.5 inch |
| Tread depth | 24 32nds / 19.0 mm |
| Max Speed | 75 mph / 121 kmh |
| Max Load per Tire Single | 6175 lbs / 2800 kg |
| Loaded Radius | 500.8 mm / 19.7 inch |
| Seat diameter | 22.5 |
| Suitable for RV | No |
| CAI | 961276 |
| MSPN | 26206 |
Retread Offer
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN X Multi D - 11R22.5 | D | Regional Transport, Urban Transport | 896/32 nds | 230 mm |
| MICHELIN X Multi D - 11R22.5 | D | Regional Transport, Urban Transport | 896/32 nds | 220 mm |
| MICHELIN X Multi D - 11R22.5 | D | Regional Transport, Urban Transport | 896/32 nds | 240 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 576/32 nds | 190 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 576/32 nds | 200 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 640/32 nds | 210 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 640/32 nds | 220 mm |
| MICHELIN MD XDN2 - 11R22.5 | D | Regional Transport | 640/32 nds | 230 mm |
| MICHELIN X Multi Energy D - 11R22.5 | D | Regional Transport | 672/32 nds | 240 mm |
| MICHELIN X Multi Energy D - 11R22.5 | D | Regional Transport | 672/32 nds | 230 mm |
| MICHELIN X Multi Energy D - 11R22.5 | D | Regional Transport | 672/32 nds | 220 mm |
| MICHELIN XD4 - 11R22.5 | D | Line Haul, Regional Transport | 896/32 nds | 220 mm |
| MICHELIN XD4 - 11R22.5 | D | Line Haul, Regional Transport | 896/32 nds | 230 mm |
| MICHELIN XD4 - 11R22.5 | D | Line Haul, Regional Transport | 896/32 nds | 210 mm |
| MICHELIN XDC 22 - 11R22.5 | D | Line Haul, Regional Transport | 704/32 nds | 211 mm |
| MICHELIN XDC 22 - 11R22.5 | D | Line Haul, Regional Transport | 704/32 nds | 225 mm |
| MICHELIN XDC 22 - 11R22.5 | D | Line Haul, Regional Transport | 704/32 nds | 219 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 210 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 220 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 230 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 240 mm |
| MICHELIN XDS2+ - 11R22.5 | D | Regional Transport, Urban Transport | 800/32 nds | 250 mm |
| MICHELIN XDHT Siped - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 219 mm |
| MICHELIN XDHT Siped - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 211 mm |
| MICHELIN XDHT Siped - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 225 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 704/32 nds | 230 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 576/32 nds | 180 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 640/32 nds | 190 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 704/32 nds | 220 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 640/32 nds | 200 mm |
| MICHELIN XDE M/S - 11R22.5 | D | Regional Transport | 704/32 nds | 210 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 240 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 194 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 203 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 211 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 219 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 232 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 736/32 nds | 225 mm |
| MICHELIN XDHT - 11R22.5 | D | Line Haul, Regional Transport | 608/32 nds | 180 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 230 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 270 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 220 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 250 mm |
| MICHELIN XDN 2 - 11R22.5 | D | Line Haul, Regional Transport | 864/32 nds | 240 mm |
| MICHELIN XM+S4 - 11R22.5 | D | Line Haul, Regional Transport | 672/32 nds | 219 mm |
| MICHELIN XM+S4 - 11R22.5 | D | Line Haul, Regional Transport | 672/32 nds | 211 mm |
| MICHELIN XM+S4 - 11R22.5 | D | Line Haul, Regional Transport | 672/32 nds | 225 mm |
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
