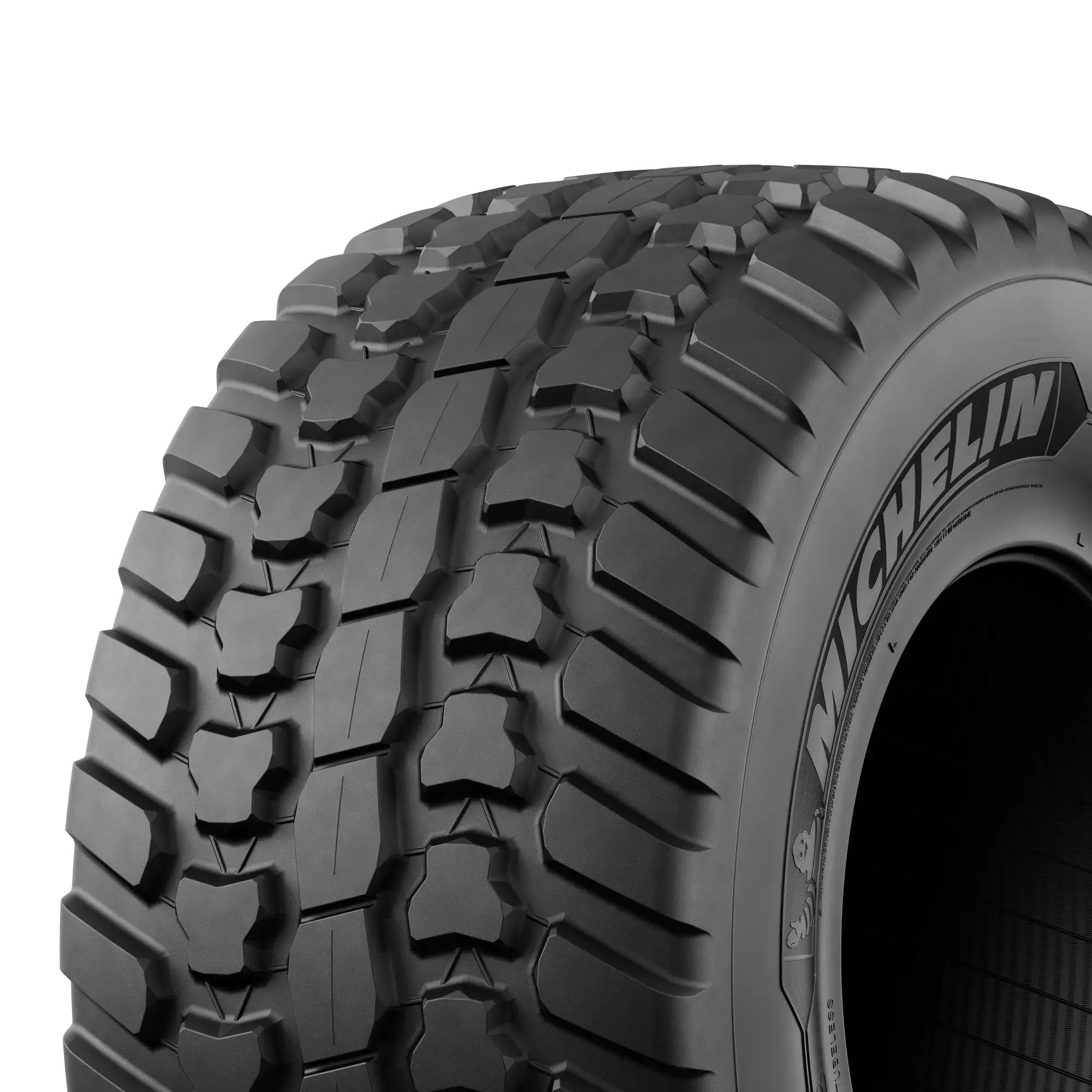

MICHELIN CARGOXBIB HIGH FLOTATION

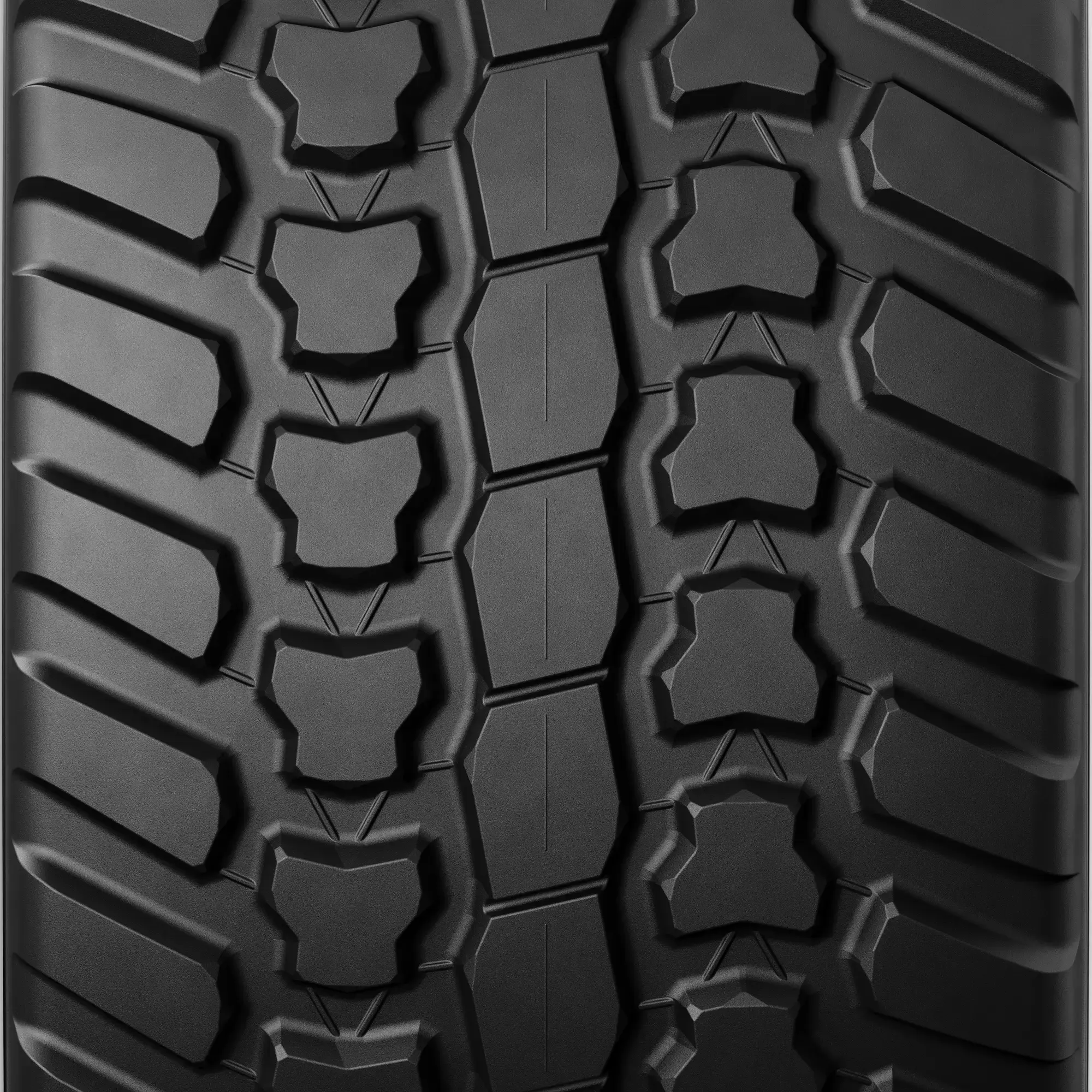

Engineered for agricultural trailers, providing superior flotation and minimal soil compaction. Its wide footprint and advanced tread design ensure excellent load distribution, making it ideal for heavy loads in wet and soft soil conditions, while also offering durability and long service life.
CTIS (Central Tire Inflation System) is a convenient inflation system allowing the driver to adjust your vehicle's tire pressure from the cab - without leaving your seat. Discover the benefits and how CTIS works.
Why choose the MICHELIN CARGOXBIB HIGH FLOTATION tire?
Productivity
Load Capacity
Durability
MICHELIN CARGOXBIB HIGH FLOTATION Technology
Tire Technical Specifications
Technical Specifications
| Product | MICHELIN CARGOXBIB HIGH FLOTATION - 710/45R22.5 |
|---|---|
| Overall Diameter | 1208 mm / 48 inch |
| Recommended Wheels | AG24.00(H2)x22.5 |
| Approved Wheels | AG20.00(H2)x22.5 |
| Minimum dual spacing | 910 mm / 35.83 inch |
| Tread depth | 16 mm / 19/32 nds |
| Loaded radius | 514 mm |
| CAI | 723051 |
| MSPN | 06153 |
| Load Index | 165 |
| Speed Index | D |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
0.8 12 |
0.9 13 |
1 15 |
1.2 17 |
1.5 22 |
1.8 26 |
2.1 30 |
2.4 35 |
2.7 39 |
3 44 |
3.2 46 |
3.4 49 |
3.6 52 |
3.8 55 |
4 58 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||||||
|
10 km/h 6 mph |
2970 6548 |
3430 7562 |
3890 8576 |
4322.8569335938 9530 |
4972.1430664062 10962 |
5621.4287109375 12393 |
6270.7143554688 13825 |
6920 15256 |
7360.625 16227 |
7801.25 17199 |
8095 17846 |
8388.75 18494 |
8682.5 19142 |
8976.25 19789 |
9270 20437 |
|
25 km/h 16 mph |
2610 5754 |
2930 6460 |
3250 7165 |
3651.4284667969 8050 |
4253.5712890625 9378 |
4855.7143554688 10705 |
5457.8569335938 12033 |
6060 13360 |
6450 14220 |
6840 15080 |
7100 15653 |
7360 16226 |
7620 16799 |
7880 17372 |
8140 17946 |
|
40 km/h 25 mph |
2250 4960 |
2525 5567 |
2800 6173 |
3145.7143554688 6935 |
3664.2856445312 8078 |
4182.8569335938 9222 |
4701.4287109375 10365 |
5220 11508 |
5553.75 12244 |
5887.5 12980 |
6110 13470 |
6332.5 13961 |
6555 14451 |
6777.5 14942 |
7000 15432 |
|
50 km/h 31 mph |
2000 4409 |
2245 4949 |
2490 5490 |
2797.1428222656 6167 |
3257.8571777344 7182 |
3718.5715332031 8198 |
4179.2856445312 9214 |
4640 10229 |
4938.125 10887 |
5236.25 11544 |
5435 11982 |
5633.75 12420 |
5832.5 12858 |
6031.25 13297 |
6230 13735 |
|
65 km/h 40 mph |
1650 3638 |
1855 4090 |
2060 4542 |
2314.2856445312 5102 |
2695.7143554688 5943 |
3077.1428222656 6784 |
3458.5715332031 7625 |
3840 8466 |
4085.625 9007 |
4331.25 9549 |
4495 9910 |
4658.75 10271 |
4822.5 10632 |
4986.25 10993 |
5150 11354 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.
Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN CARGOXBIB HIGH FLOTATION - 710/45R22.5 |
|---|---|
| Overall Diameter | 1208 mm / 48 inch |
| Recommended Wheels | AG24.00(H2)x22.5 |
| Approved Wheels | AG20.00(H2)x22.5 |
| Minimum dual spacing | 910 mm / 35.83 inch |
| Tread depth | 16 mm / 19/32 nds |
| Loaded radius | 514 mm |
| CAI | 723051 |
| MSPN | 06153 |
| Load Index | 165 |
| Speed Index | D |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
0.8 12 |
0.9 13 |
1 15 |
1.2 17 |
1.5 22 |
1.8 26 |
2.1 30 |
2.4 35 |
2.7 39 |
3 44 |
3.2 46 |
3.4 49 |
3.6 52 |
3.8 55 |
4 58 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||||||
|
10 km/h 6 mph |
2970 6548 |
3430 7562 |
3890 8576 |
4322.8569335938 9530 |
4972.1430664062 10962 |
5621.4287109375 12393 |
6270.7143554688 13825 |
6920 15256 |
7360.625 16227 |
7801.25 17199 |
8095 17846 |
8388.75 18494 |
8682.5 19142 |
8976.25 19789 |
9270 20437 |
|
25 km/h 16 mph |
2610 5754 |
2930 6460 |
3250 7165 |
3651.4284667969 8050 |
4253.5712890625 9378 |
4855.7143554688 10705 |
5457.8569335938 12033 |
6060 13360 |
6450 14220 |
6840 15080 |
7100 15653 |
7360 16226 |
7620 16799 |
7880 17372 |
8140 17946 |
|
40 km/h 25 mph |
2250 4960 |
2525 5567 |
2800 6173 |
3145.7143554688 6935 |
3664.2856445312 8078 |
4182.8569335938 9222 |
4701.4287109375 10365 |
5220 11508 |
5553.75 12244 |
5887.5 12980 |
6110 13470 |
6332.5 13961 |
6555 14451 |
6777.5 14942 |
7000 15432 |
|
50 km/h 31 mph |
2000 4409 |
2245 4949 |
2490 5490 |
2797.1428222656 6167 |
3257.8571777344 7182 |
3718.5715332031 8198 |
4179.2856445312 9214 |
4640 10229 |
4938.125 10887 |
5236.25 11544 |
5435 11982 |
5633.75 12420 |
5832.5 12858 |
6031.25 13297 |
6230 13735 |
|
65 km/h 40 mph |
1650 3638 |
1855 4090 |
2060 4542 |
2314.2856445312 5102 |
2695.7143554688 5943 |
3077.1428222656 6784 |
3458.5715332031 7625 |
3840 8466 |
4085.625 9007 |
4331.25 9549 |
4495 9910 |
4658.75 10271 |
4822.5 10632 |
4986.25 10993 |
5150 11354 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
