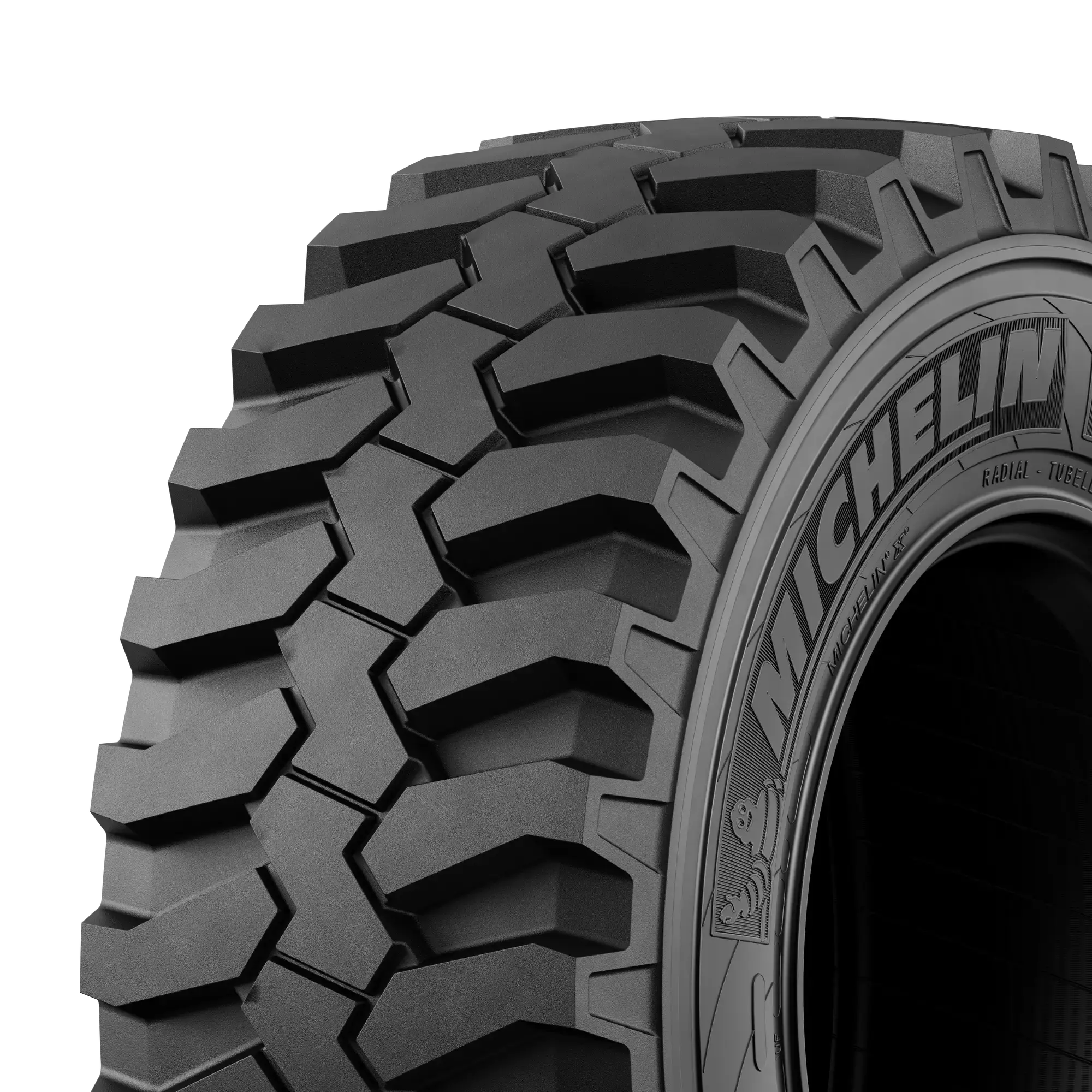

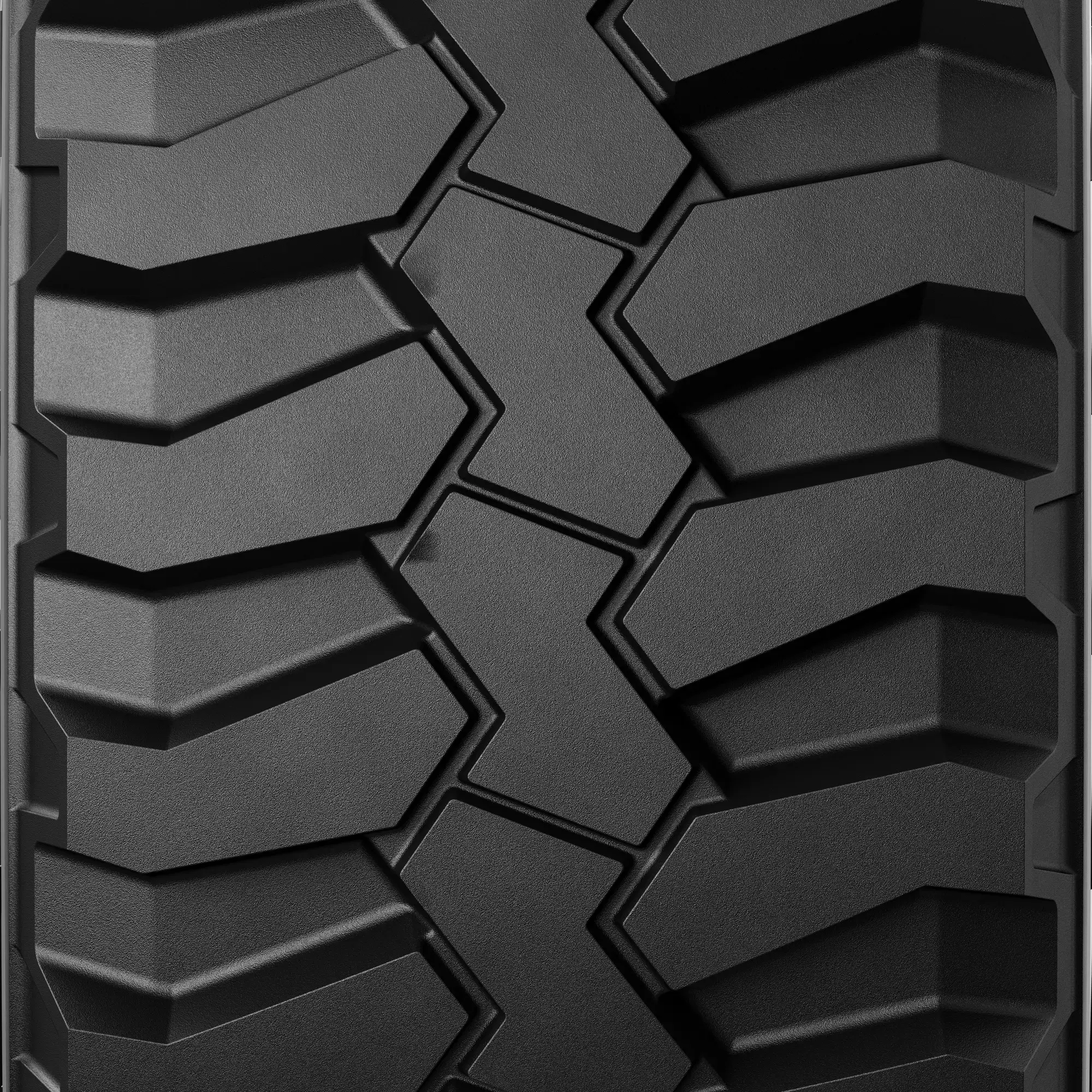

MICHELIN BIBSTEEL HARD SURFACE
All-steel and steel-casing-construction radial skid-steer tire built from superior rubber compound technology and optimized for hard surfaces like concrete and asphalt.
CTIS (Central Tire Inflation System) is a convenient inflation system allowing the driver to adjust your vehicle's tire pressure from the cab - without leaving your seat. Discover the benefits and how CTIS works.
Why choose the MICHELIN BIBSTEEL HARD SURFACE tire?
Comfort
Durability
Tire Life
MICHELIN BIBSTEEL HARD SURFACE Technology
Tire Technical Specifications
Technical Specifications
| Product | MICHELIN BIBSTEEL HARD SURFACE - 260/70R16.5 |
|---|---|
| Overall Diameter | 773 mm / 30 inch |
| Recommended Wheels | 8.25x16.5 |
| Minimum dual spacing | 360 mm / 14.17 inch |
| Tread depth | 18 mm / 22/32 nds |
| Loaded radius | 355 mm |
| CAI | 275538 |
| MSPN | 38281 |
| Load Index | 129 |
| Speed Index | A8 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
1.5 22 |
1.8 26 |
2.2 32 |
2.6 38 |
3 44 |
3.2 46 |
3.4 49 |
3.6 52 |
3.8 55 |
4 58 |
4.2 61 |
4.4 64 |
4.6 67 |
4.8 70 |
5 73 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||||||
|
0 km/h 0 mph |
1590 3505 |
1809 3988 |
2107.5 4646 |
2412.5 5319 |
2717.5 5991 |
2870 6327 |
3023.8889160156 6667 |
3177.7778320312 7006 |
3331.6667480469 7345 |
3485.5556640625 7684 |
3639.4443359375 8024 |
3793.3332519531 8363 |
3947.2221679688 8702 |
4101.111328125 9041 |
4255 9381 |
|
25 km/h 16 mph |
760 1676 |
868 1914 |
1015 2238 |
1165 2568 |
1315 2899 |
1390 3064 |
1463.8889160156 3227 |
1537.7778320312 3390 |
1611.6666259766 3553 |
1685.5555419922 3716 |
1759.4444580078 3879 |
1833.3333740234 4042 |
1907.2221679688 4205 |
1981.1110839844 4368 |
2055 4530 |
|
40 km/h 25 mph |
690 1521 |
786 1733 |
916.66668701172 2021 |
1050 2315 |
1183.3333740234 2609 |
1250 2756 |
1316.6666259766 2903 |
1383.3333740234 3050 |
1450 3197 |
1516.6666259766 3344 |
1583.3333740234 3491 |
1650 3638 |
1716.6666259766 3785 |
1783.3333740234 3932 |
1850 4079 |
|
50 km/h 31 mph |
690 1521 |
786 1733 |
916.66668701172 2021 |
1050 2315 |
1183.3333740234 2609 |
1250 2756 |
1316.6666259766 2903 |
1383.3333740234 3050 |
1450 3197 |
1516.6666259766 3344 |
1583.3333740234 3491 |
1650 3638 |
1716.6666259766 3785 |
1783.3333740234 3932 |
1850 4079 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.
Technical data is subject to change without prior notice.
Technical Specifications
| Product | MICHELIN BIBSTEEL HARD SURFACE - 260/70R16.5 |
|---|---|
| Overall Diameter | 773 mm / 30 inch |
| Recommended Wheels | 8.25x16.5 |
| Minimum dual spacing | 360 mm / 14.17 inch |
| Tread depth | 18 mm / 22/32 nds |
| Loaded radius | 355 mm |
| CAI | 275538 |
| MSPN | 38281 |
| Load Index | 129 |
| Speed Index | A8 |
Pressure (bar and psi) & Load (kg and lbs)
|
bar psi |
1.5 22 |
1.8 26 |
2.2 32 |
2.6 38 |
3 44 |
3.2 46 |
3.4 49 |
3.6 52 |
3.8 55 |
4 58 |
4.2 61 |
4.4 64 |
4.6 67 |
4.8 70 |
5 73 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| (kg - lbs) | |||||||||||||||
|
0 km/h 0 mph |
1590 3505 |
1809 3988 |
2107.5 4646 |
2412.5 5319 |
2717.5 5991 |
2870 6327 |
3023.8889160156 6667 |
3177.7778320312 7006 |
3331.6667480469 7345 |
3485.5556640625 7684 |
3639.4443359375 8024 |
3793.3332519531 8363 |
3947.2221679688 8702 |
4101.111328125 9041 |
4255 9381 |
|
25 km/h 16 mph |
760 1676 |
868 1914 |
1015 2238 |
1165 2568 |
1315 2899 |
1390 3064 |
1463.8889160156 3227 |
1537.7778320312 3390 |
1611.6666259766 3553 |
1685.5555419922 3716 |
1759.4444580078 3879 |
1833.3333740234 4042 |
1907.2221679688 4205 |
1981.1110839844 4368 |
2055 4530 |
|
40 km/h 25 mph |
690 1521 |
786 1733 |
916.66668701172 2021 |
1050 2315 |
1183.3333740234 2609 |
1250 2756 |
1316.6666259766 2903 |
1383.3333740234 3050 |
1450 3197 |
1516.6666259766 3344 |
1583.3333740234 3491 |
1650 3638 |
1716.6666259766 3785 |
1783.3333740234 3932 |
1850 4079 |
|
50 km/h 31 mph |
690 1521 |
786 1733 |
916.66668701172 2021 |
1050 2315 |
1183.3333740234 2609 |
1250 2756 |
1316.6666259766 2903 |
1383.3333740234 3050 |
1450 3197 |
1516.6666259766 3344 |
1583.3333740234 3491 |
1650 3638 |
1716.6666259766 3785 |
1783.3333740234 3932 |
1850 4079 |
**IMPORTANT
The inflation pressure must always be appropriate for the load per tire, the speed of travel and the work to be done. Our recommendations above are provided subject to change.
Technical data is subject to change without prior notice.
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
