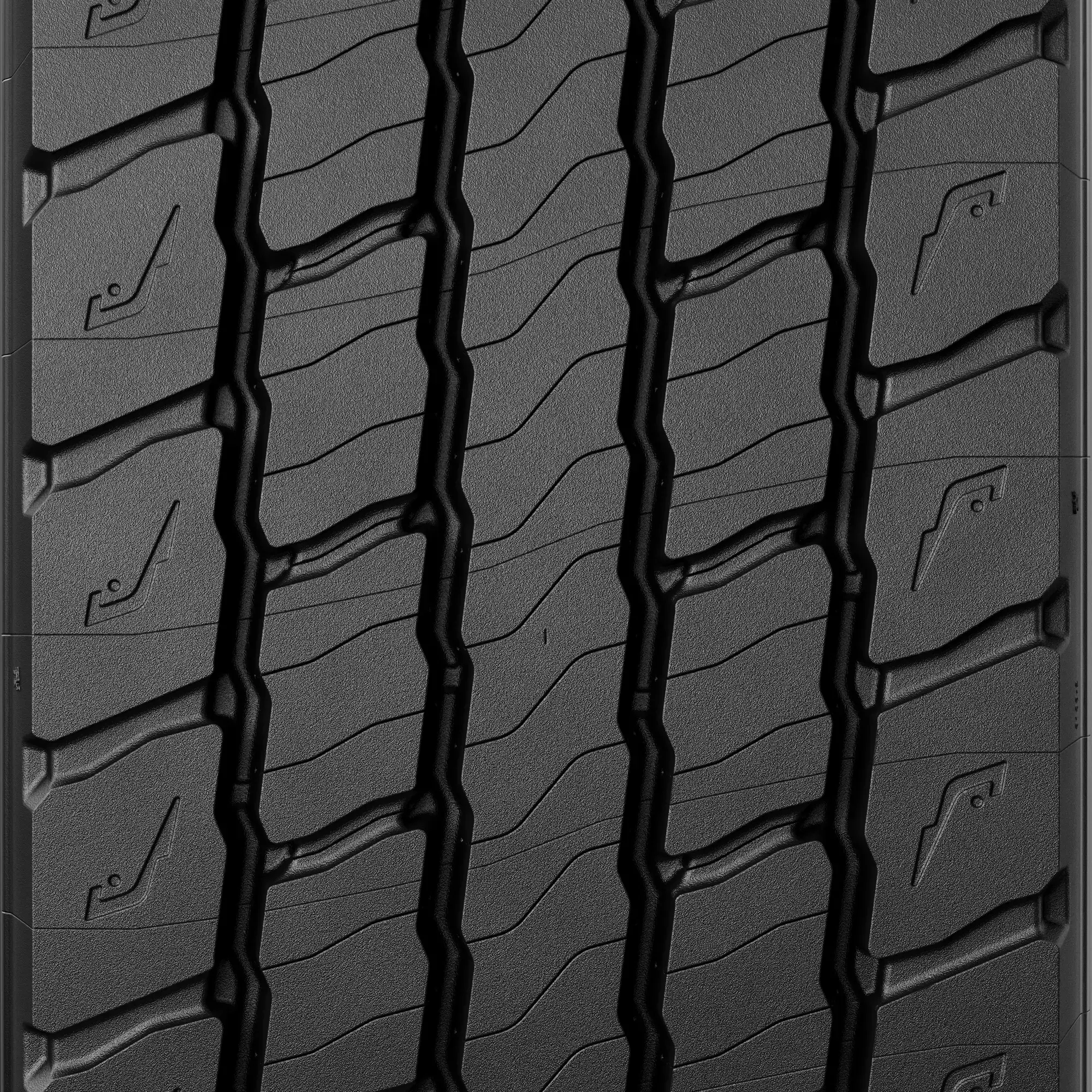

MICHELIN X® LINE ENERGY™ D+
Michelin’s most fuel efficient(*) dual drive tire, the X® LINE ENERGY™ D+ features a casing designed to reach up to 1 million miles with up to 4 retreads.
Tire retreading, also known as recapping or remolding, is a process that involves replacing the worn tread of a used tire with a new tread. Retreading tires is perfect for fleets that want to cut their operating costs and environmental footprint. Learn how retreading your tires can have significant benefits on your business.
Why choose the MICHELIN X® LINE ENERGY™ D+ tire?
Total Cost of Ownership
Traction
Casing Durability
CO2 Emissions
Truck and bus calculators
MICHELIN X® LINE ENERGY™ D+ Technology
Tire Technical Specifications
Technical Specifications
| Product | MICHELIN X LINE ENERGY D+ - 11R22.5 |
|---|---|
| Overall Diameter | 1054 mm / 41.5 inch |
| Recommended Wheels | 8.25 |
| Approved Wheels | 7.5 |
| Min Dual Spacing | 300 mm / 11.8 inch |
| Tread depth | 21 32nds / 16.7 mm |
| Max Speed | 75 mph / 121 kmh |
| Max Load per Tire Single | 6175 lbs / 2800 kg |
| Loaded Radius | 493.8 mm / 19.4 inch |
| Seat diameter | 22.5 |
| Suitable for RV | No |
| CAI | 142288 |
| MSPN | 51317 |
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 21 /32nds | 230 mm |
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 21 /32nds | 240 mm |
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 21 /32nds | 220 mm |
Technical Specifications
| Product | MICHELIN X LINE ENERGY D+ - 11R22.5 |
|---|---|
| Overall Diameter | 1054 mm / 41.5 inch |
| Recommended Wheels | 8.25 |
| Approved Wheels | 7.5 |
| Min Dual Spacing | 300 mm / 11.8 inch |
| Tread depth | 21 32nds / 16.7 mm |
| Max Speed | 75 mph / 121 kmh |
| Max Load per Tire Single | 6175 lbs / 2800 kg |
| Loaded Radius | 493.8 mm / 19.4 inch |
| Seat diameter | 22.5 |
| Suitable for RV | No |
| CAI | 142288 |
| MSPN | 51317 |
Retread Offer
| Retread Name | Position | Application | Tread Depth | Tread Width |
|---|---|---|---|---|
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 21 /32nds | 230 mm |
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 21 /32nds | 240 mm |
| MICHELIN X Line Energy D - 11R22.5 | D | Line Haul | 21 /32nds | 220 mm |
Tire Product Sheet and Databook
Find the technical and commercial specifications downloadable documents below.
Related Services and Solutions
Semi-truck blog
DISCOVER OUR MICHELIN BLOG
(*) Calculated based on internal ISO28580 rolling resistance testing; 275/80R22.5 LRG X® Line Energy™ D+ vs. 275/80R22.5 LRG X® Line Energy™ D.
Total Cost of Ownership
(1) Calculated based on internal ISO28580 rolling resistance testing; 275/80R22.5 LRG X® Line Energy™ D+ vs. 275/80R22.5 LRG X® Line Energy™ D.
Traction
(2) Based on internal wet braking test at 60 mph (97 kph) on asphalt measuring peak Mu, using the Michelin X® Line Energy™ D+ tire, Bridgestone M713 Ecopia tire, Goodyear Fuel Max® LHD® 2, and Continental® HDL2+ tire. All tires were size 295/75R22.5. Actual on-road results may vary.
CO2 Emissions
*Based on internal ISO 28580 rolling resistance testing using size 275/80R22.5 LRG.
(4) Based on internal tests against SmartWay® requirements. For more information on SmartWay® verified technologies, go to US: www.epa.gov/smartway or CA: https://www.nrcan.gc.ca.
(3) This statement is for standards on low roof applications as it pertains to Green House Gas 2 standards.
