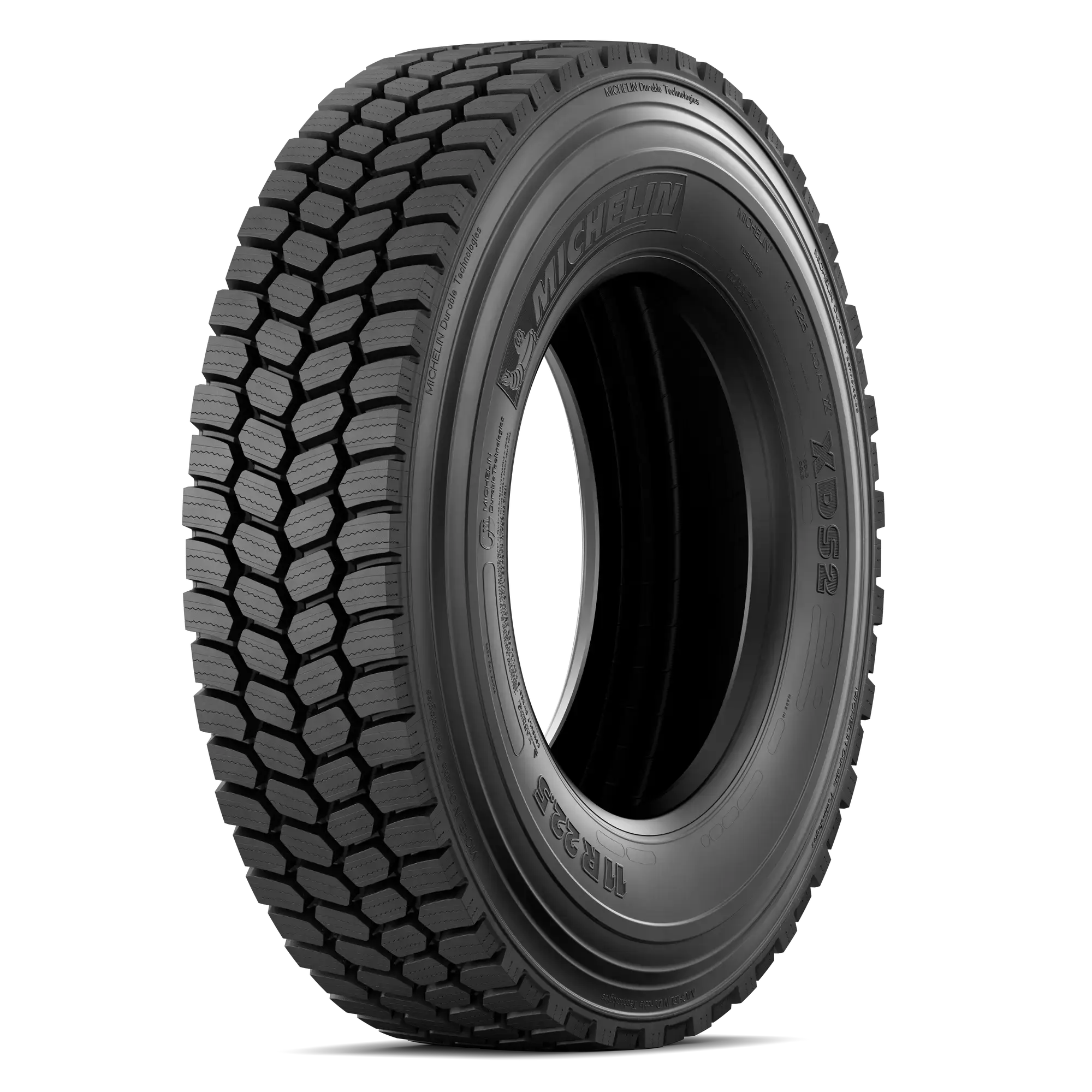

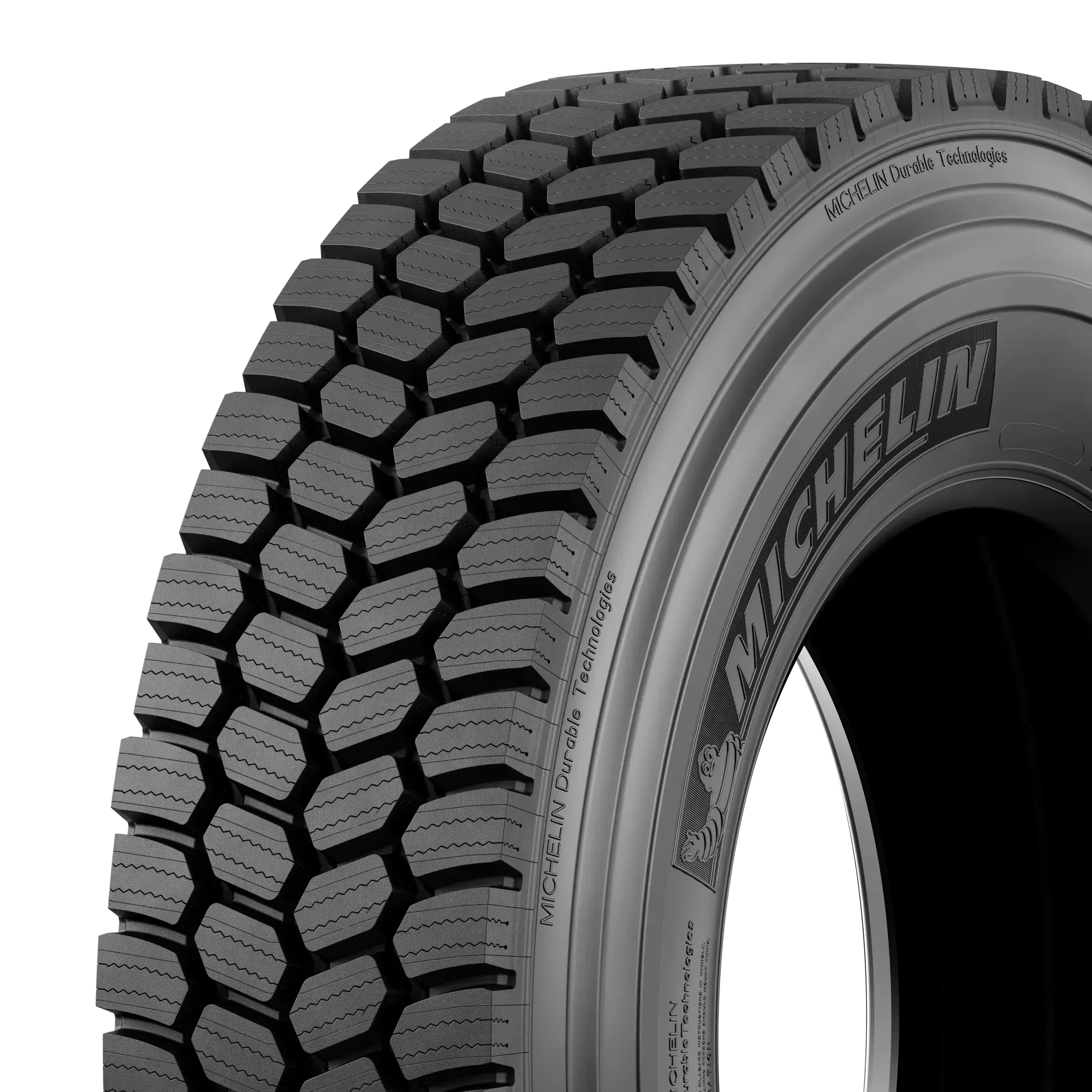

MICHELIN XDS 2 Standard Sizes

Close
MICHELIN
XDS 2 Standard Sizes
Select a size
Back
Select a size
  • 11R22.5 H
  • 11R24.5 H
Close
MICHELIN
XDS 2 Standard Sizes
Select a size
Back
Select a size
  • 11R22.5 H
  • 11R24.5 H

WHY THIS TIRE?

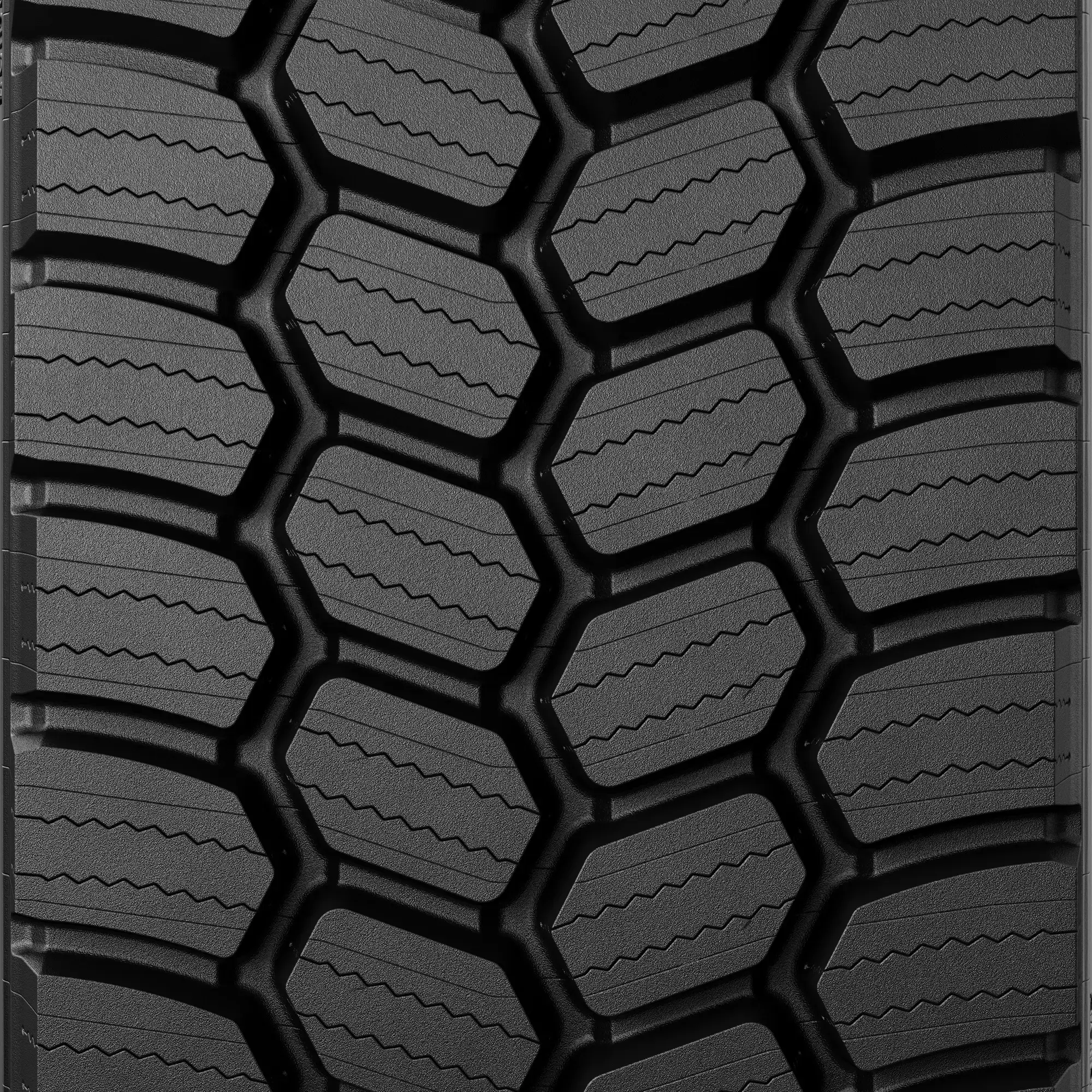

Rugged directional tread design helps boost snow and ice traction and helps reduce heel/toe wear typically associated with open shoulder designs.

Michelin Durable Technology's Matrix 3-Dimensional siping for enhanced stability and exceptional traction in both dry and slippery conditions.

Extra robust four-belt crown package with extra wide working plies help deliver exceptional casing life.

Full-width elastic protector ply and extra thick rubber under the tread help protect the working plies from shocks, bruises and impacts.

SipeSaver teardrop at the base of the sipes relieves stresses and helps prevent tearing.

BENEFITS AND FEATURES

1. Application Specific Compounds
Driver Confidence – Designed to deliver maximum traction in snow conditions.

2. Extra Thick Sidewall and Shoulder
Long Tread Life – Delivers extra protection against shocks and impacts.

3. Sipe Saver Technology
Long Tread Life – A teardrop at the base of the shoulder sipe relieves stress and helps prevent tearing.

4. Matrix Siping
Traction and Even Wear – Full depth, interlocking sipes with zig-zag walls to provide thousands of biting edges for traction, and lug-like performance for even wear.

5. Directional Tread Design
Long Tread Life – Offers protection against irregular wear.

6. Rectangular Bead Bundle
Casing Durability – Simulates a solid steel rod "strapping" the tire onto the wheel. This design stabilizes the entire bead region and minimizes fatigue in order to extend casing life.

Michelin XDS 2 Standard Sizes

Michelin XDS 2 Standard Sizes

REFERENCE MATERIALS - DOCUMENTS

XDS 2 (Standard Sizes) Product Sheet

Michelin Truck Tire Warranty

Michelin Truck Tire Reference Chart

Michelin Truck Tire Data Book

Keep Moving with Michelin

Technical Specifications

MICHELIN XDS2 - 11R22.5
1065 mm / 41.9 inch
8.25
7.50
318.0 mm / 12.5 inch
26 32nds / 20.6 mm
65 mph / 105 kmh
6610 lbs / 3000 kg
497.5 mm / 19.6 inch
22.5
No
166182
05359

Retread Offer

Retread Name Position Application Tread Depth Tread Width
MICHELIN MD XDN2 - 11R22.5 D Regional Transport 18/32 nds 190 mm
MICHELIN MD XDN2 - 11R22.5 D Regional Transport 18/32 nds 200 mm
MICHELIN MD XDN2 - 11R22.5 D Regional Transport 20/32 nds 210 mm
MICHELIN MD XDN2 - 11R22.5 D Regional Transport 20/32 nds 220 mm
MICHELIN MD XDN2 - 11R22.5 D Regional Transport 20/32 nds 230 mm
MICHELIN X Multi D - 11R22.5 D Regional Transport, Urban Transport 28/32 nds 230 mm
MICHELIN X Multi D - 11R22.5 D Regional Transport, Urban Transport 28/32 nds 220 mm
MICHELIN X Multi D - 11R22.5 D Regional Transport, Urban Transport 28/32 nds 240 mm
MICHELIN X Multi Energy D - 11R22.5 D Regional Transport 21/32 nds 240 mm
MICHELIN X Multi Energy D - 11R22.5 D Regional Transport 21/32 nds 230 mm
MICHELIN X Multi Energy D - 11R22.5 D Regional Transport 21/32 nds 220 mm
MICHELIN XD4 - 11R22.5 D Line Haul, Regional Transport 28/32 nds 220 mm
MICHELIN XD4 - 11R22.5 D Line Haul, Regional Transport 28/32 nds 230 mm
MICHELIN XD4 - 11R22.5 D Line Haul, Regional Transport 28/32 nds 210 mm
MICHELIN XDC 22 - 11R22.5 D Line Haul, Regional Transport 22/32 nds 211 mm
MICHELIN XDC 22 - 11R22.5 D Line Haul, Regional Transport 22/32 nds 225 mm
MICHELIN XDC 22 - 11R22.5 D Line Haul, Regional Transport 22/32 nds 219 mm
MICHELIN XDE M/S - 11R22.5 D Regional Transport 22/32 nds 230 mm
MICHELIN XDE M/S - 11R22.5 D Regional Transport 18/32 nds 180 mm
MICHELIN XDE M/S - 11R22.5 D Regional Transport 20/32 nds 190 mm
MICHELIN XDE M/S - 11R22.5 D Regional Transport 22/32 nds 220 mm
MICHELIN XDE M/S - 11R22.5 D Regional Transport 20/32 nds 200 mm
MICHELIN XDE M/S - 11R22.5 D Regional Transport 22/32 nds 210 mm
MICHELIN XDHT - 11R22.5 D Line Haul, Regional Transport 23/32 nds 240 mm
MICHELIN XDHT - 11R22.5 D Line Haul, Regional Transport 23/32 nds 194 mm
MICHELIN XDHT - 11R22.5 D Line Haul, Regional Transport 23/32 nds 203 mm
MICHELIN XDHT - 11R22.5 D Line Haul, Regional Transport 23/32 nds 211 mm
MICHELIN XDHT - 11R22.5 D Line Haul, Regional Transport 23/32 nds 219 mm
MICHELIN XDHT - 11R22.5 D Line Haul, Regional Transport 23/32 nds 232 mm
MICHELIN XDHT - 11R22.5 D Line Haul, Regional Transport 23/32 nds 225 mm
MICHELIN XDHT - 11R22.5 D Line Haul, Regional Transport 19/32 nds 180 mm
MICHELIN XDHT Siped - 11R22.5 D Line Haul, Regional Transport 23/32 nds 219 mm
MICHELIN XDHT Siped - 11R22.5 D Line Haul, Regional Transport 23/32 nds 211 mm
MICHELIN XDHT Siped - 11R22.5 D Line Haul, Regional Transport 23/32 nds 225 mm
MICHELIN XDN 2 - 11R22.5 D Line Haul, Regional Transport 27/32 nds 230 mm
MICHELIN XDN 2 - 11R22.5 D Line Haul, Regional Transport 27/32 nds 270 mm
MICHELIN XDN 2 - 11R22.5 D Line Haul, Regional Transport 27/32 nds 220 mm
MICHELIN XDN 2 - 11R22.5 D Line Haul, Regional Transport 27/32 nds 250 mm
MICHELIN XDN 2 - 11R22.5 D Line Haul, Regional Transport 27/32 nds 240 mm
MICHELIN XDS2+ - 11R22.5 D Regional Transport, Urban Transport 25/32 nds 210 mm
MICHELIN XDS2+ - 11R22.5 D Regional Transport, Urban Transport 25/32 nds 220 mm
MICHELIN XDS2+ - 11R22.5 D Regional Transport, Urban Transport 25/32 nds 230 mm
MICHELIN XDS2+ - 11R22.5 D Regional Transport, Urban Transport 25/32 nds 240 mm
MICHELIN XDS2+ - 11R22.5 D Regional Transport, Urban Transport 25/32 nds 250 mm
MICHELIN XM+S4 - 11R22.5 D Line Haul, Regional Transport 21/32 nds 219 mm
MICHELIN XM+S4 - 11R22.5 D Line Haul, Regional Transport 21/32 nds 211 mm
MICHELIN XM+S4 - 11R22.5 D Line Haul, Regional Transport 21/32 nds 225 mm
Legal Notices

(1) Calculated based on internal ISO28580 rolling resistance testing; Michelin X® Multi Energy™ T2 tire vs. Bridgestone R196A tire, Goodyear Endurance RST tire, and Continental Hybrid HT3 tire; all 11R22.5 size tires.

(2) Based on wear projections in an internal study of 5 fleets in regional usage at 50% worn, 59% removed, 256 total tires, 5/32” pull point, 295/75R22.5 LRG Michelin X® Multi Energy™ T2 vs. 275/80R22.5 LRG Michelin XTE (equivalent sizes). Actual on-road results may vary.
